Simpson Strong-Tie THDB62800H6SS Titen HD (5/8" x 8") Heavy-Duty SS Screw Anchor - Type 316 (10 Pack)
Free Shipping
$208.01
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie THDB62800H6SS Description

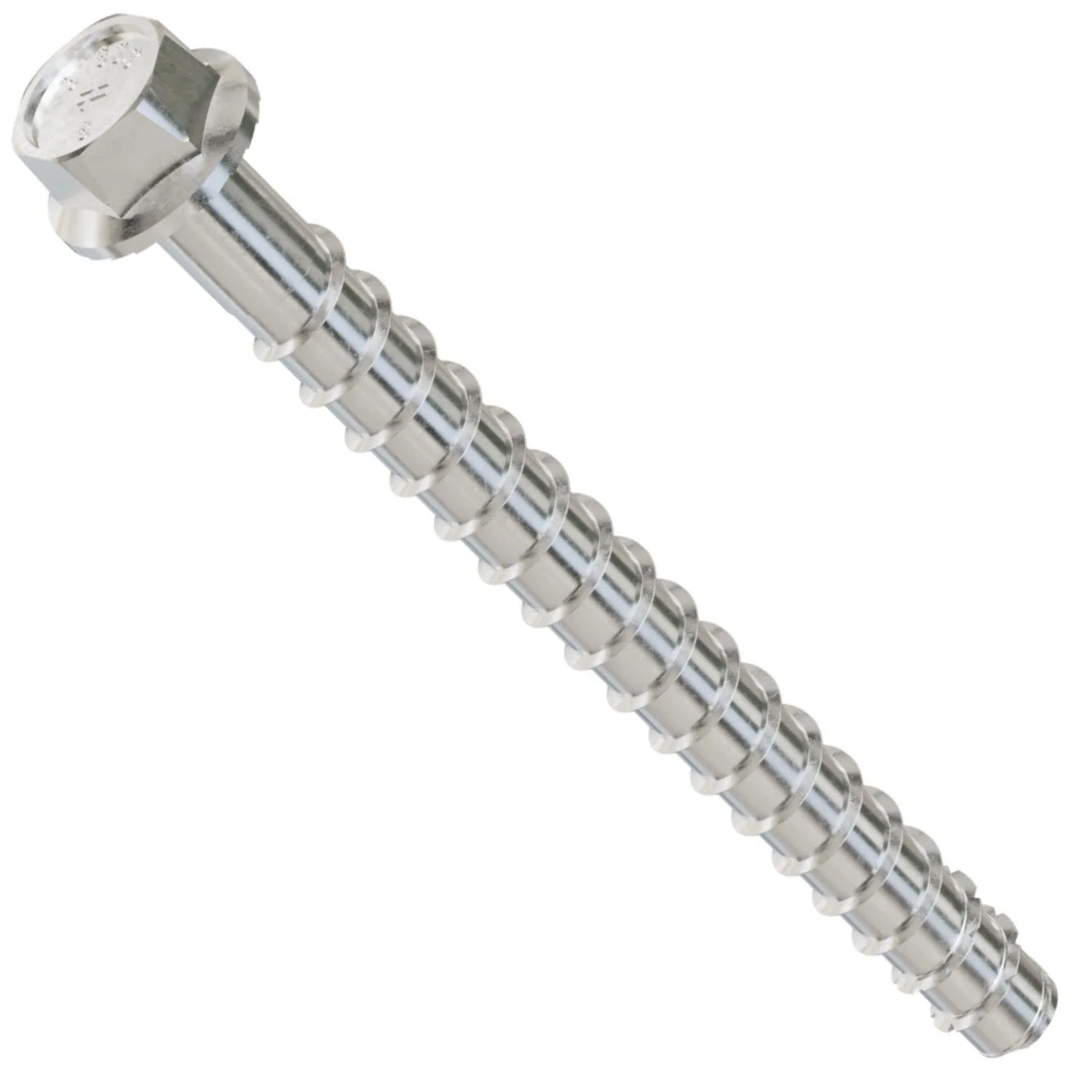

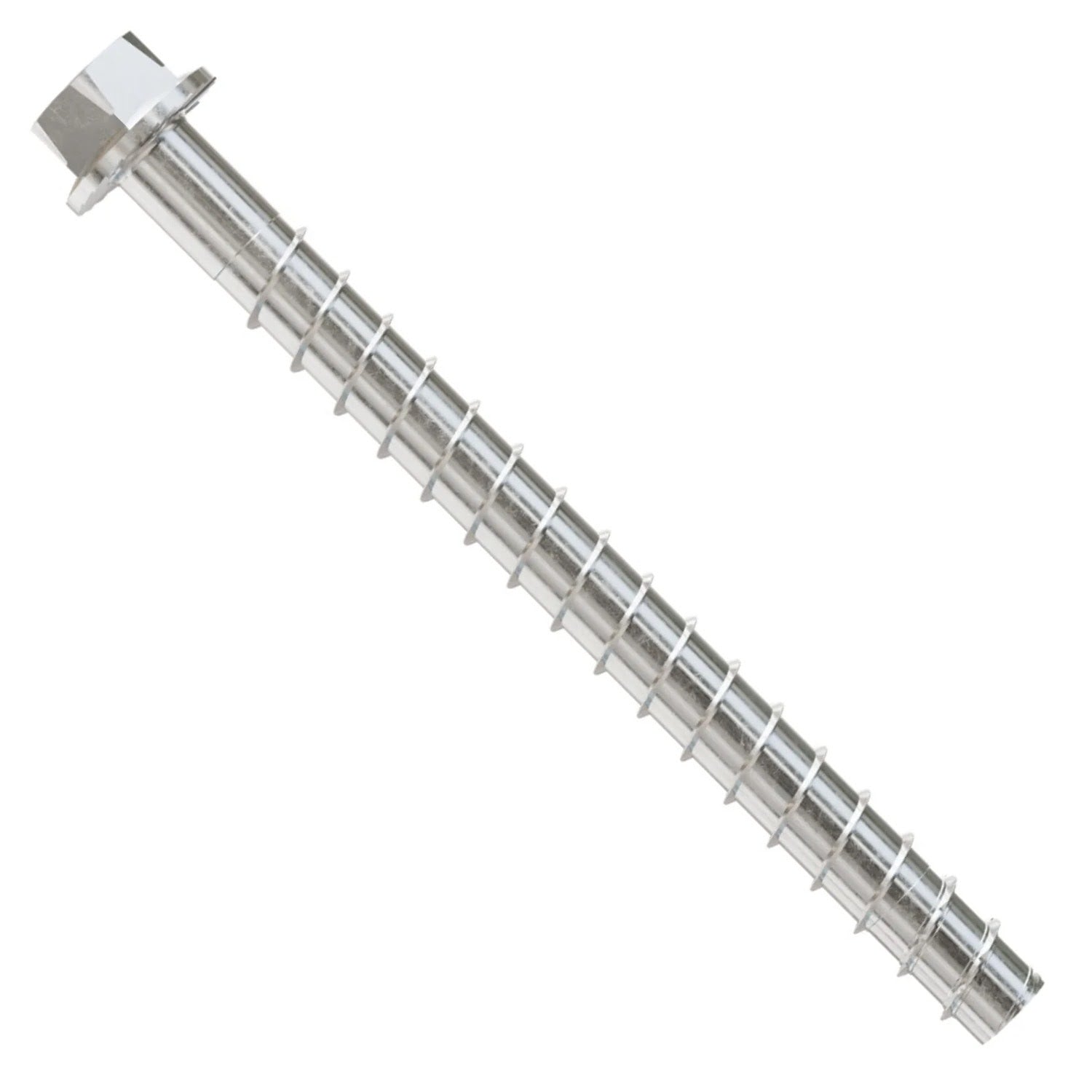

The Titen HD Screw Anchor is a self-undercutting, non-expansion screw anchor designed for quick and easy installation. Made from 316 stainless steel, it offers superior corrosion resistance, making it ideal for outdoor applications.
Simpson Strong-Tie THDB62800H6SS Includes
- (10) Titen HD Screw Anchor 5/8 in. x 8 in.
Simpson Strong-Tie THDB62800H6SS Features
- Self-undercutting design for secure anchoring
- Non-expansion mechanism to prevent base material damage
- 316 stainless steel for excellent corrosion resistance
- Patented thread design with serrated cutting teeth for easy installation
- Tested in accordance with ACI355.2, AC193, and AC106
Simpson Strong-Tie THDB62800H6SS Applications
- Outdoor applications requiring corrosion-resistant anchoring
- Mechanical, electrical, and plumbing installations
- Structural anchoring in concrete and masonry
Simpson Strong-Tie THDB62800H6SS Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor until the hex-washer head contacts the fixture.
Simpson Strong-Tie THDB62800H6SS Specifications
| Material | 316 Stainless Steel |
| Diameter | 5/8 in. |
| Length | 8 in. |
| Drill Bit Size | 5/8 in. |
| Drive Type | 15/16 in. Hex |
| Fixture Hole Size | 3/4 in. - 13/16 in. |
| Head Type | Hex Head |
| Quantity | 10 |
NOTE: Use the correct fasteners in the specified positions to achieve the published load values.
