Simpson Anchors | SKU:
THDB62800WHMG

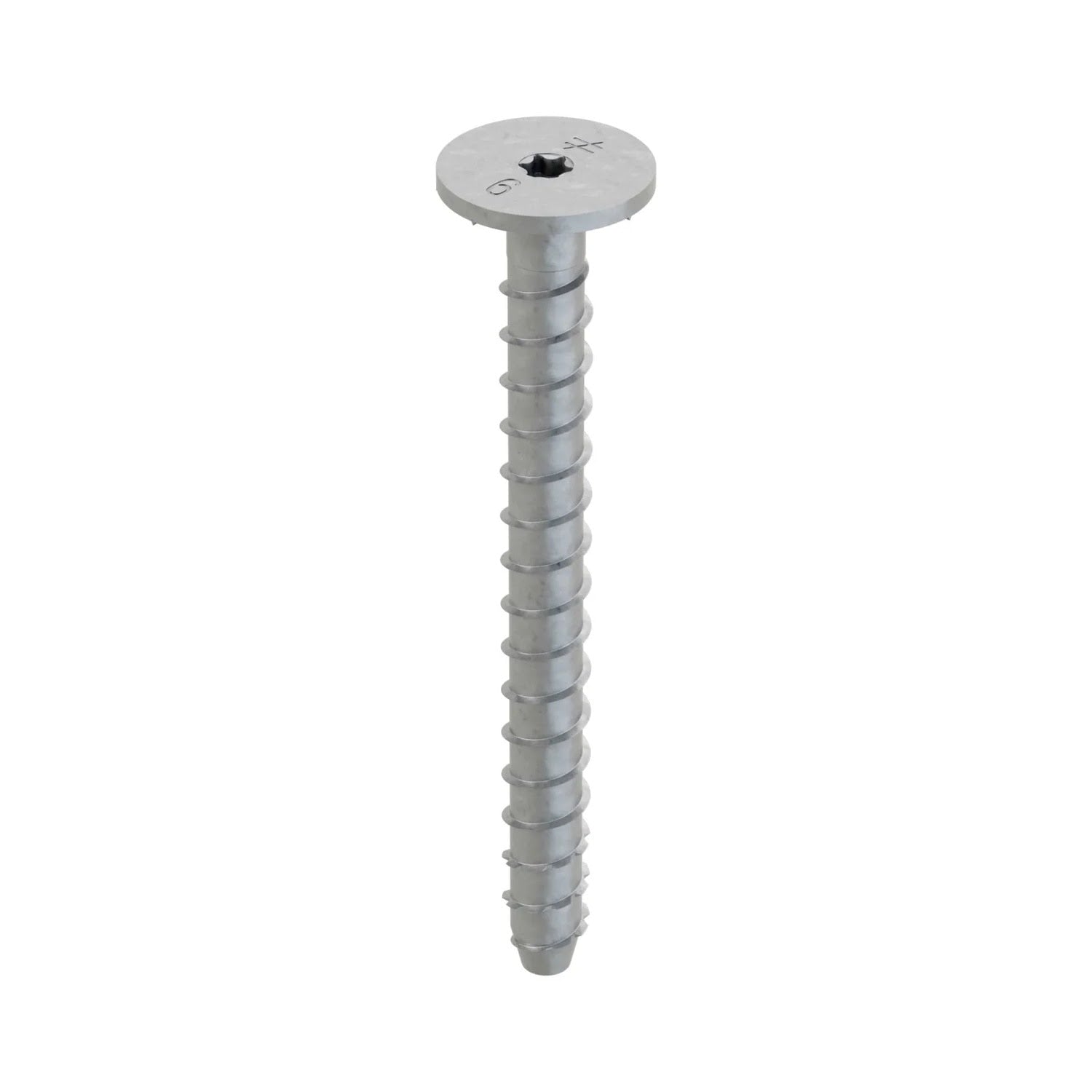

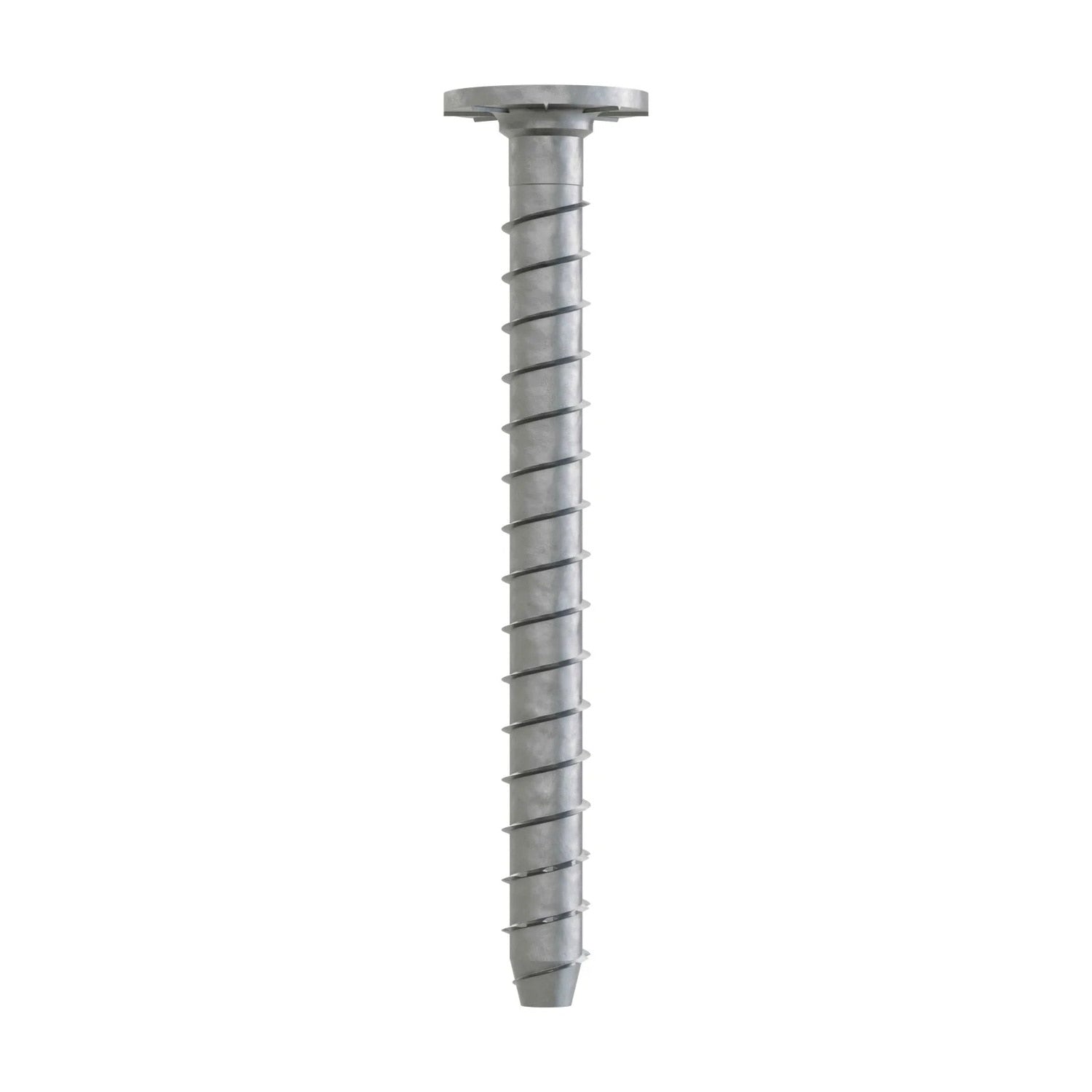

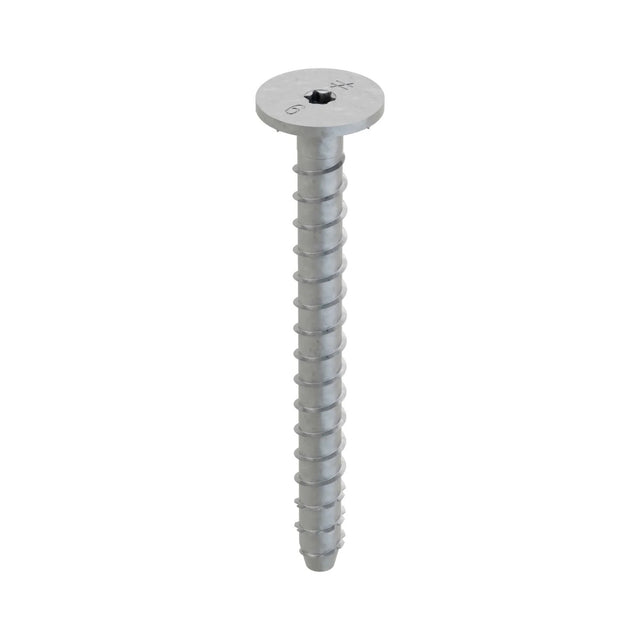

Simpson Strong-Tie THDB62800WHMG Titen HD (5/8" x 8") Mechanically Galvanized Washer-Head HD Screw Anchor (10 Pack)
$163.23
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie THDB62800WHMG Description
Titen HD screw anchors are high-strength anchors designed for quick and easy installation in cracked and uncracked concrete applications.
Simpson Strong-Tie THDB62800WHMG Includes
- (10) 5/8 in. x 8 in. Screw Anchor
- (1) 1/2-in. socket adapter
- (2) T-drive bits
Simpson Strong-Tie THDB62800WHMG Features
- Qualified in accordance with ICC-ES AC193 and ACI 355.2 for cracked and uncracked concrete for static, wind, and seismic loading conditions

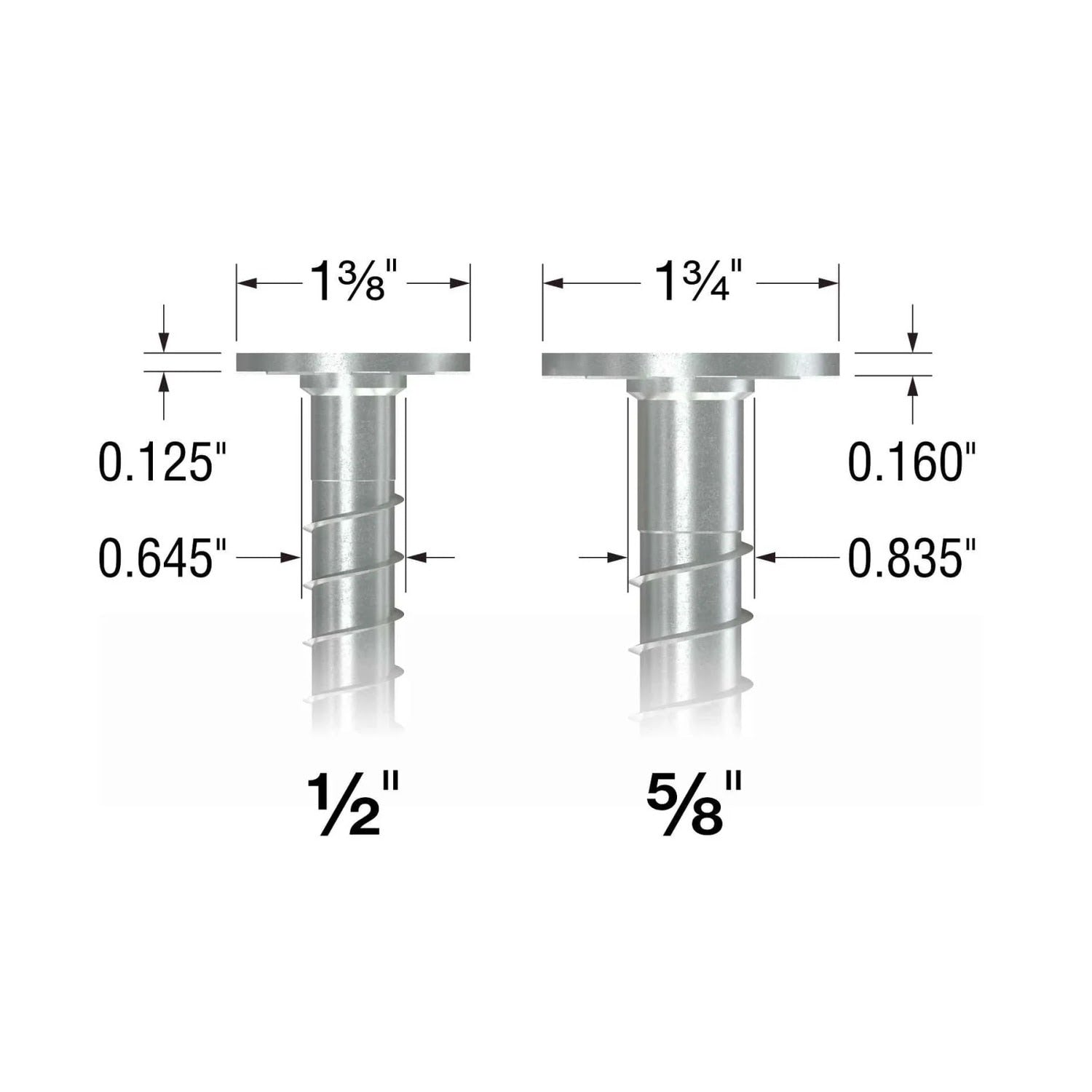

- Available in 1/2" and 5/8" diameters
- Standard fractional sizes — the hole size matches the anchor size
- No special drill bit required — designed to install using standard-sized ANSI tolerance drill bits
- Removable — ideal for temporary anchoring or applications where fixtures may need to be moved
- Washer head allows screw anchor applications incompatible with a hex head
- Mechanically galvanized Titen HD is code listed for exterior applications
Simpson Strong-Tie THDB62800WHMG Applications

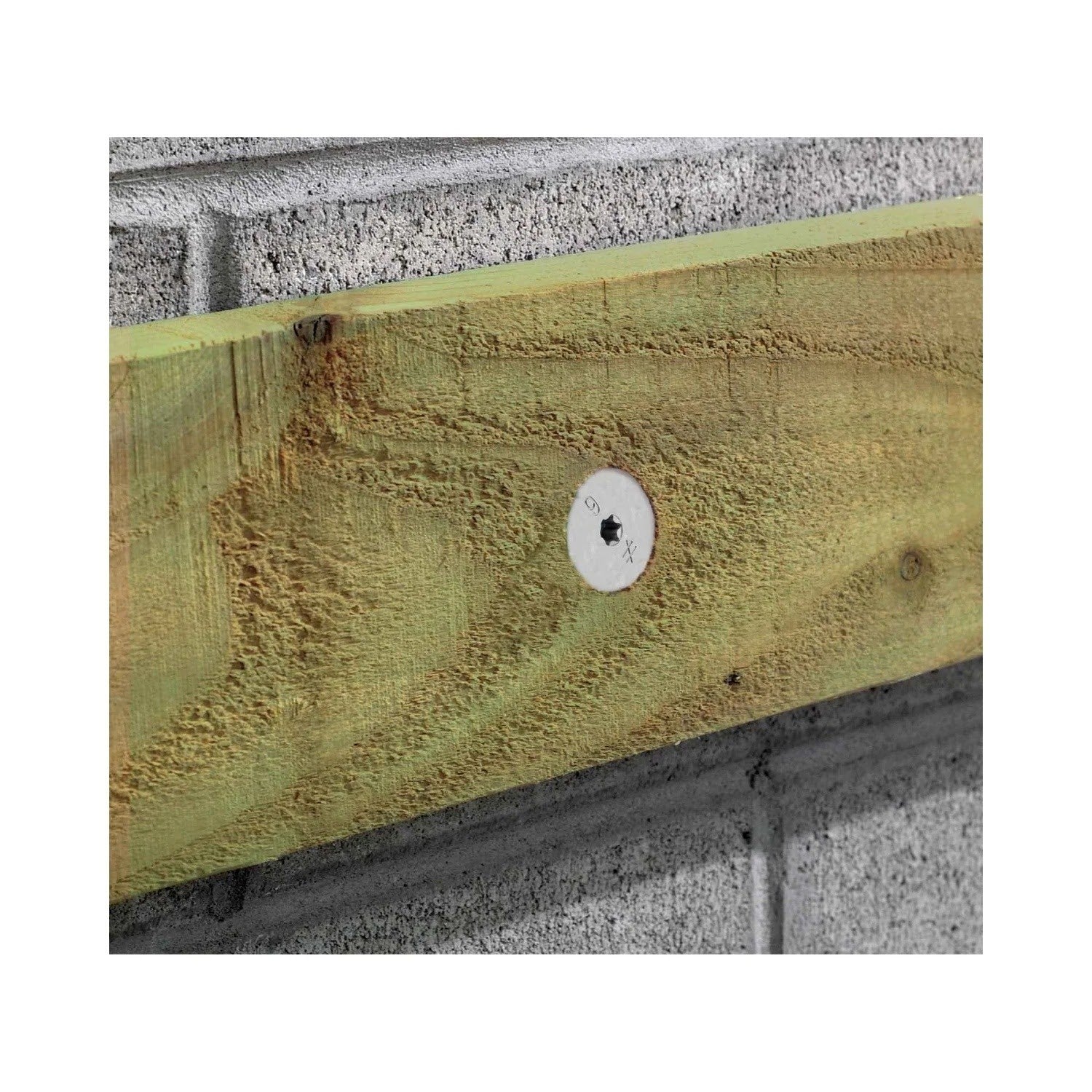

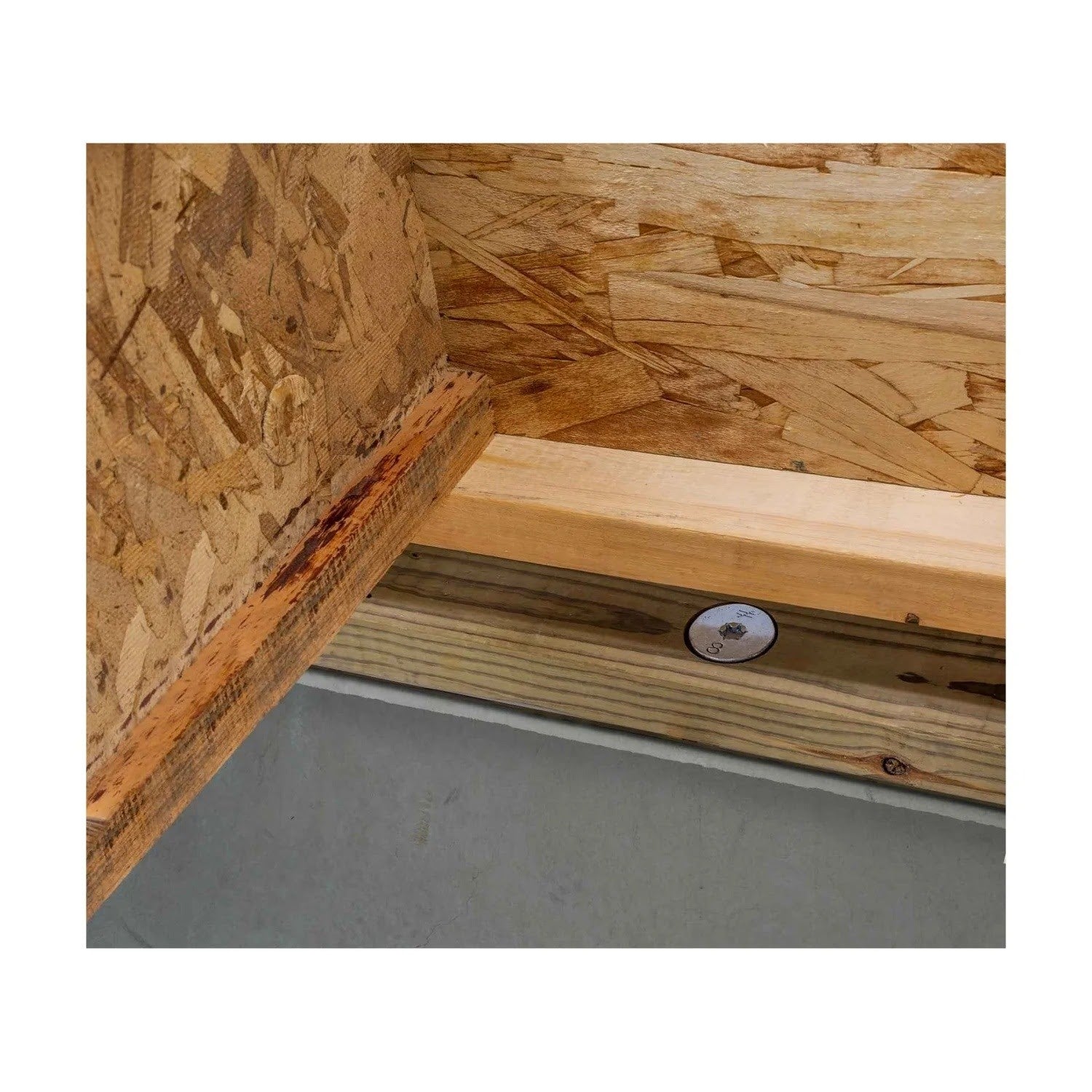

- Concrete anchoring for structural and non-structural applications
- Temporary anchoring where fixtures may need to be moved
- Exterior applications requiring corrosion resistance
Simpson Strong-Tie THDB62800WHMG Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor into the base material until the washer head contacts the fixture.
Simpson Strong-Tie THDB62800WHMG Specifications
| Material | Carbon Steel |
| Finish | Mechanically Galvanized |
| Length | 8 in. |
| Diameter | 5/8 in. |

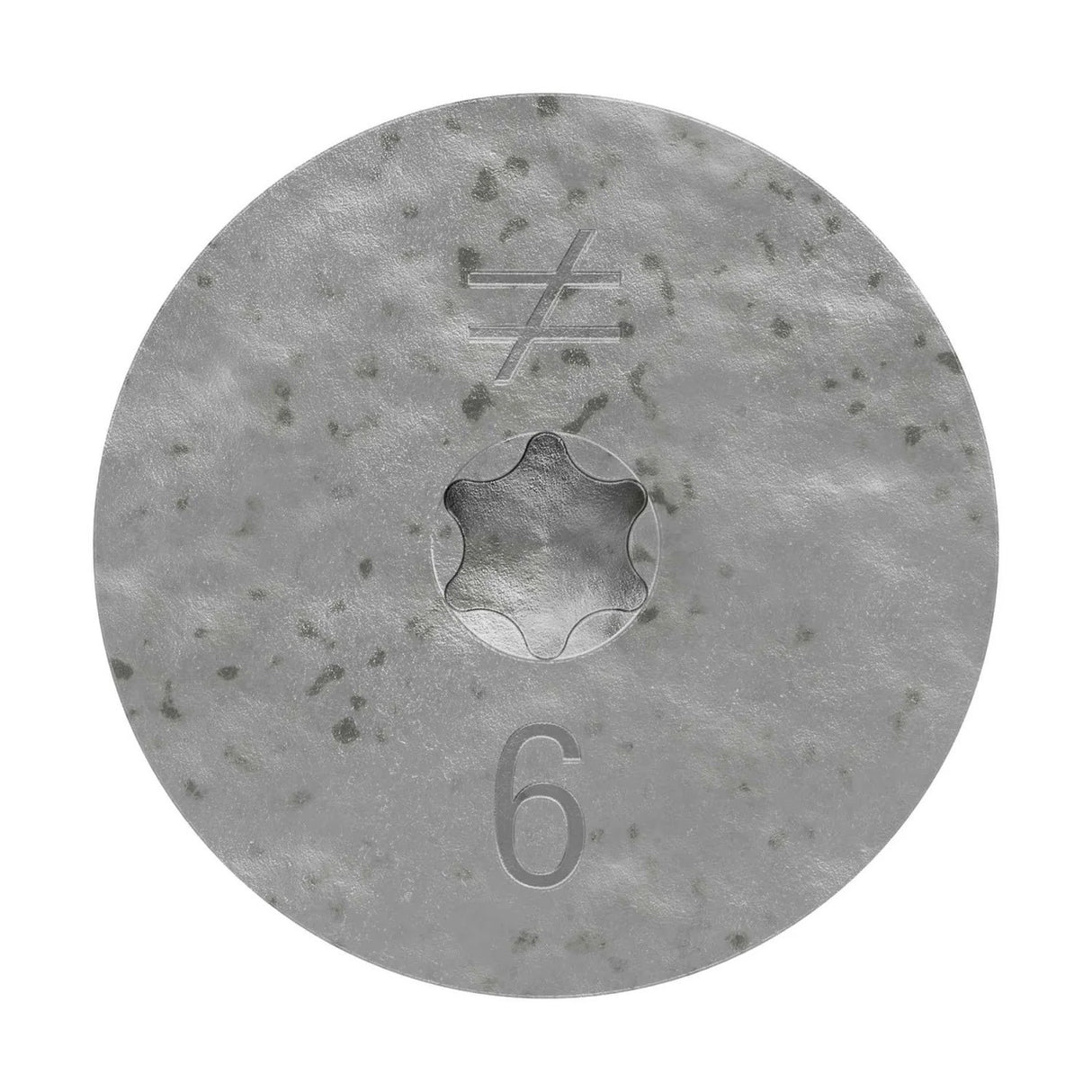

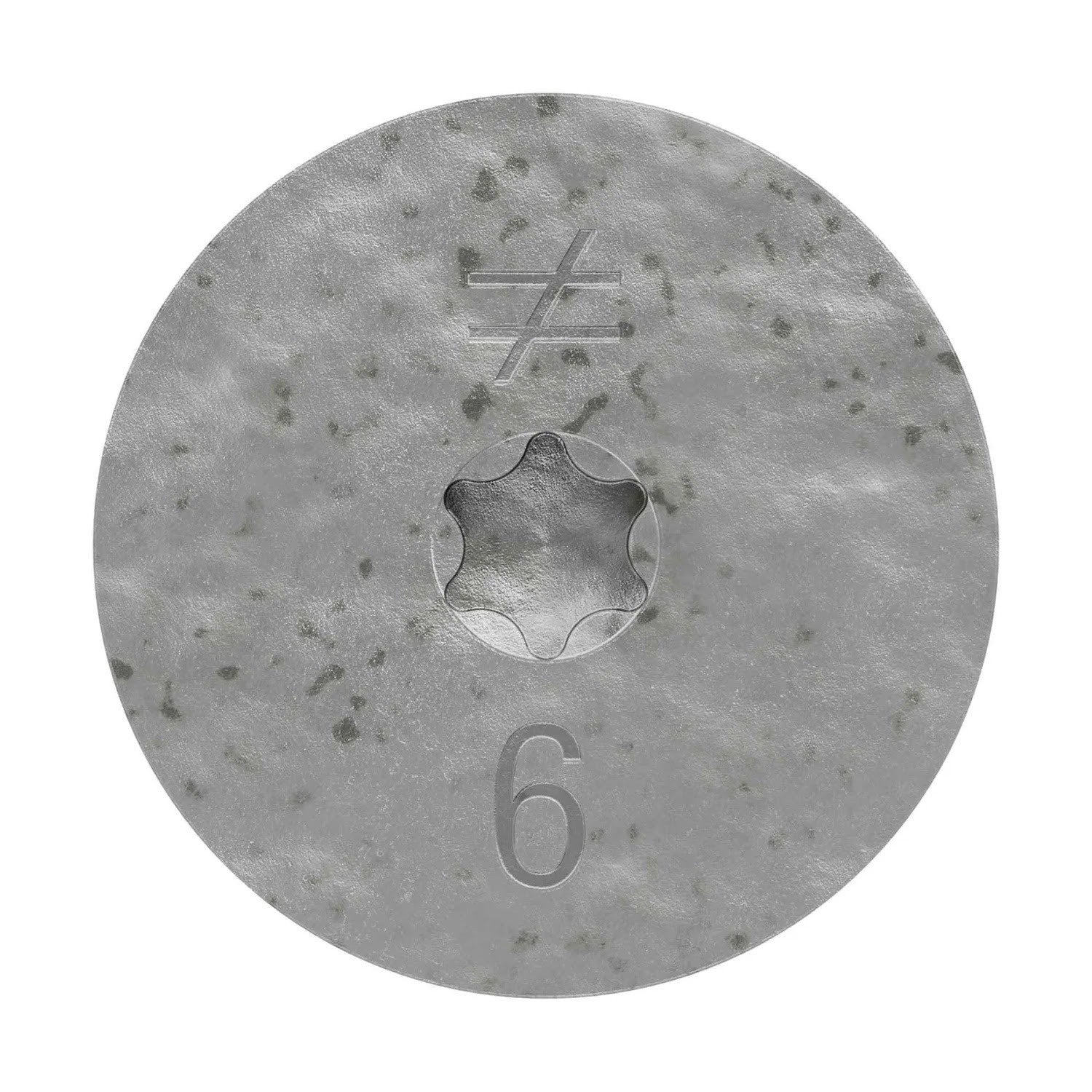

| Drive Type | T60 Star Drive |
| Fixture Hole Size | 15/16 in. to 1 in. |
NOTE: For permanent applications, use a Titen HD one time only — installing the anchor multiple times may result in excessive thread wear and reduce load capacity.
