Simpson THDC25200H6SS Description

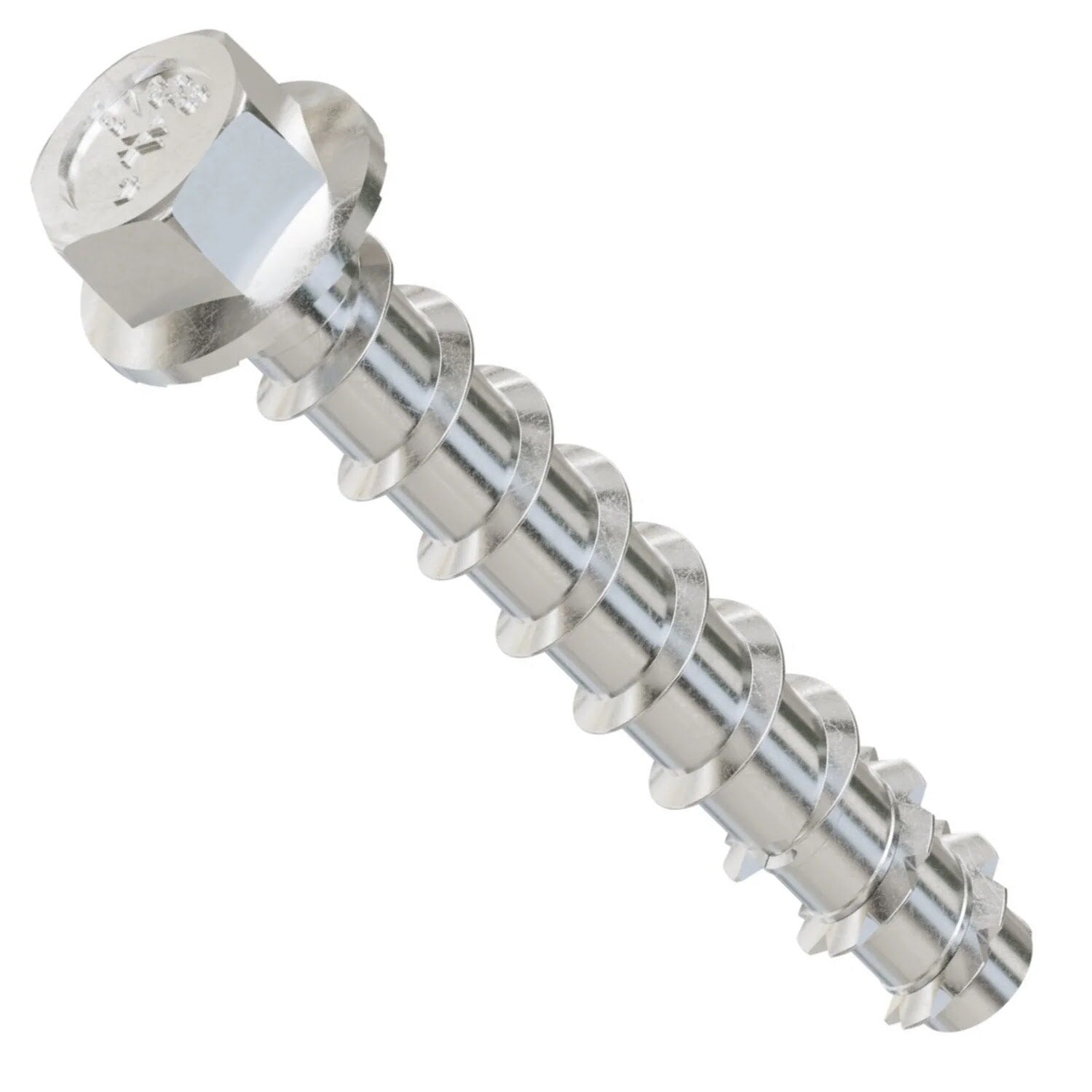

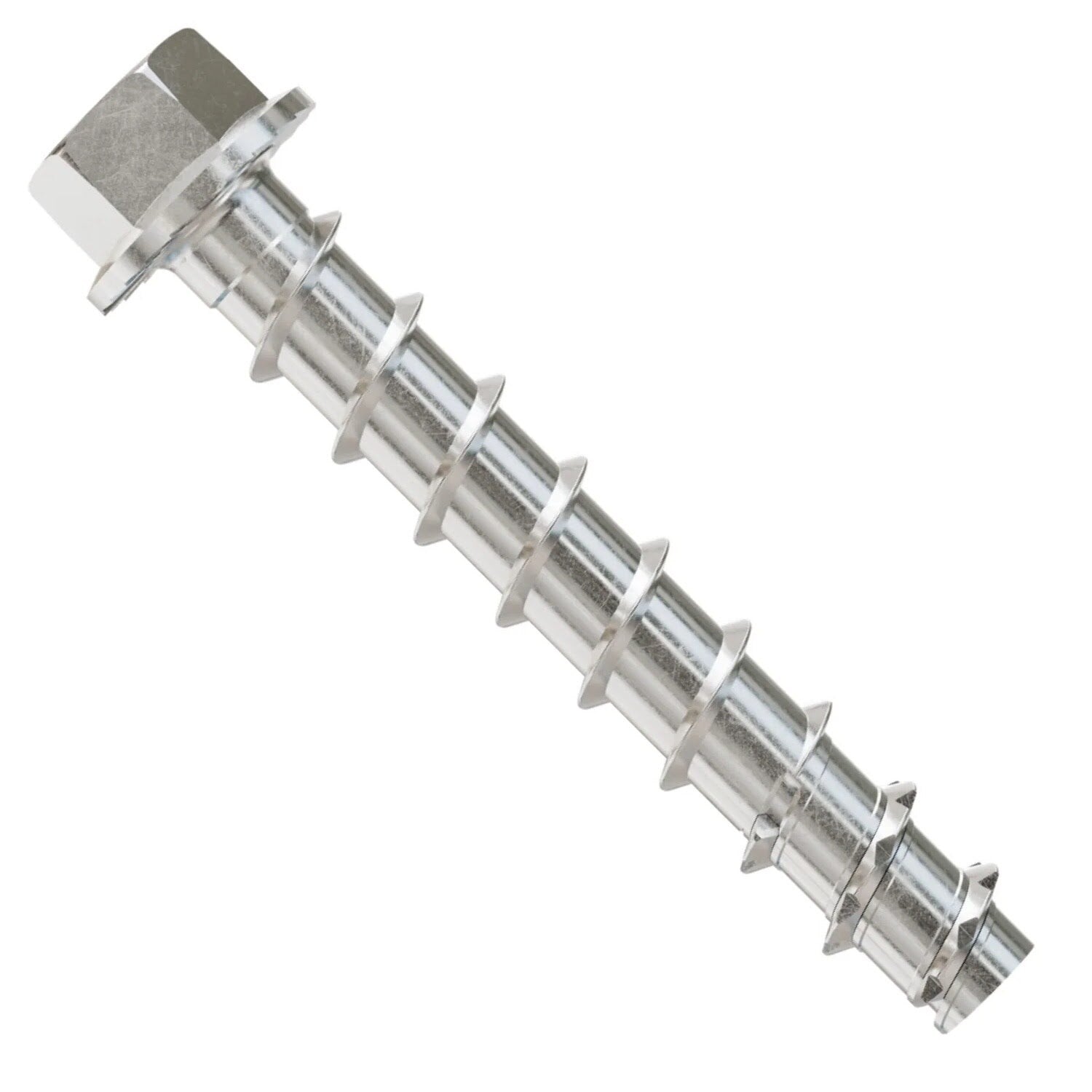

The Titen HD Screw Anchor is a high-quality, self-undercutting, non-expansion screw anchor made from 316 stainless steel, ideal for corrosive environments.
Simpson THDC25200H6SS Includes
- (50) 1/4 x 2 Titen HD Screw Anchor
Simpson THDC25200H6SS Features
- Made from 316 stainless steel for superior corrosion resistance
- Self-undercutting and non-expansion design
- Patented thread design with serrated cutting teeth for easy installation
- Tested in accordance with ACI355.2, AC193, and AC106
- Suitable for exterior or corrosive environments
Simpson THDC25200H6SS Applications
- Exterior installations in corrosive environments
- Saltwater applications
- Areas exposed to corrosive chemicals
- Mechanical, electrical, and plumbing applications
Simpson THDC25200H6SS Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor into the base material until the hex-washer head contacts the fixture.
Simpson THDC25200H6SS Specifications
| Diameter | 1/4" |
| Length | 2" |
| Material | 316 Stainless Steel |
| Drill Bit Size | 1/4" |
| Drive Type | 3/8" Hex |
| Fixture Hole Size | 3/8"-7/16" |

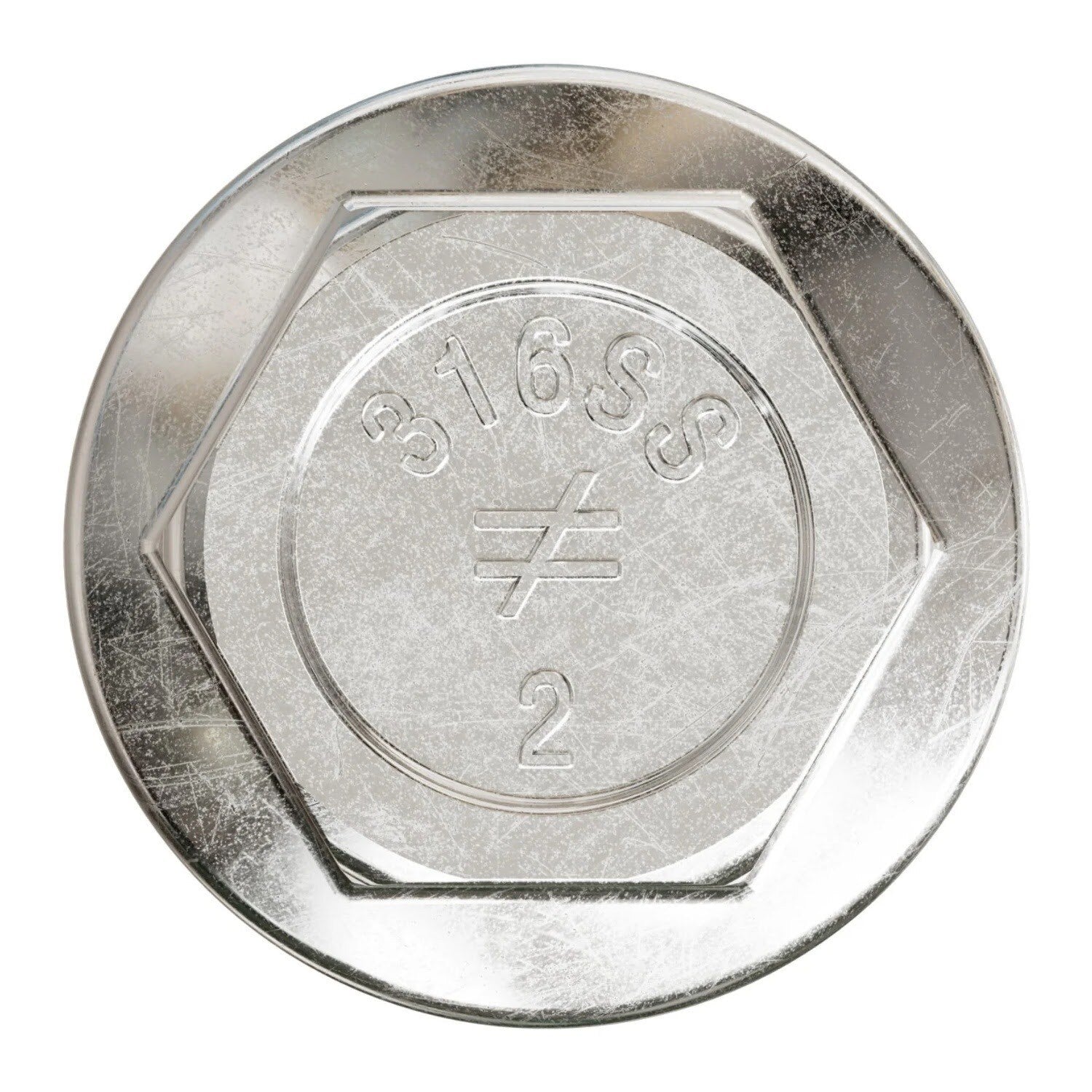

| Head Type | Hex Head |
| Quantity | 50 |
NOTE: Use the correct fasteners installed in the correct position to achieve published load values
