Simpson Anchors | SKU:
THDC25238H6SS

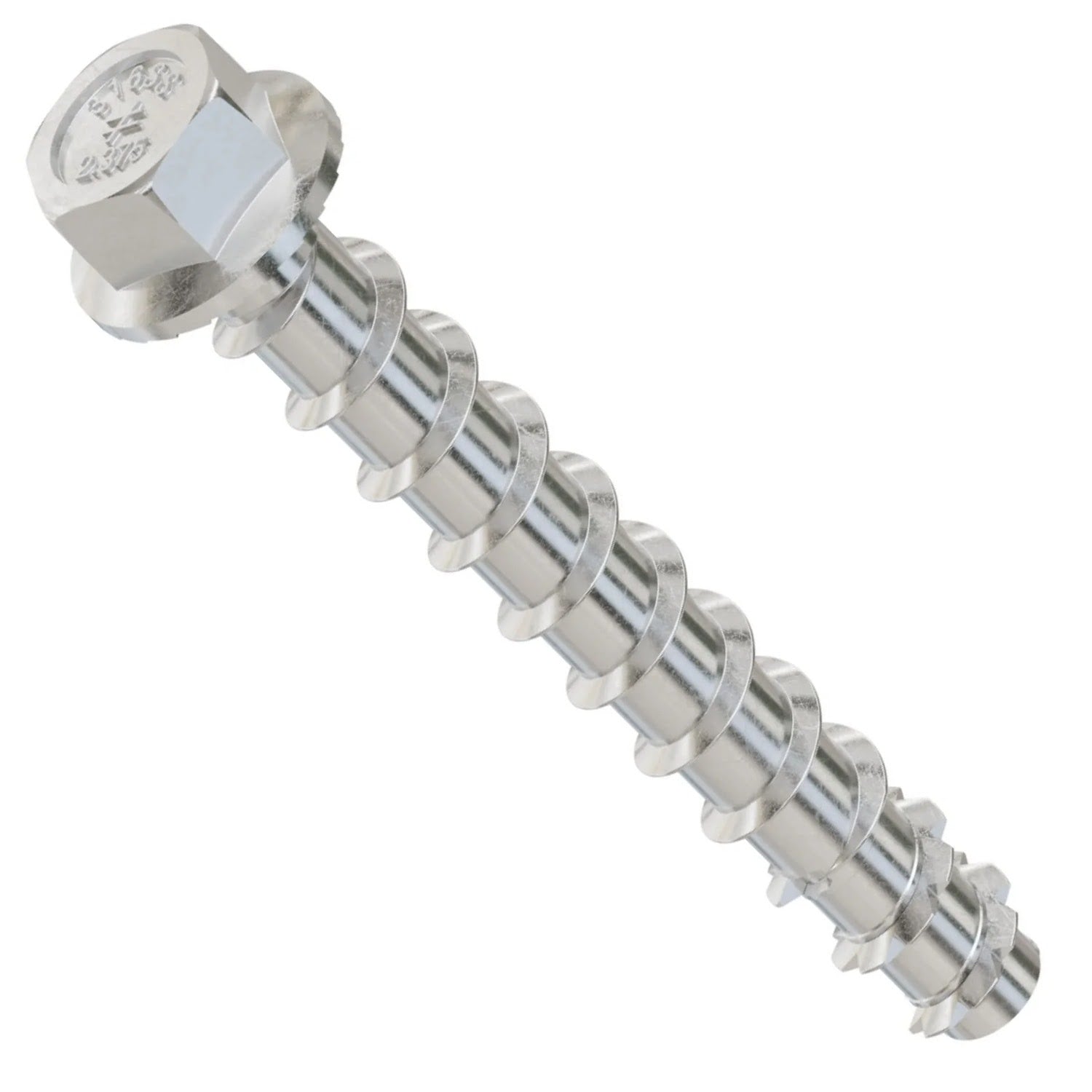

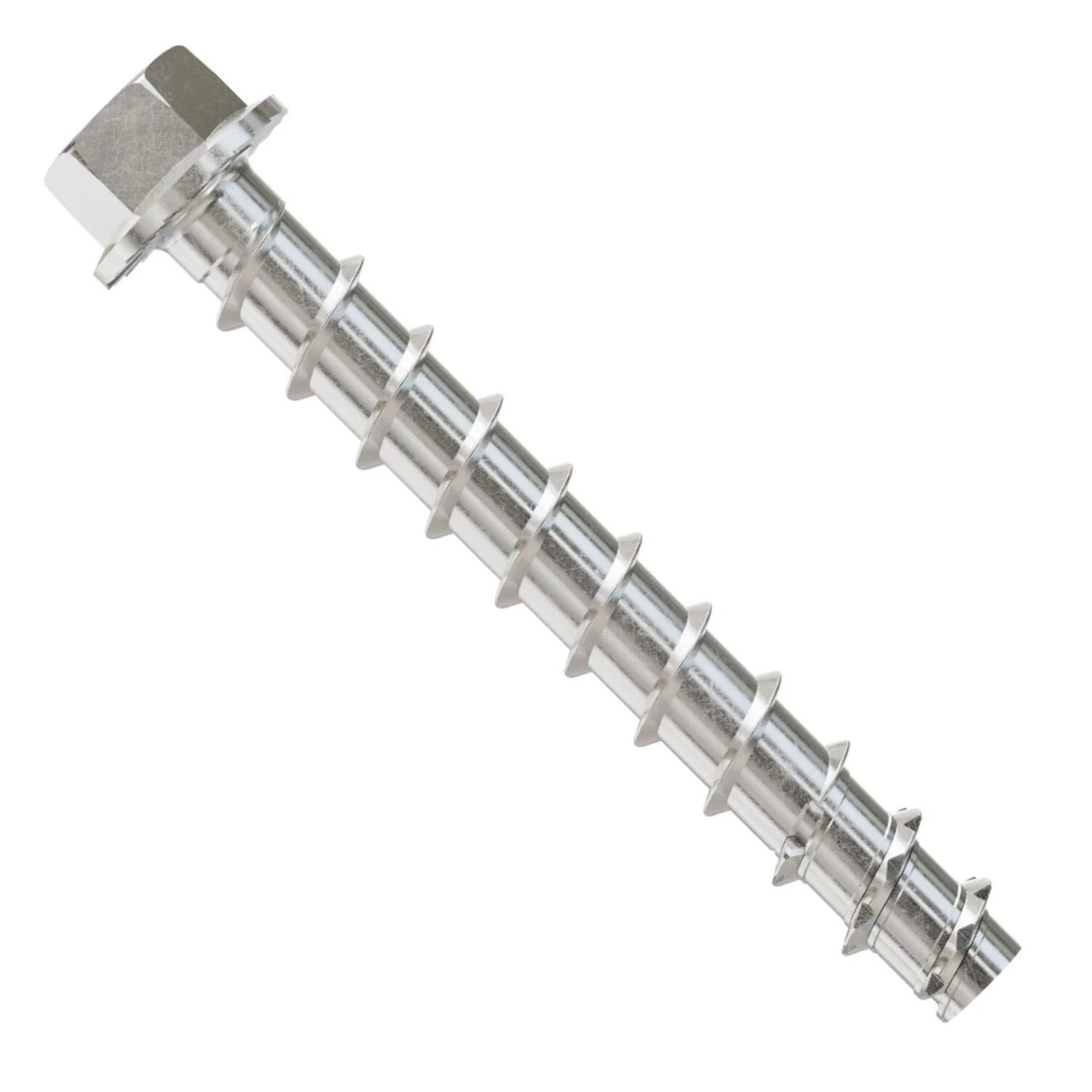

Simpson Strong-Tie THDC25238H6SS Titen HD (1/4" x 2-3/8") Heavy-Duty SS Screw Anchor - Type 316 (50 Pack)
$177.33
Unit price
/
Unavailable
Description
Description
Simpson THDC25238H6SS Description
The Titen HD Screw Anchor is a self-undercutting, non-expansion screw anchor made of 316 stainless steel, ideal for corrosive environments.
Simpson THDC25238H6SS Includes
- (50) 1/4" x 2-3/8" Titen HD Screw Anchor
Simpson THDC25238H6SS Features
- Self-undercutting design for secure installation
- Made of 316 stainless steel for corrosion resistance
- Patented thread design with serrated cutting teeth
- Suitable for exterior and corrosive environments
- Tested in accordance with ACI355.2, AC193, and AC106
Simpson THDC25238H6SS Applications
- Exterior installations in corrosive environments
- Saltwater applications
- Areas with exposure to corrosive chemicals
- Mechanical, electrical, and plumbing applications
Simpson THDC25238H6SS Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor into the base material until the hex-washer head contacts the fixture.
Simpson THDC25238H6SS Specifications
| Diameter | 1/4" |
| Length | 2-3/8" |
| Material | 316 Stainless Steel |
| Drill Bit Size | 1/4" |
| Drive Type | 3/8" Hex |
| Fixture Hole Size | 3/8"-7/16" |
| Head Type | Hex Head |
| Quantity | 50 |
NOTE: Use the correct fasteners installed in the correct position to achieve published load values
