Simpson Anchors | SKU:
THDC25300H6SS

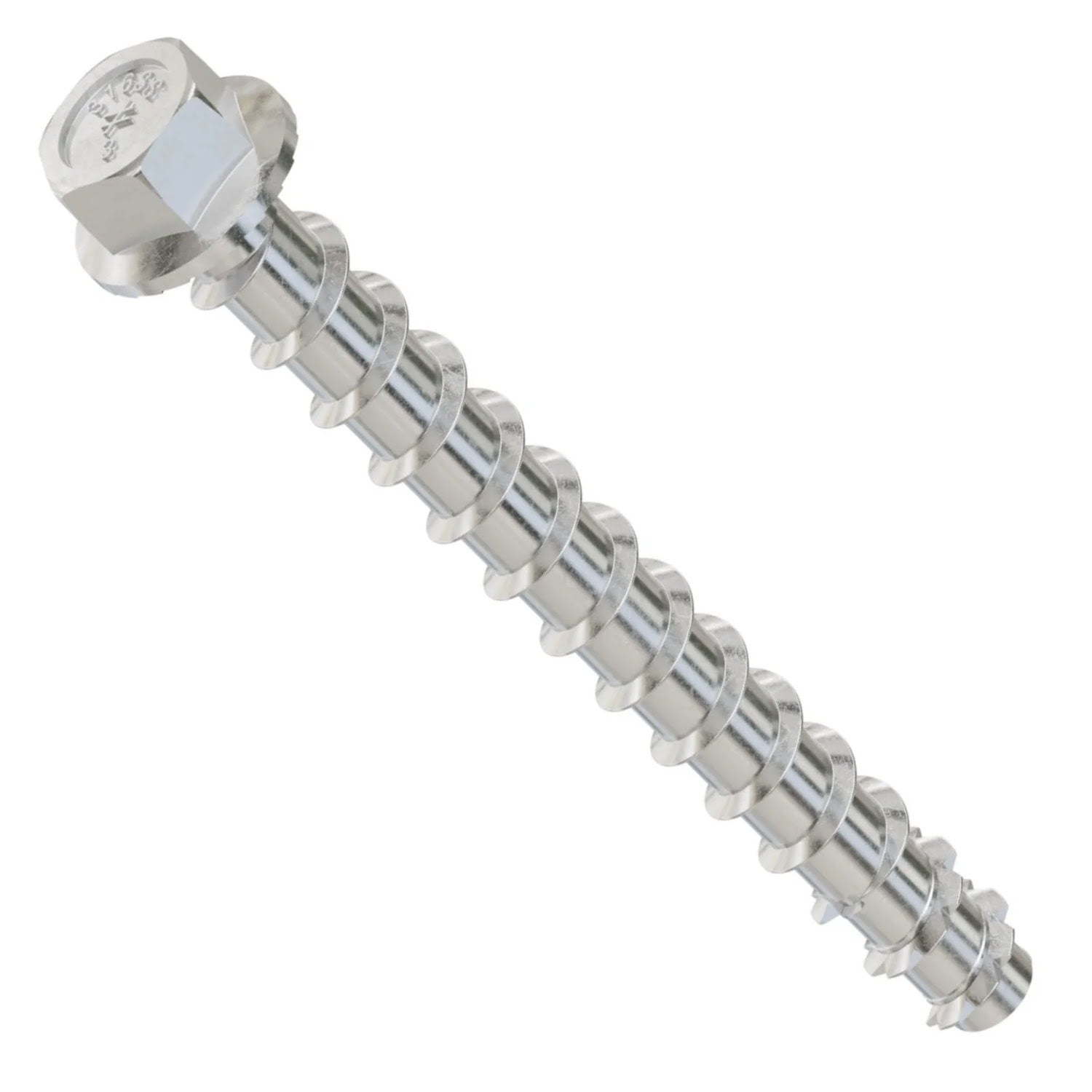

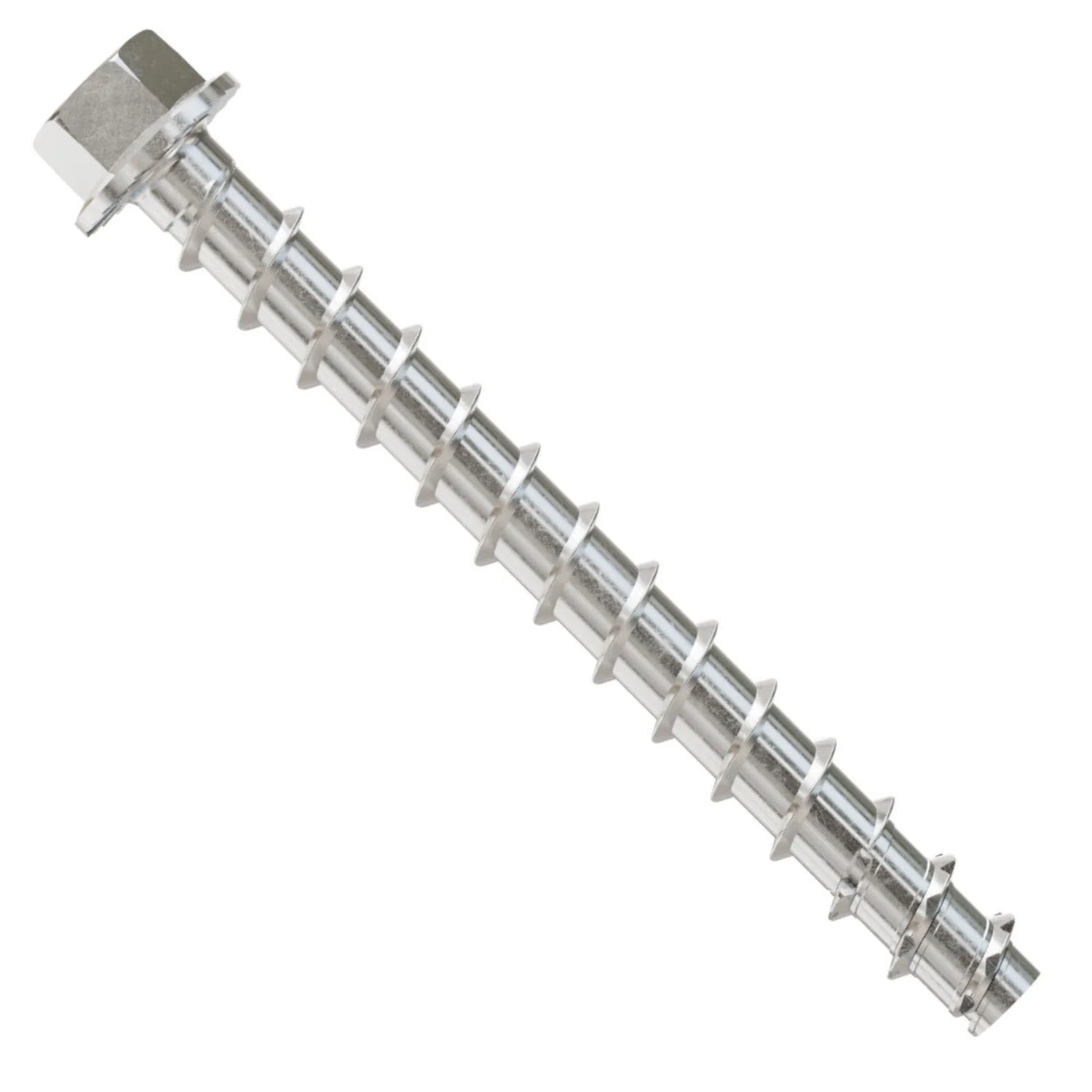

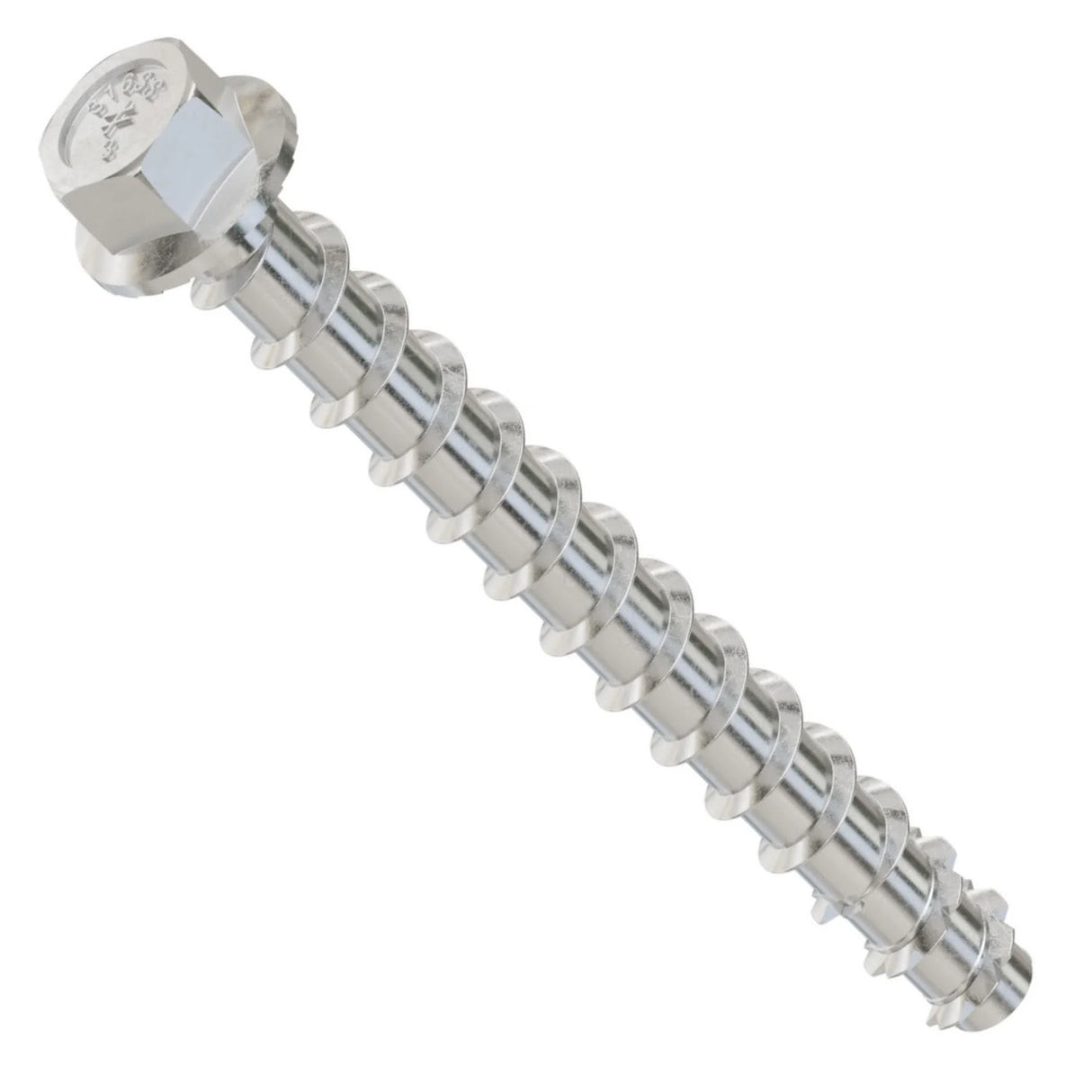

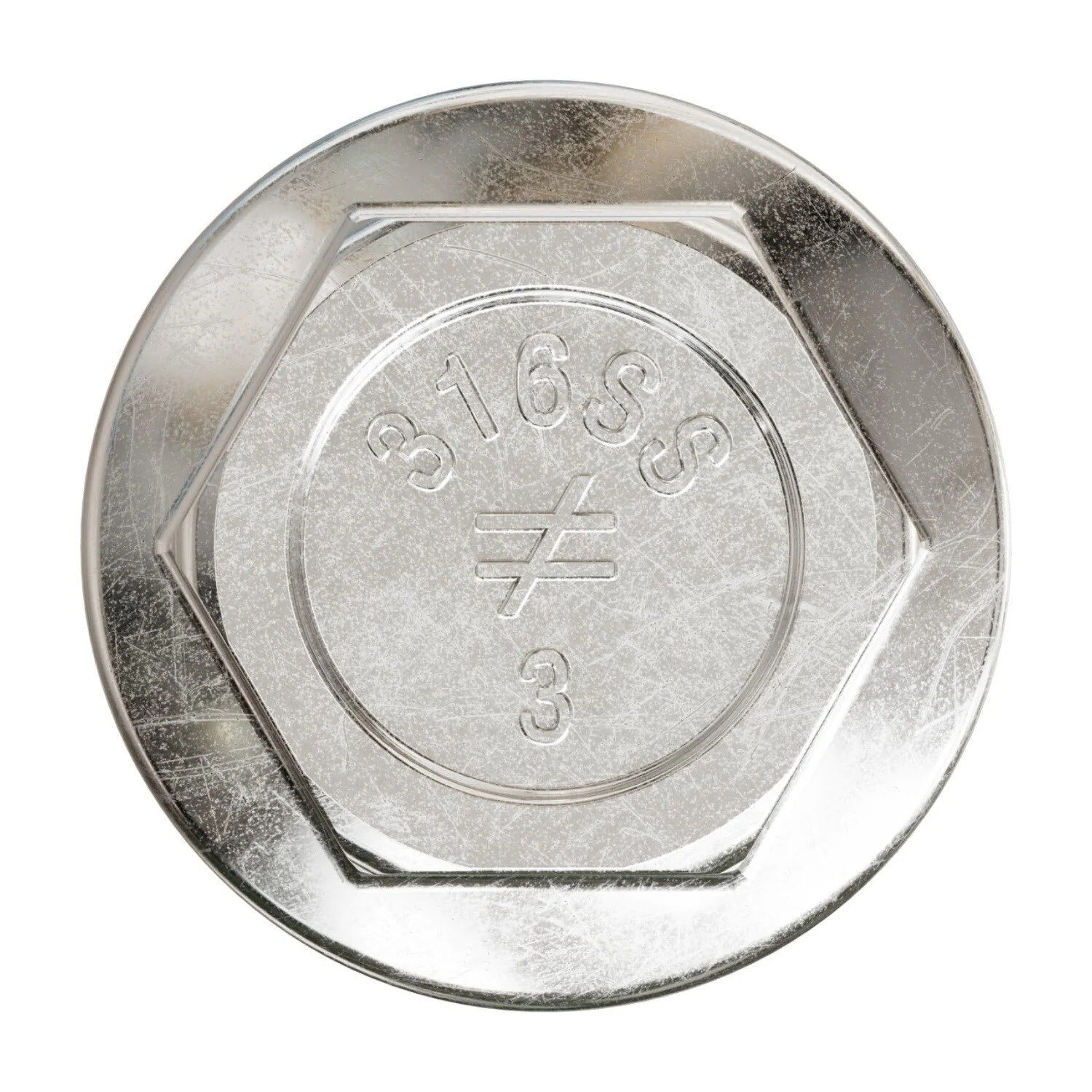

Simpson Strong-Tie THDC25300H6SS Titen HD (1/4" x 3") Heavy-Duty SS Screw Anchor - Type 316 (50 Pack)
$161.28
$193.54
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie THDC25300H6SS Description
The Titen HD Screw Anchor is a high-performance, corrosion-resistant fastener made from 316 stainless steel, ideal for exterior or corrosive environments.
Simpson Strong-Tie THDC25300H6SS Includes
- (50) Titen HD Screw Anchor 1/4 in. x 3 in.
Simpson Strong-Tie THDC25300H6SS Features
- Corrosion-resistant 316 stainless steel construction
- Patented thread design with serrated cutting teeth for easy installation
- Suitable for exterior or corrosive environments
- Tested in accordance with ACI355.2, AC193, and AC106
Simpson Strong-Tie THDC25300H6SS Applications
- Exterior construction in corrosive environments
- Saltwater-exposed installations
- Chemical-exposed areas
Simpson Strong-Tie THDC25300H6SS Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor into the base material until the hex-washer head contacts the fixture.
Simpson Strong-Tie THDC25300H6SS Specifications
| Material | 316 Stainless Steel |
| Diameter | 1/4 in. |
| Length | 3 in. |
| Drill Bit Size | 1/4 in. |
| Drive Type | 3/8 in. Hex |
| Fixture Hole Size | 3/8 in. - 7/16 in. |
| Head Type | Hex Head |
| Quantity | 50 |
NOTE: Use a Titen HD screw anchor one time only — installing the anchor multiple times may result in excessive thread wear and reduce load capacity.
