Simpson Hangers | SKU:
THJA26
Simpson Strong-Tie THJA26 (14 Gauge) Galvanized Multiple-Truss Hip/Jack Hanger
$29.49
Unit price
/
Unavailable
Description
Description
Simpson THJA26 Description

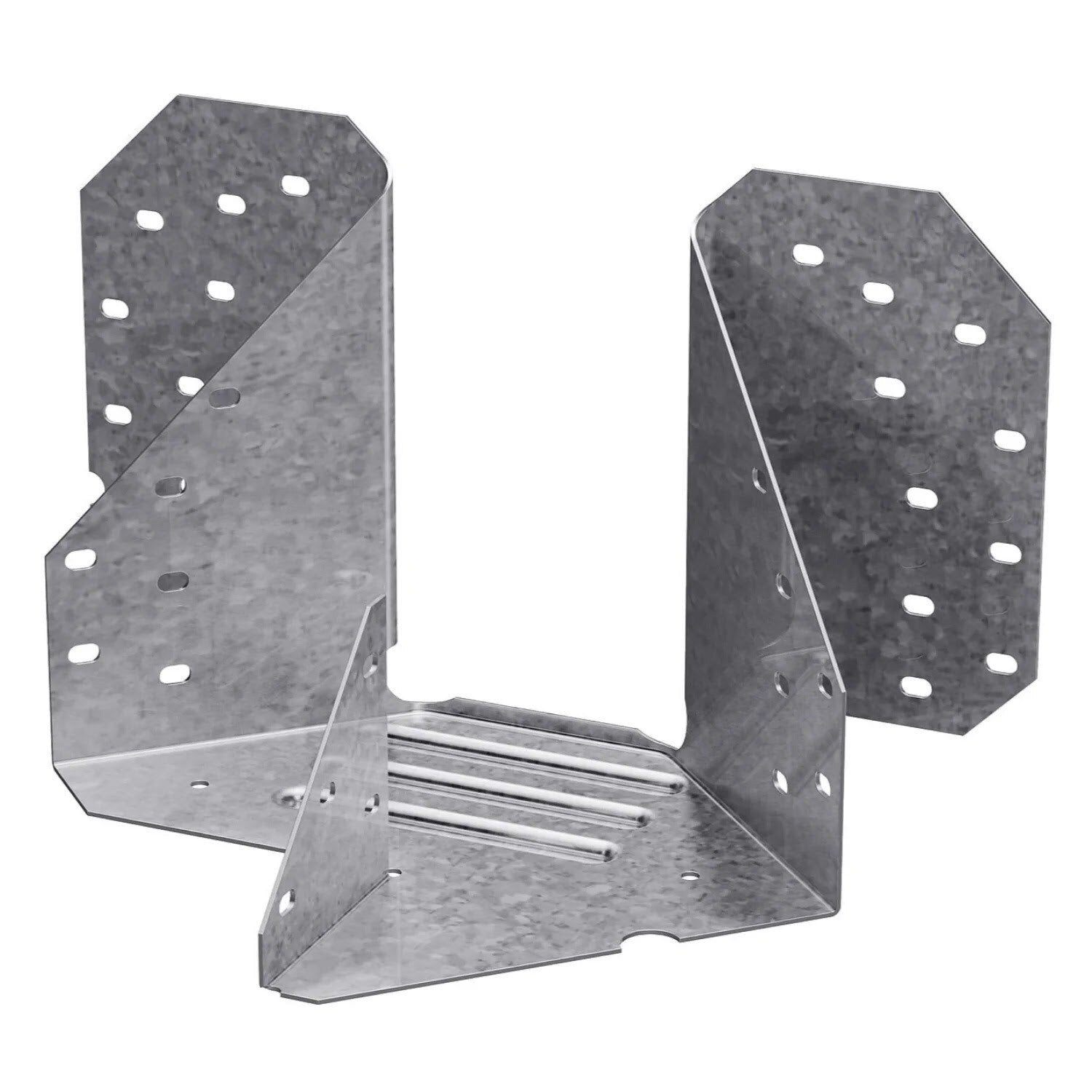

The Simpson THJA26 Multiple-Truss Hip/Jack Hanger is a versatile solution for accommodating right- or left-hand hips at 45° skews, and can be installed before or after the hip and jack.
Simpson THJA26 Includes
- (1) Multiple-Truss Hip/Jack Hanger
Simpson THJA26 Features
- Accommodates right- or left-hand hips at 45° skews
- Can be installed before or after the hip and jack
- Suitable for double (terminal) hips
- 14 gauge galvanized steel construction
Simpson THJA26 Applications
- Truss framing for hip and jack connections
- Double girder truss applications
- Light hip/jack load applications

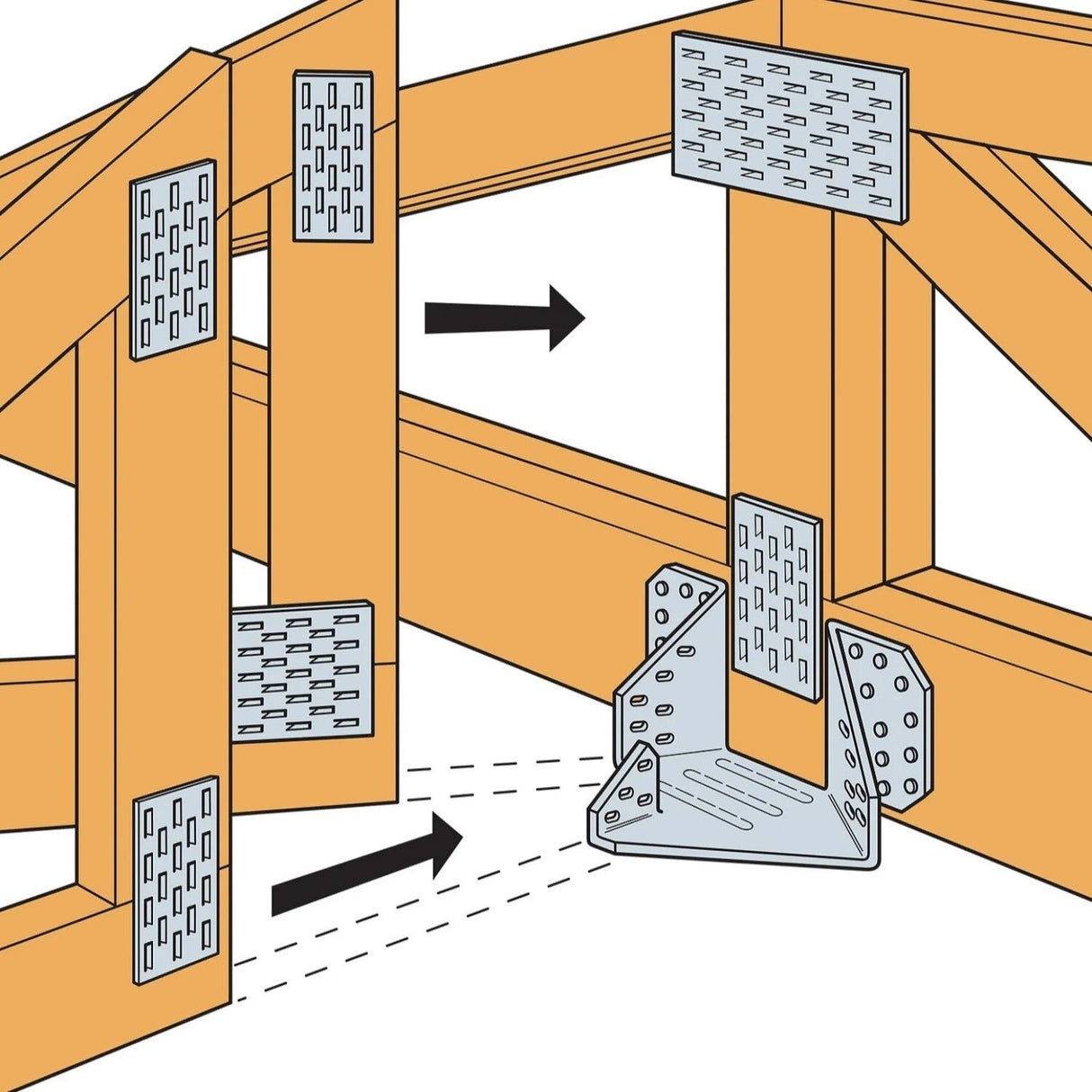

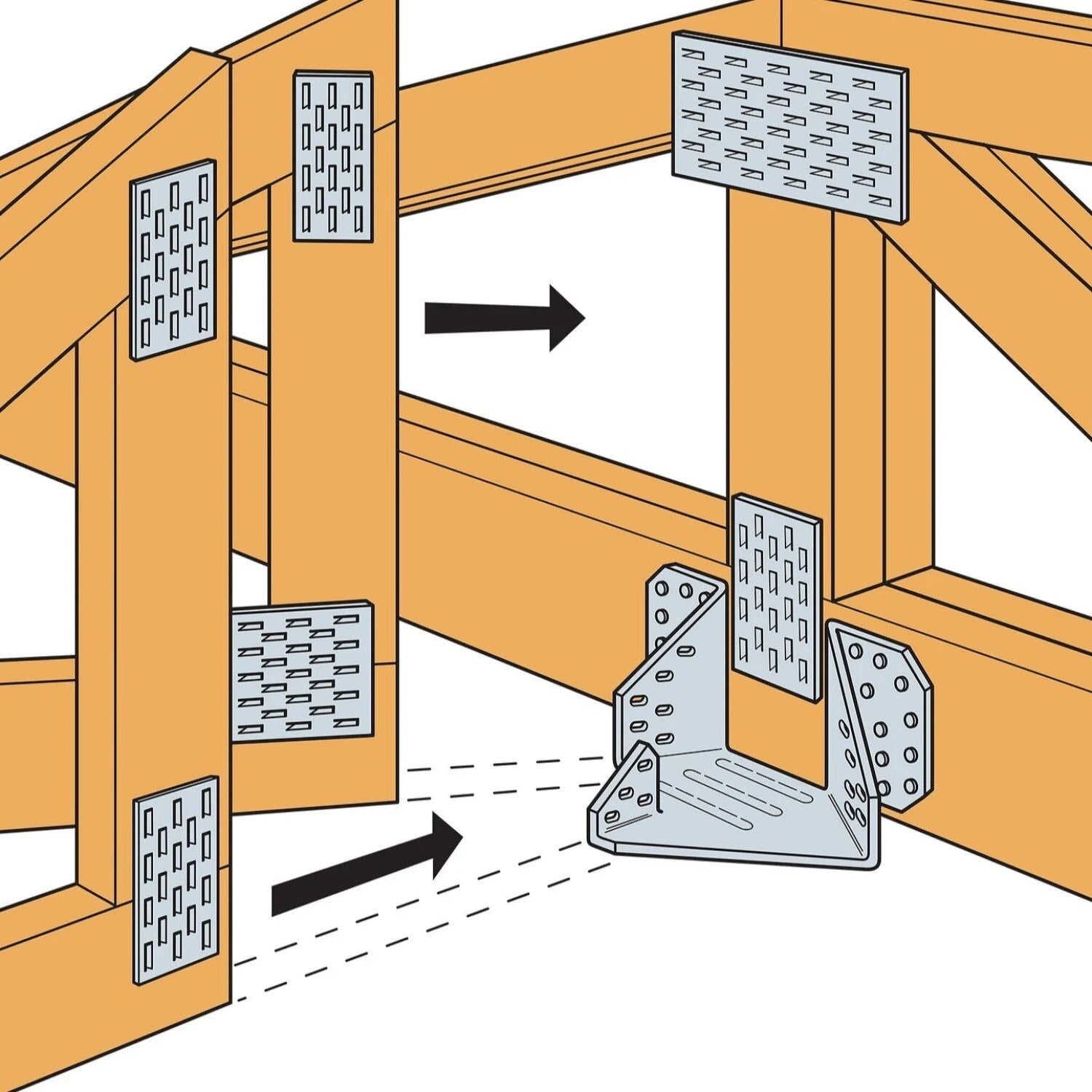

Simpson THJA26 Installation Overview
- Use all specified fasteners as per guidelines
- Ensure all members are fastened together to act as a single unit
- Attach to a double-girder truss for required nail penetration

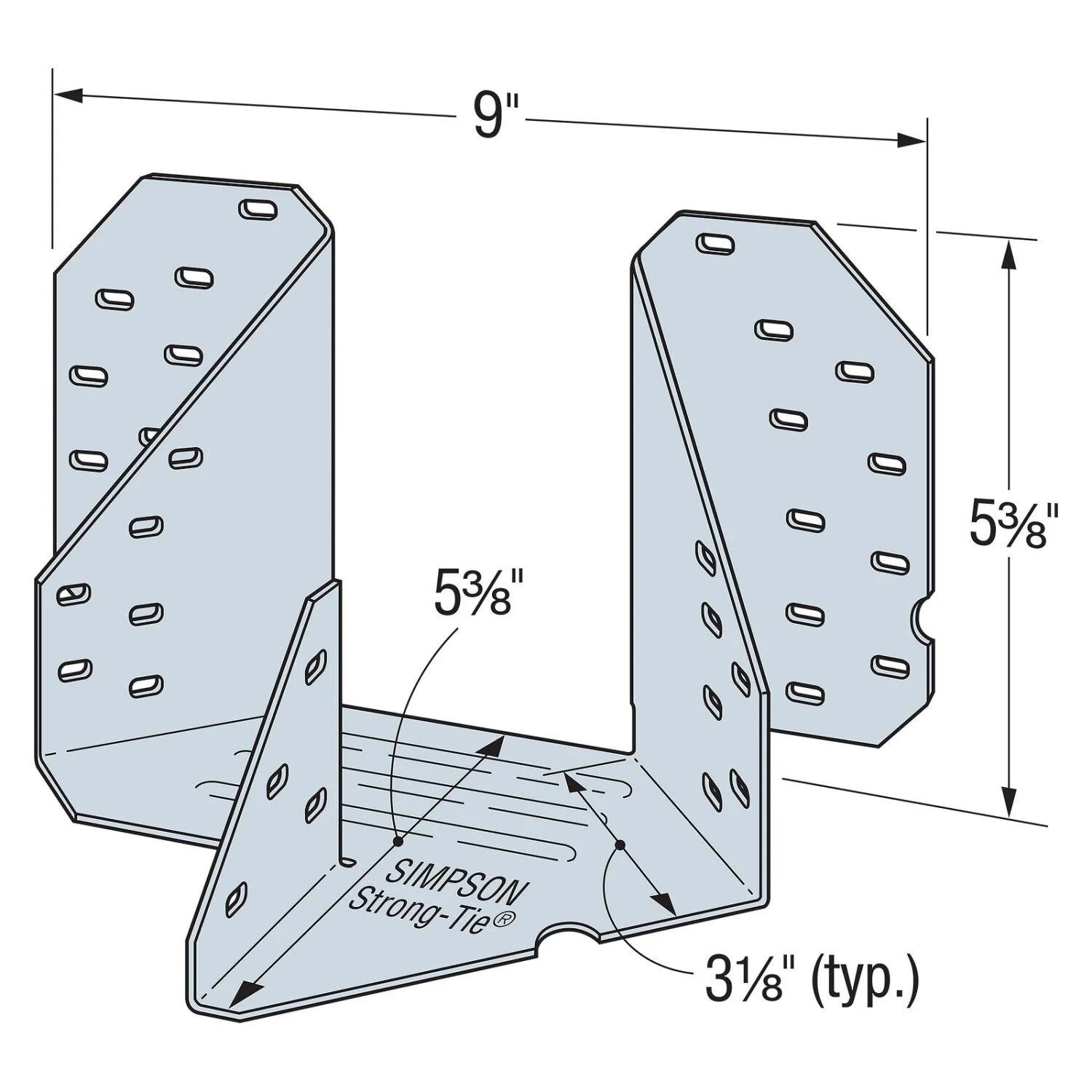

Simpson THJA26 Specifications
| Thickness | 14 gauge |
| Weight | 1.4 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
