Simpson Hangers | SKU:
THJM2-5-SDS3
Simpson Strong-Tie THJM2-5-SDS3 (12 Gauge) Galvanized Multiple-Truss Hip/Jack Hanger
Free Shipping
$224.32
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie THJM2-5-SDS3 Description

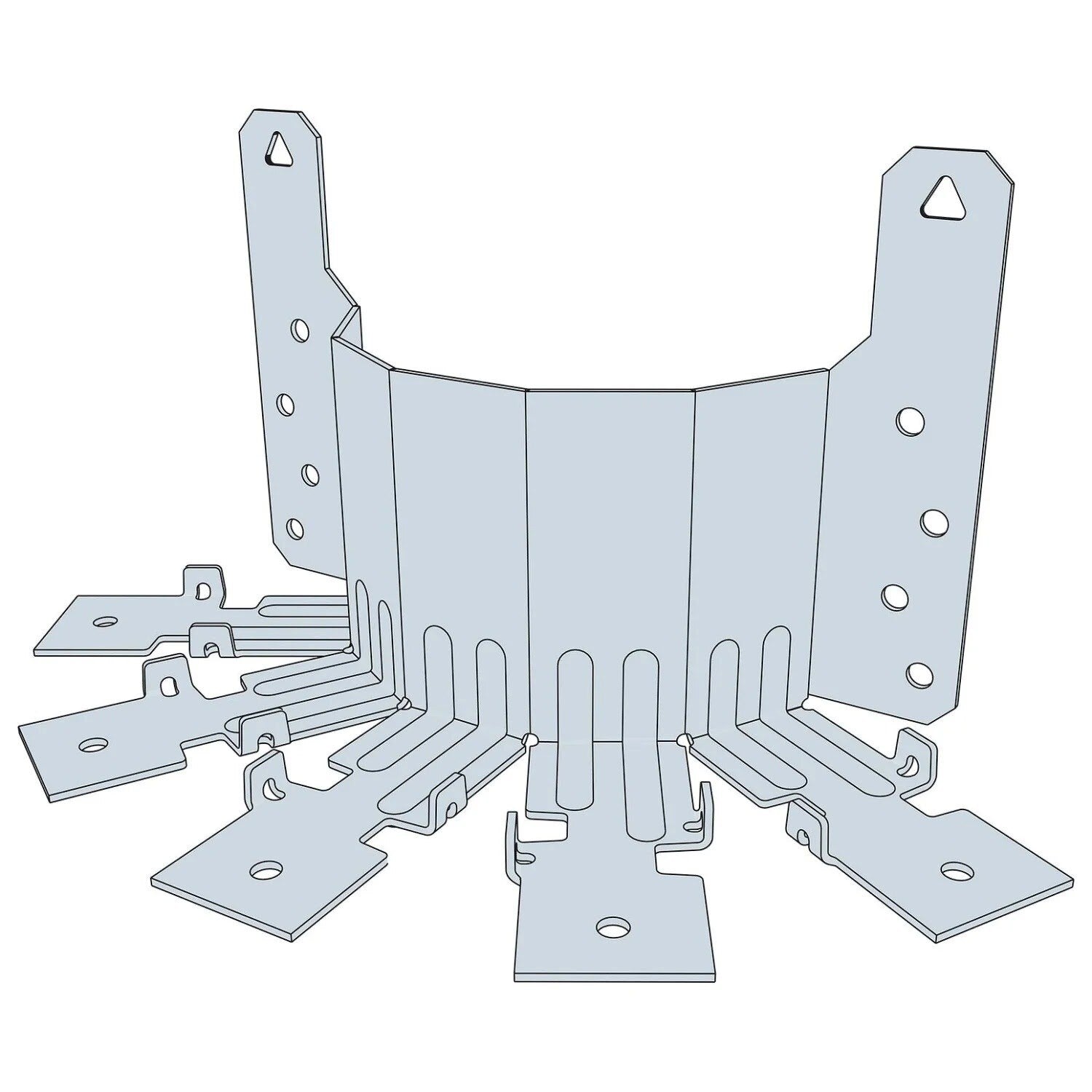

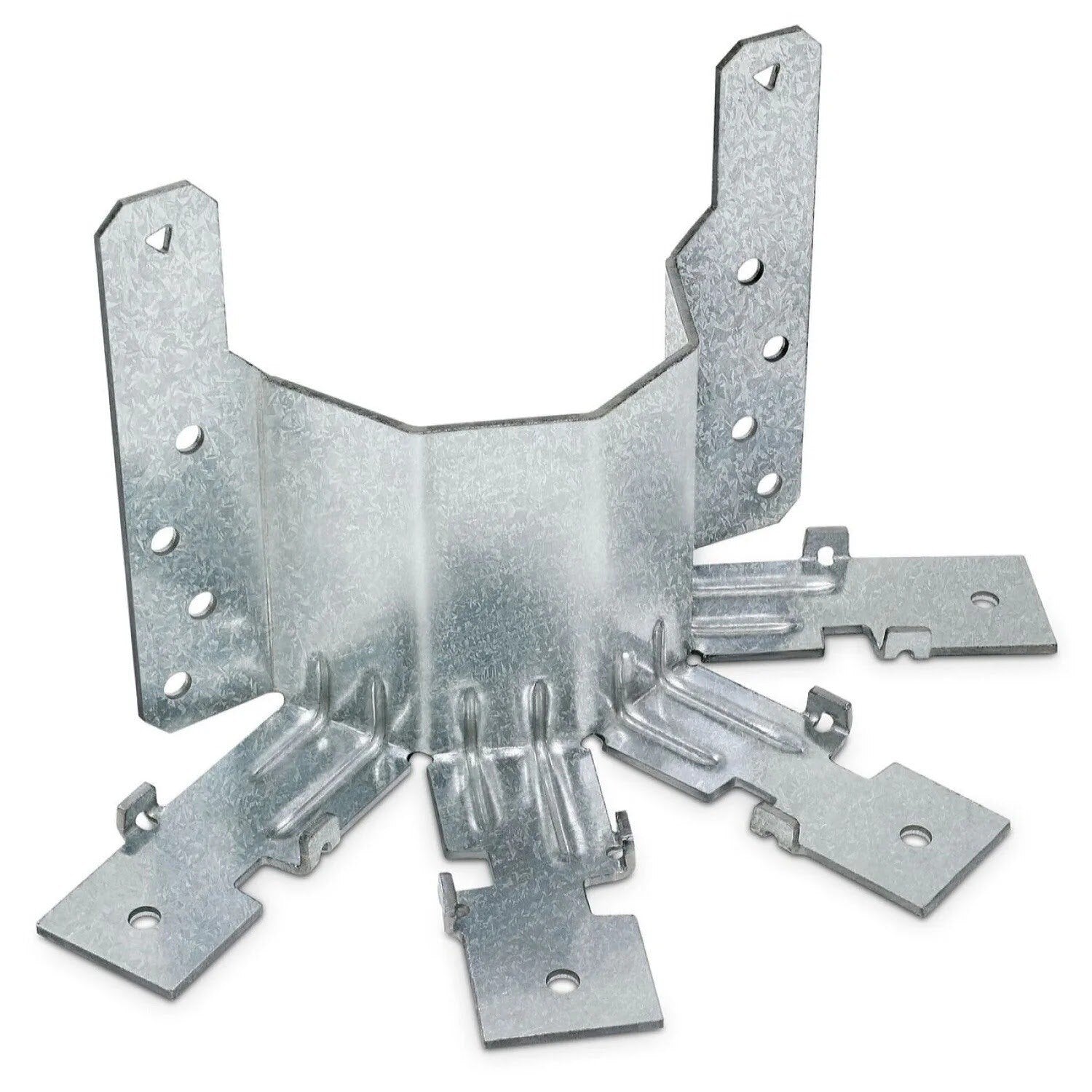

The THJM2-5-SDS3 Multiple-Truss Hip/Jack Hanger is a non-welded hanger designed for radial-end jack framing, providing efficiency for multi-plane, angled bay roofs.
Simpson Strong-Tie THJM2-5-SDS3 Includes
- (1) THJM2-5-SDS3 Multiple-Truss Hip/Jack Hanger
- (1) Set of 1/4" x 3" Strong-Drive SDS Heavy-Duty Connector screws
Simpson Strong-Tie THJM2-5-SDS3 Features
- Non-welded hanger design for radial-end jack framing
- Patented design for optimal efficiency in multi-plane, angled bay roofs
- Accommodates 2x4 girder bottom chords
- Includes Strong-Drive SDS Heavy-Duty Connector screws for easy installation
- Tabs on the seats assist in jack placement and include obround holes for optional slant nails
Simpson Strong-Tie THJM2-5-SDS3 Applications

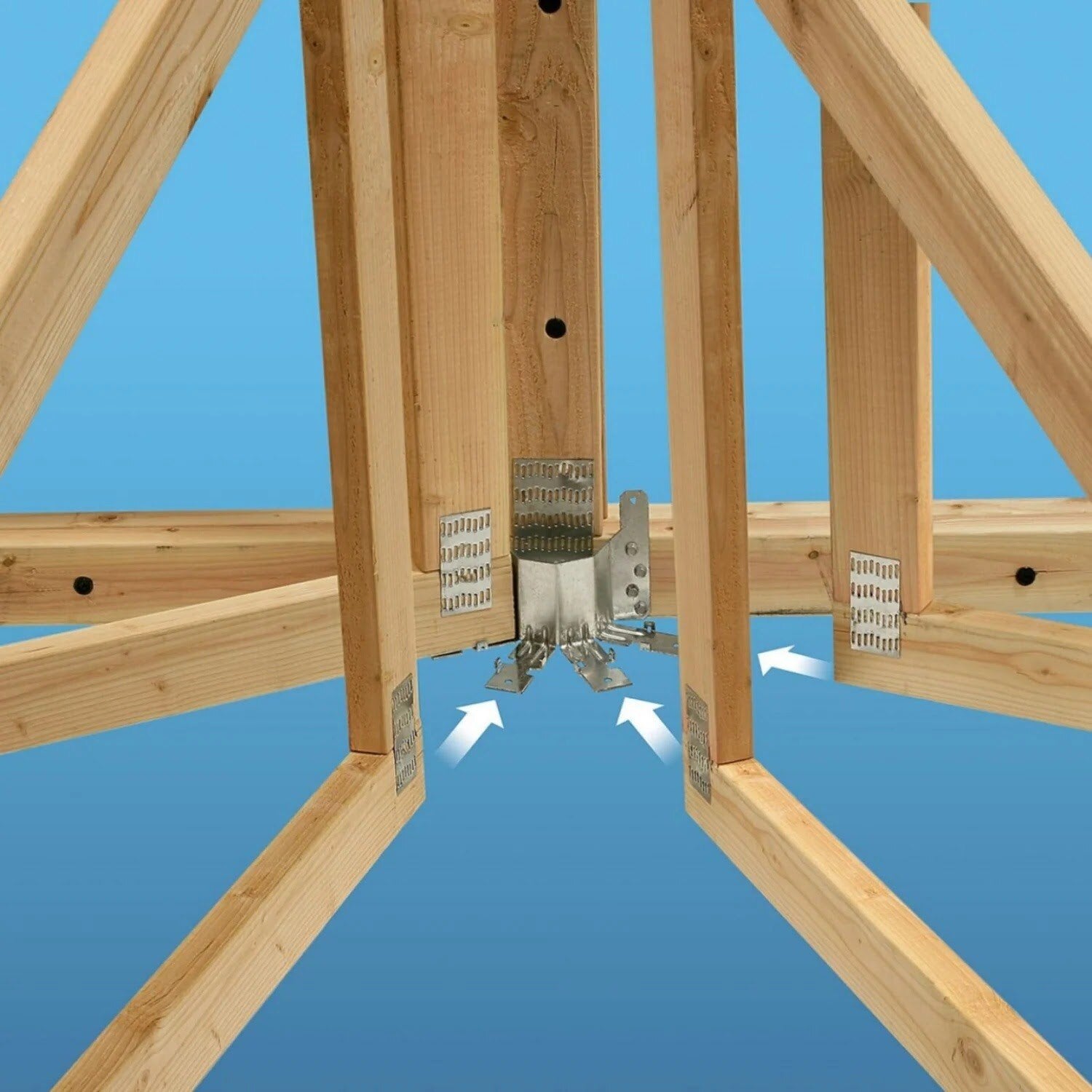

- Multi-plane, angled bay roofs over breakfast, study, and library alcoves

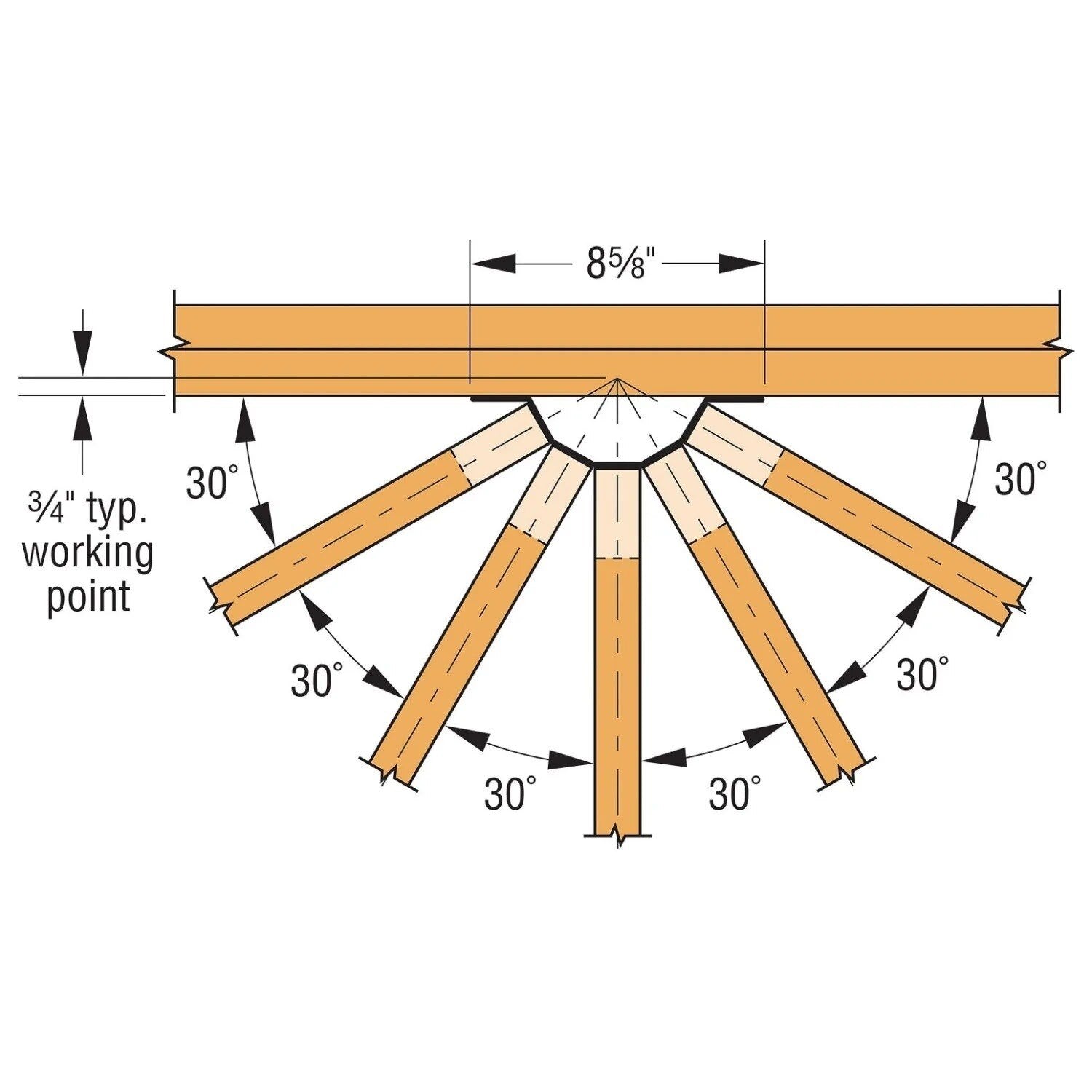

- Radial-end jack framing for structural support
Simpson Strong-Tie THJM2-5-SDS3 Installation Overview
- Use all specified fasteners as per the general notes
- Install with 1/4" x 3" Strong-Drive SDS Heavy-Duty Connector screws
- Ensure correct placement of jacks using the tabs on the seats
- Optional slant nails can be used for increased uplift
Simpson Strong-Tie THJM2-5-SDS3 Specifications
| Thickness | 12 Gauge |
| Fasteners required | See Product Spec Sheet |
| Manufacturer name | Simpson Strong-Tie Company Inc |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
