Simpson Hangers | SKU:
THJU26

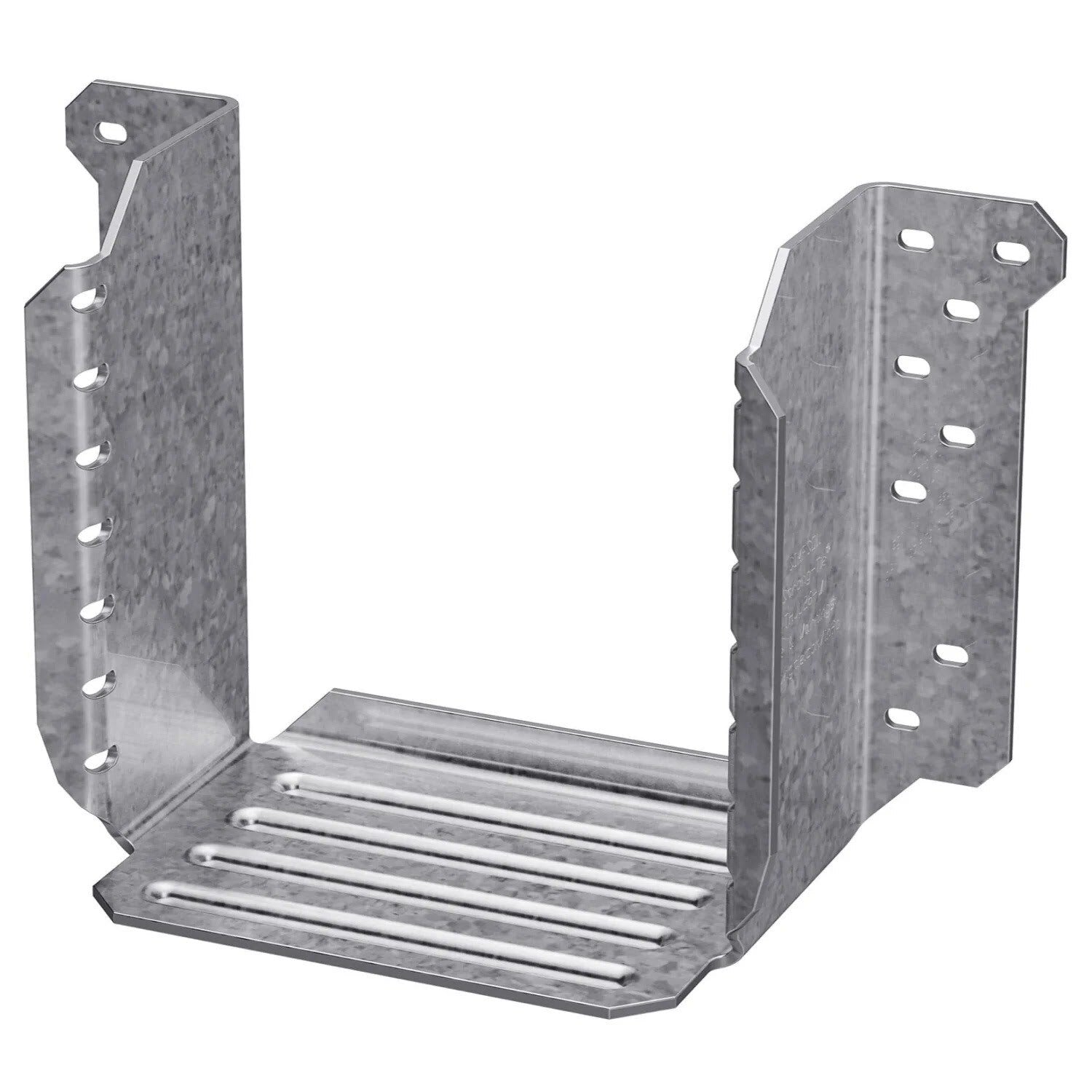

Simpson Strong-Tie THJU26 (5-1/8 in.) Truss Hip/Jack Hanger, 12 Gauge Galvanized
$17.96
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie THJU26 Description

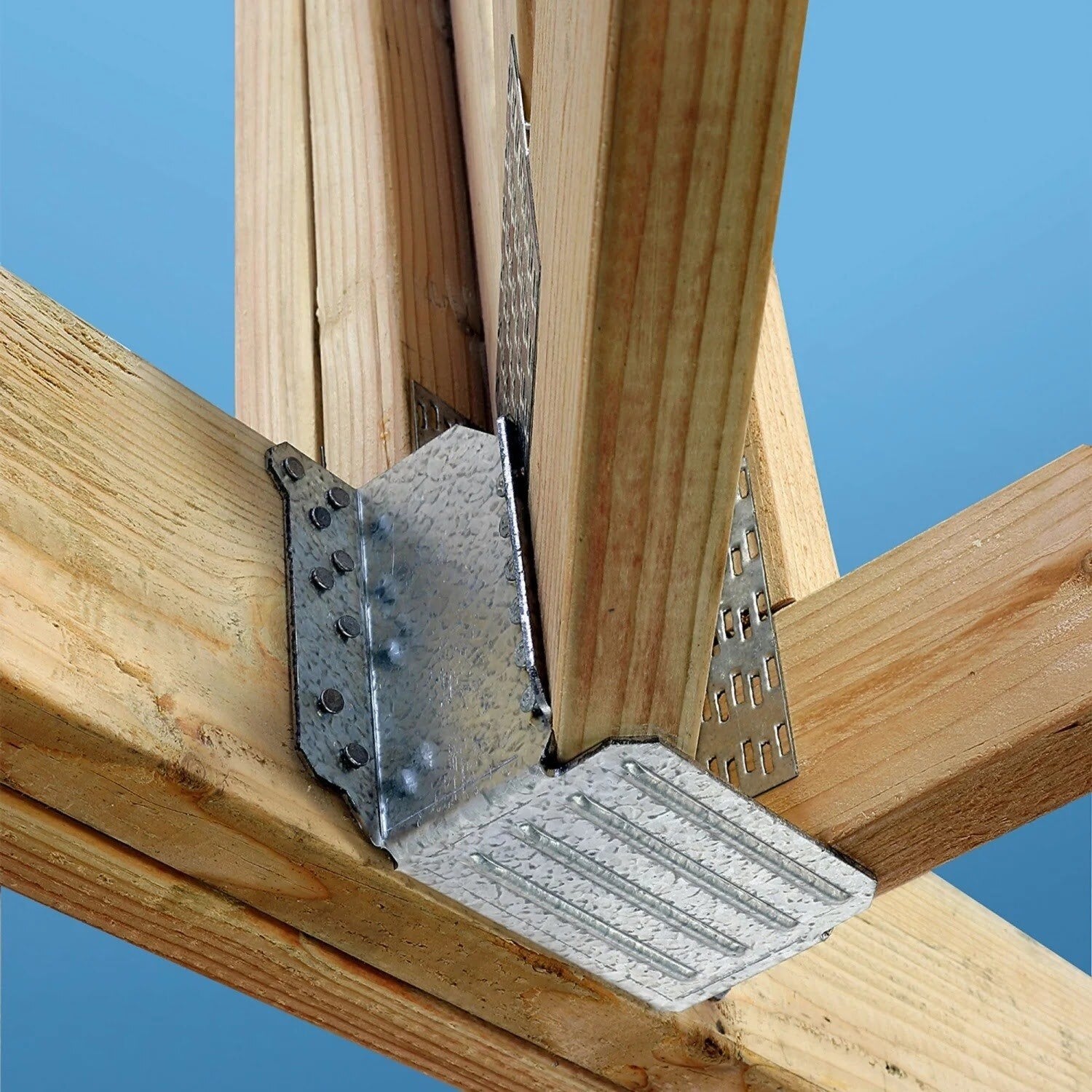

The Simpson Strong-Tie THJU26 hip/jack hanger offers flexibility and ease of installation without sacrificing performance. It is designed for right- and left-hand hips and accommodates various hip/jack combinations.
Simpson Strong-Tie THJU26 Includes
- (1) Multiple-Truss Hip/Jack Hanger
Simpson Strong-Tie THJU26 Features
- U-shaped design for right- and left-hand hips
- Accommodates a range of hip skews up to 67 1/2°
- Supports single and 2-ply hip/jack combinations
- Can be installed before or after the hip and jack
- Wide seat for 2-ply hip and 2-ply jack combinations
Simpson Strong-Tie THJU26 Applications
- Used in truss construction for hip and jack connections
- Ideal for residential and commercial framing projects
Simpson Strong-Tie THJU26 Installation Overview
- Position the hanger at the desired location
- Secure the hanger using the specified fasteners
- Ensure proper alignment and secure fit
Simpson Strong-Tie THJU26 Specifications
| Height | 5-3/8" |
| Width | 5-1/8" |
| Thickness | 12 Gauge |
| Finish | Galvanized |
| For Treated Lumber | No |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
