Simpson Hangers | SKU:
THJU26-W

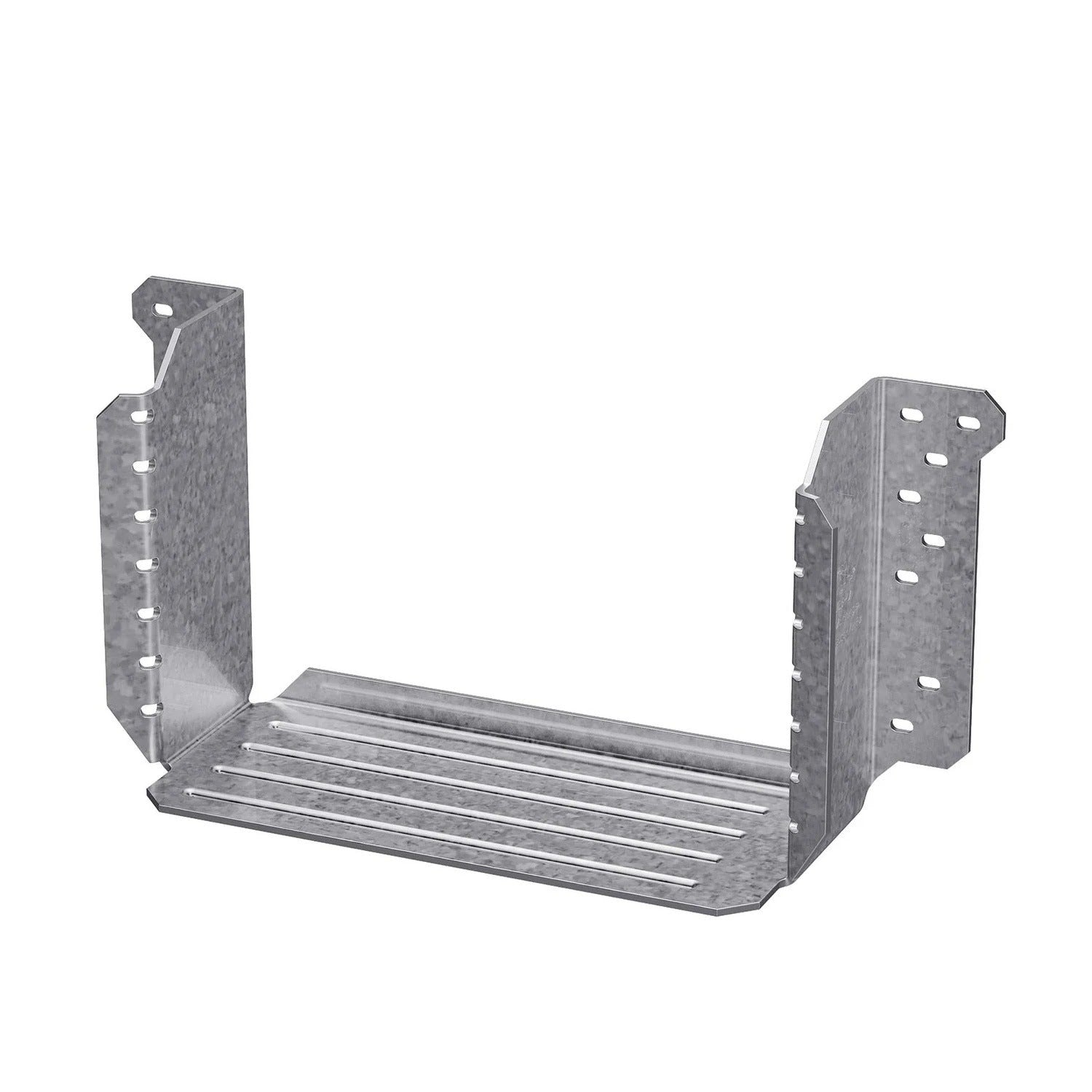

Simpson Strong-Tie THJU26-W (8-1/8 in.) Truss Hip/Jack Hanger, 12 Gauge Galvanized, Wide
$122.06
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie THJU26-W Description
The Simpson Strong-Tie THJU26-W hip/jack hanger offers flexibility and ease of installation without sacrificing performance. Designed for various hip/jack combinations, it accommodates a wide range of configurations and skews.
Simpson Strong-Tie THJU26-W Includes
- (1) Truss Hip/Jack Hanger
Simpson Strong-Tie THJU26-W Features
- 12 Gauge Galvanized Steel
- Wide seat accommodates 2-ply hip and jack combinations
- Supports hip skews up to 67 1/2°
- Can be installed before or after the hip and jack
- Designed for right- and left-hand hips
Simpson Strong-Tie THJU26-W Applications
- Solid Sawn Lumber
- Multiple-truss hip/jack configurations
- Residential and commercial framing
Simpson Strong-Tie THJU26-W Installation Overview
- Use all specified fasteners as per guidelines
- Refer to the installation guide for detailed instructions
Simpson Strong-Tie THJU26-W Specifications
| Material | 12 Gauge Galvanized Steel |
| Width | 8-1/8" |
| Height | 5-3/8" |
| Depth | 3-1/2" |
| Weight | 2.2 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
