Simpson Hangers | SKU:
TJC37
Simpson Strong-Tie TJC37 (3-1/8" x 7") Adjustable Jack Truss Connector - G90 Galvanized
$3.86
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie TJC37 Description

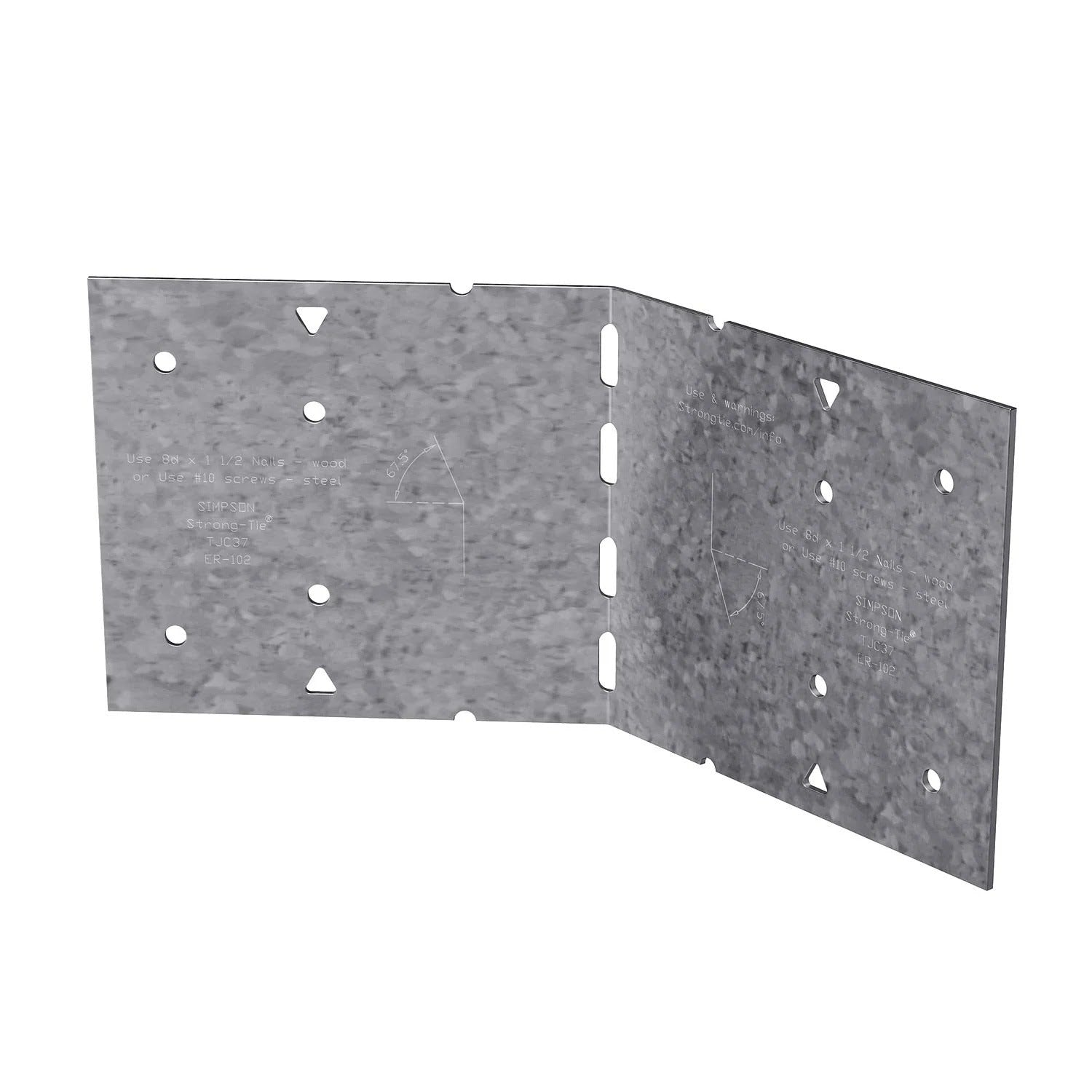

The Simpson TJC37 is a versatile connector for jack trusses, adjustable from 0 Degree to 85 Degree, shipped with a 67.5 Degree bend. It offers lower installed cost and faster installation with minimum nailing choice.
Simpson Strong-Tie TJC37 Includes
- (1) Adjustable Jack Truss Connector
Simpson Strong-Tie TJC37 Features
- Adjustable from 0 Degree to 85 Degree
- Shipped with 67.5 Degree bend
- Minimum nailing choice for lower installed cost
- Nail hole locations allow for easy setup
Simpson Strong-Tie TJC37 Applications
- Jack trusses in construction
- Structural support for angled trusses

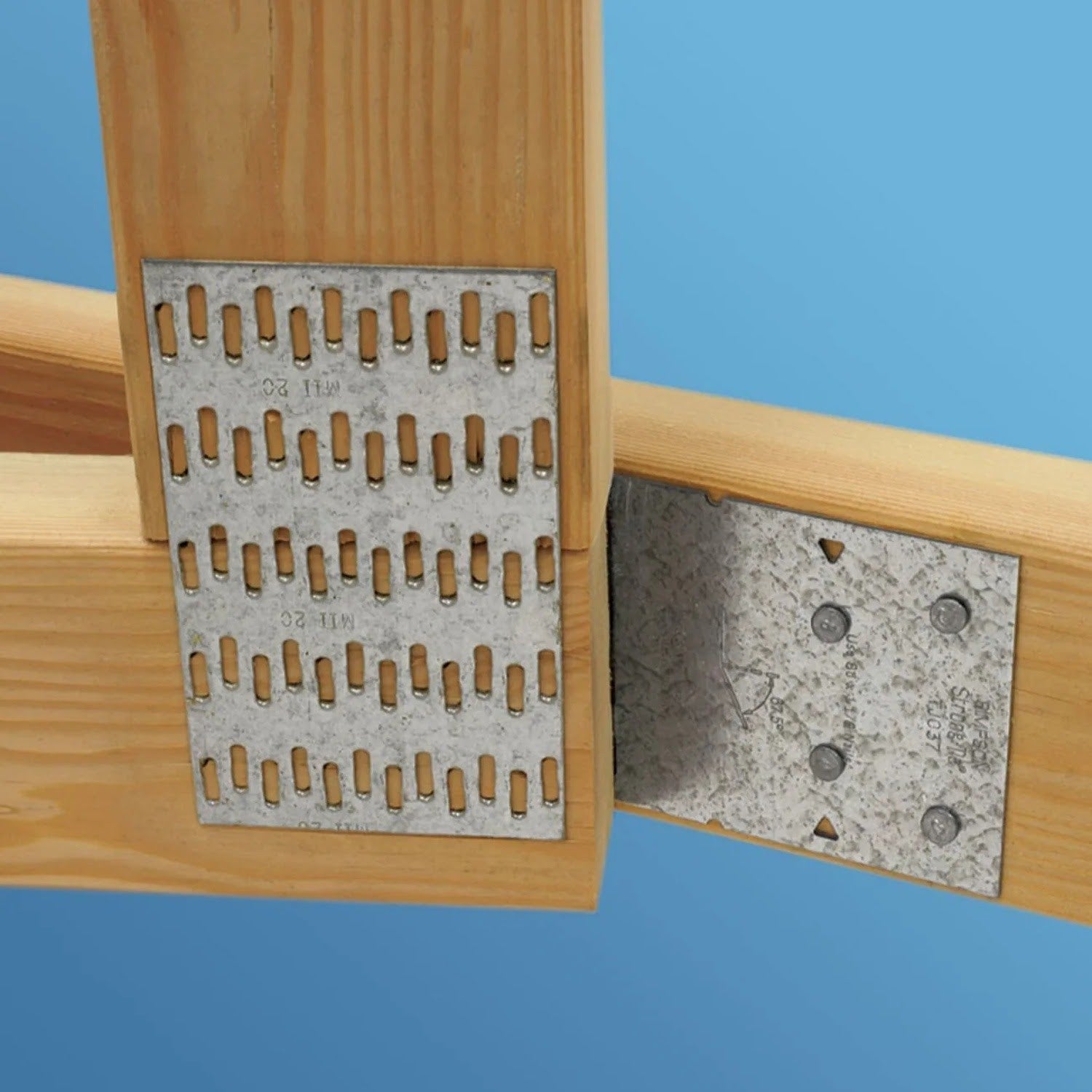

Simpson Strong-Tie TJC37 Installation Overview
- Use all specified fasteners
- Install filling round holes only or round and triangle holes for maximum values
- Ensure minimum 3/16" edge distance on chord members to reduce splitting
- Position jack truss flush with the bend line
- Bend the connector to the desired position (one bend cycle only)
- No bevel cut required
- Check connection geometry for placement on chord members
- Supported jack member is a single 2x

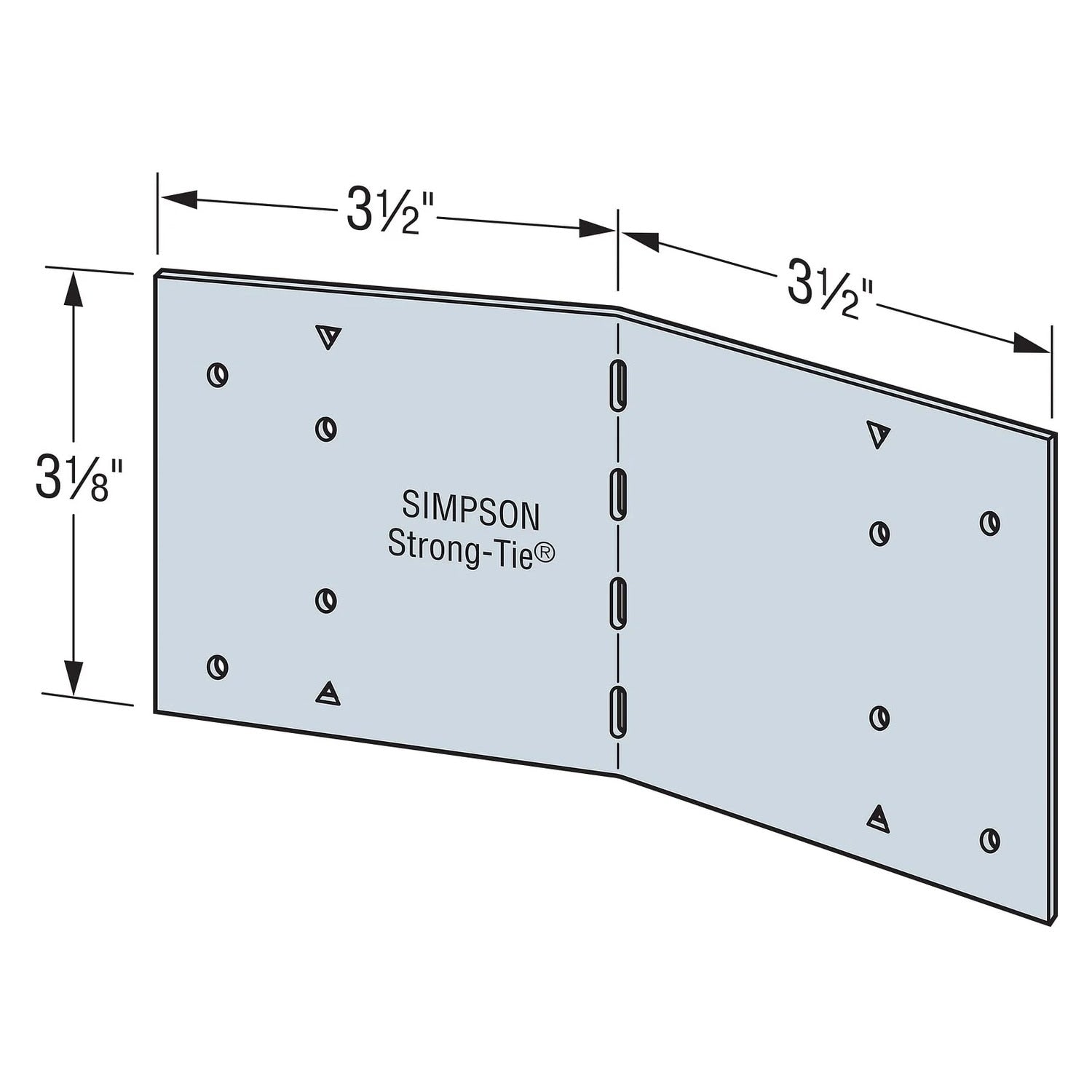

Simpson Strong-Tie TJC37 Specifications
| Fasteners required | Min - (4) 0.131" x 1 1/2" Max - (6) 0.131" x 1 1/2" |
| For Treated Lumber | No |
| Height | 3 1/8" |
| Width | 7" |
| Finish | G90 Galvanized |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
