Simpson Hangers | SKU:
TJC57
Simpson Strong-Tie TJC57 (5-1/8 in. x 7 in.) Adjustable Jack Truss Connector - G90 Galvanized
$6.02
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie TJC57 Description

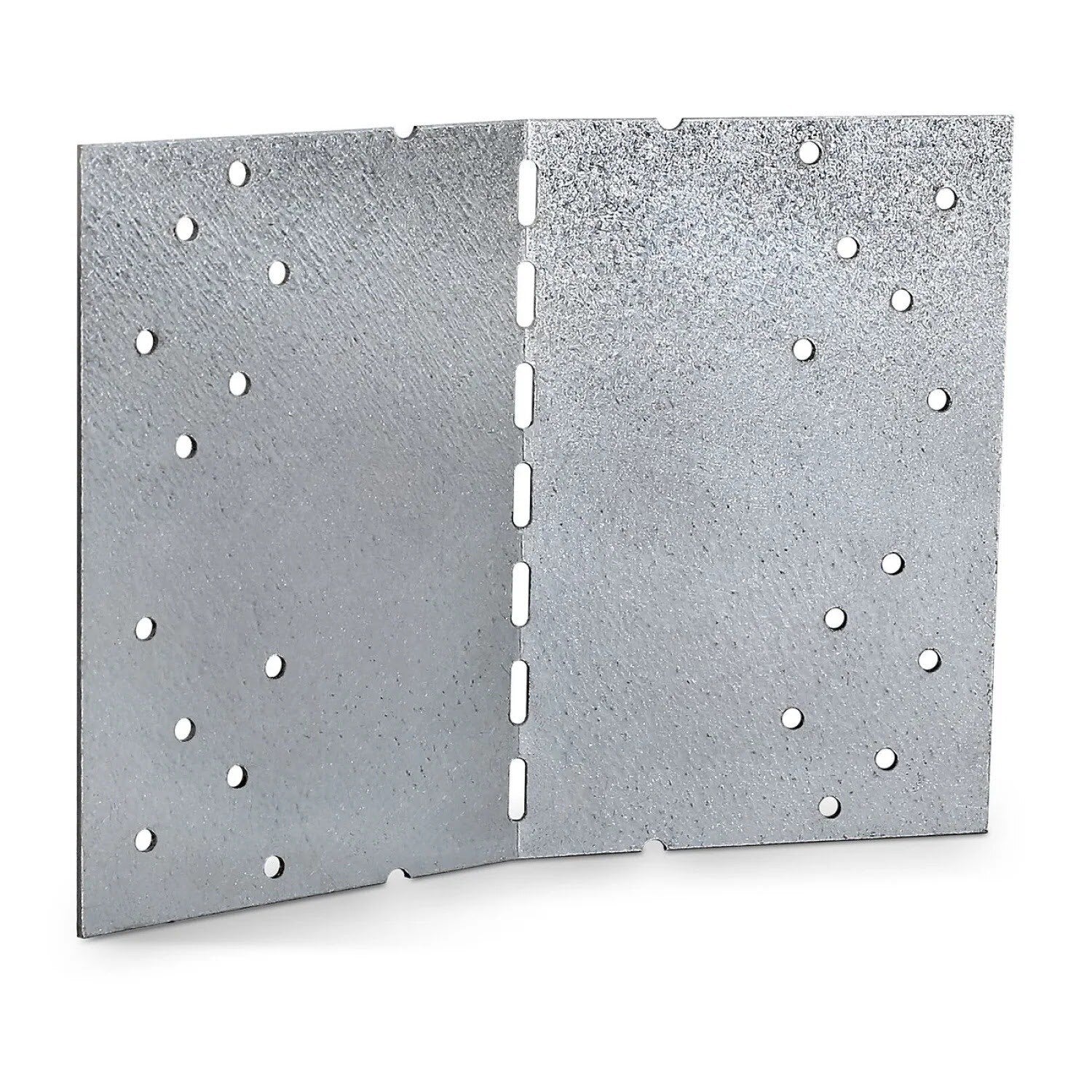

The Simpson TJC57 is a versatile connector for jack trusses, adjustable from 0° to 85°, with a G90 galvanized finish for durability.
Simpson Strong-Tie TJC57 Includes
- (1) Adjustable Jack Truss Connector
Simpson Strong-Tie TJC57 Features
- Adjustable from 0° to 85°
- G90 galvanized finish for corrosion resistance
- Designed for jack trusses

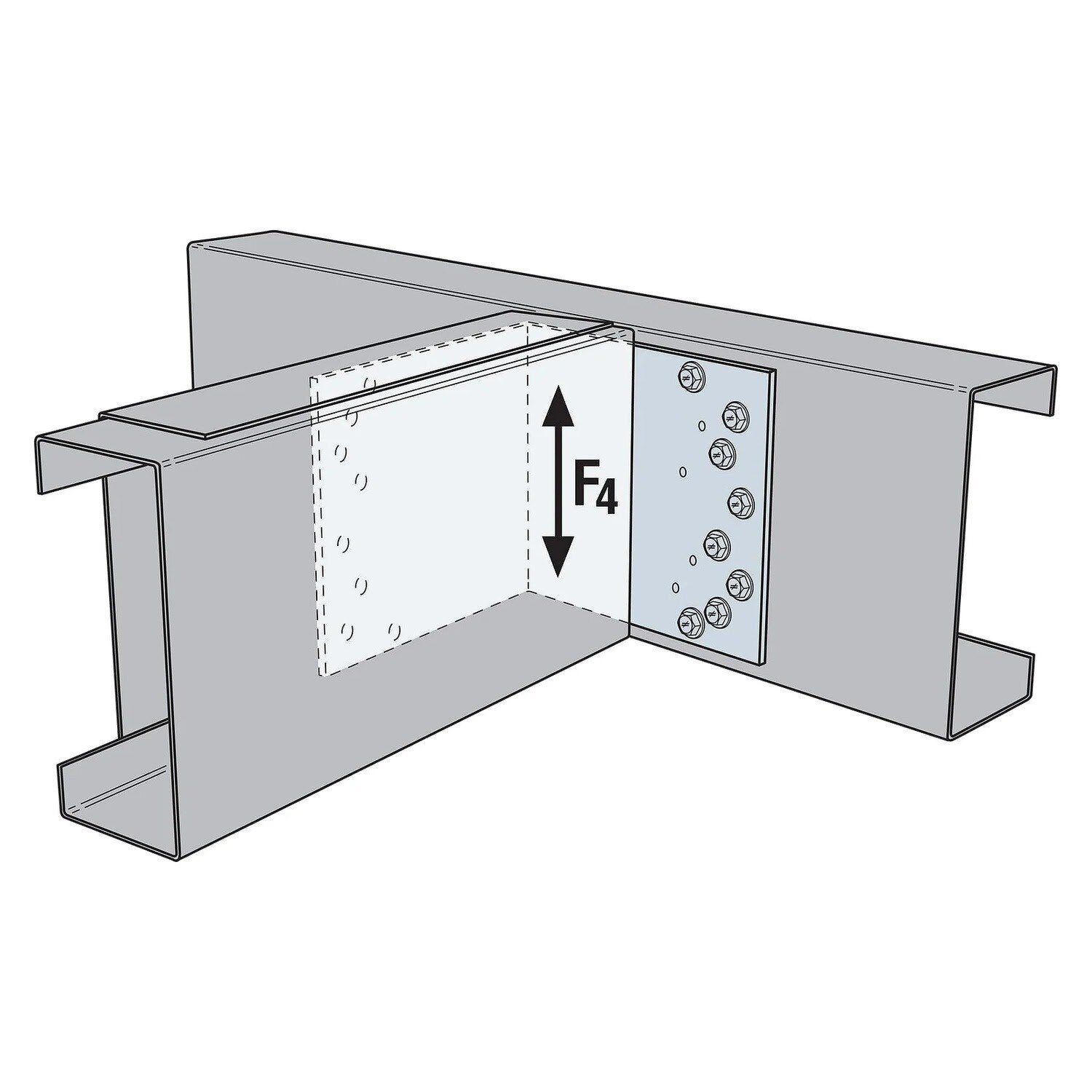

Simpson Strong-Tie TJC57 Applications
- Wood-to-wood fastening for jack trusses
- Structural support in construction projects
Simpson Strong-Tie TJC57 Installation Overview

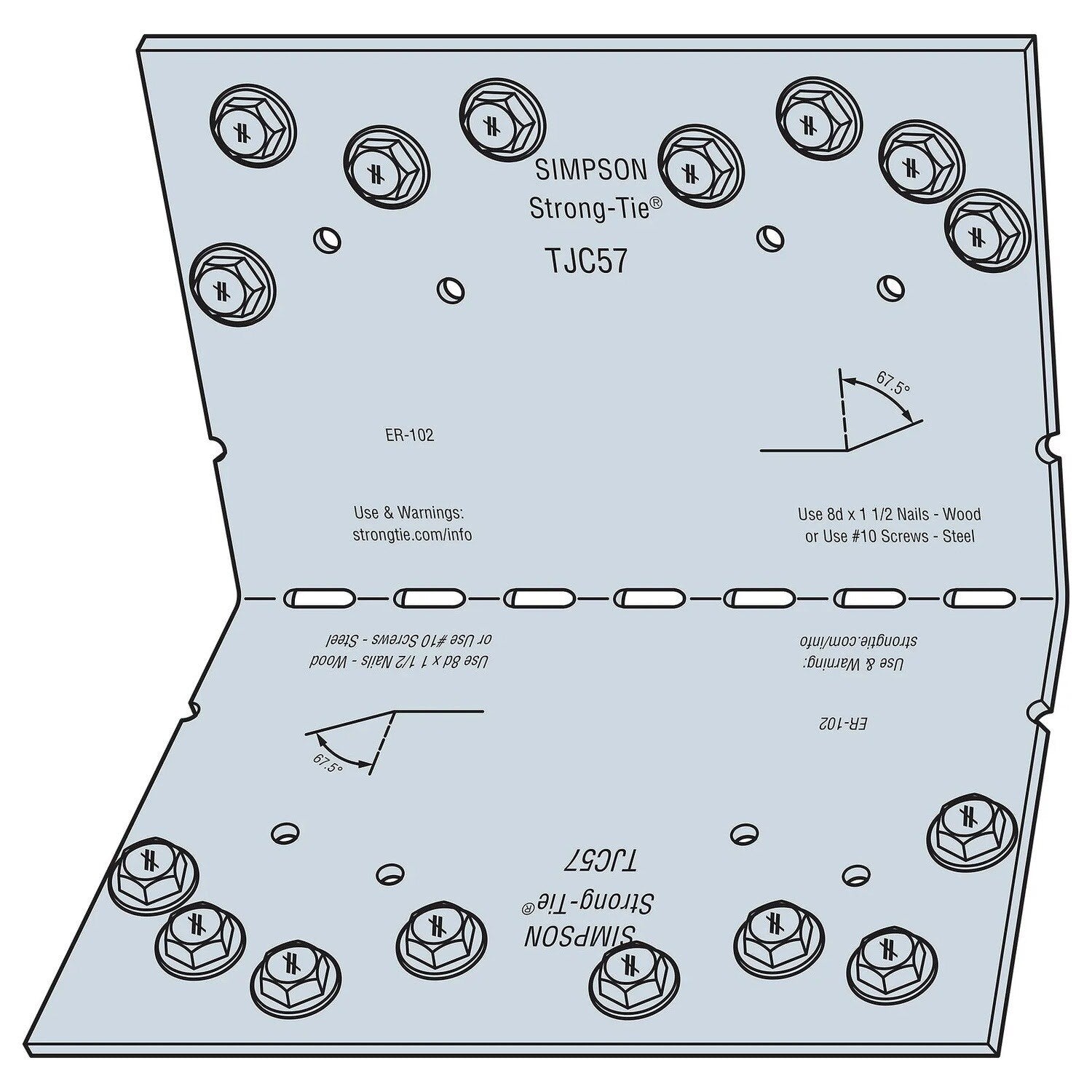

- Use all specified fasteners
- Install with a minimum 3/16" edge distance on chord members
- Position the jack truss on the inside of the bend line
- Bend the TJC to the desired position (one bend cycle only)
- No bevel cut required

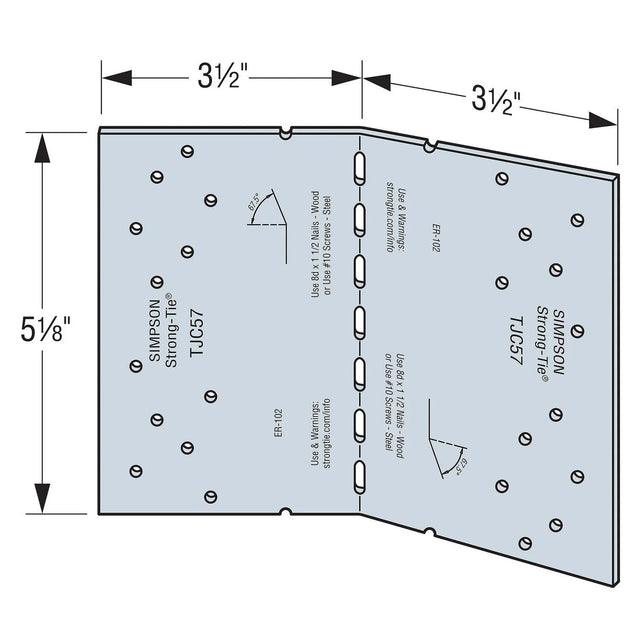

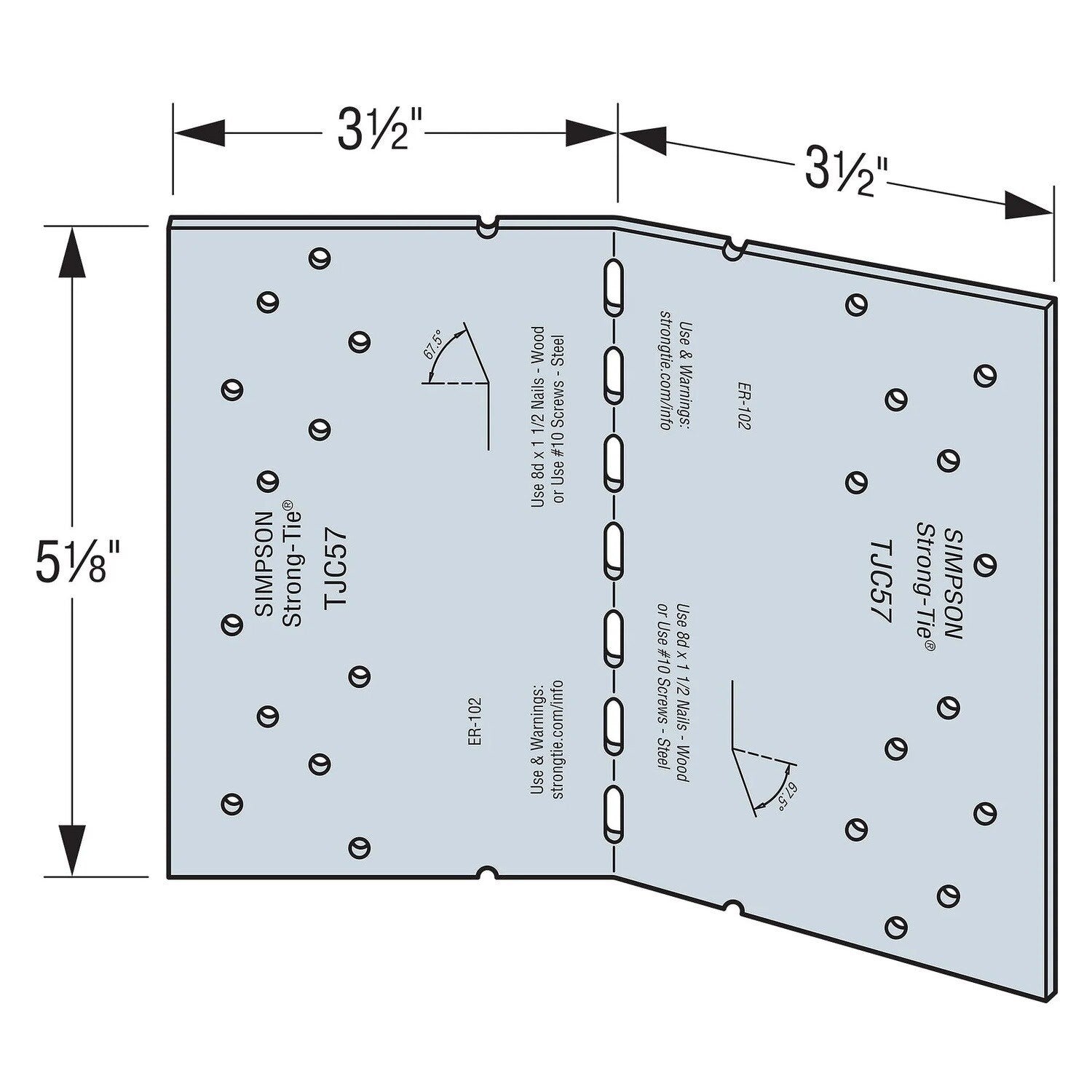

Simpson Strong-Tie TJC57 Specifications
| Material | 16 ga. (54 mil) |
| Finish | G90 Galvanized |
| Height | 5 1/8" |
| Width | 7" |
| Fasteners required | Nails - (12) 0.131" x 1 1/2", SD Screws - (12) #9 x 1 1/2" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
