Simpson Anchors | SKU:
TNT18114TFC75

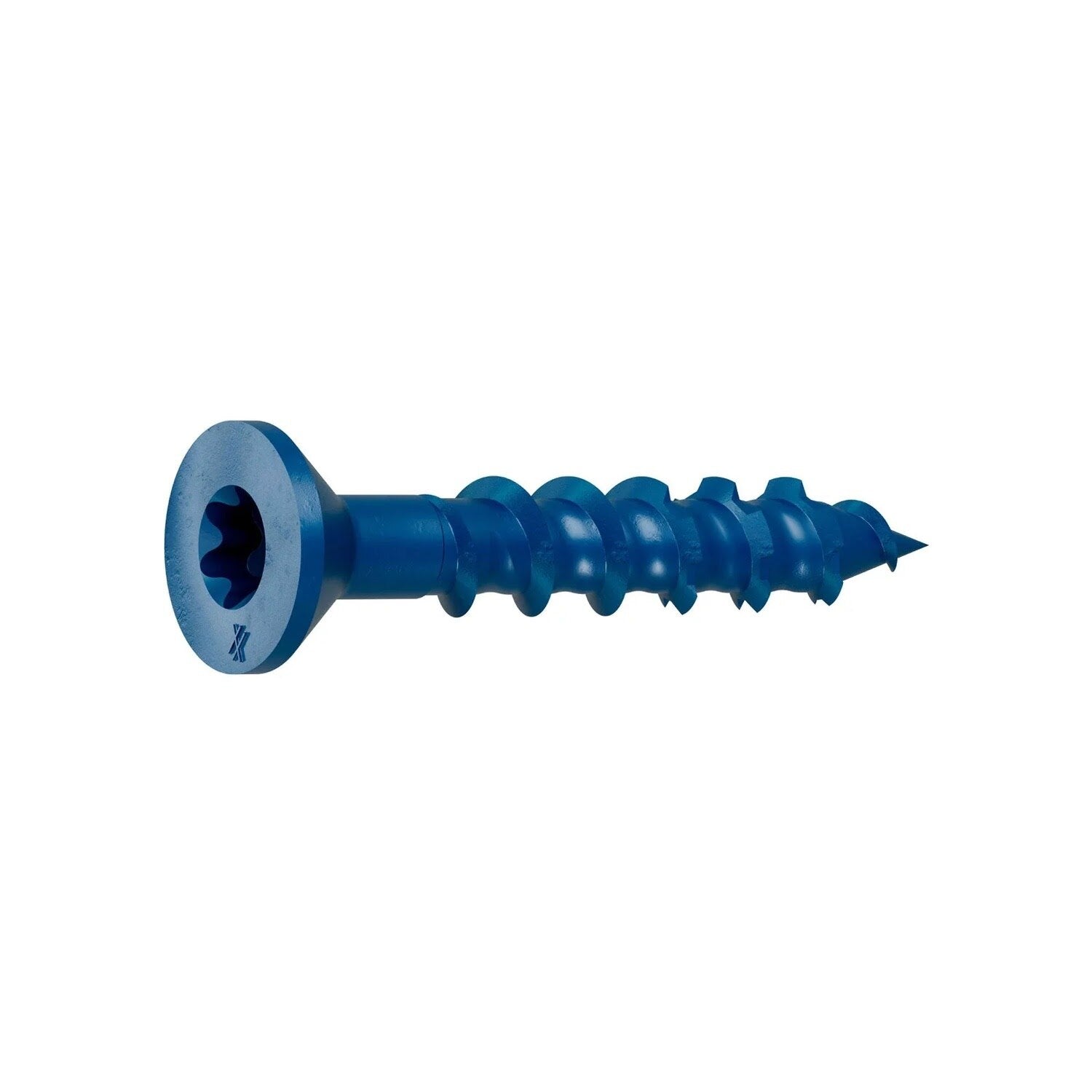

Simpson Strong-Tie TNT18114TFC75 Titen Turbo (3/16" x 1-1/4") Flat-Head Concrete and Masonry Screw, Blue (75 Pack)
$10.74
Unit price
/
Unavailable
Description
Description
Simpson TNT18114TFC75 Description
The Simpson Strong-Tie Titen Turbo screw anchor is a heavy-duty fastener designed for quick and easy installation in wood-to-concrete and wood-to-wood anchoring applications.
Simpson TNT18114TFC75 Includes
- (75) 3/16" x 1-1/4" Flat Head Titen Turbo Screw Anchor
- (1) T25 Drive Bit
- (1) Standard ANSI Drill Bit

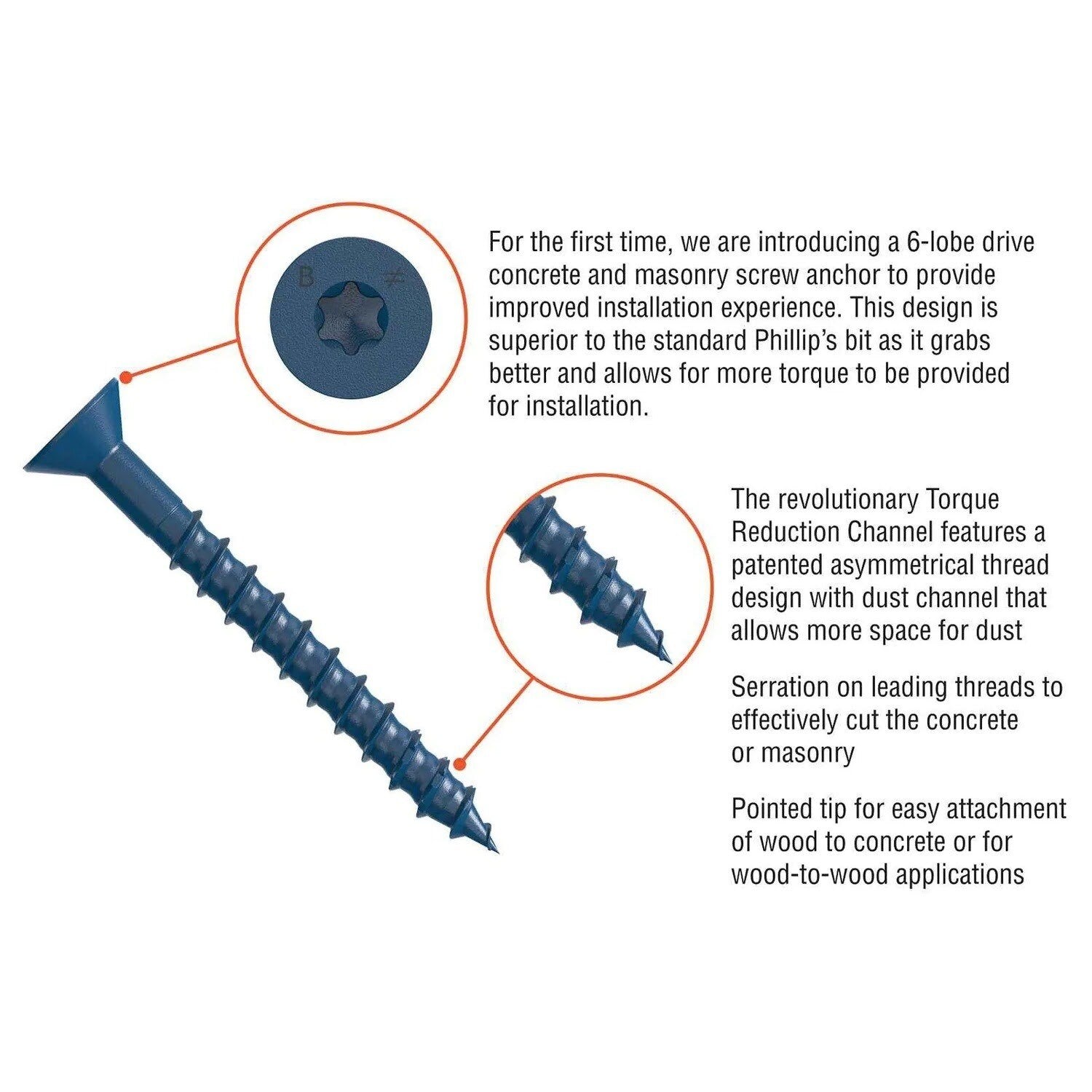

Simpson TNT18114TFC75 Features
- Patented Torque Reduction Channel reduces binding and snapping.
- Available in multiple coated versions.
- Flush profile with 6-lobe-drive countersunk flat head.
- Superior tension load performance.
- Designed for installation with an impact driver or cordless drill.
- Code listed for uncracked concrete and masonry applications.

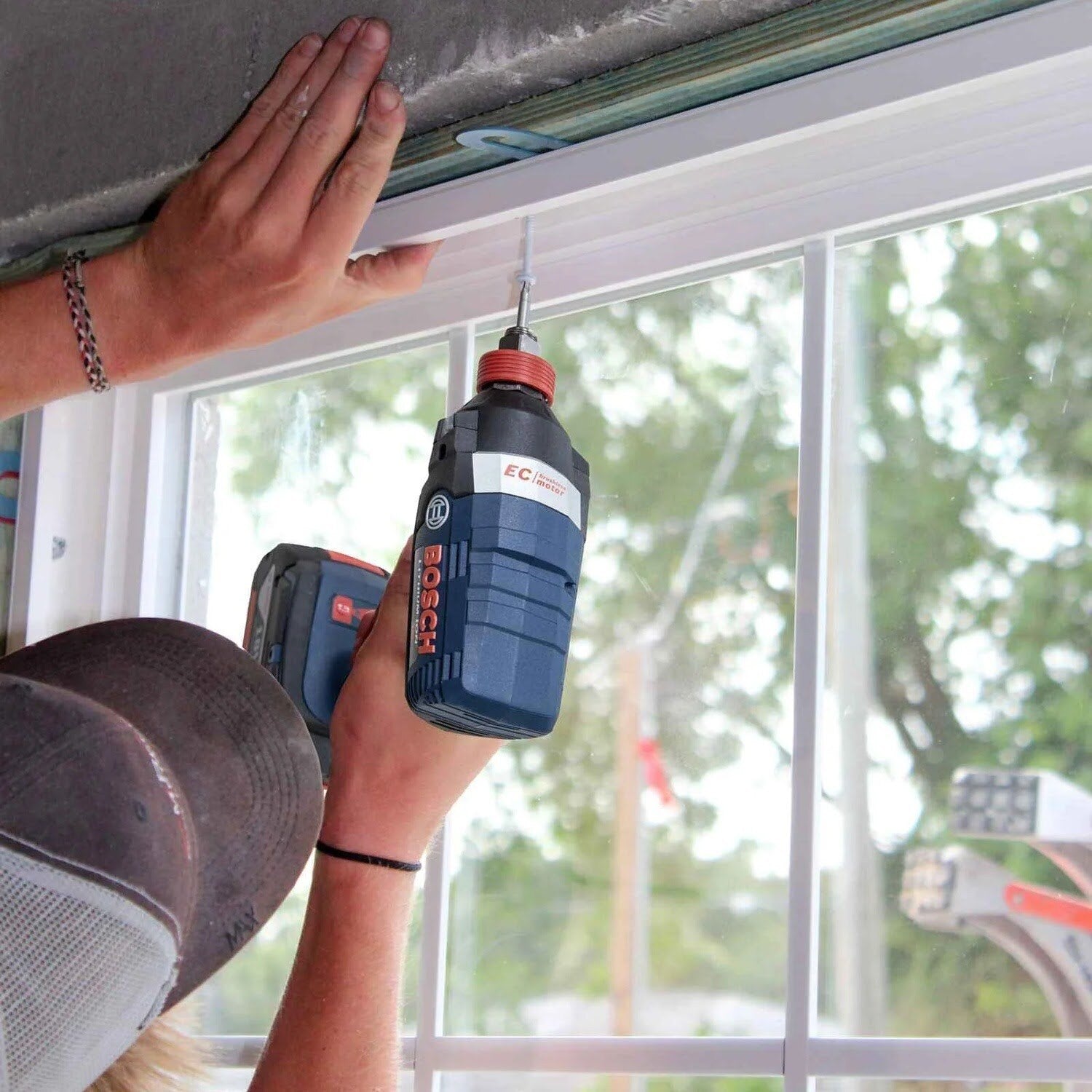

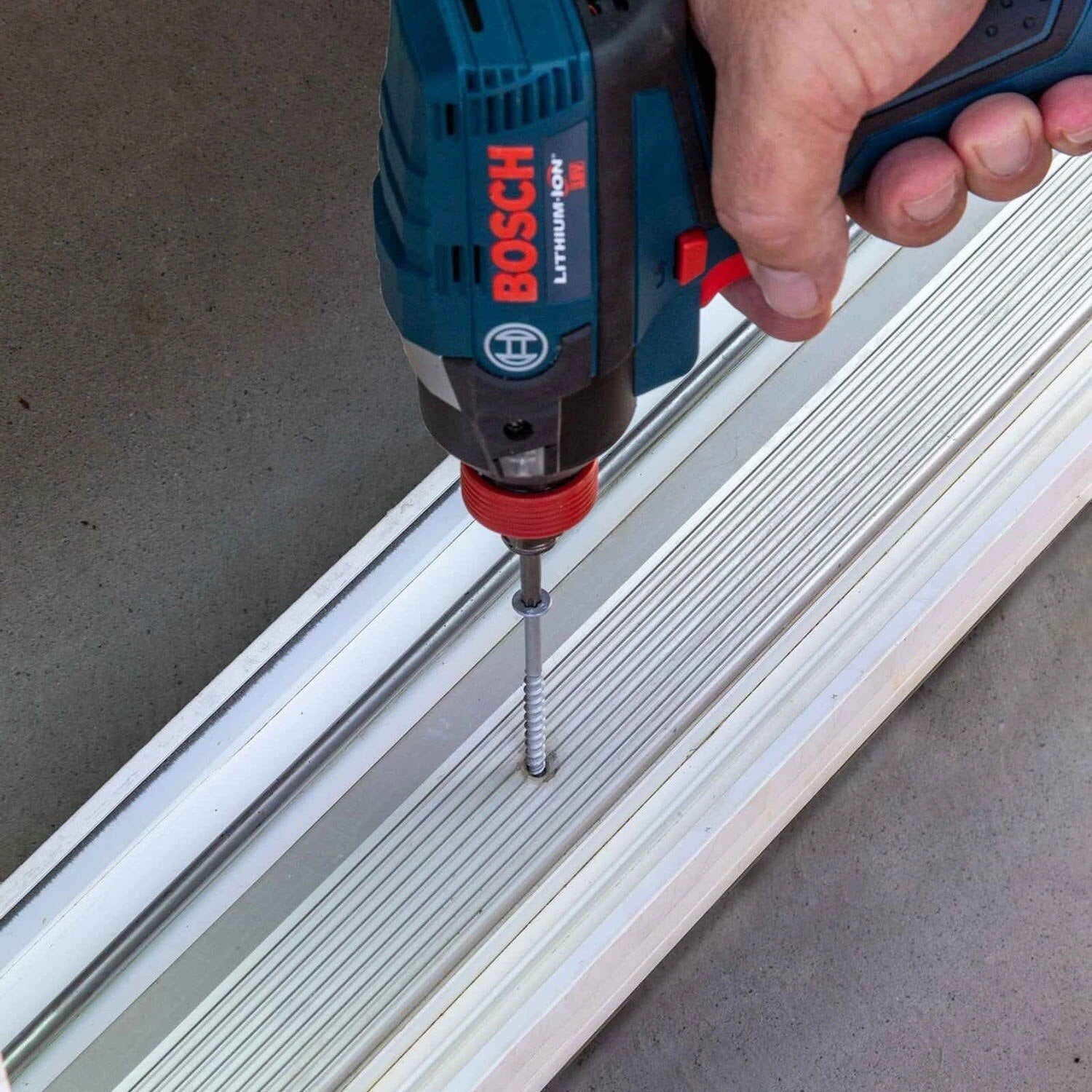

Simpson TNT18114TFC75 Applications

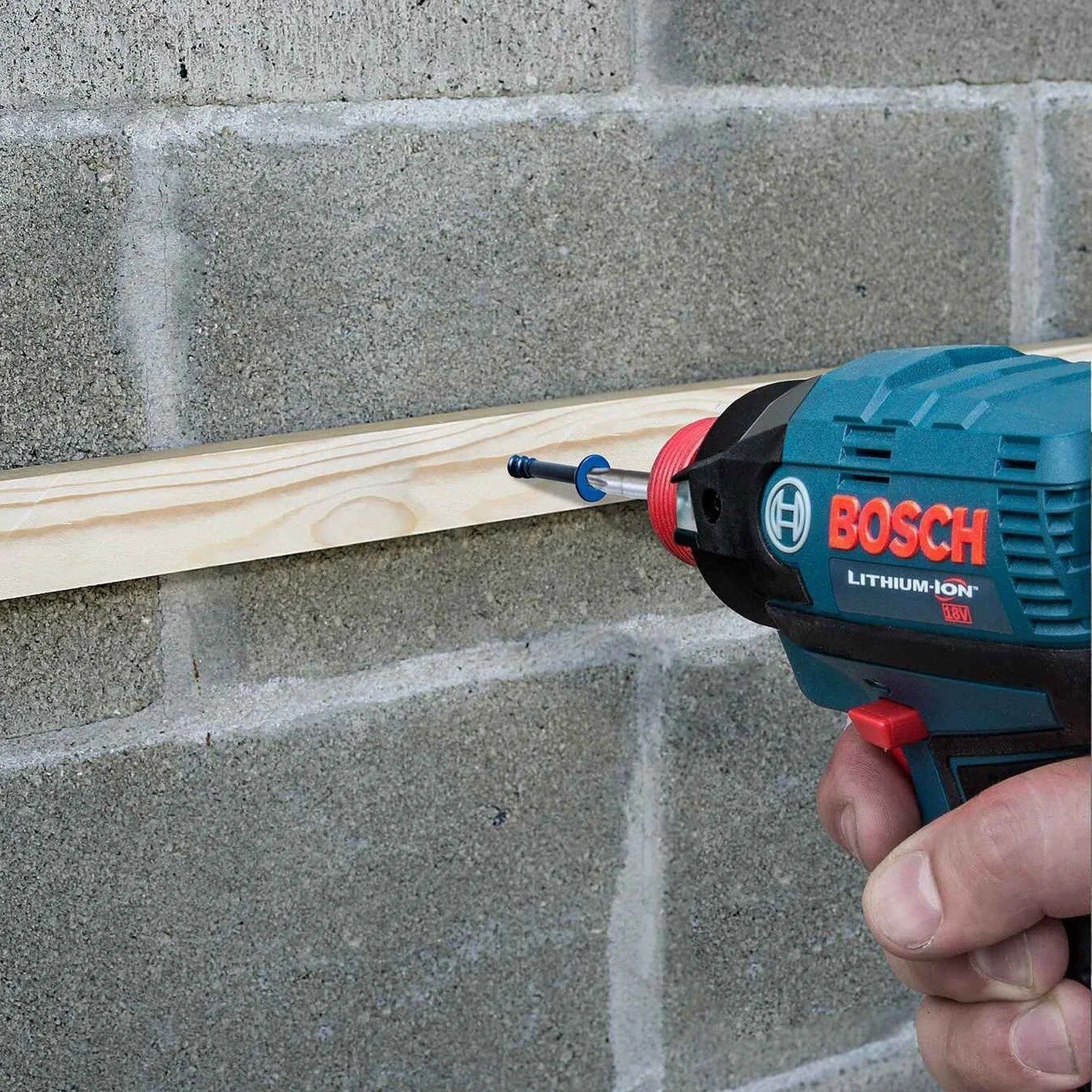

- Wood-to-concrete anchoring.
- Wood-to-wood anchoring.
- Electrical boxes and conduit.
- Light fixtures and thresholds.
- Basement furring strips.
- Shelf mounting to concrete/CMU.
- Handrails.
Simpson TNT18114TFC75 Installation Overview
- Drill a hole using the specified diameter carbide drill bit.
- Position fixture and insert screw.
- Tighten using drill and Titen Turbo screw installation tool.
Simpson TNT18114TFC75 Specifications
| Diameter | 3/16" |
| Finish | Blue Zinc |
| Length | 1-1/4" |
| Material | Carbon Steel |
| Drill bit size | 5/32" |
| Drive type | T25 Star Drive |
| Head type | Flat Head |
| Quantity | 75 |
NOTE: Ensure the correct fasteners are installed in the correct position to achieve published load values
