Simpson Anchors | SKU:
TNT18134TF

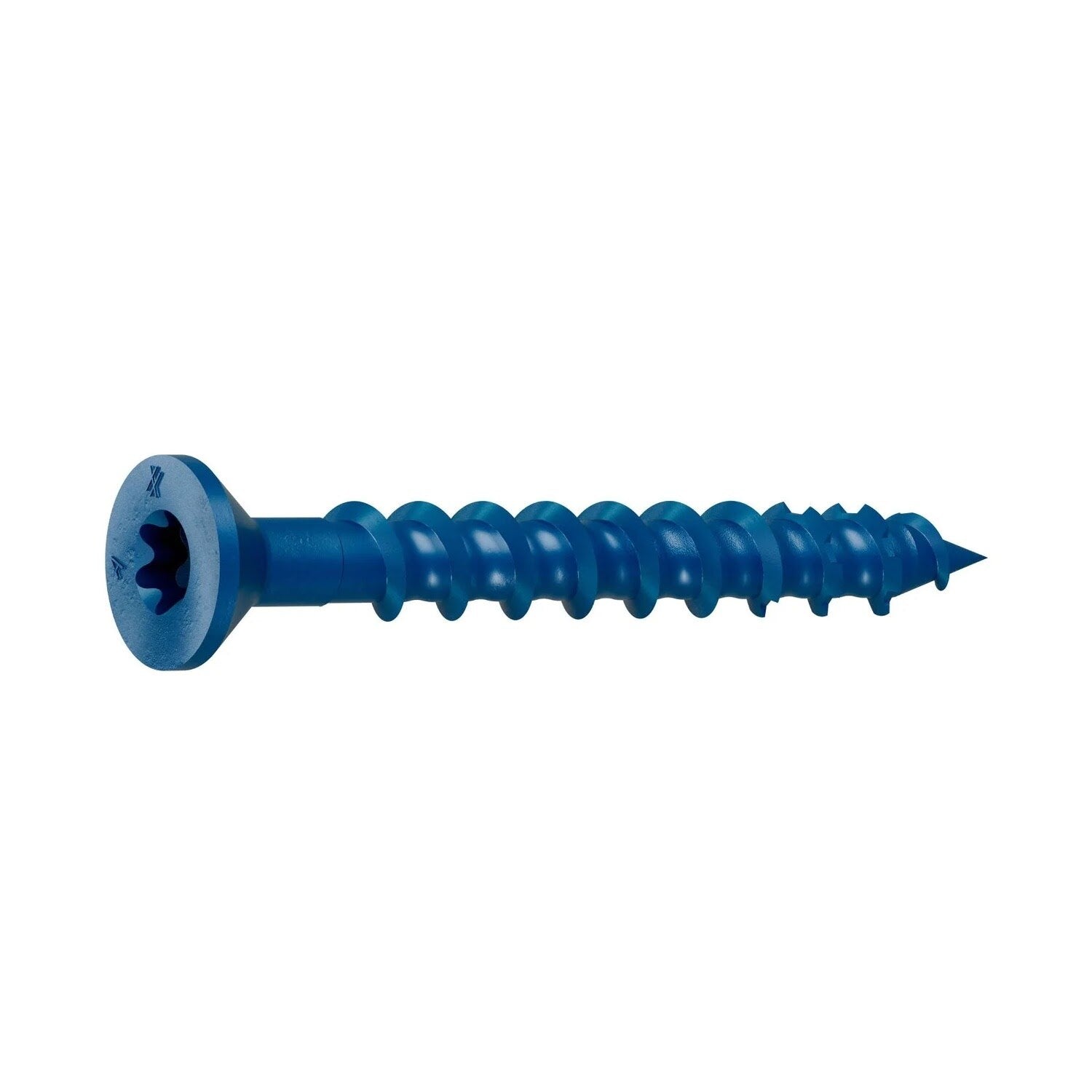

Simpson Strong-Tie TNT18134TF Titen Turbo (3/16 x 1-3/4) Flat-Head Concrete and Masonry Screw, Blue (100 Pack)
$11.53
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie TNT18134TF Description
The Simpson Strong-Tie Titen Turbo screw anchor is a heavy-duty fastener designed for quick and easy installation in concrete and masonry applications. It features a patented torque reduction channel for smooth driving and superior holding power.
Simpson Strong-Tie TNT18134TF Includes
- (100) 3/16 x 1-3/4 in. Titen Turbo Concrete and Masonry Screws
- (1) T25 driver bit

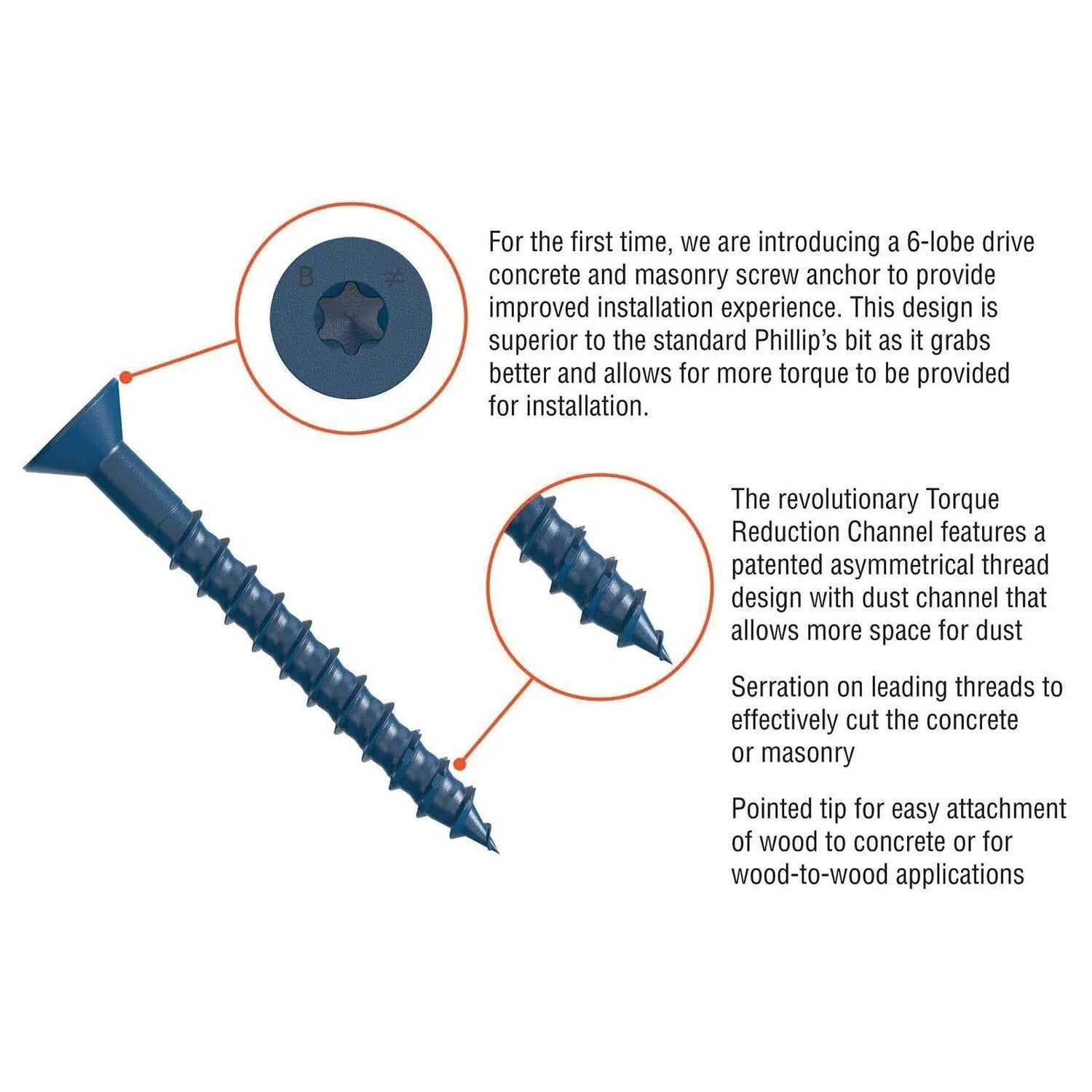

Simpson Strong-Tie TNT18134TF Features
- Patented Torque Reduction Channel for reduced binding and smooth driving
- Available in multiple coated versions for various applications
- 6-lobe drive for positive bit engagement and long bit life
- Superior tension load performance
- Designed for use with standard ANSI drill bits
Simpson Strong-Tie TNT18134TF Applications
- Electrical boxes and conduit mounting
- Switch boxes and light fixtures installation

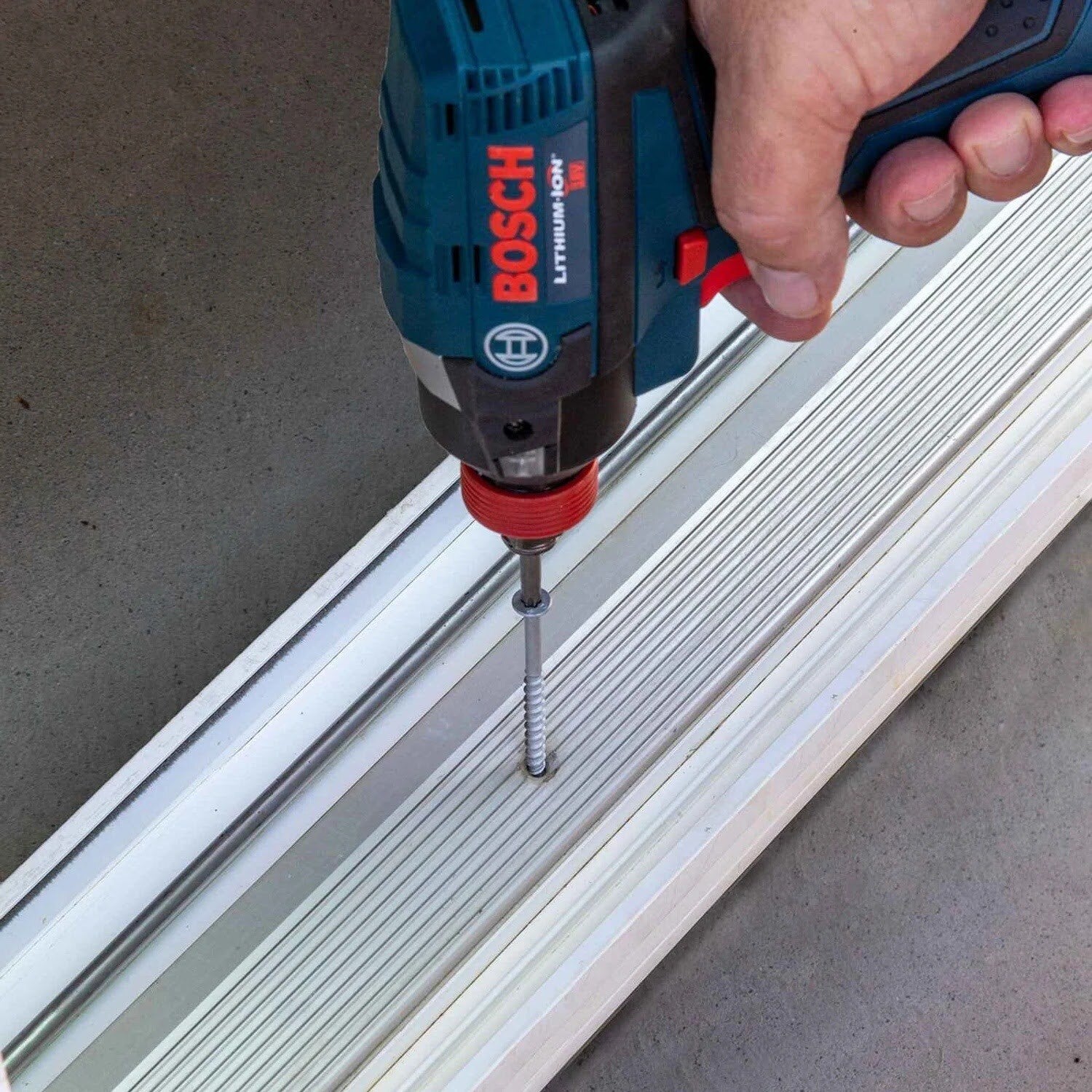

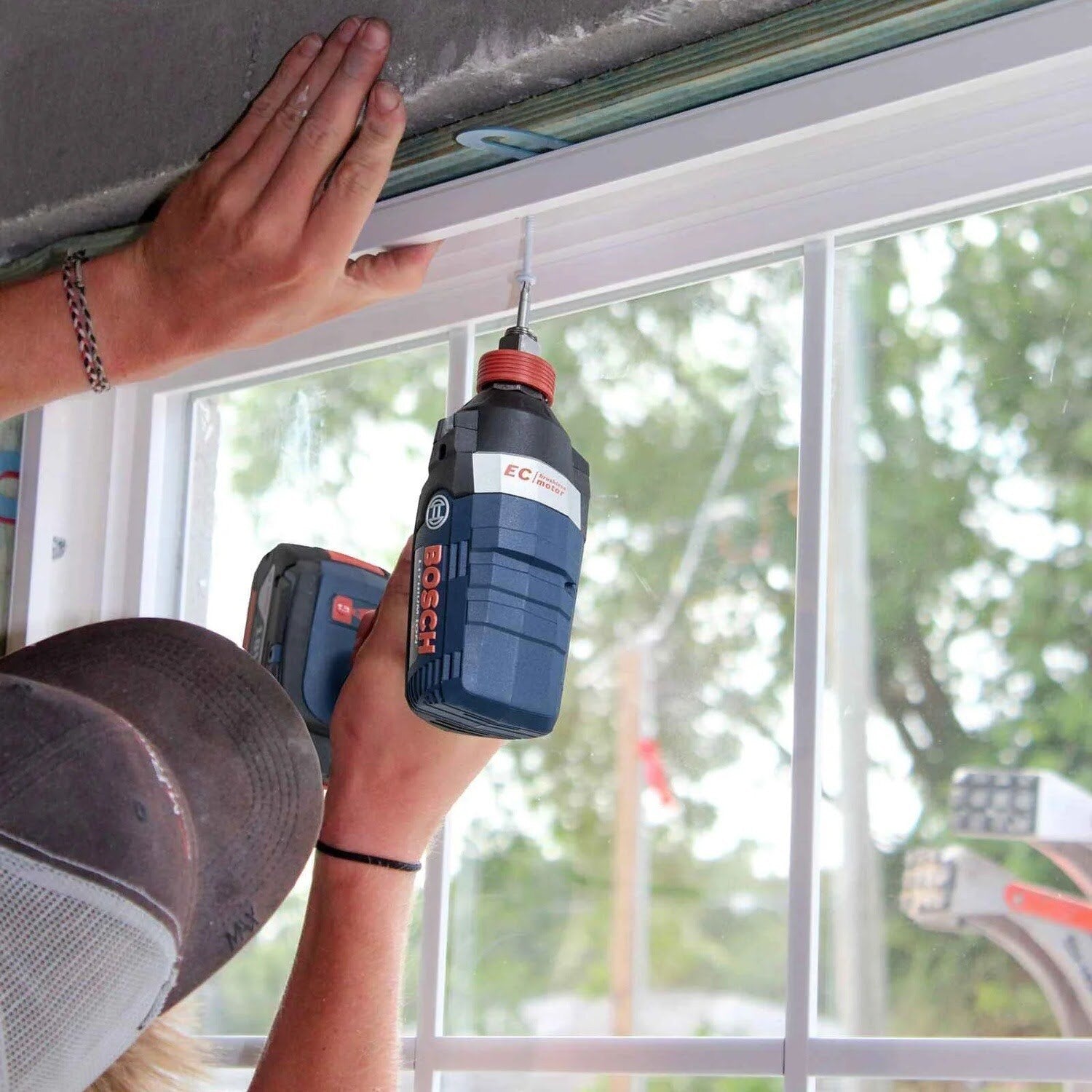

- Window and threshold anchoring

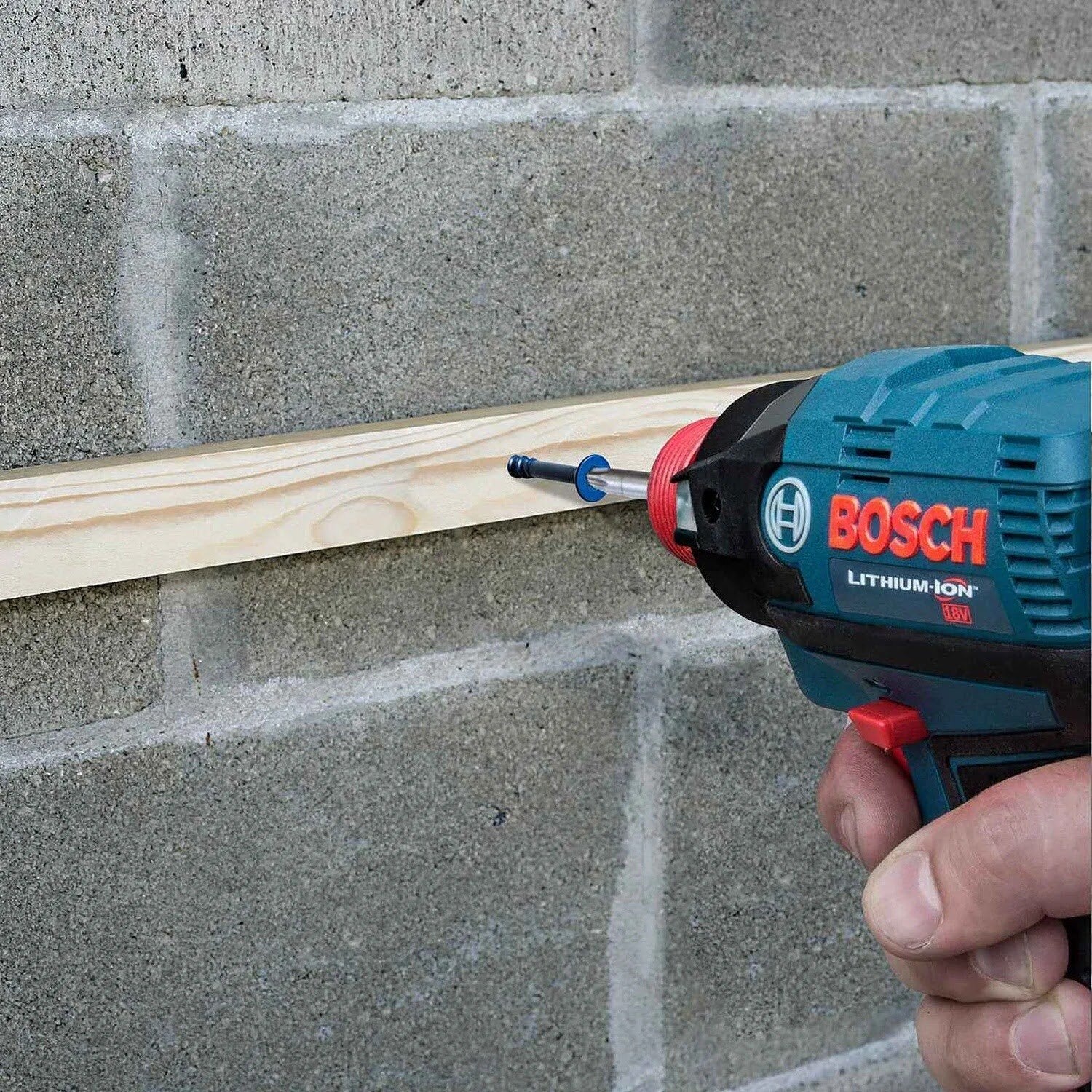

- Basement furring strips attachment
- Shelf mounting to concrete or CMU
- Handrails installation
Simpson Strong-Tie TNT18134TF Installation Overview
- Drill a hole using the specified diameter carbide drill bit
- Position the fixture and insert the screw
- Tighten using a drill and the Titen Turbo screw installation tool
Simpson Strong-Tie TNT18134TF Specifications
| Material | Carbon Steel |
| Finish | Blue Zinc |
| Diameter | 3/16 in. |
| Length | 1-3/4 in. |
| Drill Bit Size | 5/32 in. |
| Drive Type | T25 Star Drive |
| Head Type | Flat Head |
| Quantity | 100 |
NOTE: Designed for installation with an impact driver or cordless drill. Installation using the Titen Turbo Installation Tool is recommended.
