Simpson Anchors | SKU:
TNT18134TFC25

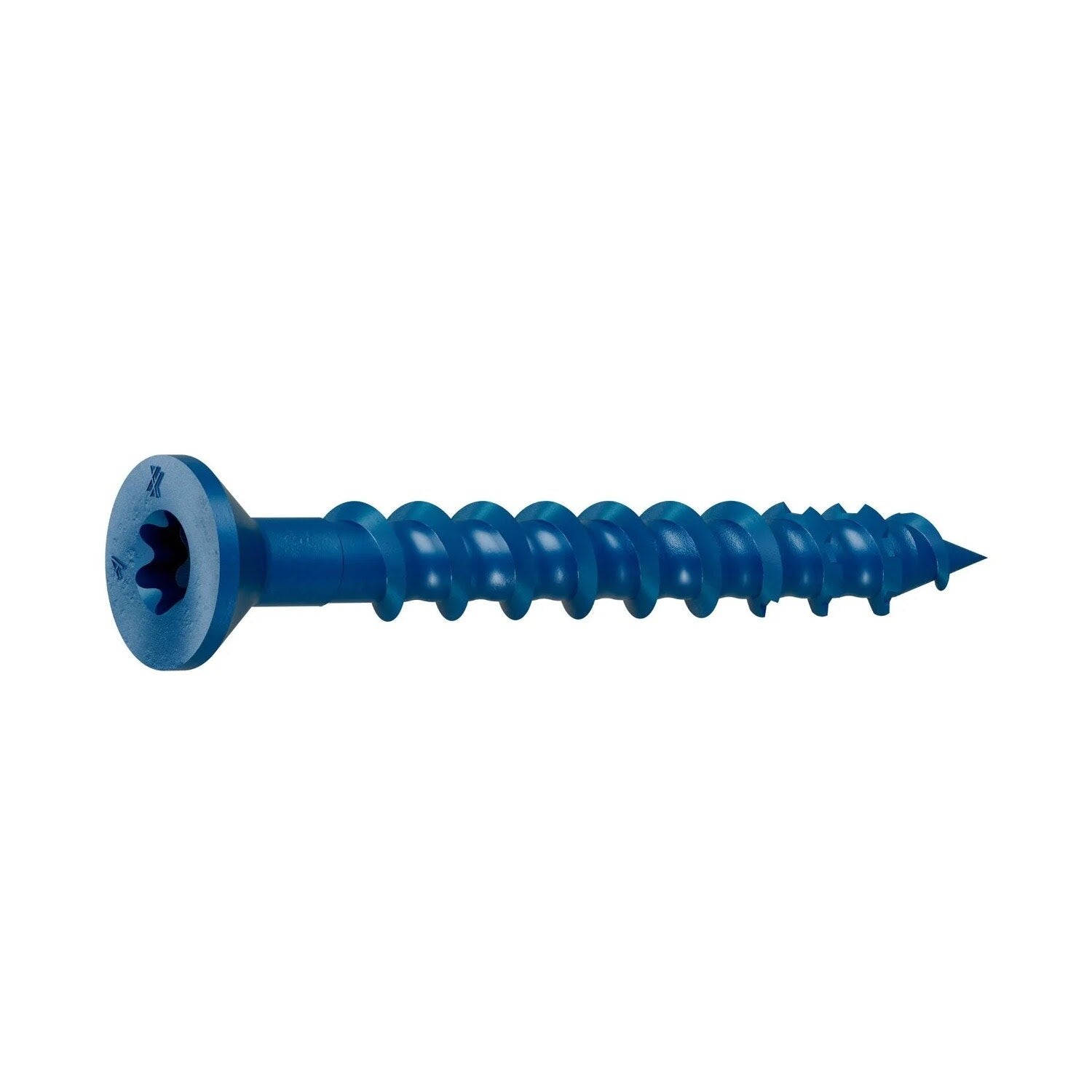

Simpson Strong-Tie TNT18134TFC25 Titen Turbo(3/16" x 1-3/4") Flat-Head Concrete and Masonry Screw, Blue (25 Pack)
$5.74
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie TNT18134TFC25 Description
The Simpson Strong-Tie Titen Turbo screw anchor is a heavy-duty fastener designed for concrete and masonry applications, featuring a patented torque reduction channel for smooth driving and superior holding power.
Simpson Strong-Tie TNT18134TFC25 Includes
- (25) Titen Turbo Screw Anchor
Simpson Strong-Tie TNT18134TFC25 Features

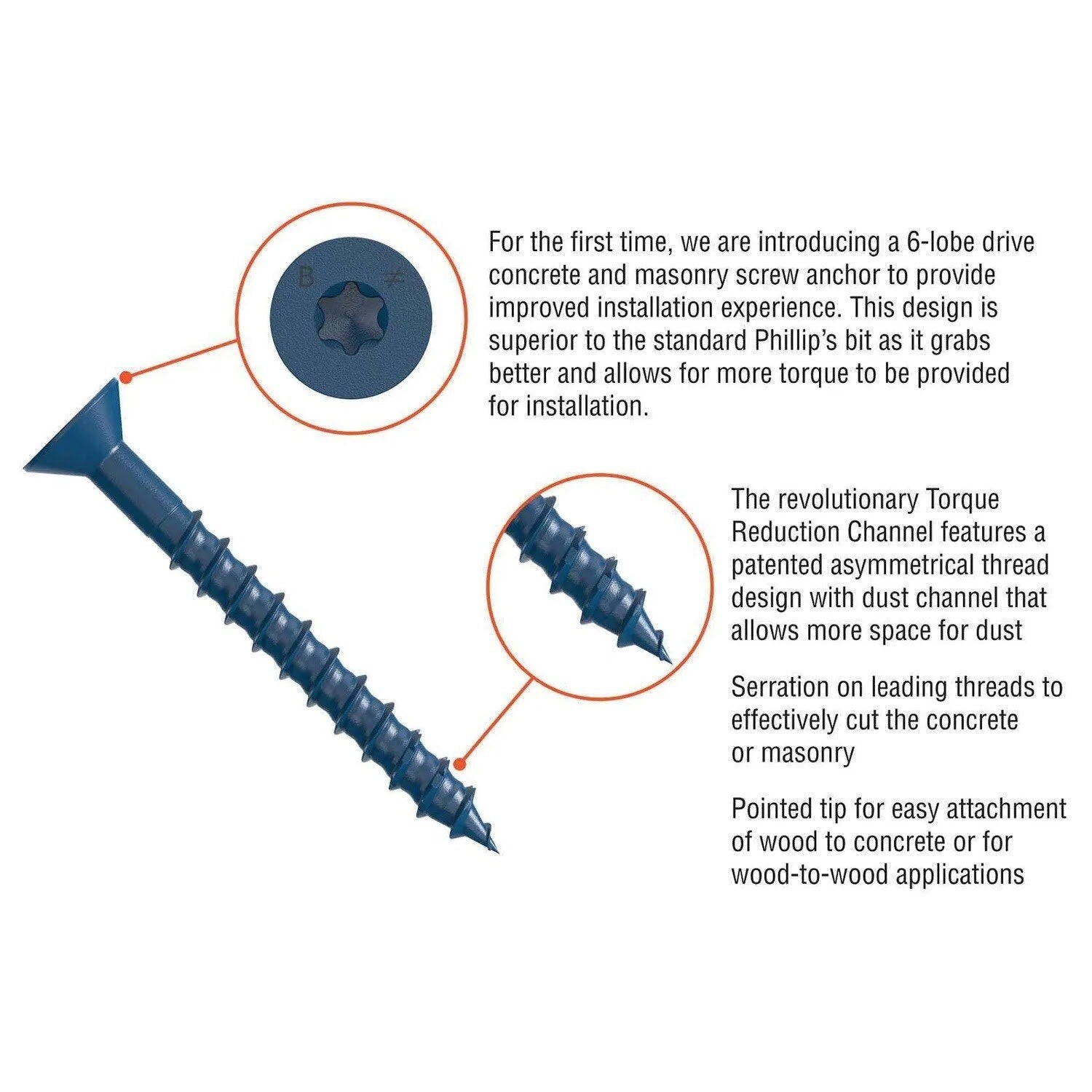

- Patented Torque Reduction Channel for reduced binding
- Available in multiple coated versions
- Hex head or 6-lobe-drive countersunk flat head options
- Superior tension load performance
- Designed for use with impact drivers or cordless drills
- Code listed for uncracked concrete and masonry applications
Simpson Strong-Tie TNT18134TFC25 Applications
- Wood-to-concrete anchoring
- Wood-to-wood anchoring
- Electrical boxes and conduit
- Switch boxes and light fixtures

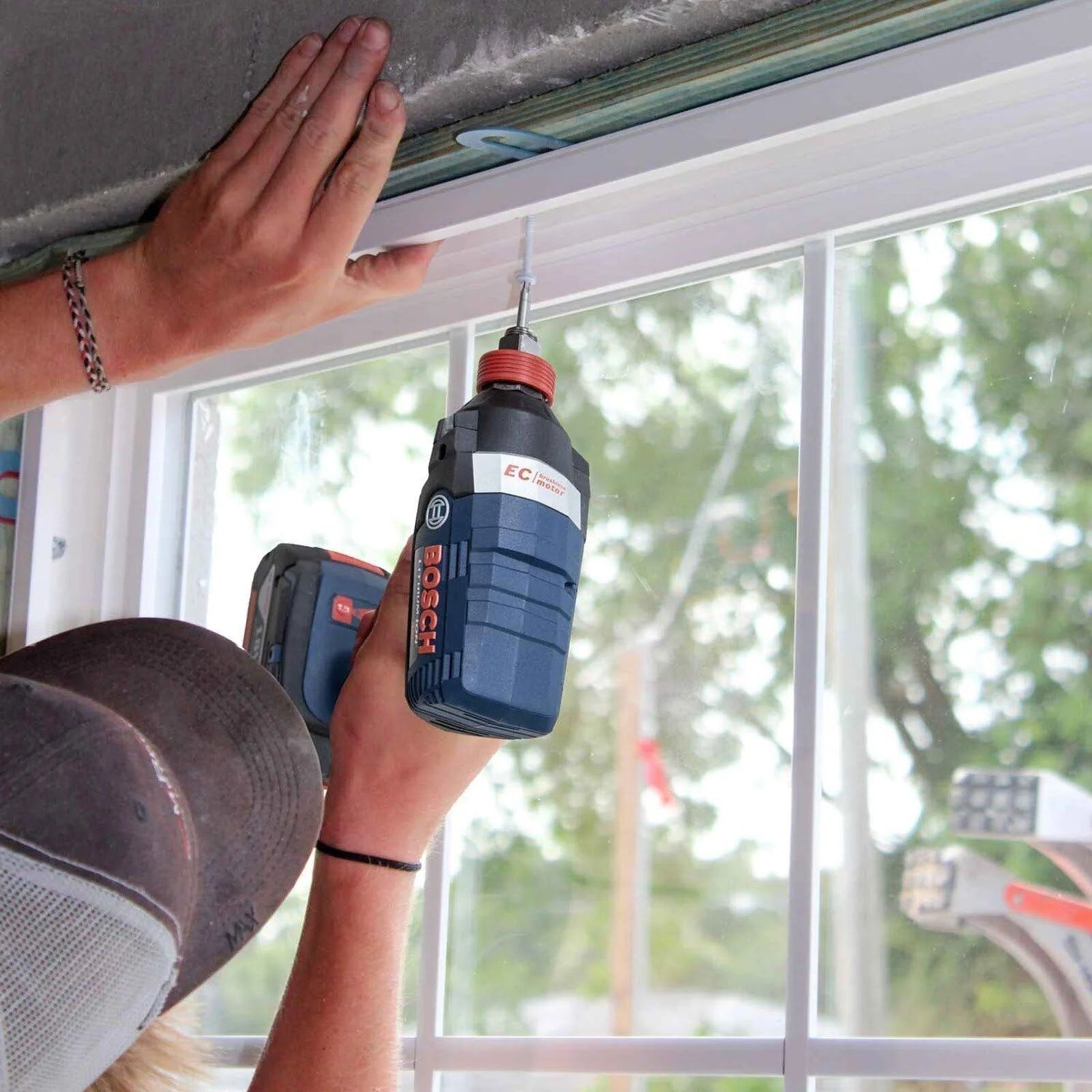

- Windows and thresholds

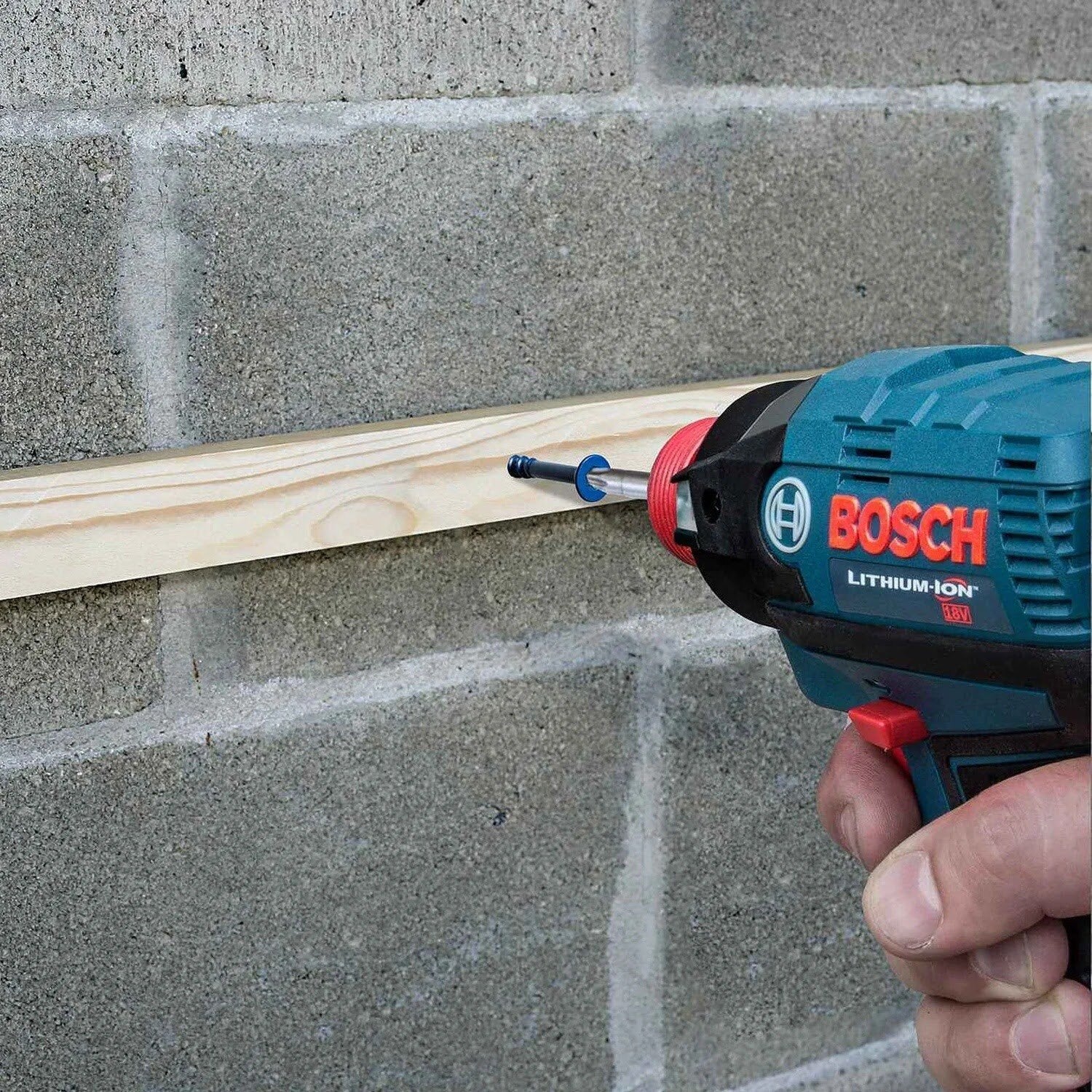

- Basement furring strips
- Shelf mounting to concrete/CMU
- Handrails

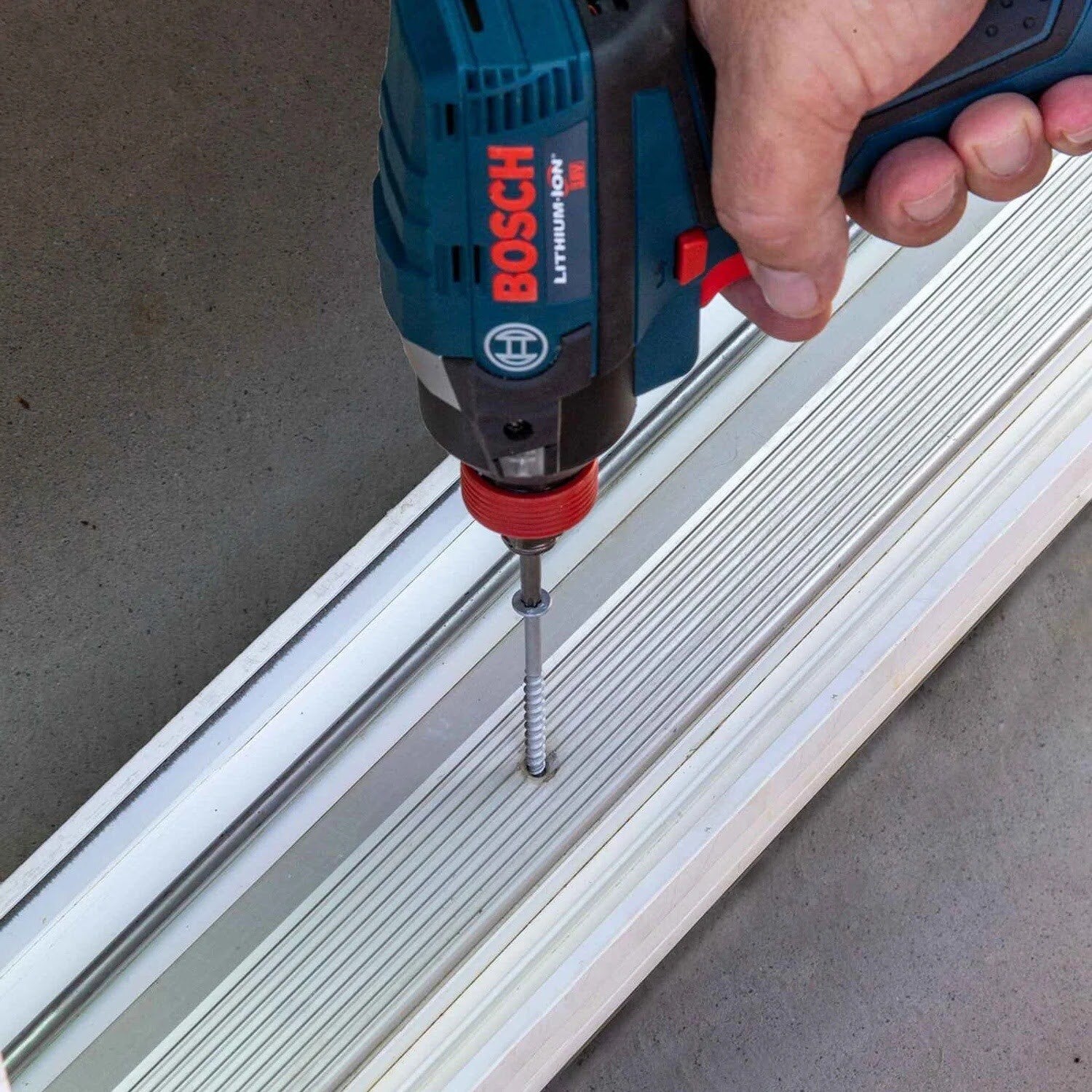

Simpson Strong-Tie TNT18134TFC25 Installation Overview
- Drill a hole using the specified diameter carbide drill bit
- Position fixture and insert screw
- Tighten using drill and Titen Turbo screw installation tool
Simpson Strong-Tie TNT18134TFC25 Specifications
| Diameter | 3/16" |
| Finish | Blue Zinc |
| Length | 1-3/4" |
| Material | Carbon Steel |
| Drill bit size | 5/32" |
| Drive type | T25 Star Drive |
| Head type | Flat Head |
| Quantity | 25 |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
