Simpson Anchors | SKU:
TNT18134TFC8

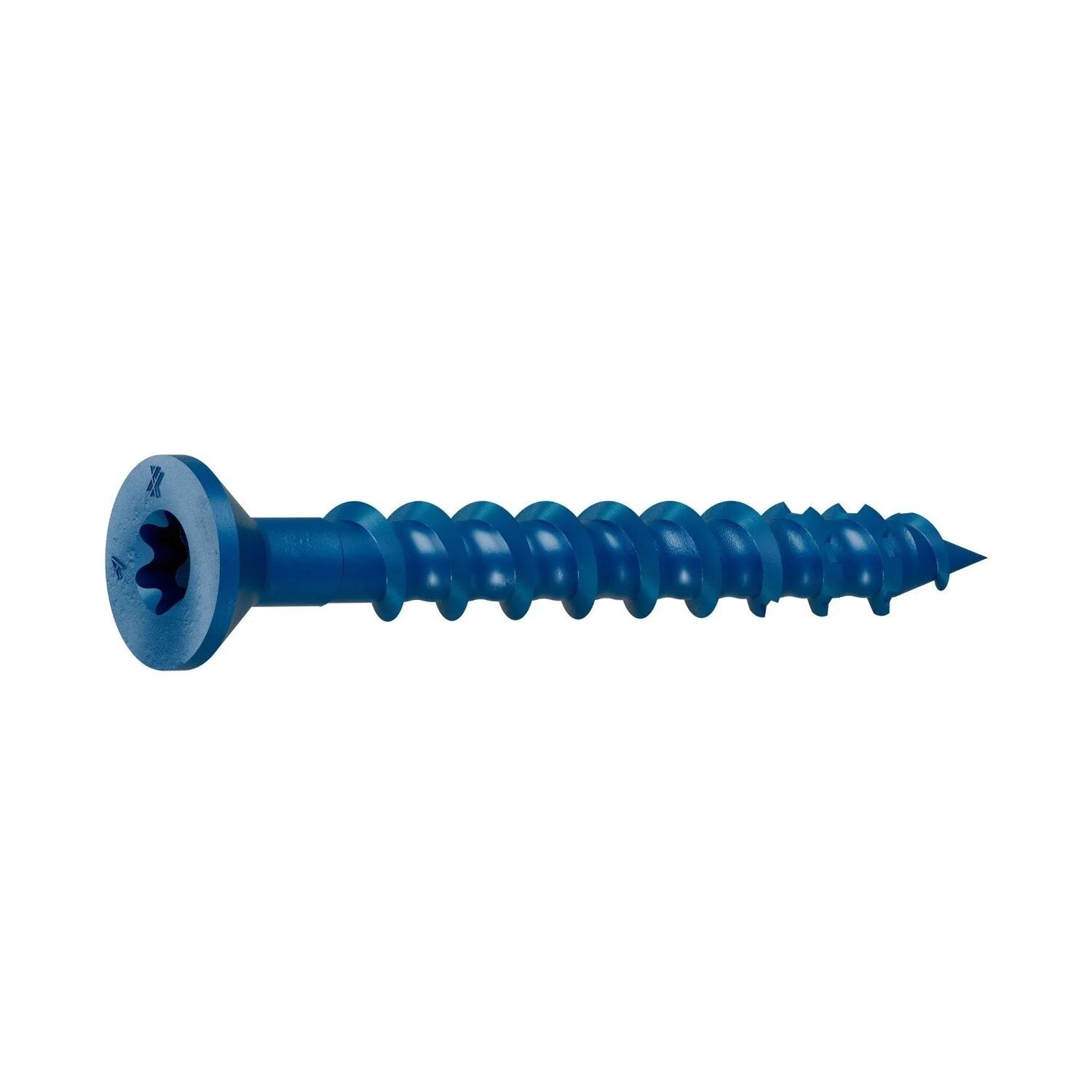

Simpson Strong-Tie TNT18134TFC8 Titen Turbo (3/16" x 1-3/4") Flat-Head Concrete and Masonry Screw, Blue (8 Pack)
$3.14
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie TNT18134TFC8 Description
The Titen Turbo Screw Anchor is a high-performance fastener designed for concrete and masonry applications, featuring a patented torque reduction channel for smooth installation.
Simpson Strong-Tie TNT18134TFC8 Includes
- (8) Titen Turbo Screw Anchor
Simpson Strong-Tie TNT18134TFC8 Features

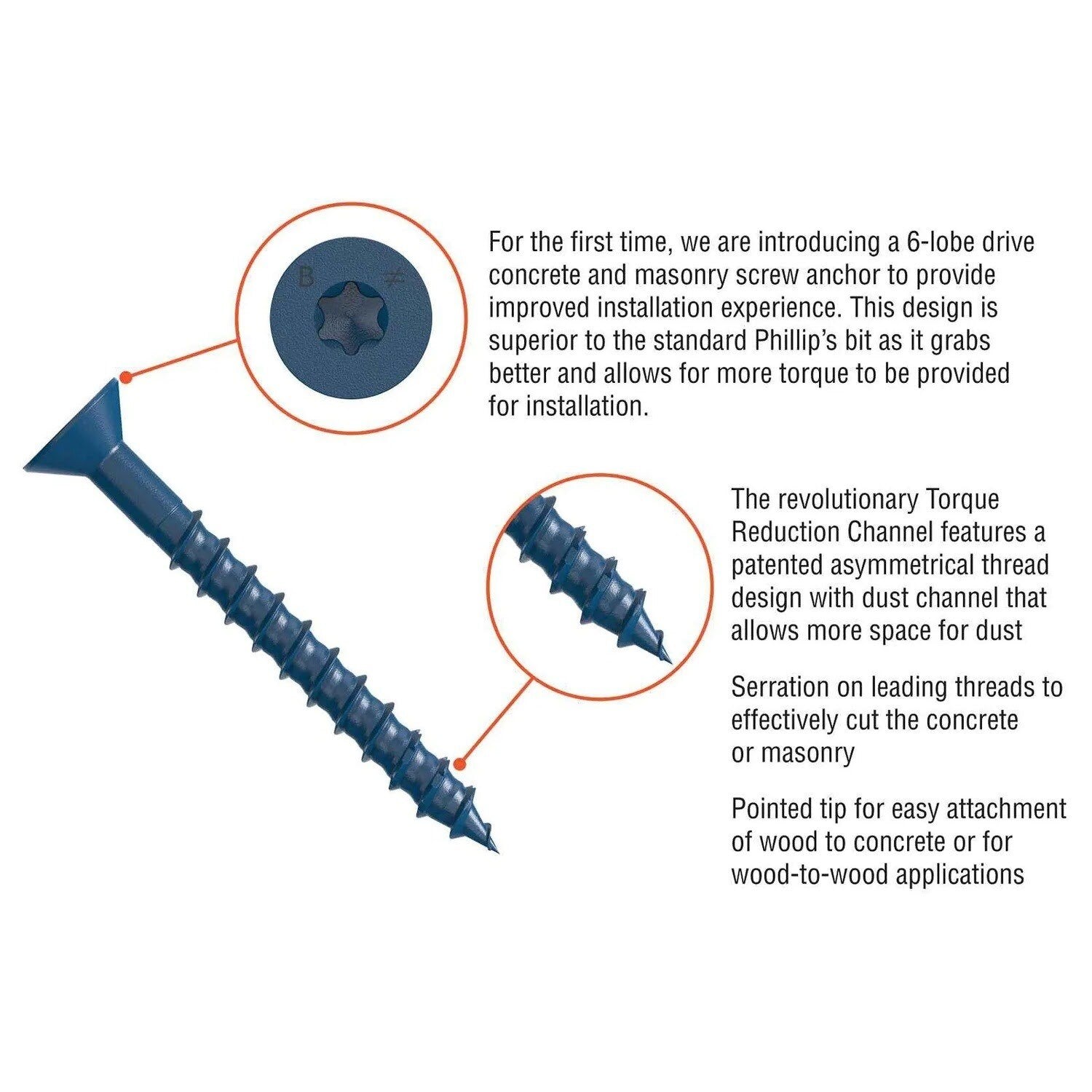

- Patented Torque Reduction Channel for reduced binding
- Available in multiple finishes and head types
- 6-lobe drive for easy installation
- Superior tension load performance
- Designed for use with impact drivers or cordless drills
Simpson Strong-Tie TNT18134TFC8 Applications

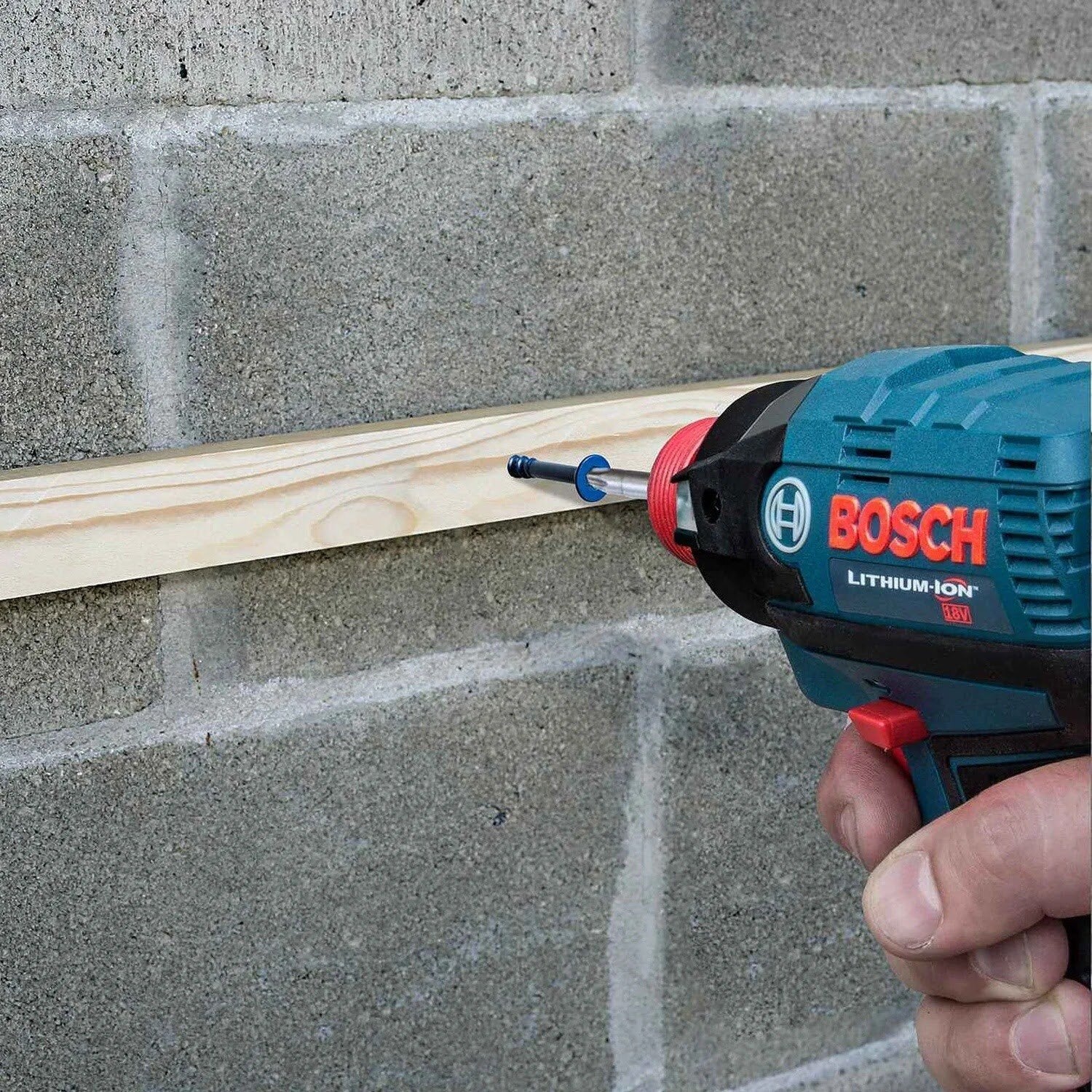

- Wood-to-concrete anchoring
- Wood-to-wood anchoring
- Electrical boxes and conduit mounting

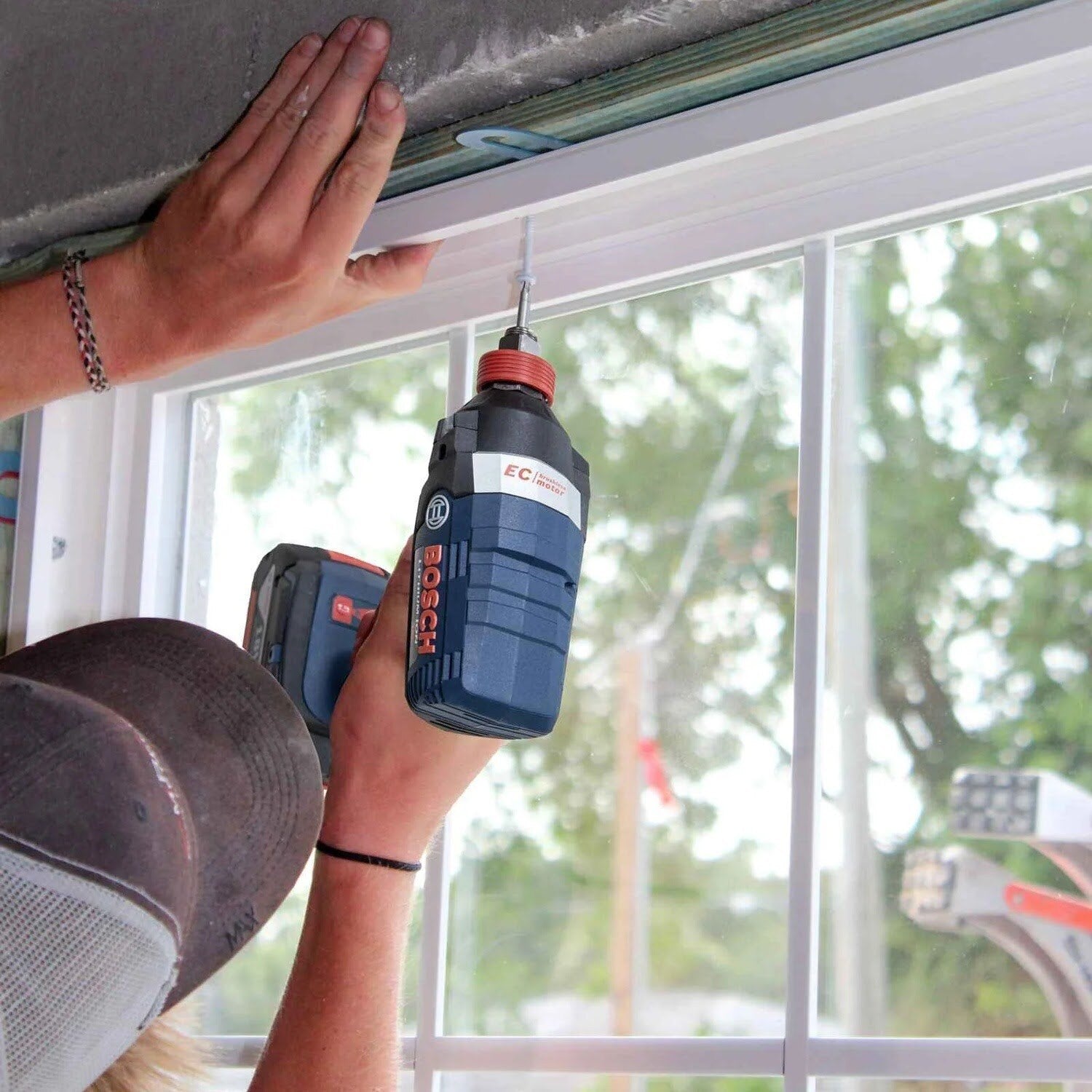

- Light fixtures and window installations
- Handrails and thresholds

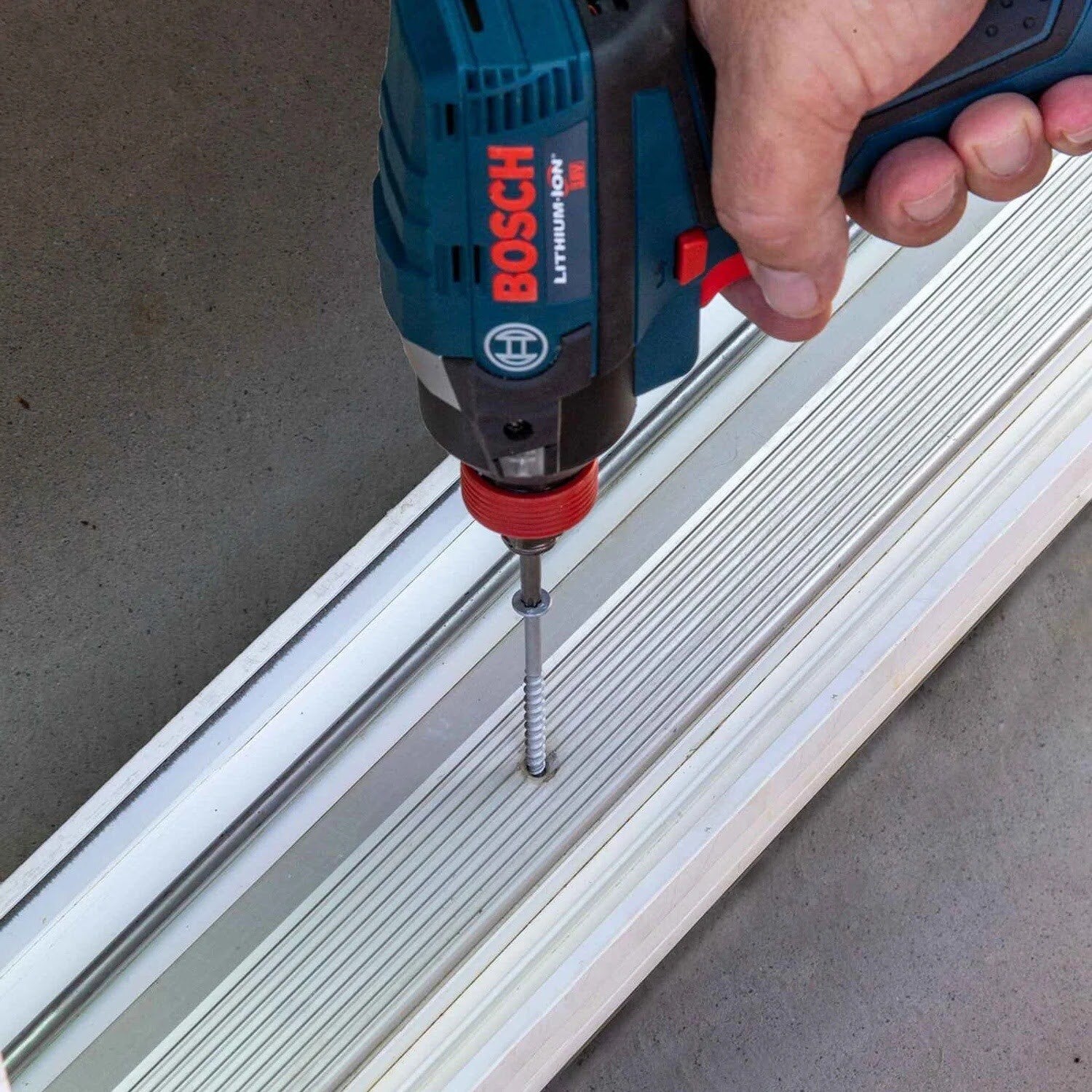

Simpson Strong-Tie TNT18134TFC8 Installation Overview
- Drill a hole using the specified diameter carbide drill bit.
- Position the fixture and insert the screw.
- Tighten using a drill and the Titen Turbo installation tool.
Simpson Strong-Tie TNT18134TFC8 Specifications
| Material | Carbon Steel |
| Finish | Blue Zinc |
| Diameter | 3/16" |
| Length | 1-3/4" |
| Drill Bit Size | 5/32" |
| Drive Type | T25 Star Drive |
| Head Type | Flat Head |
NOTE: Ensure the correct fasteners are used in the correct position to achieve published load values.
