Simpson Anchors | SKU:
TNT18134TFR200

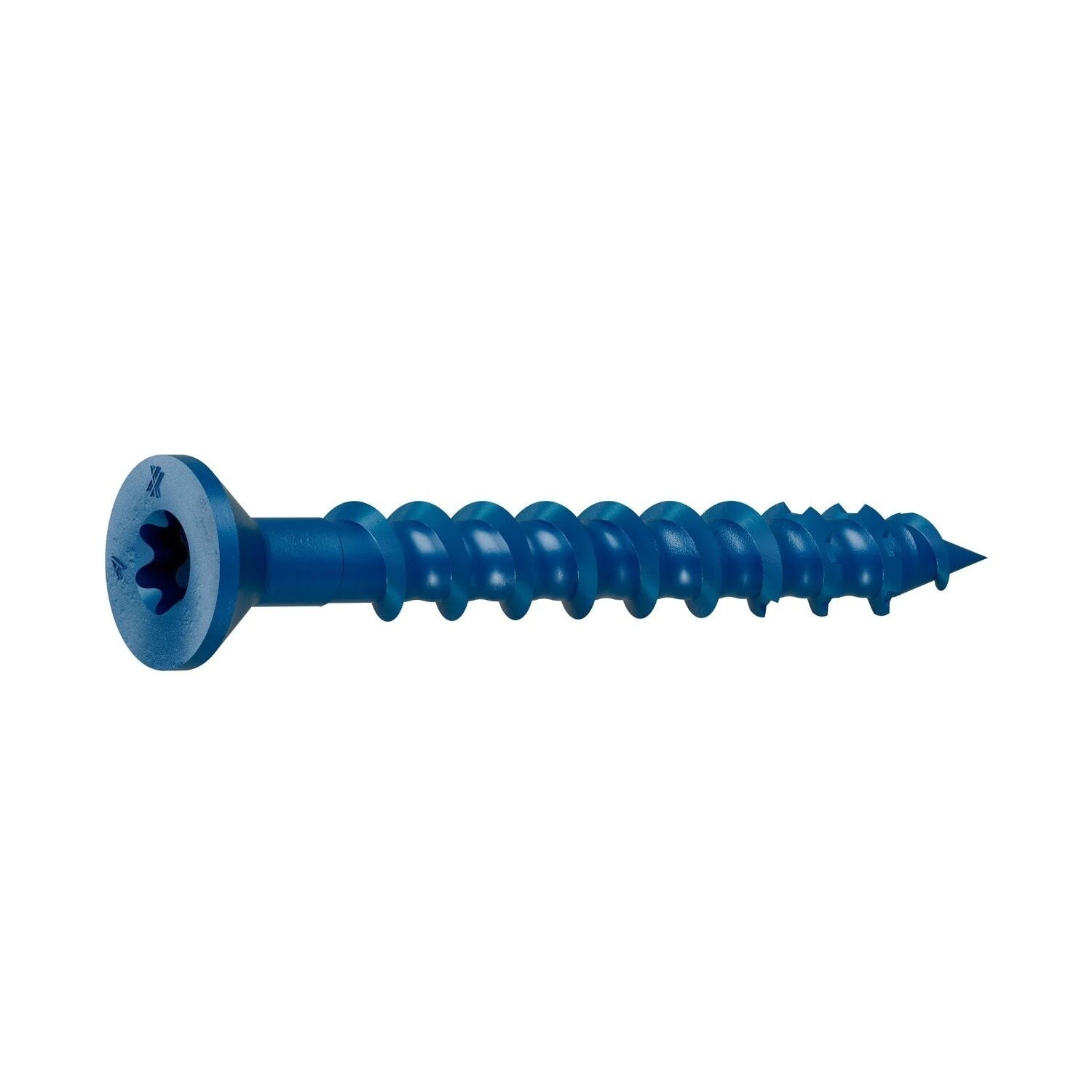

Simpson Strong-Tie TNT18134TFR200 Titen Turbo (3/16" x 1-3/4") Flat-Head Concrete and Masonry Screw, Blue (200 Pack)
$25.79
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie TNT18134TFR200 Description
The Simpson Strong-Tie Titen Turbo screw anchor is a heavy-duty fastener designed for concrete and masonry applications, featuring a patented torque reduction channel for smooth driving and superior holding power.
Simpson Strong-Tie TNT18134TFR200 Includes
- (200) Flat Head Titen Turbo Screw Anchor
- (1) T25 drive bit
- (1) standard ANSI drill bit

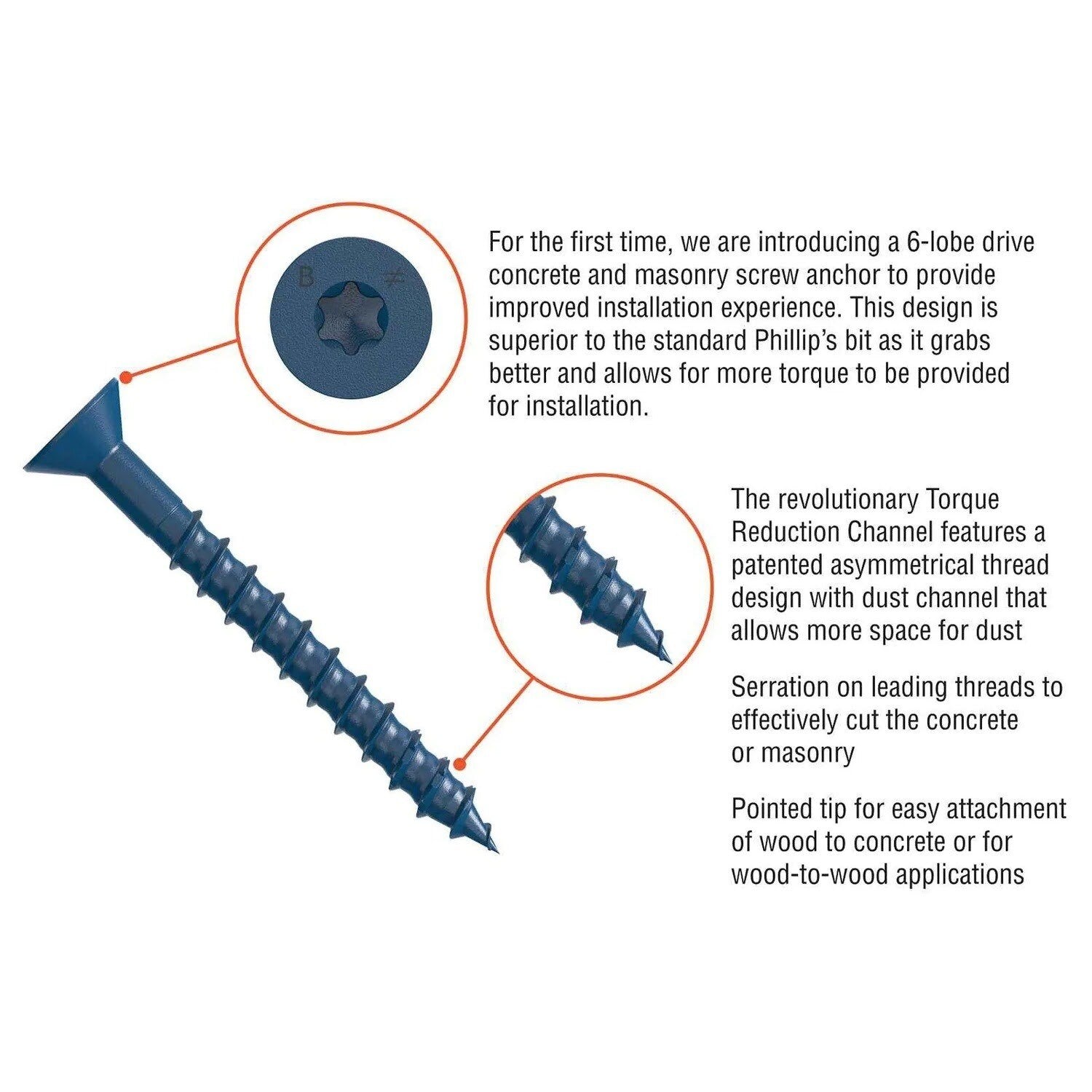

Simpson Strong-Tie TNT18134TFR200 Features
- Patented Torque Reduction Channel for reduced binding
- Available in multiple coated versions
- Flush profile with 6-lobe-drive countersunk flat head
- Superior tension load performance
- Designed for installation with an impact driver or cordless drill
- Code listed for uncracked concrete and masonry applications
Simpson Strong-Tie TNT18134TFR200 Applications

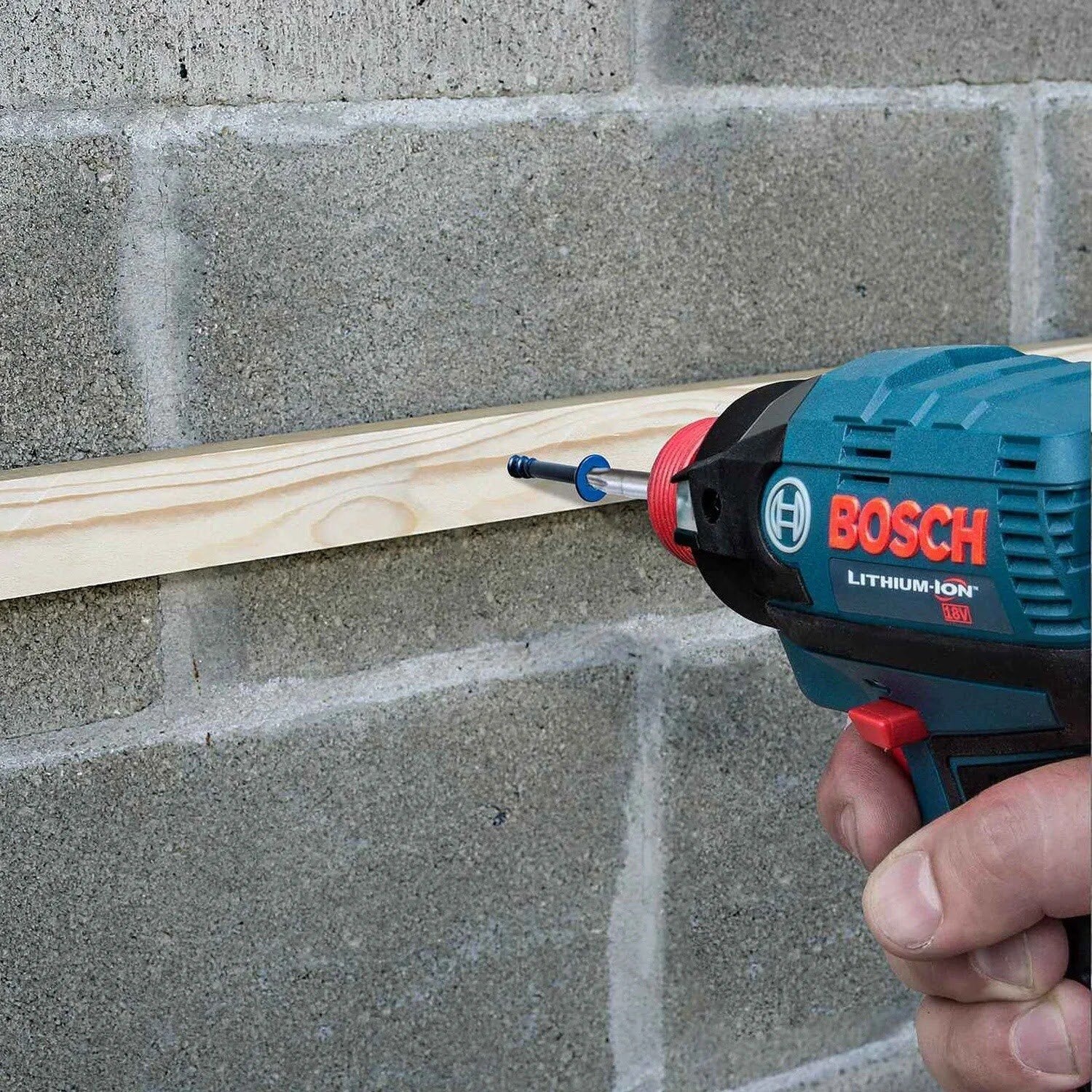

- Wood-to-concrete anchoring
- Wood-to-wood anchoring
- Electrical boxes and conduit

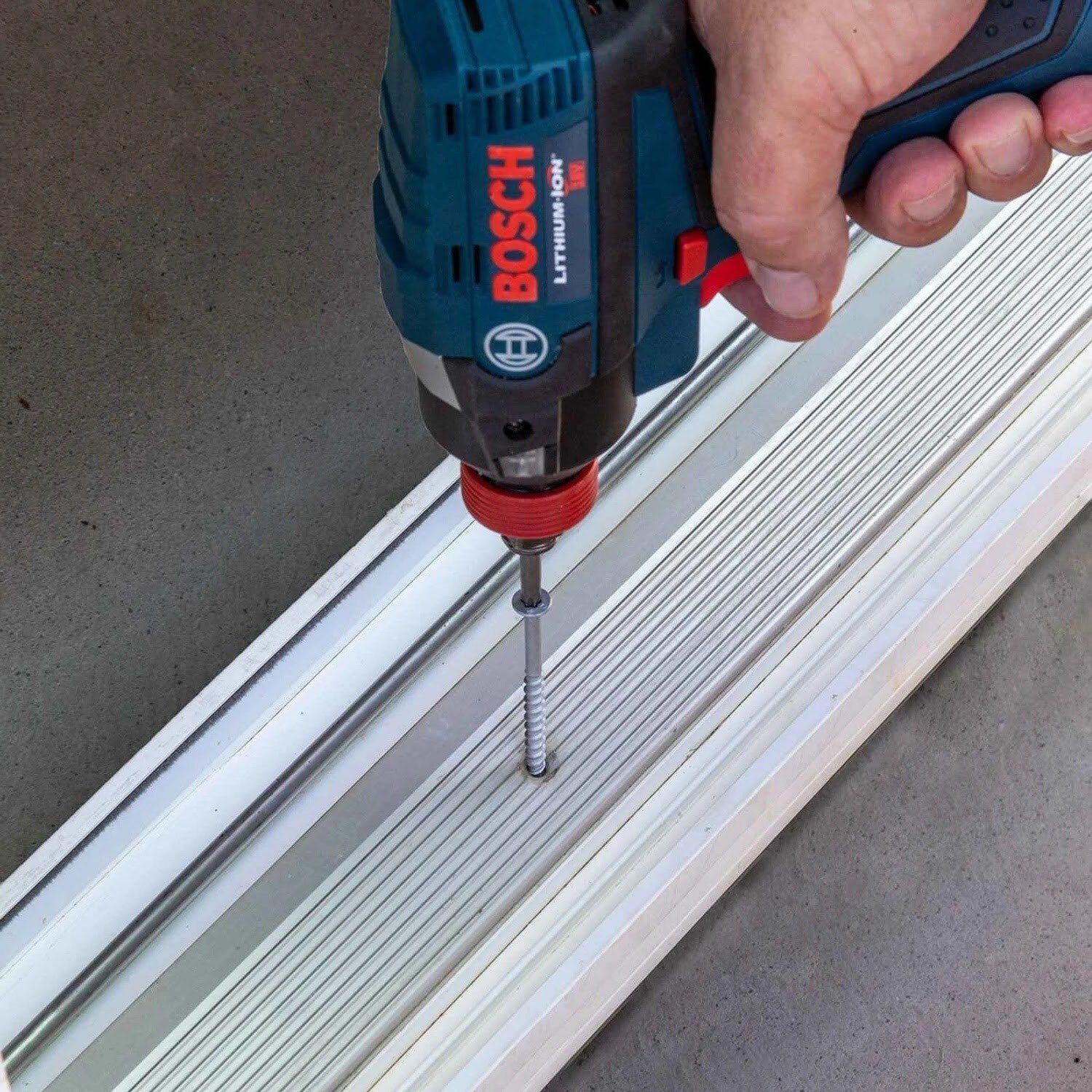

- Light fixtures and thresholds
- Basement furring strips
- Shelf mounting to concrete/CMU
- Handrails
Simpson Strong-Tie TNT18134TFR200 Installation Overview
- Drill a hole in the base material using the specified diameter carbide drill bit.
- Position fixture, insert screw, and tighten using a drill and Titen Turbo screw installation tool.
- Ensure the thread tapping dust settles for optimal performance.
Simpson Strong-Tie TNT18134TFR200 Specifications
| Diameter | 3/16" |
| Finish | Blue Zinc |
| Length | 1-3/4" |
| Material | Carbon Steel |
| Drill bit size | 5/32" |
| Drive type | T25 Star Drive |
| Head type | Flat Head |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 200 |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
