Simpson Anchors | SKU:
TNT18214TFC25

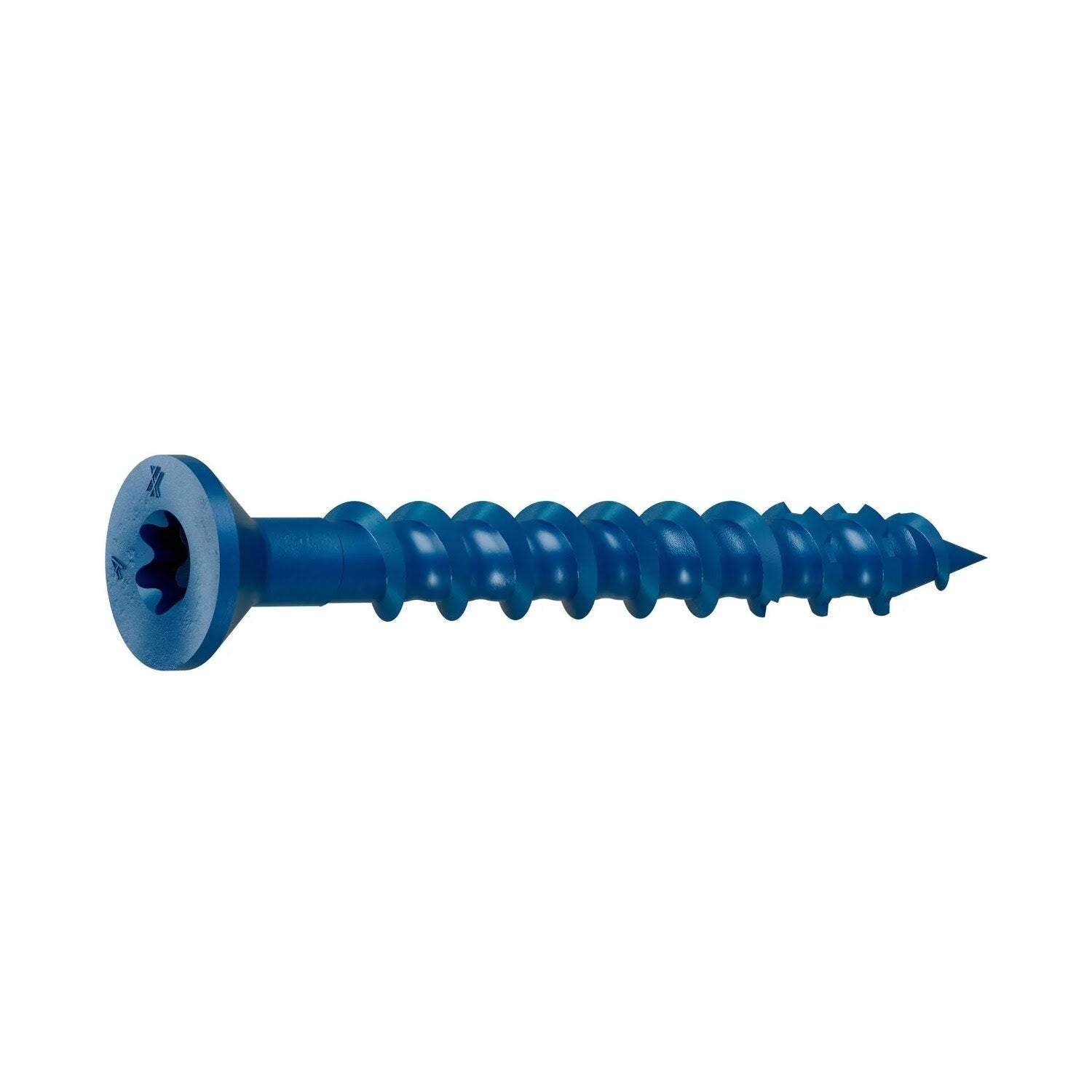

Simpson Strong-Tie TNT18214TFC25 Titen Turbo(3/16" x 2-1/4") T25 Flat-Head Concrete and Masonry Screw, Blue (25 Pack)
$5.68
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie TNT18214TFC25 Description
The Simpson Strong-Tie Titen Turbo screw anchor is a heavy-duty fastener designed for quick and easy installation in wood-to-concrete and wood-to-wood anchoring applications.
Simpson Strong-Tie TNT18214TFC25 Includes
- (25) 3/16" x 2-1/4" Titen Turbo Screw Anchor

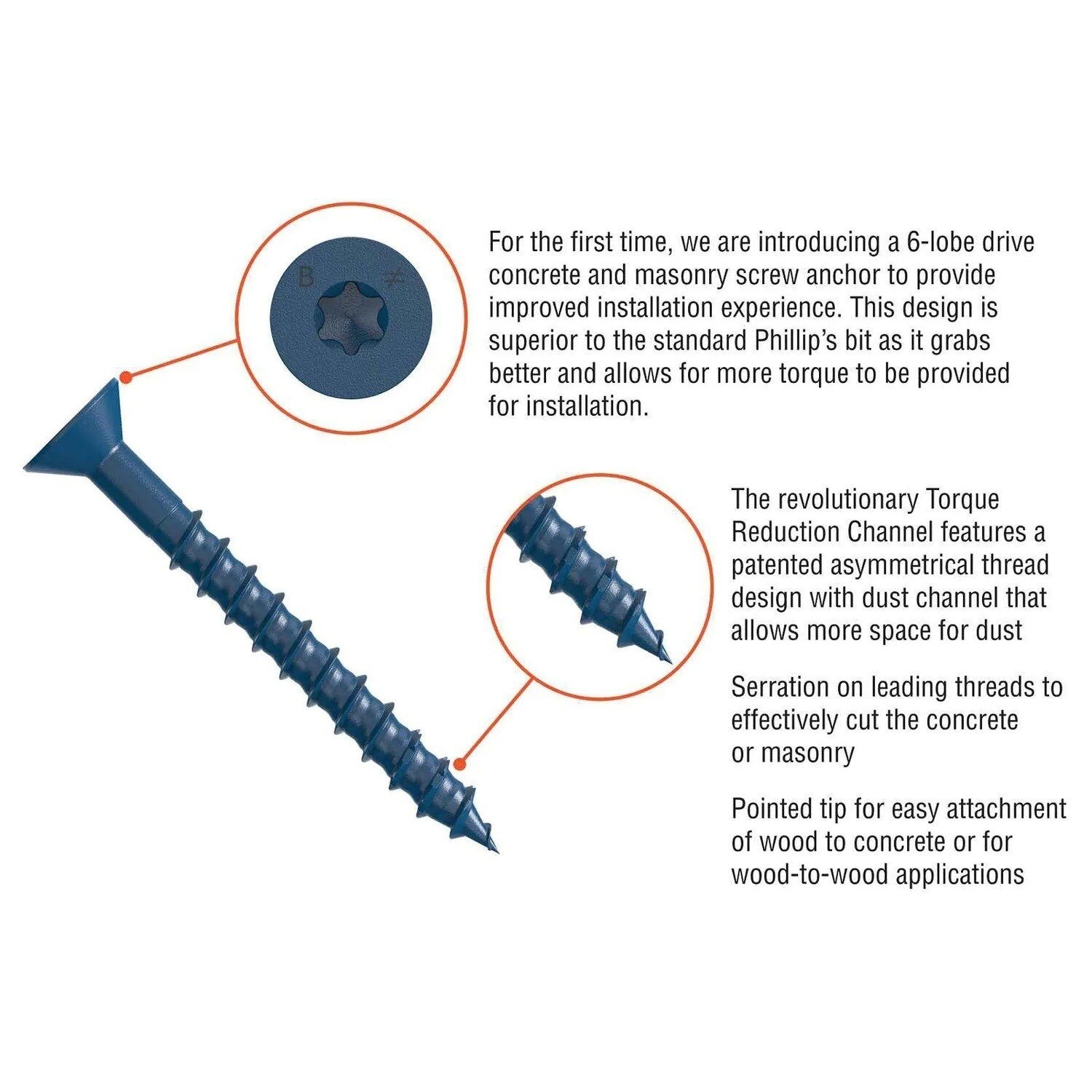

Simpson Strong-Tie TNT18214TFC25 Features
- Patented Torque Reduction Channel for reduced binding
- Available in multiple coated versions
- 6-lobe drive for easy installation
- Superior tension load performance
- Designed for use in dry interior environments
Simpson Strong-Tie TNT18214TFC25 Applications

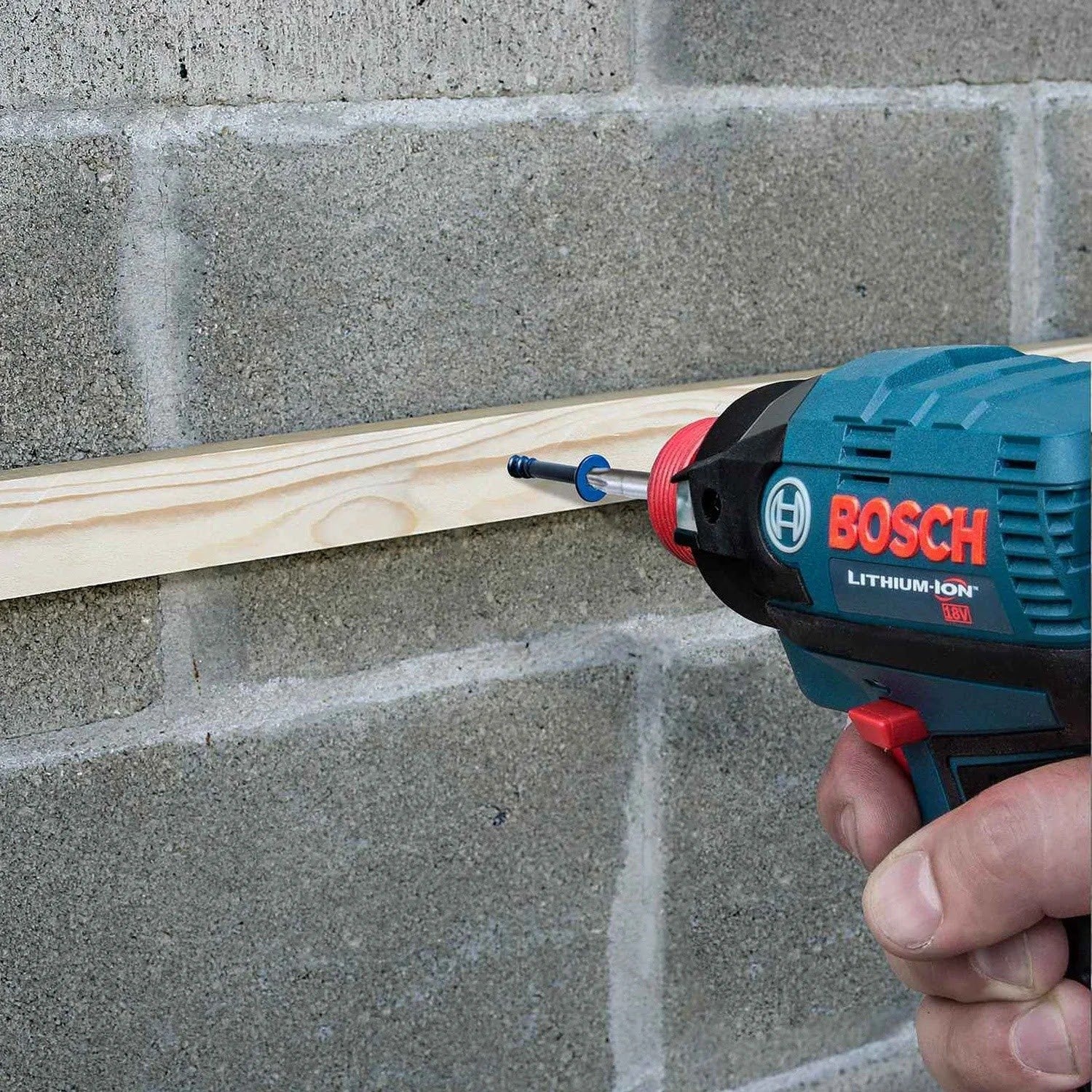

- Wood-to-concrete anchoring
- Wood-to-wood anchoring
- Electrical boxes and conduit mounting

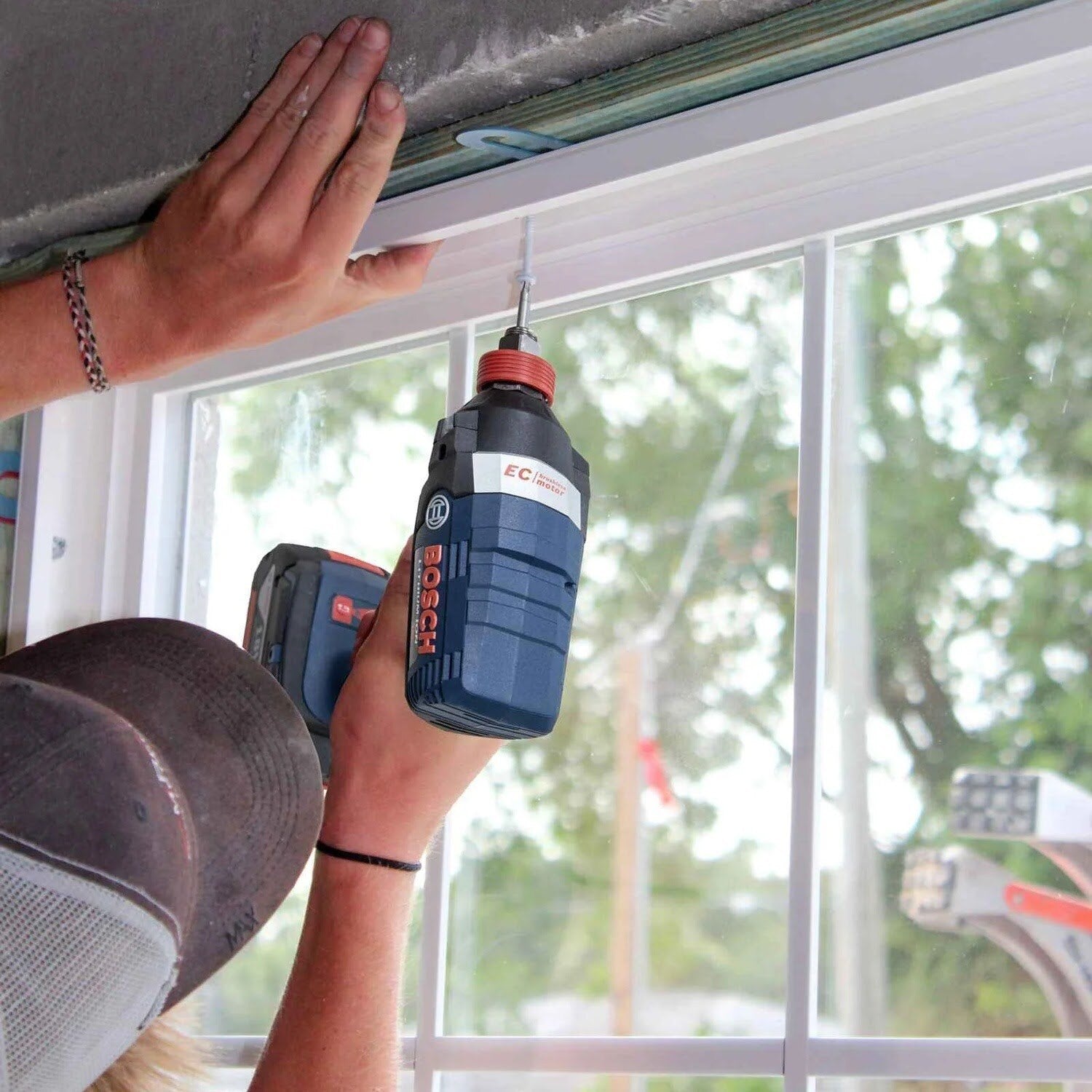

- Light fixtures and window installations

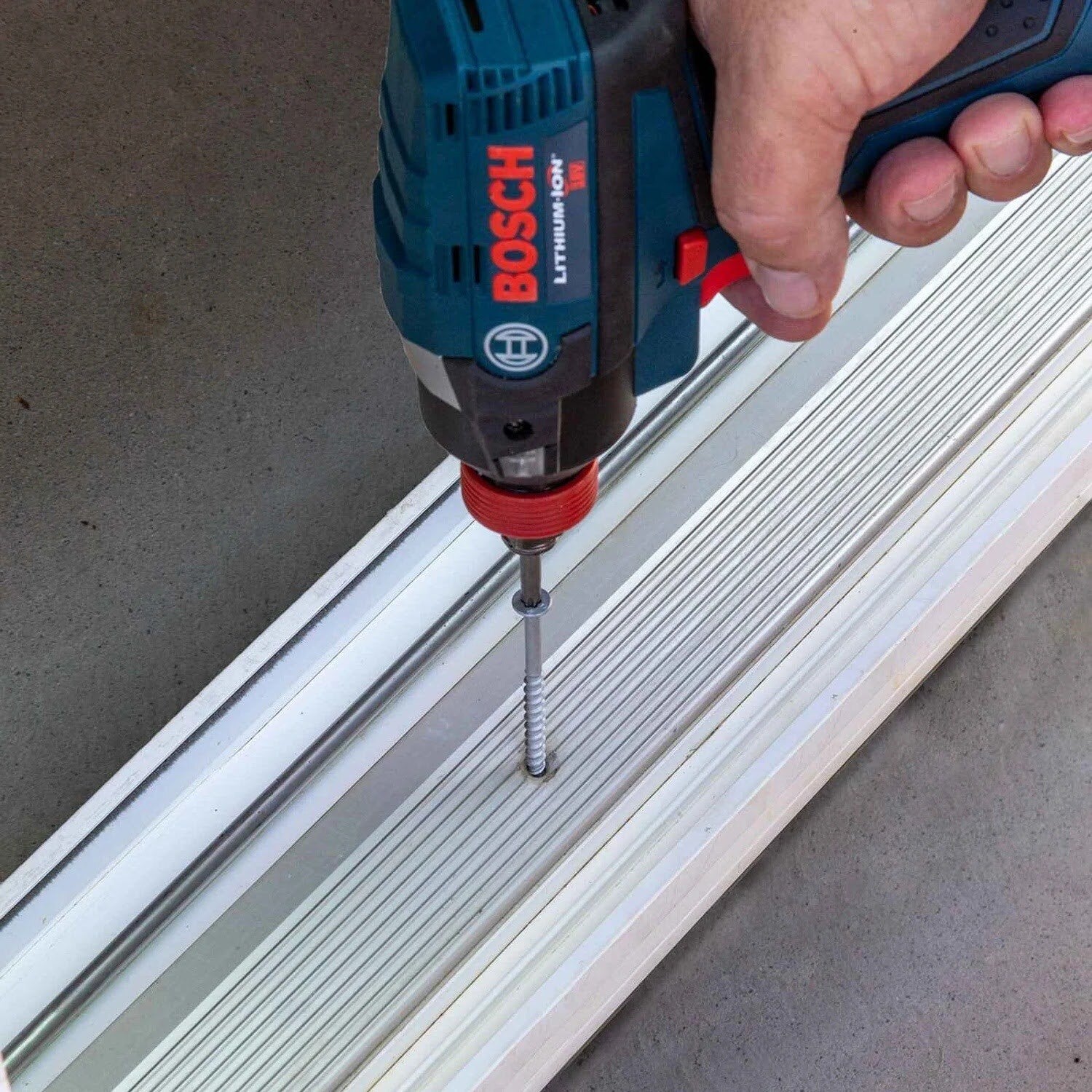

Simpson Strong-Tie TNT18214TFC25 Installation Overview
- Drill a hole using the specified diameter carbide drill bit.
- Position the fixture and insert the screw.
- Tighten using a drill and the Titen Turbo installation tool.
Simpson Strong-Tie TNT18214TFC25 Specifications
| Diameter | 3/16" |
| Length | 2-1/4" |
| Material | Carbon Steel |
| Finish | Blue Zinc |
| Drive Type | T25 Star Drive |
| Head Type | Flat Head |
| Drill Bit Size | 5/32" |
NOTE: Designed for installation with an impact driver or cordless drill. Installation using the Titen Turbo Installation Tool is recommended. Matched-tolerance bit not required; use a standard ANSI drill bit for installation. Intended for use in dry interior environments only.
