Simpson Anchors | SKU:
TNT18234HC25

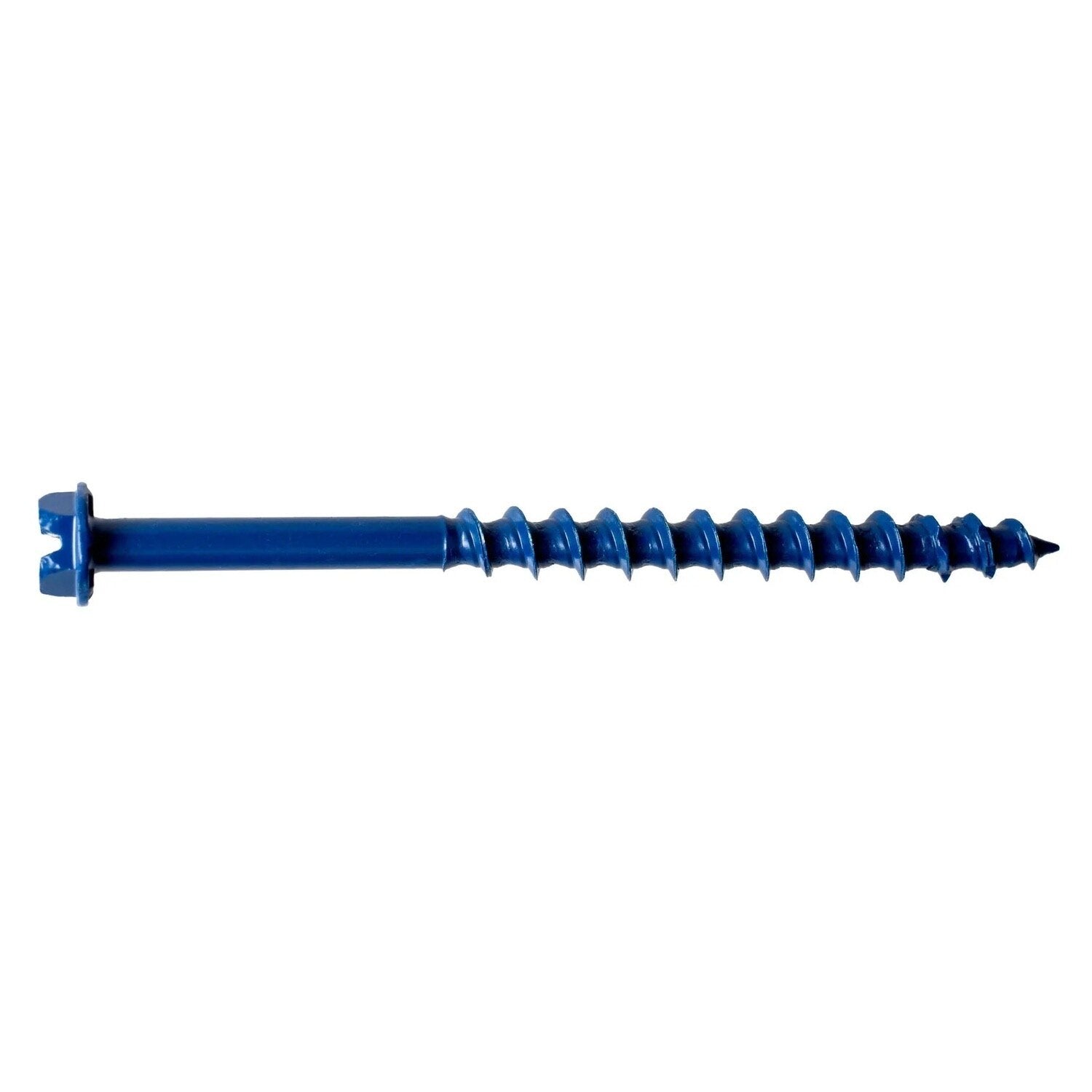

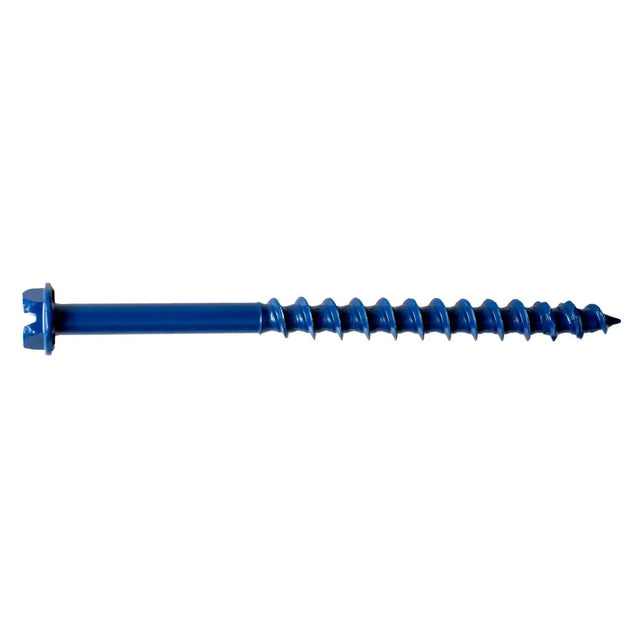

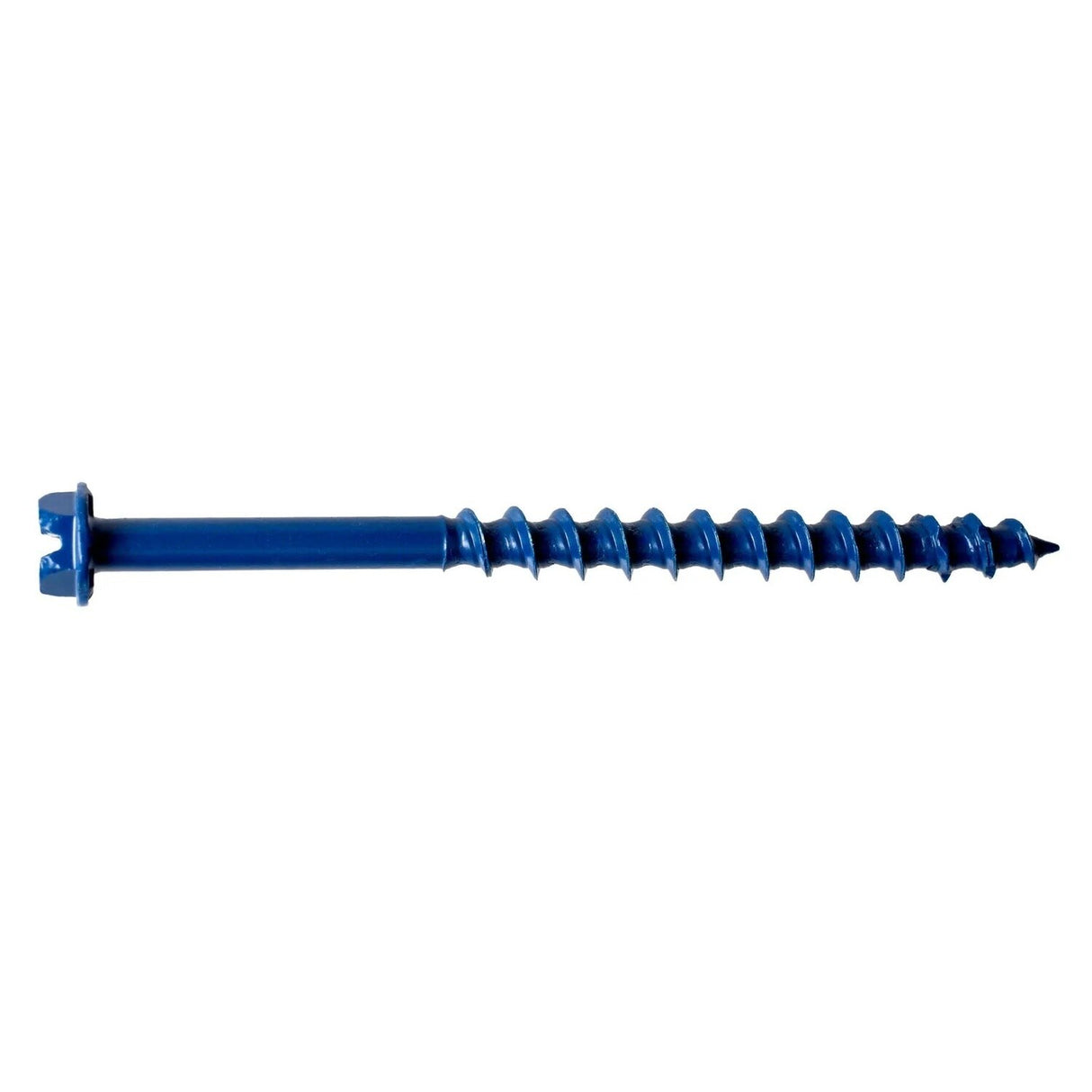

Simpson Strong-Tie TNT18234HC25 Titen Turbo (3/16" x 2-3/4") Hex-Head Concrete and Masonry Screw, Blue (25 Pack)
$7.15
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie TNT18234HC25 Description
The Simpson Strong-Tie Titen Turbo screw anchor is a heavy-duty fastener designed for quick and easy installation in concrete and masonry.
Simpson Strong-Tie TNT18234HC25 Includes
- (25) 3/16 in. x 2-3/4 in. Hex-Head Concrete and Masonry Screws
Simpson Strong-Tie TNT18234HC25 Features
- Patented Torque Reduction Channel for reduced binding
- Available in multiple coated versions
- Hex head design for secure fastening
- Superior tension load performance
- Designed for use with impact drivers or cordless drills
Simpson Strong-Tie TNT18234HC25 Applications

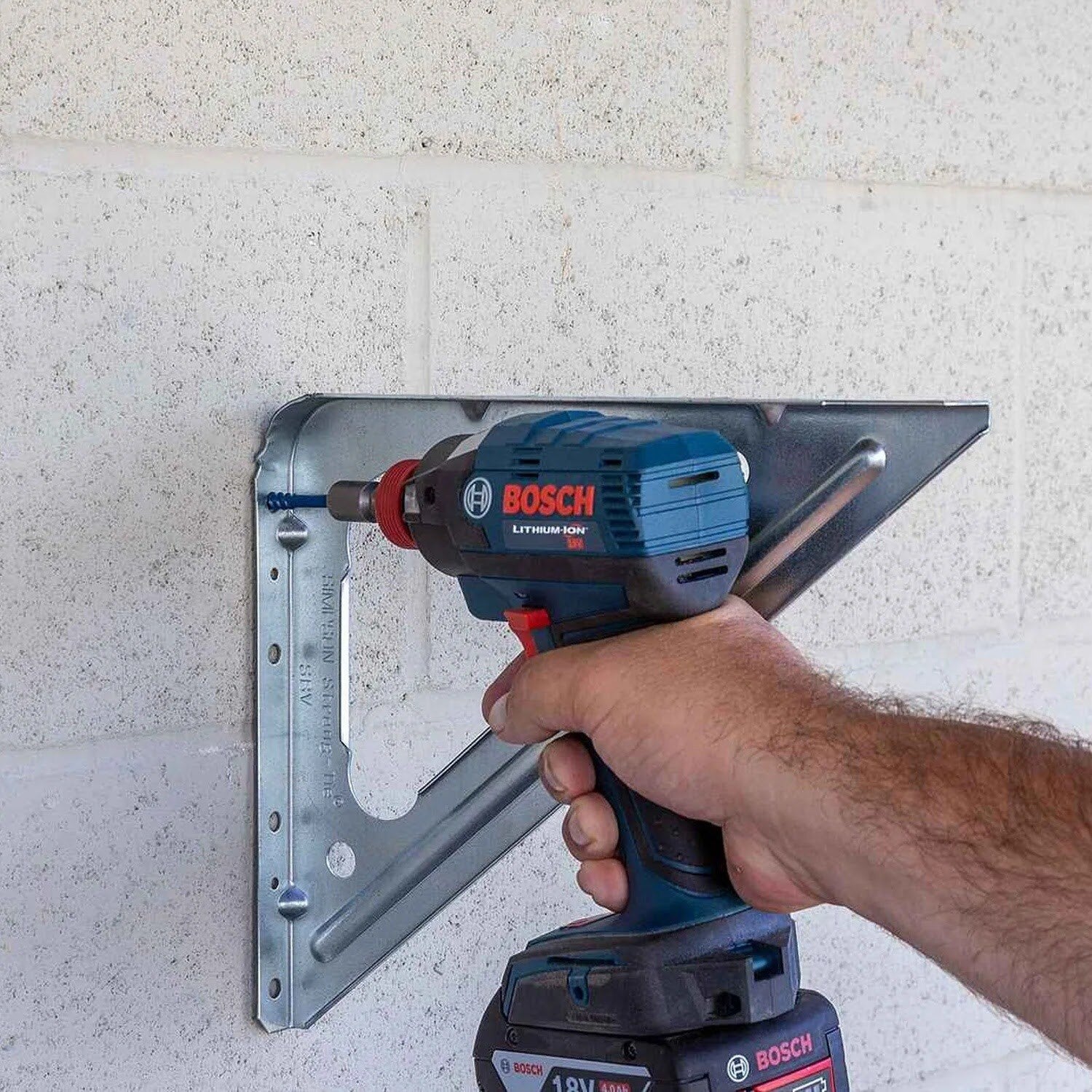

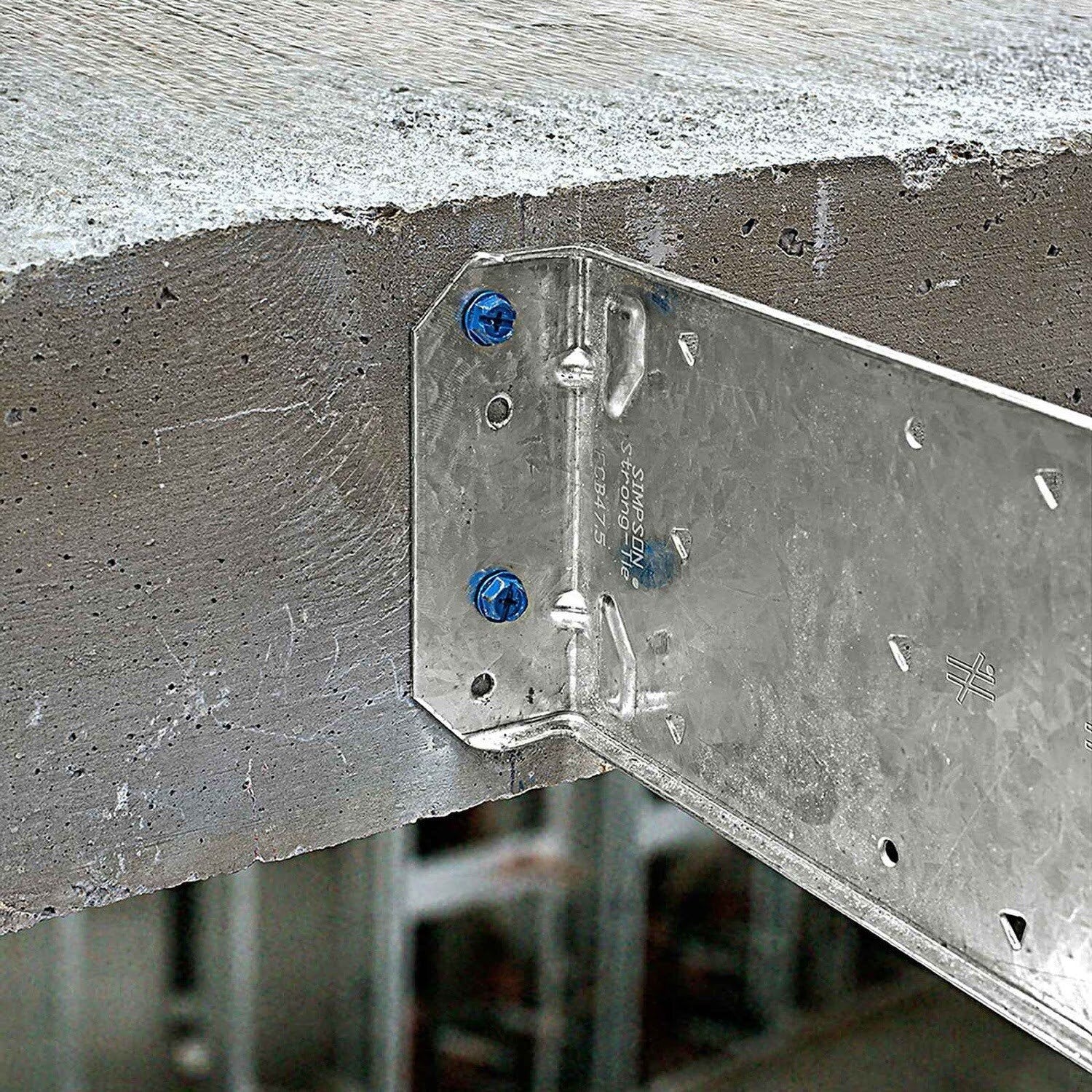

- Wood-to-concrete anchoring
- Wood-to-wood anchoring

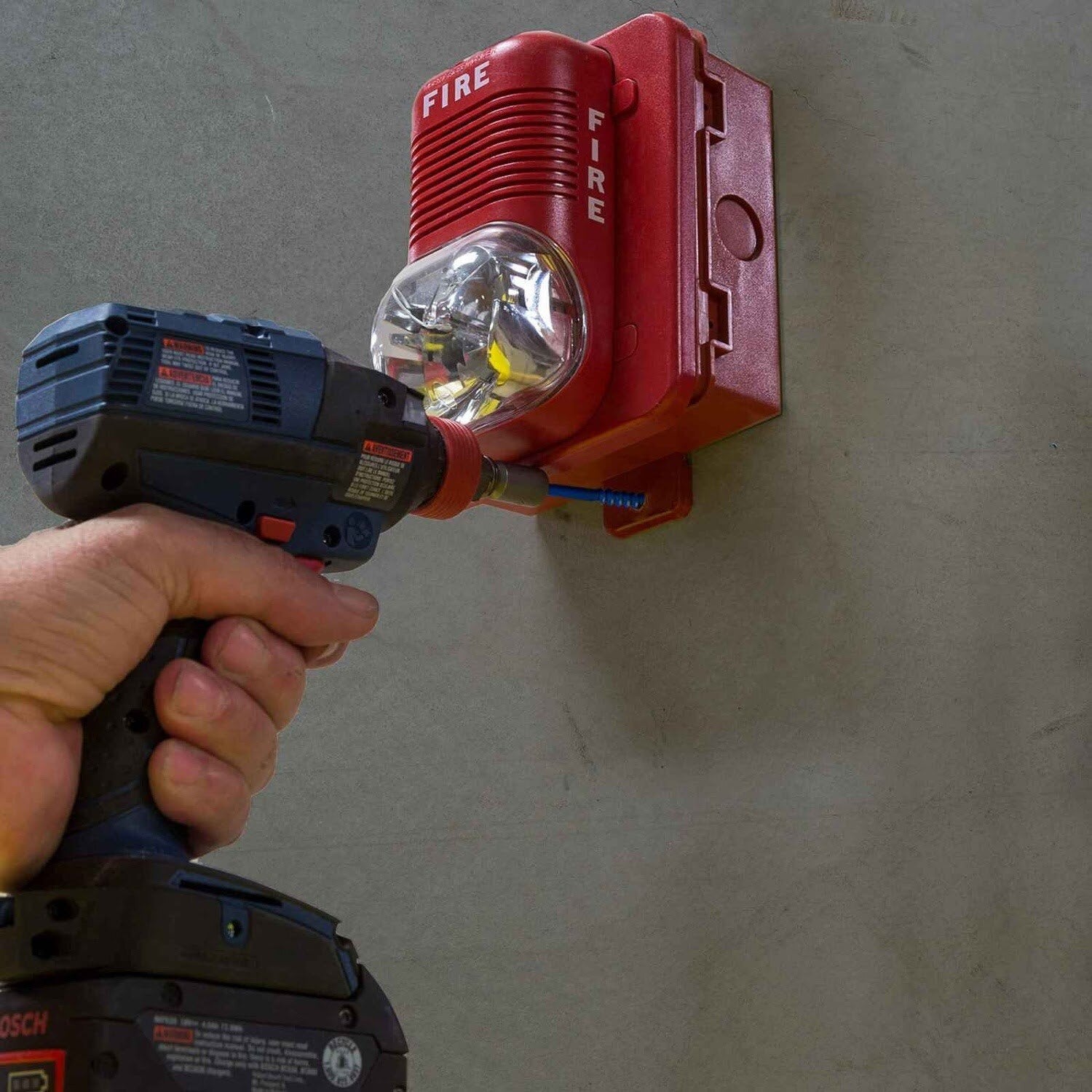

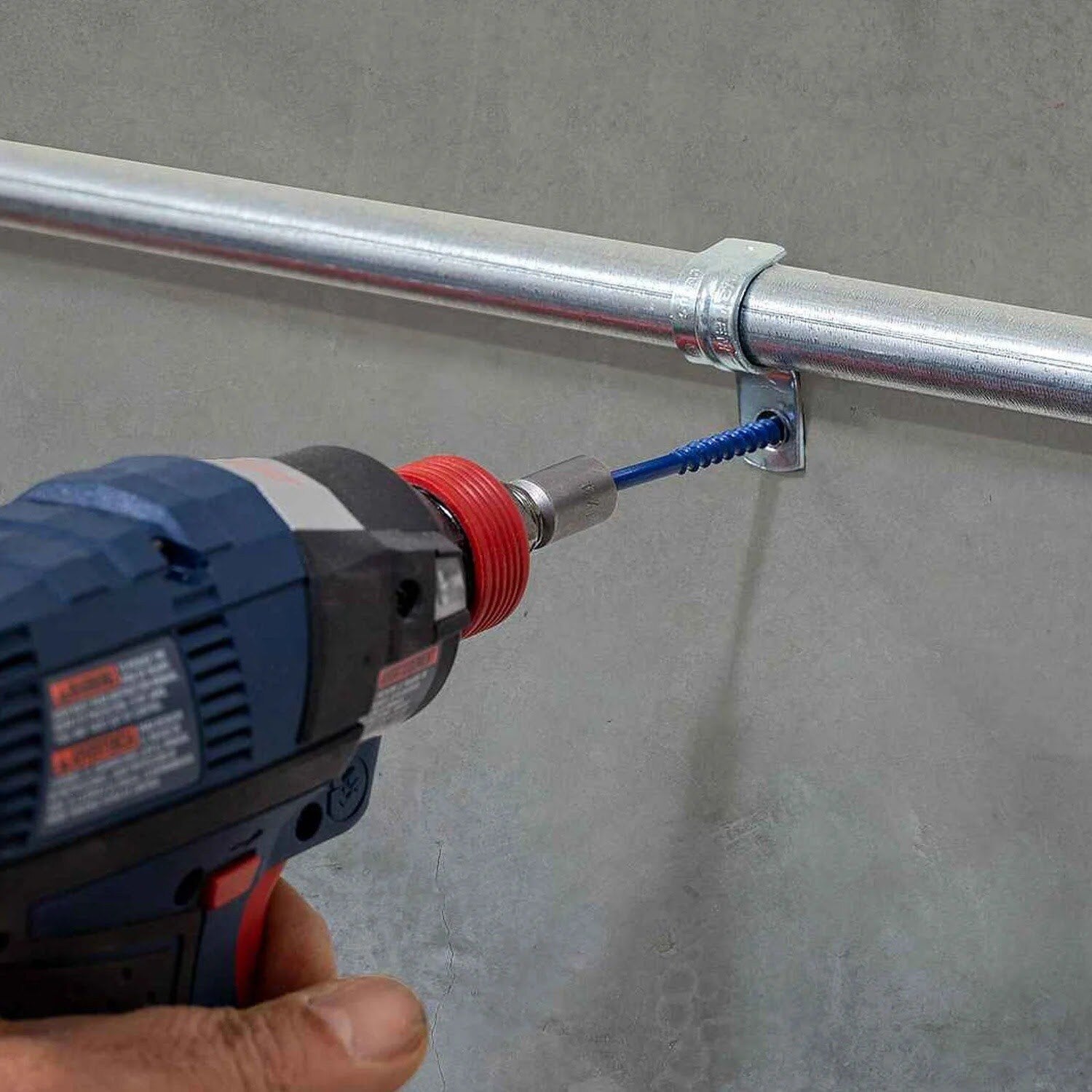

- Electrical boxes and conduit mounting
- Light fixtures and window installations

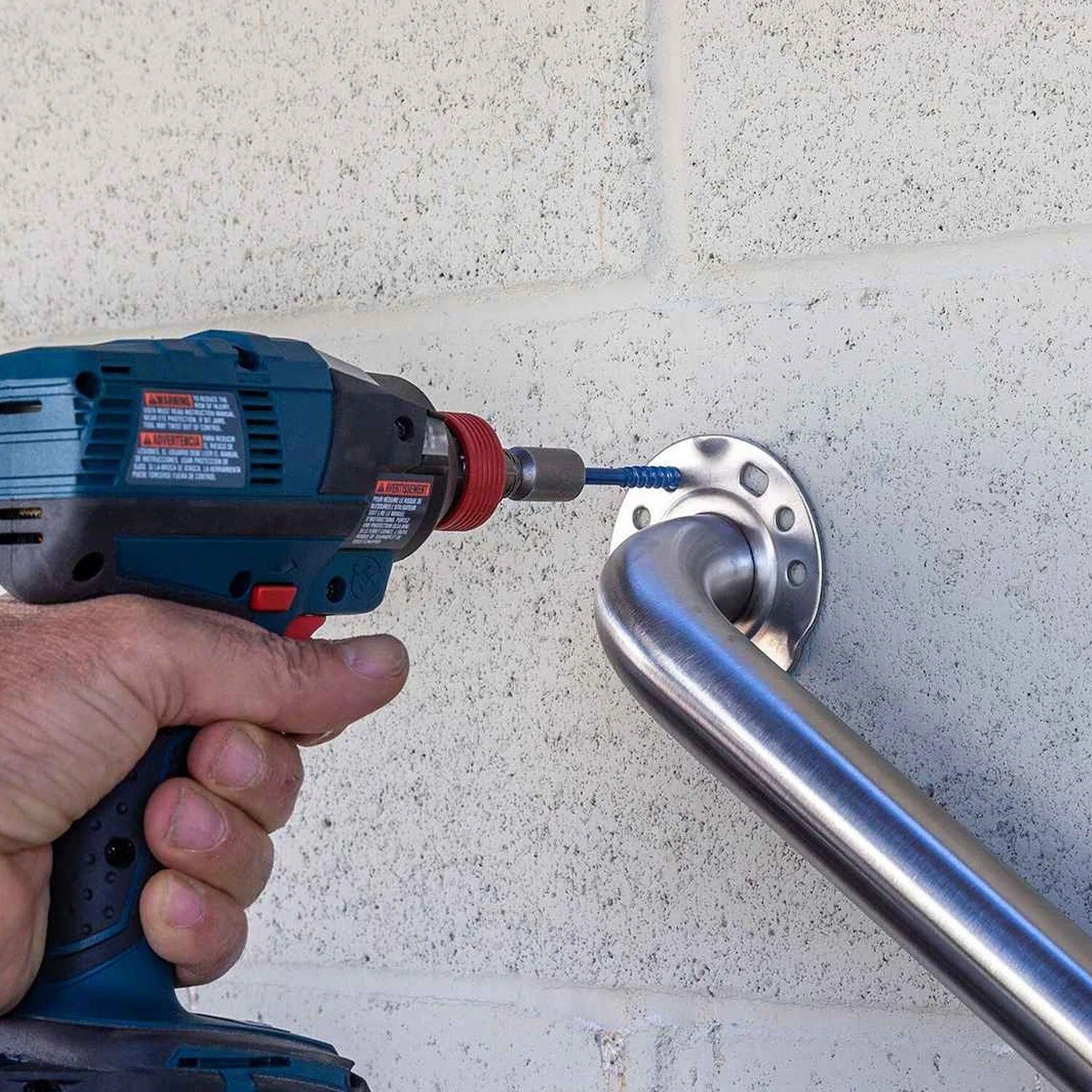

- Handrails and thresholds
Simpson Strong-Tie TNT18234HC25 Installation Overview
- Drill a hole using the specified diameter carbide drill bit.
- Position the fixture and insert the screw.
- Tighten using a drill and the Titen Turbo installation tool.
Simpson Strong-Tie TNT18234HC25 Specifications
| Diameter | 3/16" |
| Length | 2-3/4" |
| Material | Carbon Steel |
| Finish | Blue Zinc |
| Drive Type | 1/4" Hex |
| Head Type | Hex Head |
| Drill Bit Size | 5/32" |
| Quantity | 25 |
NOTE: Designed for installation with an impact driver or cordless drill. Installation using the Titen Turbo Installation Tool is recommended. Matched-tolerance bit not required; use a standard ANSI drill bit for installation. Intended for use in dry interior environments only.
