Simpson Anchors | SKU:
TNT18234HC75

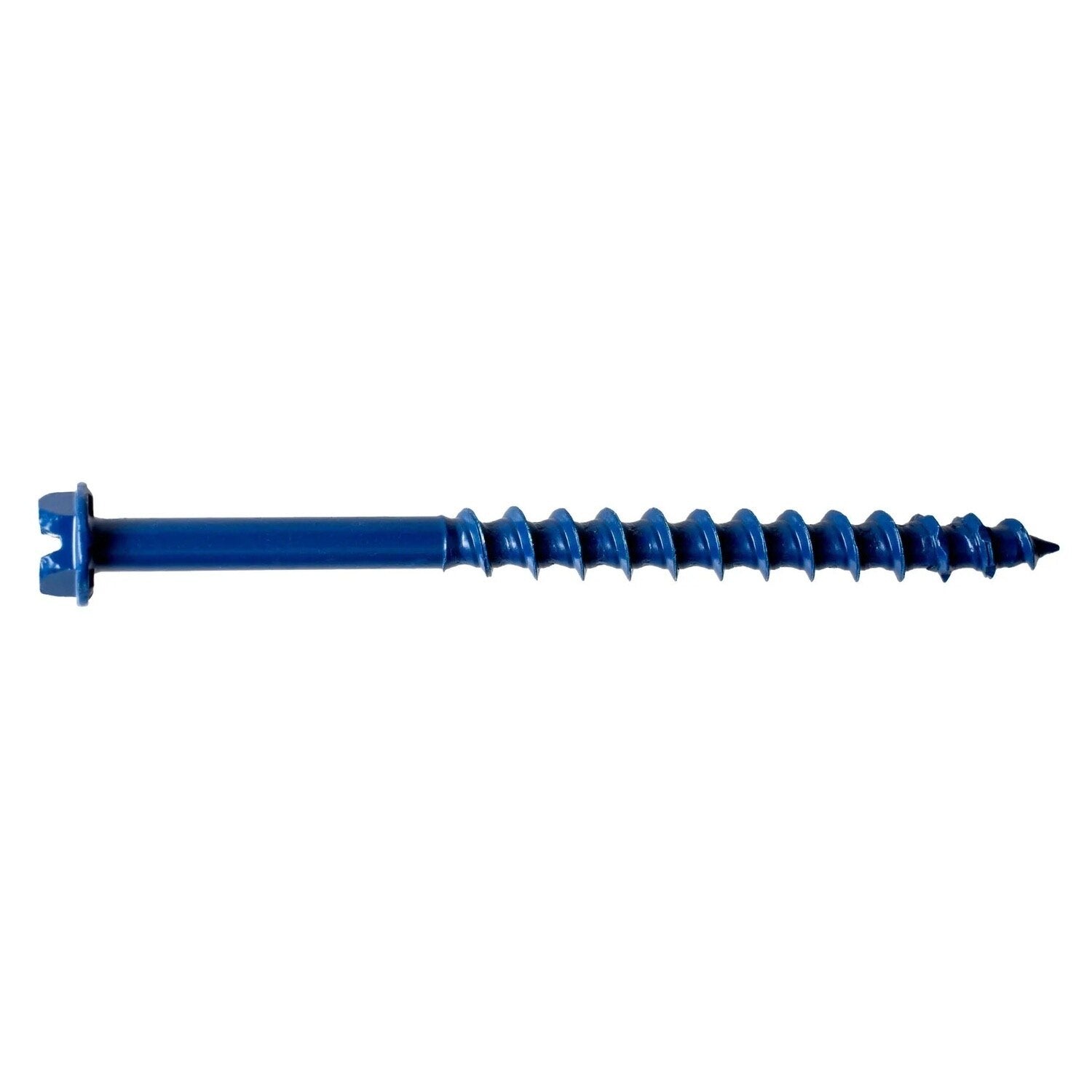

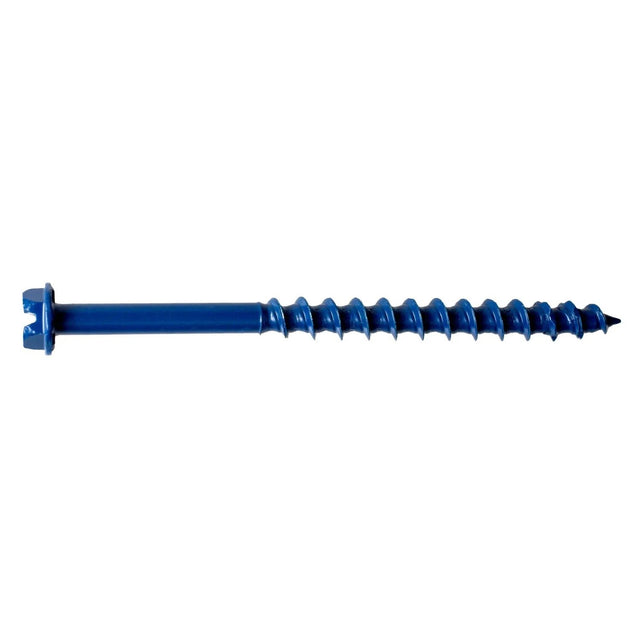

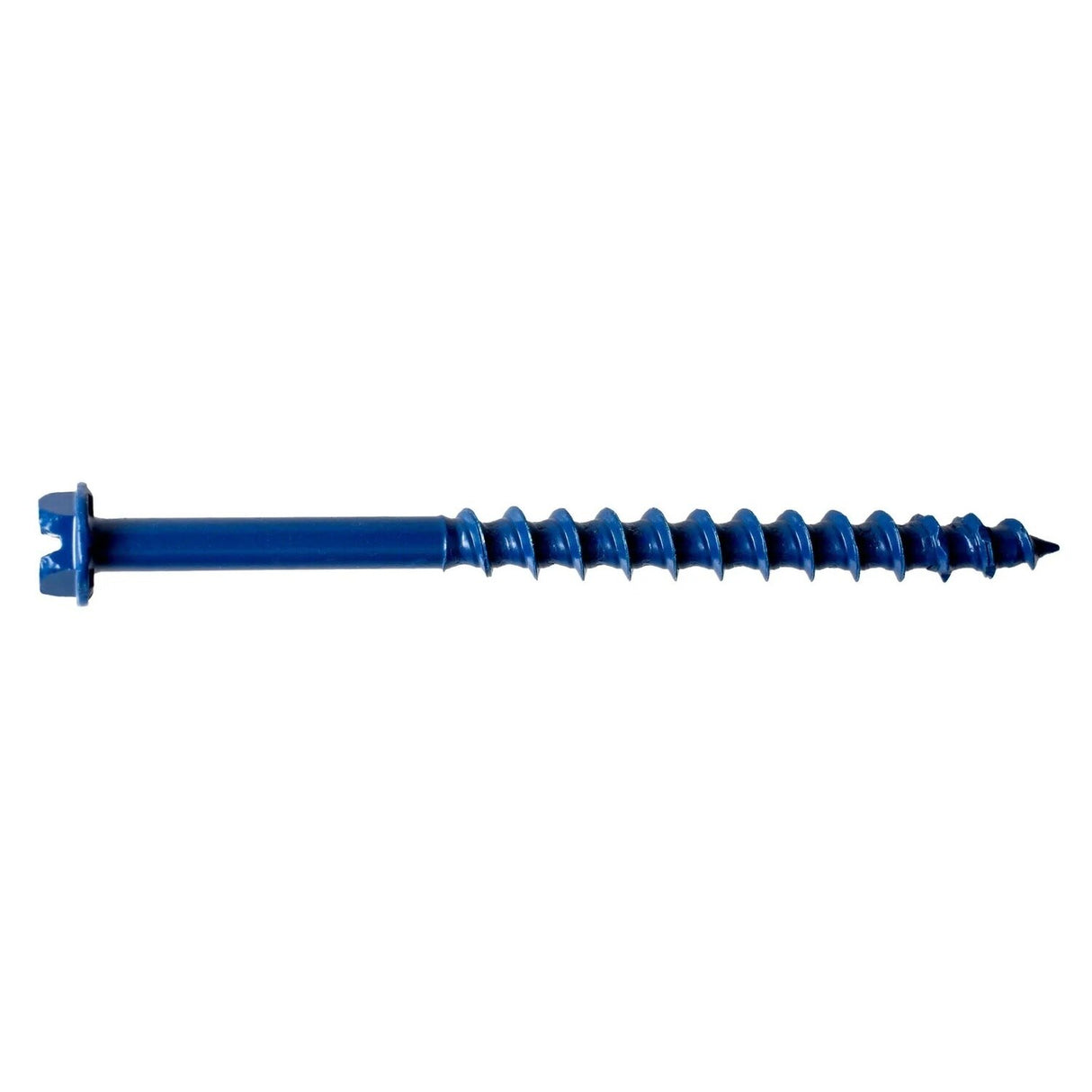

Simpson Strong-Tie TNT18234HC75 Titen Turbo (3/16" x 2-3/4") Hex-Head Concrete and Masonry Screw, Blue (75 Pack)
$15.34
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie TNT18234HC75 Description
The Simpson Strong-Tie Titen Turbo screw anchor is a heavy-duty fastener designed for quick and easy installation in concrete or masonry, featuring a patented reverse thread design for superior holding power.
Simpson Strong-Tie TNT18234HC75 Includes
- (75) 3/16" x 2-3/4" Hex Head Titen Turbo Screw Anchor
- (1) Standard ANSI Drill Bit
Simpson Strong-Tie TNT18234HC75 Features
- Innovative torque reduction channel to trap drilling dust
- Smooth driving with less torque
- Superior holding power with patented reverse thread design
- Quick and easy installation in concrete or masonry
- Code listed in accordance with ICC-ES AC193 and AC106
Simpson Strong-Tie TNT18234HC75 Applications
- Wood-to-concrete anchoring
- Wood-to-wood anchoring
- General fastening in dry interior environments

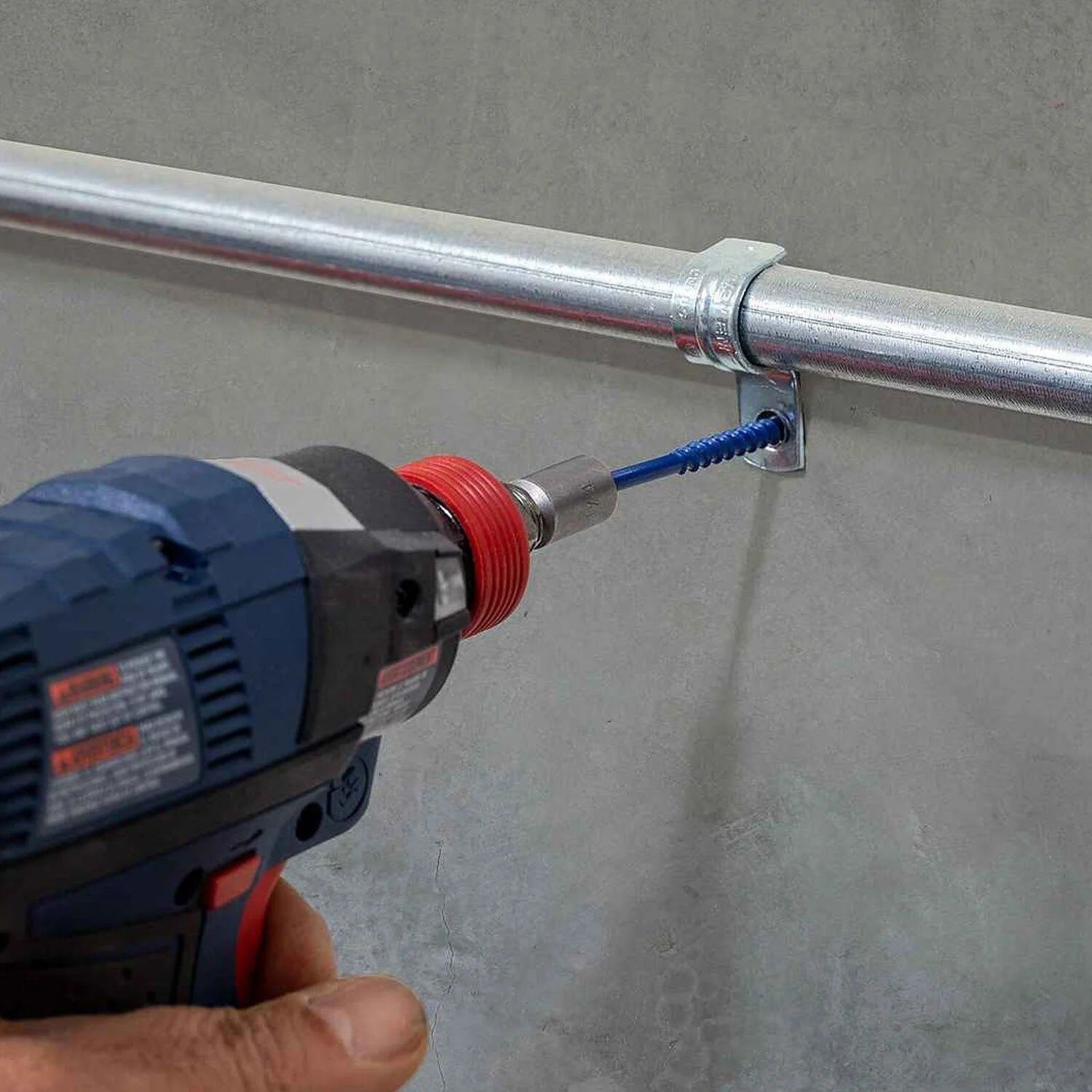

Simpson Strong-Tie TNT18234HC75 Installation Overview
- Use an impact driver or cordless drill for installation
- Utilize the Titen Turbo Installation Tool for optimal results
- Drill using a standard ANSI drill bit
- Insert the screw anchor into the drilled hole
- Tighten securely to ensure proper fastening
Simpson Strong-Tie TNT18234HC75 Specifications
| Diameter | 3/16" |
| Finish | Blue Zinc |
| Length | 2-3/4" |
| Material | Carbon Steel |
| Drill bit size | 5/32" |
| Drive type | 1/4" Hex |
| Head type | Hex Head |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 75 |
NOTE: Designed for installation with an impact driver or cordless drill. Installation using the Titen Turbo Installation Tool is recommended. Matched-tolerance bit not required; use a standard ANSI drill bit for installation. Intended for use in dry interior environments only.
