Simpson Anchors | SKU:
TNT18234TFR200

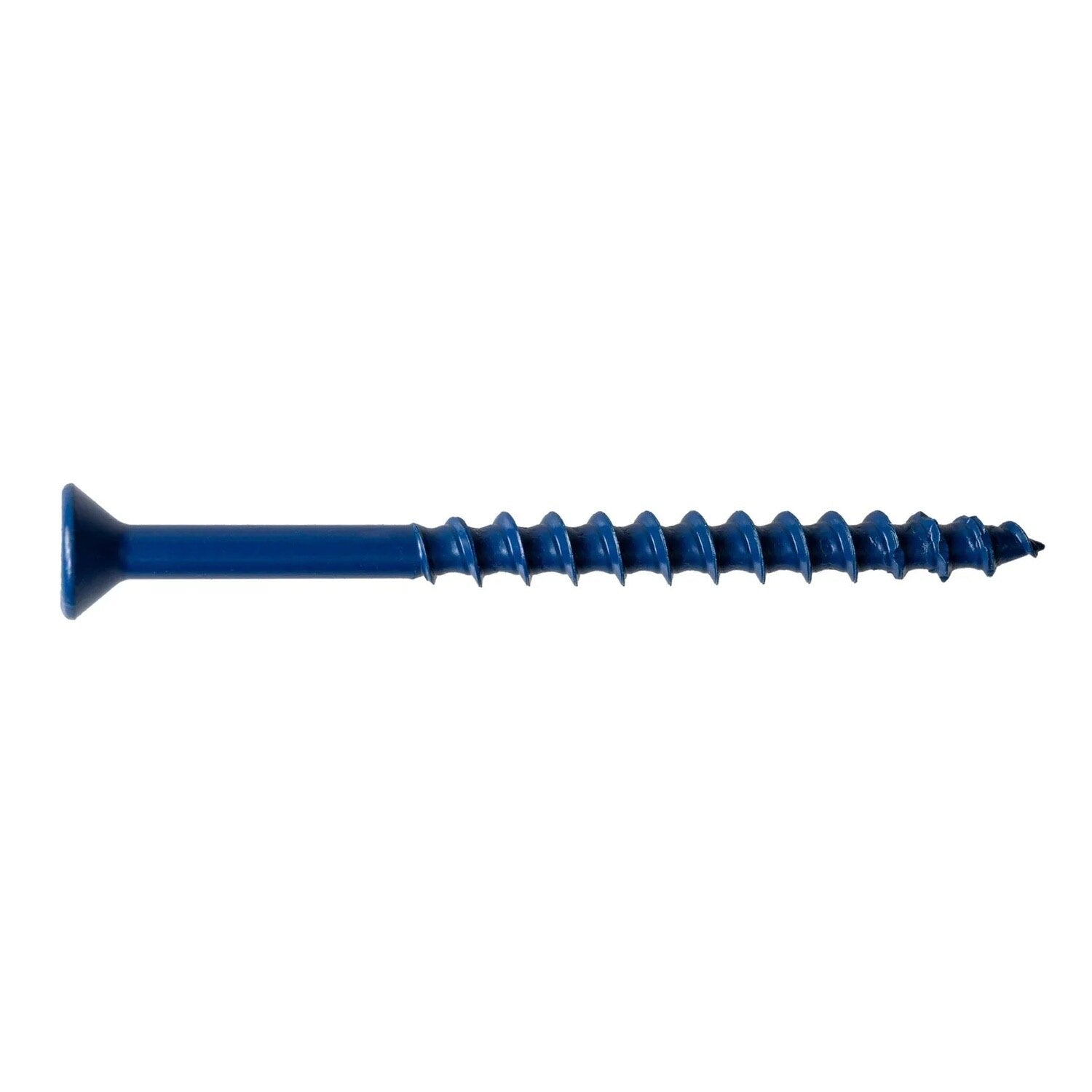

Simpson Strong-Tie TNT18234TFR200 Titen Turbo (3/16" x 2-3/4") T25 Flat-Head Concrete and Masonry Screw, Blue (200 Pack)
$25.04
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie TNT18234TFR200 Description
The Simpson Strong-Tie Titen Turbo screw anchor is a heavy-duty fastener designed for quick and easy installation in wood-to-concrete and wood-to-wood anchoring applications. It features a patented torque reduction channel for smooth driving and superior holding power.
Simpson Strong-Tie TNT18234TFR200 Includes
- (200) 3/16" x 2-3/4" Titen Turbo Screw Anchor
- (1) T25 drive bit
- (1) standard ANSI drill bit
Simpson Strong-Tie TNT18234TFR200 Features

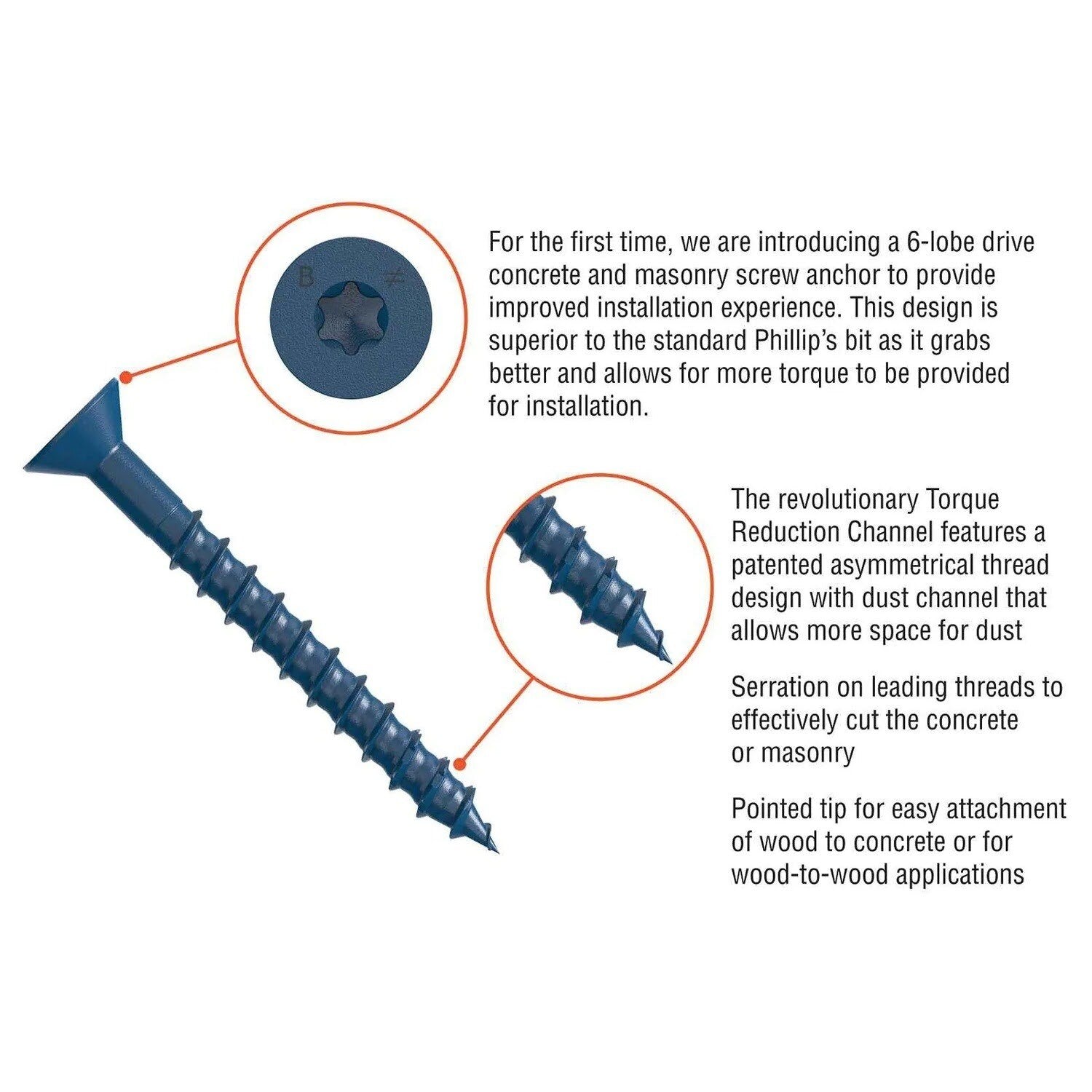

- Patented Torque Reduction Channel for reduced binding and smooth driving
- Superior tension load performance
- Designed for use in dry interior environments
- Matched-tolerance bit not required; use a standard ANSI drill bit for installation
- Code listed in accordance with ICC-ES AC193 for uncracked concrete and ICC-ES AC106 for masonry applications
Simpson Strong-Tie TNT18234TFR200 Applications

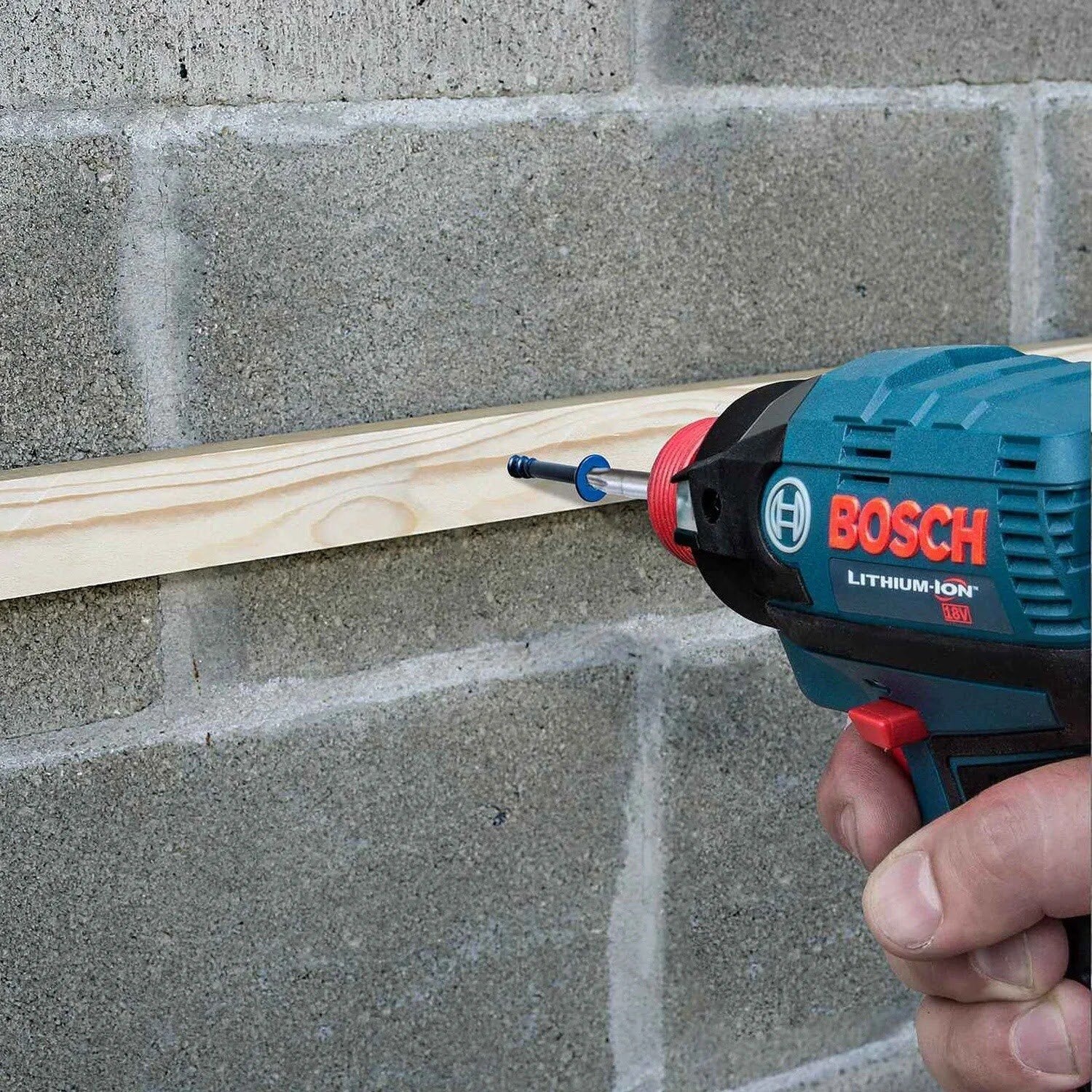

- Wood-to-concrete anchoring
- Wood-to-wood anchoring
- Electrical boxes and conduit installation

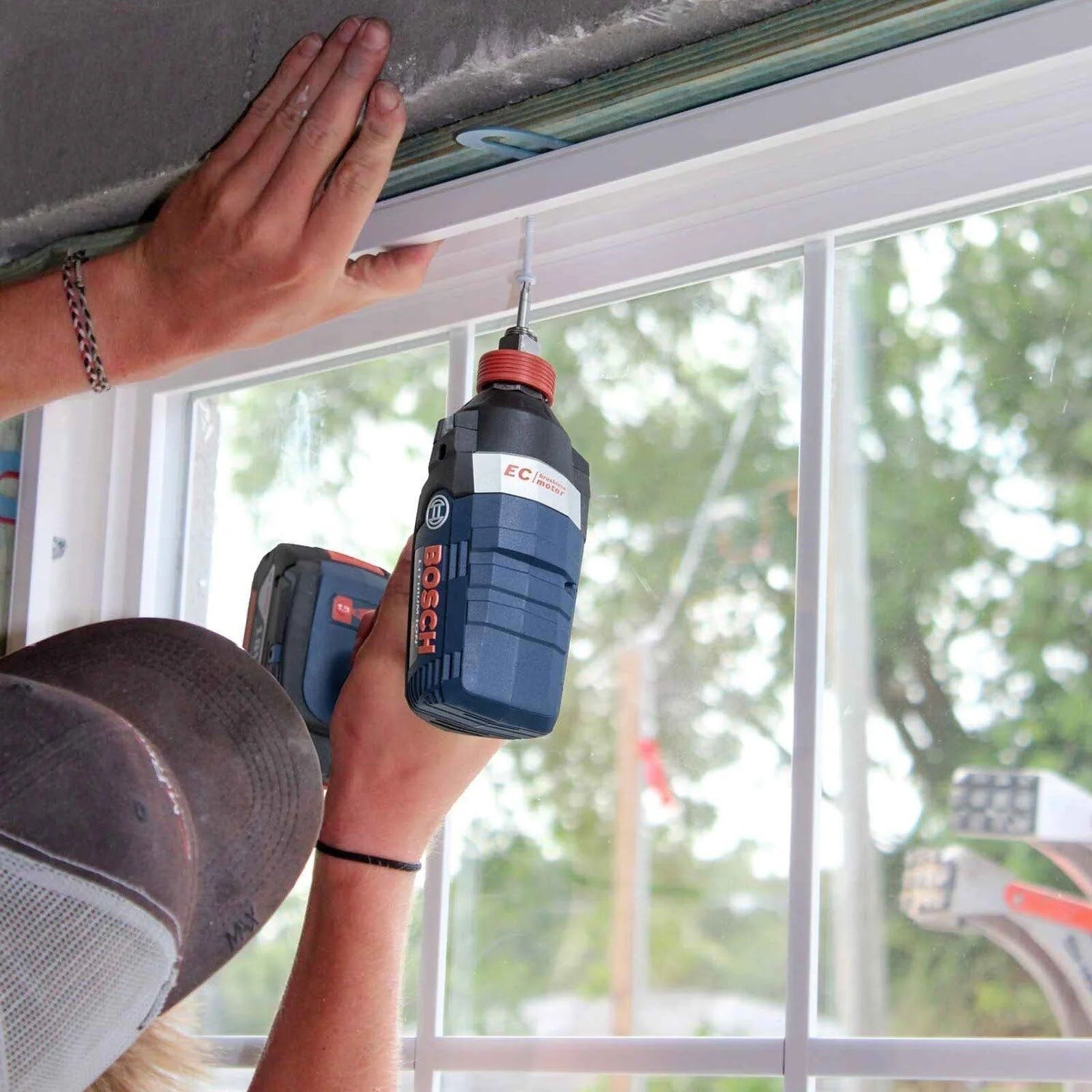

- Light fixtures and window mounting
- Handrails and thresholds

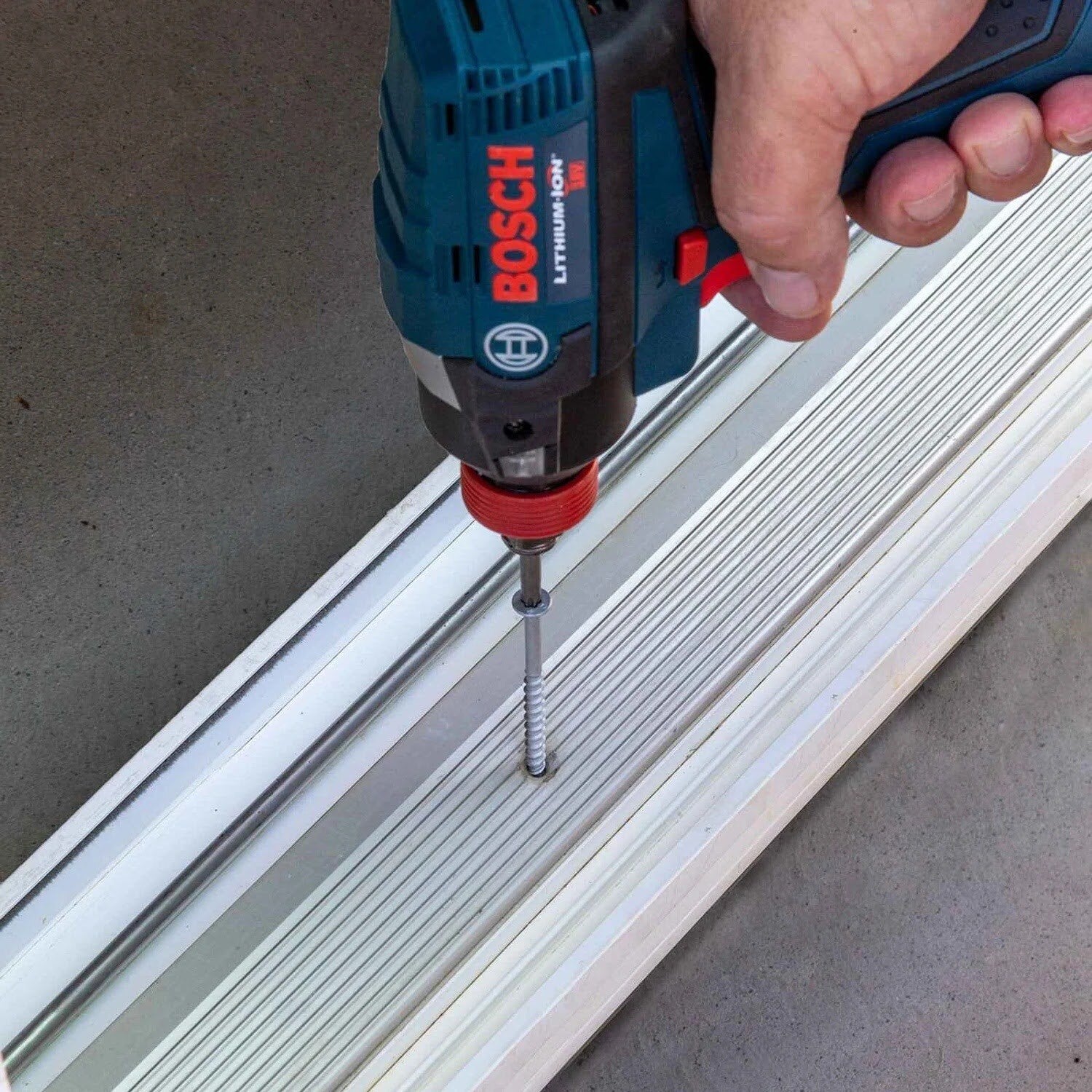

Simpson Strong-Tie TNT18234TFR200 Installation Overview
- Drill a hole in the base material using the specified diameter carbide drill bit.
- Position the fixture and insert the screw.
- Tighten using a drill and the Titen Turbo screw installation tool fitted with a hex socket or 6-lobe bit socket.
Simpson Strong-Tie TNT18234TFR200 Specifications
| Diameter | 3/16" |
| Length | 2-3/4" |
| Material | Carbon Steel |
| Finish | Blue Zinc |
| Drill bit size | 5/32" |
| Drive type | T25 Star Drive |
| Head type | Flat Head |
| Quantity | 200 |
NOTE: Designed for installation with an impact driver or cordless drill. Installation using the Titen Turbo Installation Tool is recommended.
