Simpson Anchors | SKU:
TNT18314TF

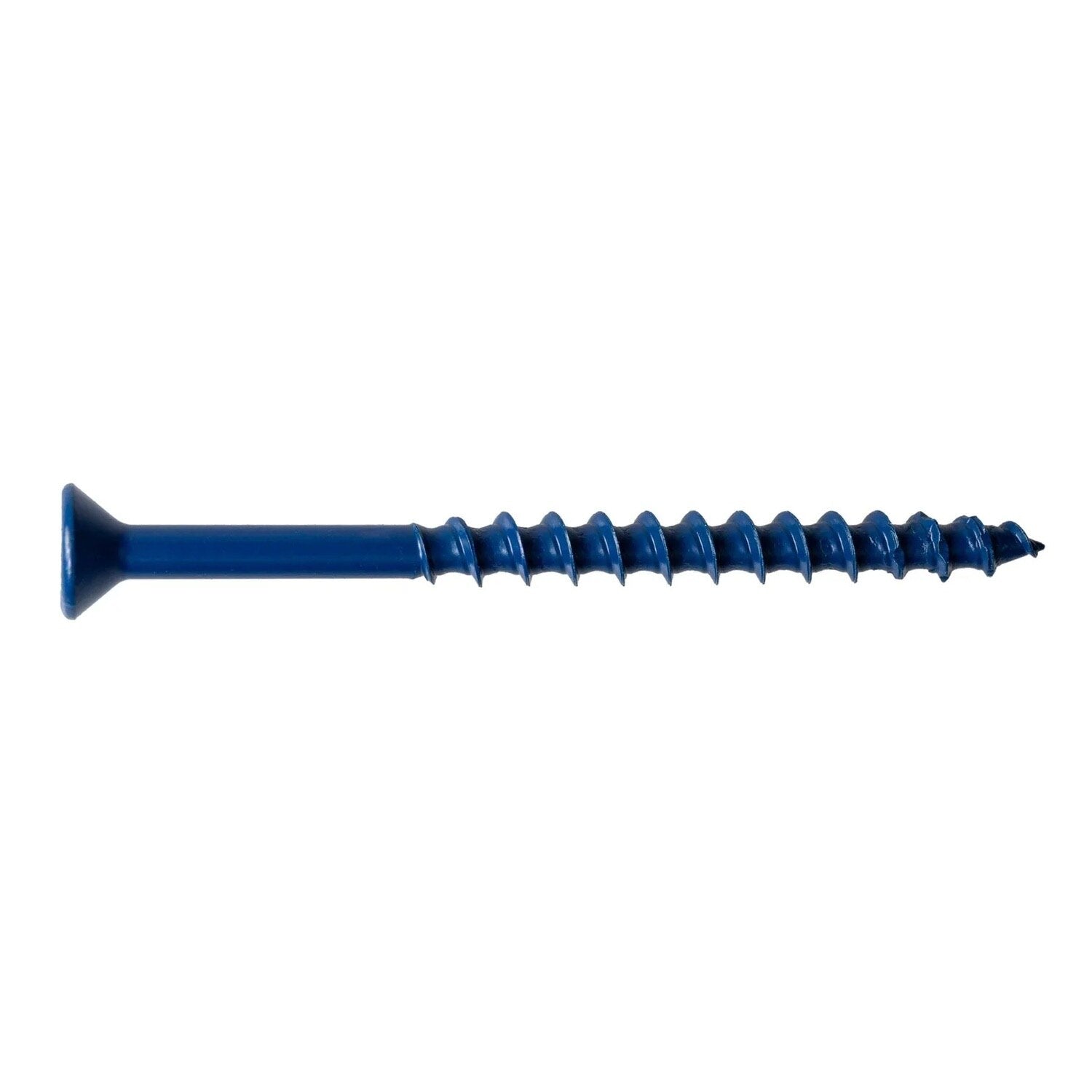

Simpson Strong-Tie TNT18314TF Titen Turbo(3/16" x 3-1/4") T25 Flat-Head Concrete and Masonry Screw, Bluec (100 Pack)
$18.25
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie TNT18314TF Description
The Simpson Strong-Tie Titen Turbo screw anchor is a heavy-duty fastener designed for quick and easy installation in concrete and masonry applications.
Simpson Strong-Tie TNT18314TF Includes
- (100) 3/16" x 3-1/4" Titen Turbo Screw Anchor
- (1) T25 driver bit
Simpson Strong-Tie TNT18314TF Features

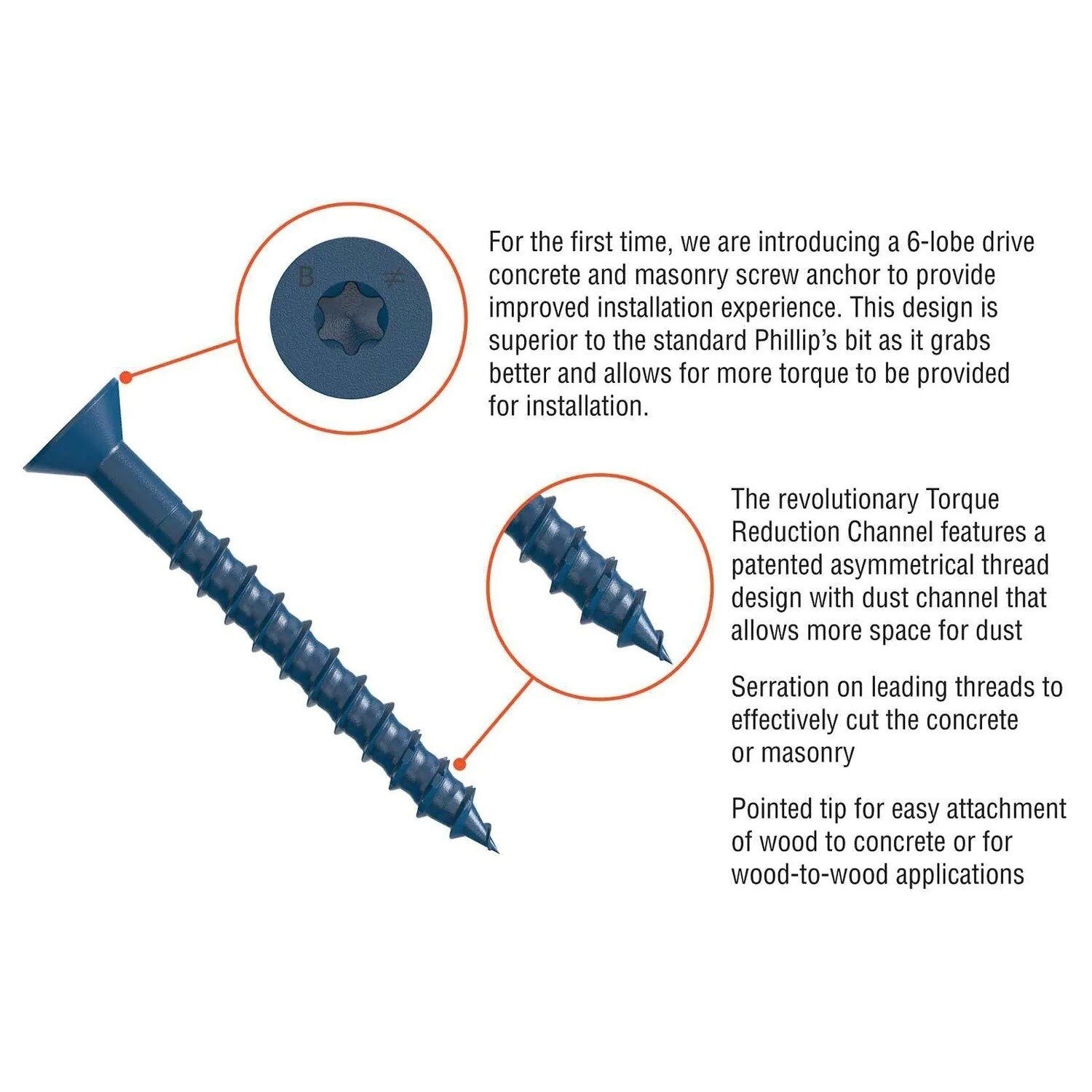

- Patented Torque Reduction Channel reduces binding and stripping.
- Available in multiple coated versions for various applications.
- Hex head or 6-lobe-drive countersunk flat head options.
- Superior tension load performance.
- Designed for use with impact drivers or cordless drills.
- Code listed for uncracked concrete and masonry applications.
Simpson Strong-Tie TNT18314TF Applications
- Electrical boxes and conduit installations.

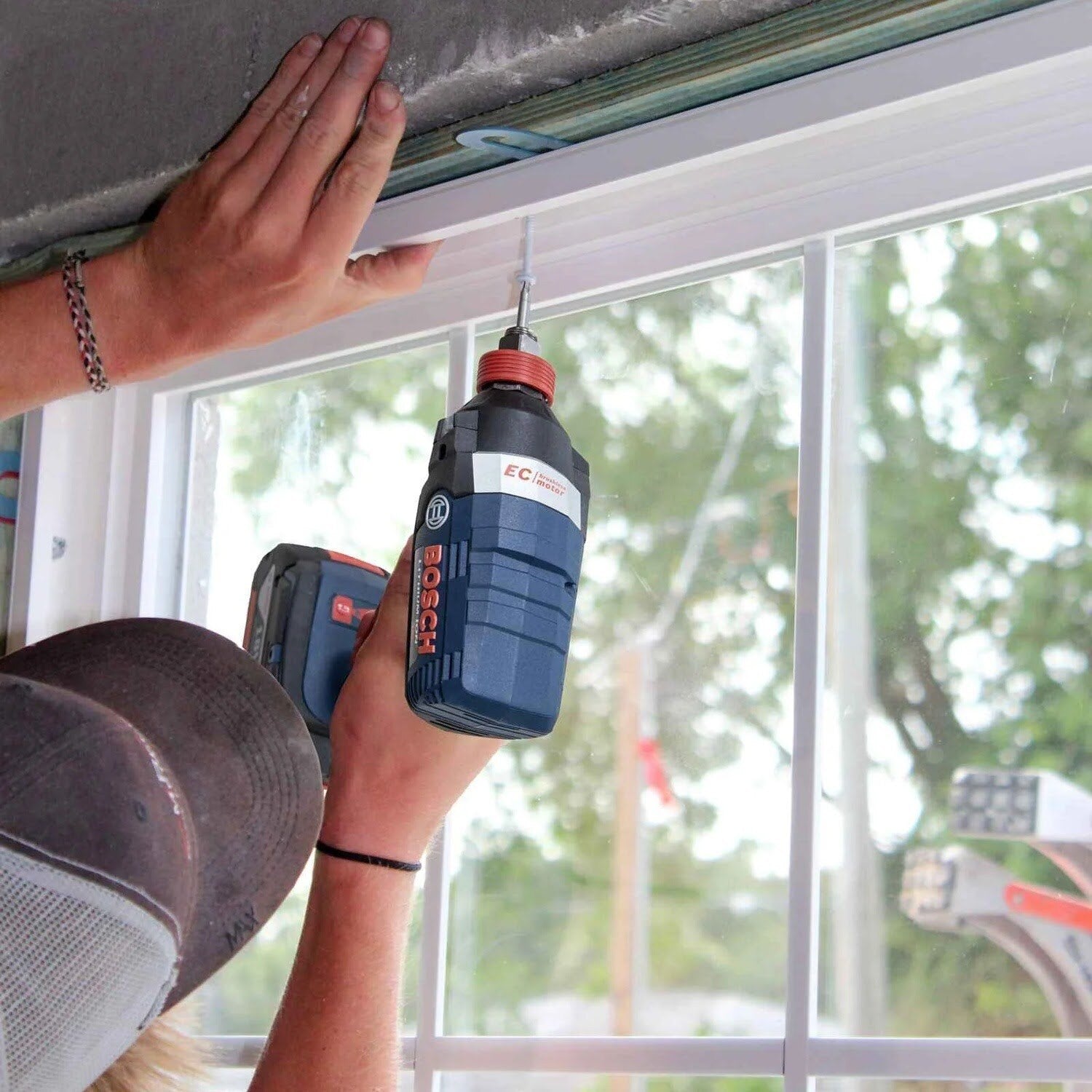

- Mounting light fixtures and windows.

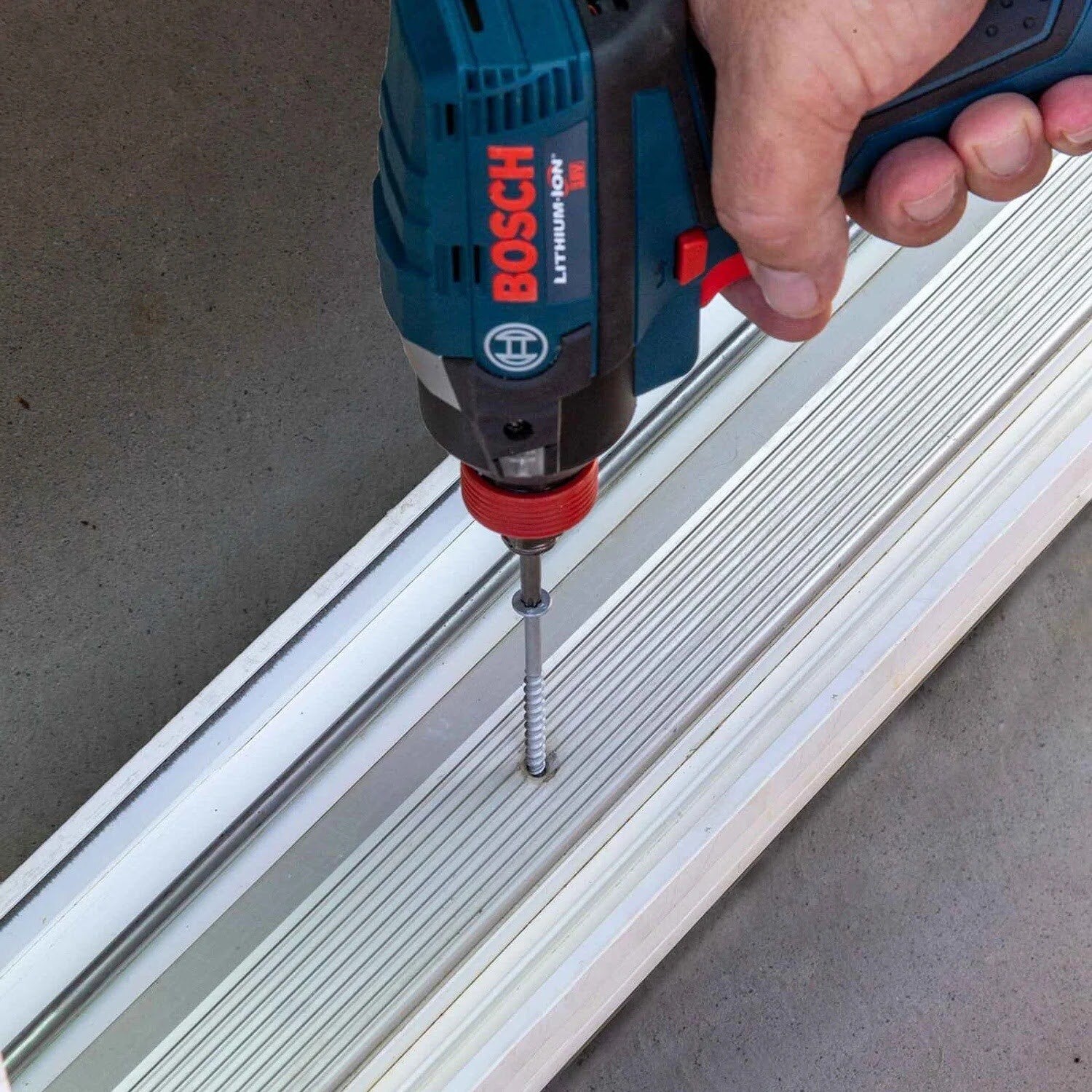

- Securing thresholds and basement furring strips.

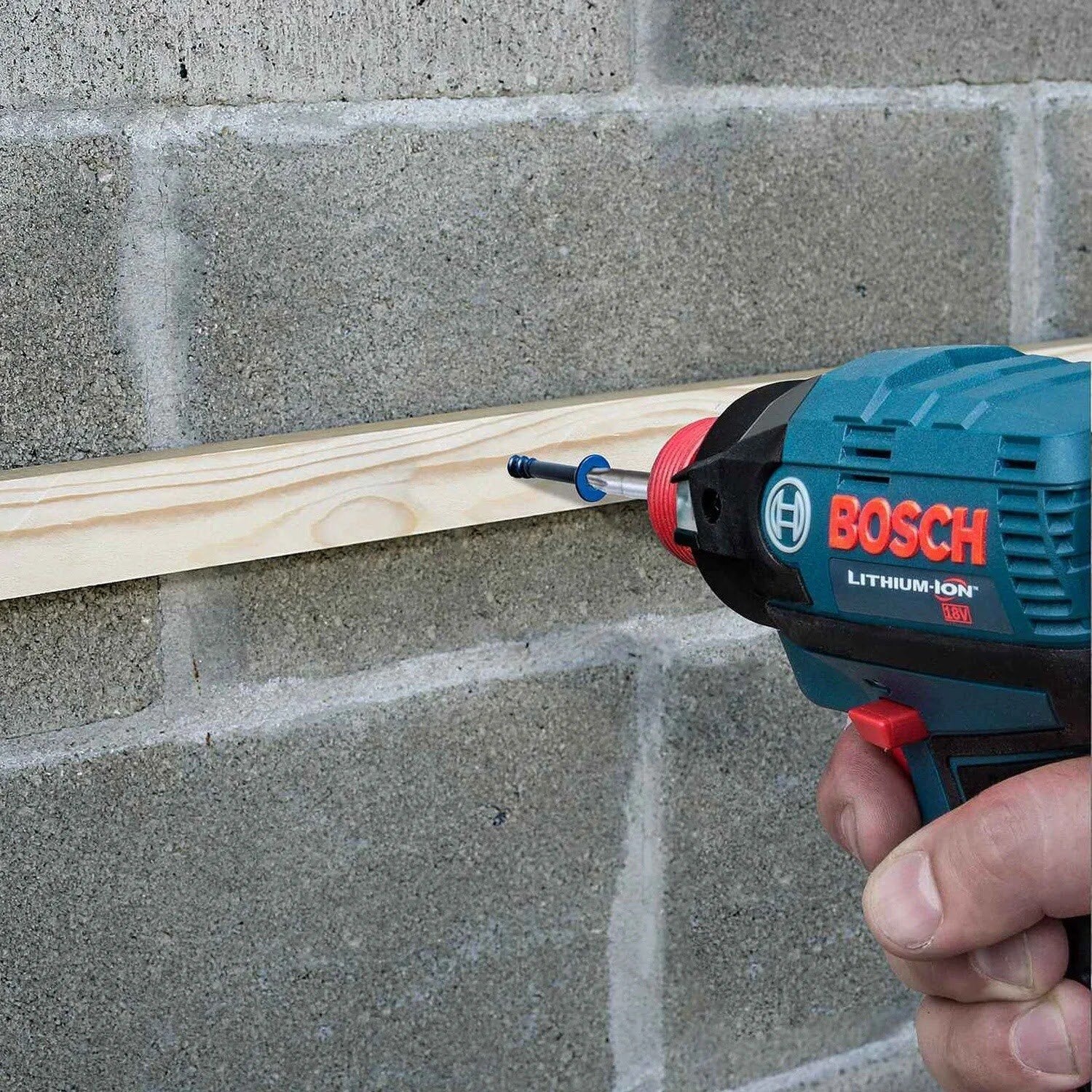

- Shelf mounting to concrete or CMU.
- Handrail installations.
Simpson Strong-Tie TNT18314TF Installation Overview
- Drill a hole using the specified diameter carbide drill bit.
- Position the fixture and insert the screw.
- Tighten using a drill and the Titen Turbo installation tool.
Simpson Strong-Tie TNT18314TF Specifications
| Material | Carbon Steel |
| Finish | Blue Zinc |
| Diameter | 3/16" |
| Length | 3-1/4" |
| Drill Bit Size | 5/32" |
| Drive Type | T25 Star Drive |
| Head Type | Flat Head |
| Quantity | 100 |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
