Simpson Anchors | SKU:
TNT18314TFC75

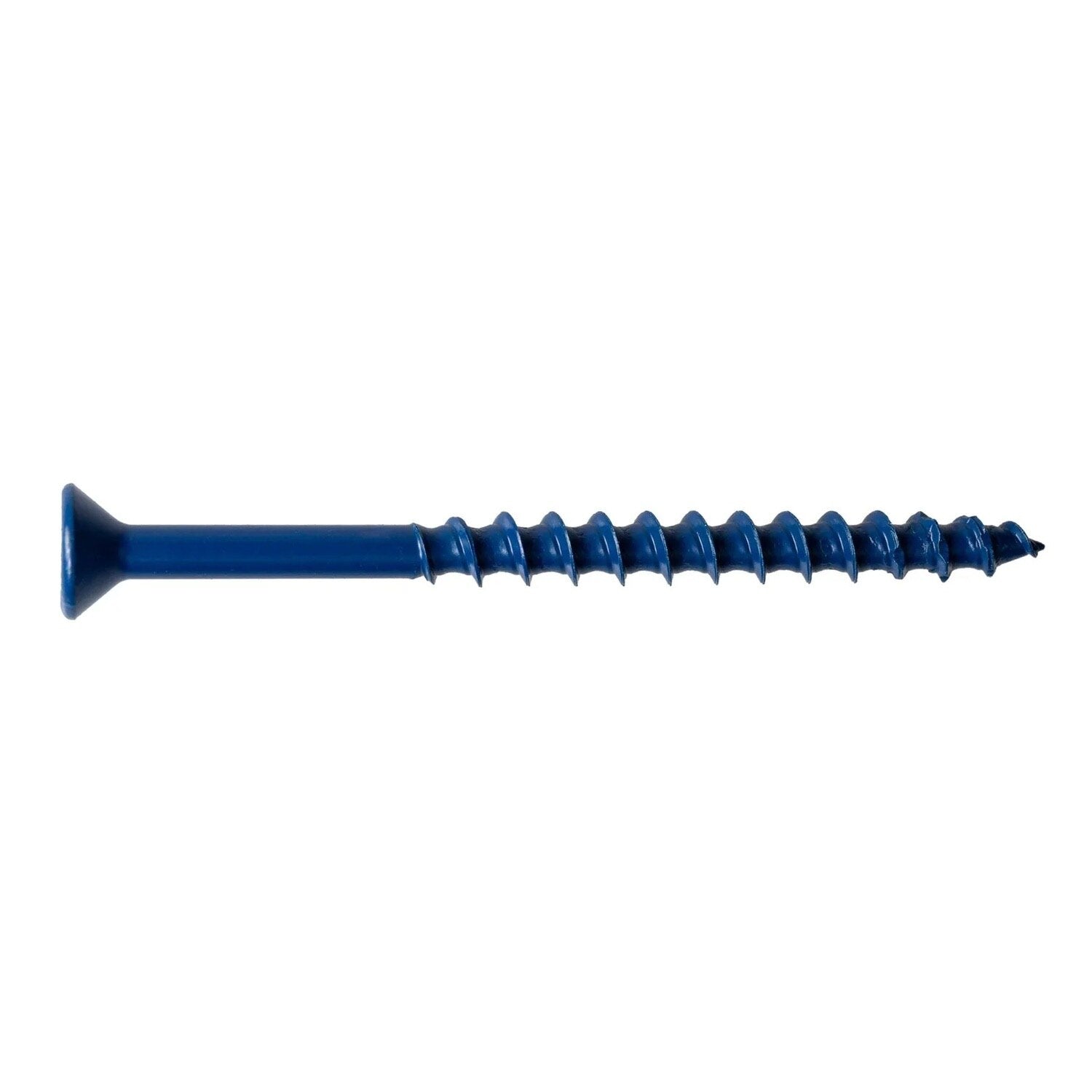

Simpson Strong-Tie TNT18314TFC75 Titen Turbo (3/16" x 3-1/4") T25 Flat-Head Concrete and Masonry Screw, Blue (75 Pack)
$13.86
Unit price
/
Unavailable
Description
Description
Simpson TNT18314TFC75 Description
The Titen Turbo Concrete and Masonry Screw is a heavy-duty fastener designed for quick and easy installation in wood-to-concrete and wood-to-wood anchoring applications.
Simpson TNT18314TFC75 Includes
- (75) Titen Turbo Concrete and Masonry Screw
- (1) T25 Drive Bit
- (1) Standard ANSI Drill Bit
Simpson TNT18314TFC75 Features

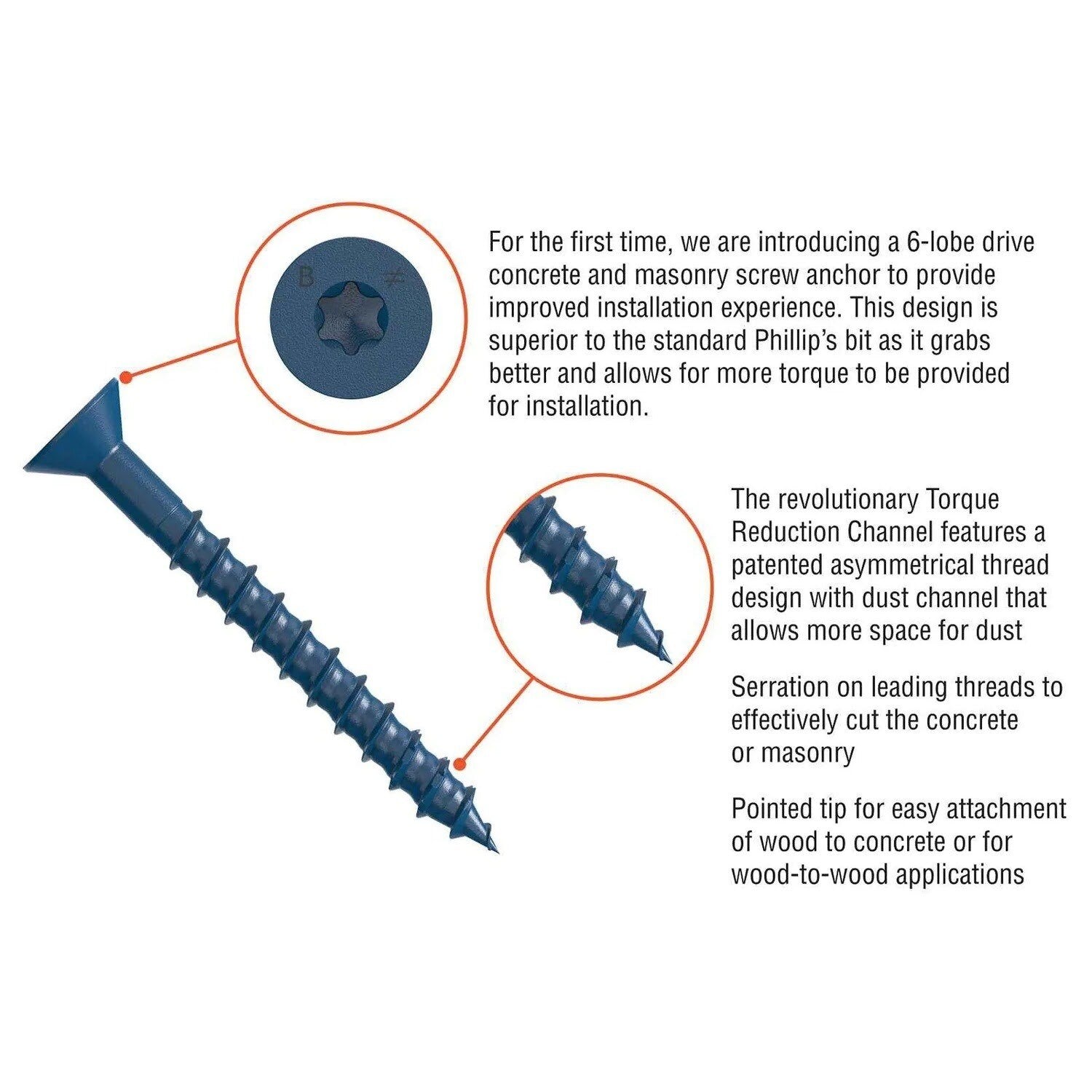

- Patented Torque Reduction Channel reduces binding and snapping.
- Available in multiple finishes including Blue Zinc.
- Hex head and flat head options for versatile applications.
- Superior tension load performance.
- Designed for use with impact drivers or cordless drills.
- Code listed for uncracked concrete and masonry applications.
Simpson TNT18314TFC75 Applications

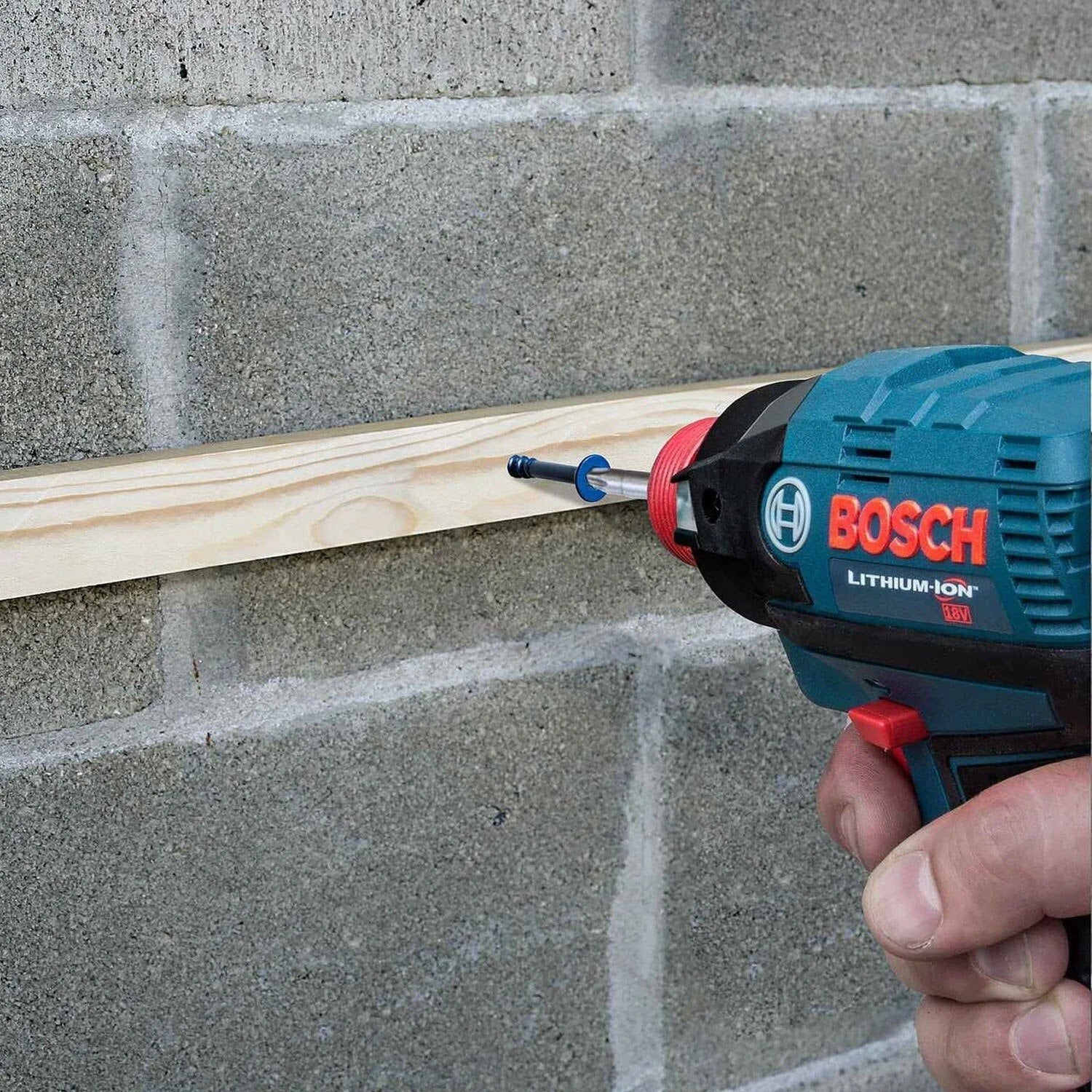

- Wood-to-concrete anchoring.
- Wood-to-wood anchoring.
- Electrical boxes and conduit installation.
- Shelf mounting to concrete or CMU.

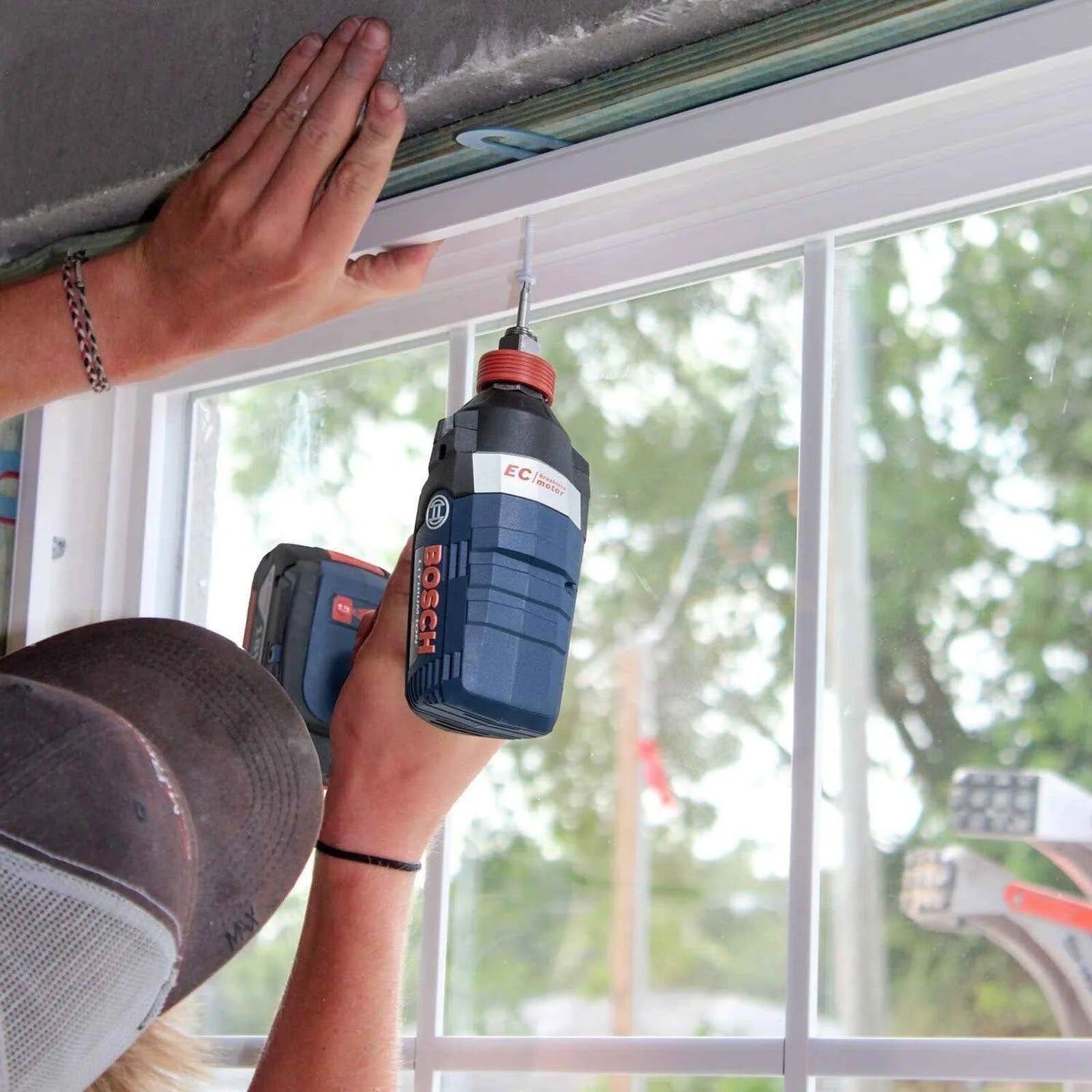

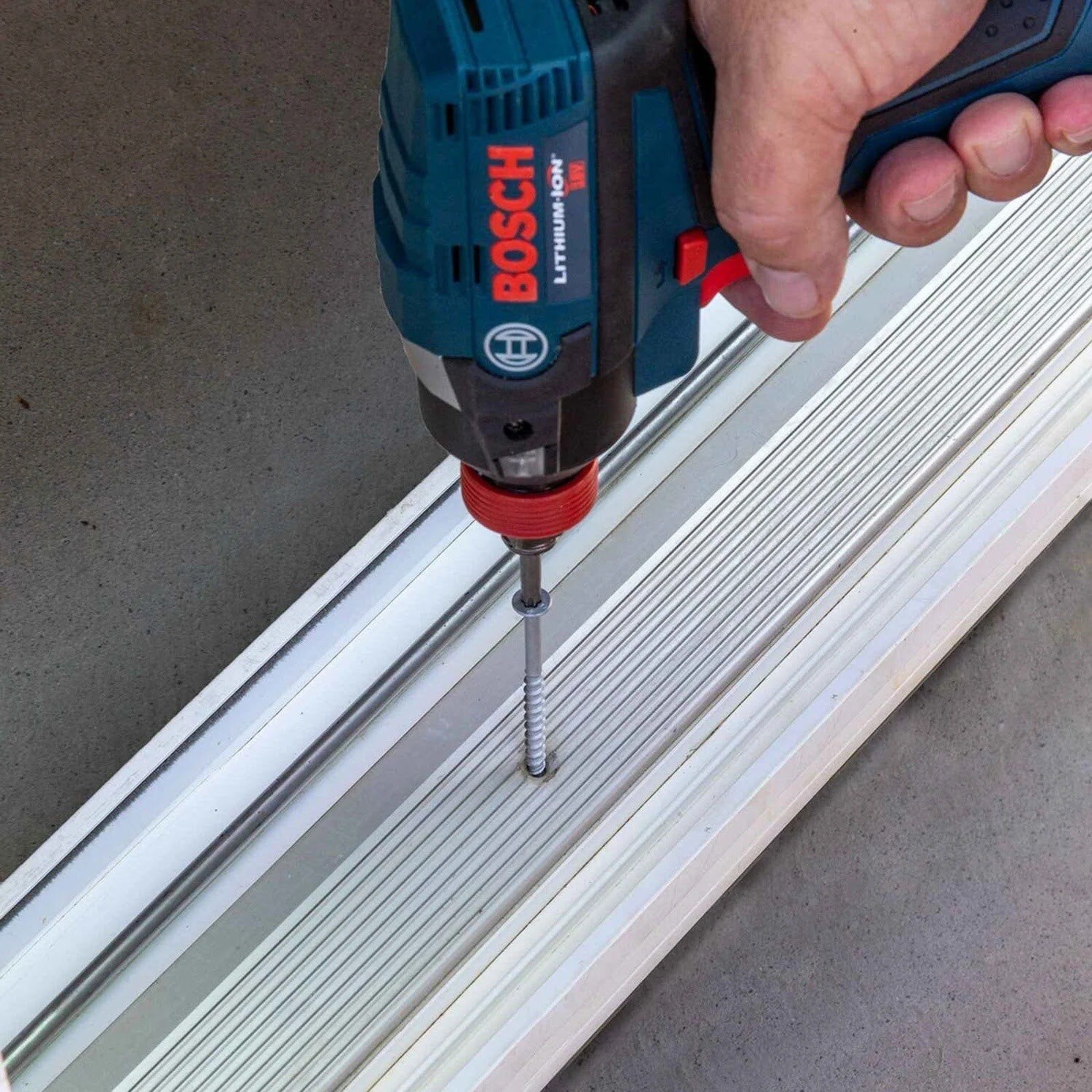

- Handrails and thresholds installation.
Simpson TNT18314TFC75 Installation Overview
- Drill a hole using the specified diameter carbide drill bit.
- Position the fixture and insert the screw.
- Tighten using a drill and the Titen Turbo installation tool.
- Ensure the screw is securely fastened.
Simpson TNT18314TFC75 Specifications
| Diameter | 3/16" |
| Finish | Blue Zinc |
| Length | 3-1/4" |
| Material | Carbon Steel |
| Drill bit size | 5/32" |
| Drive type | T25 Star Drive |
| Head type | Flat Head |
| Quantity | 75 |
NOTE: Ensure the correct fasteners are installed in the correct position to achieve published load values
