Simpson Anchors | SKU:
TNT18314TFC8

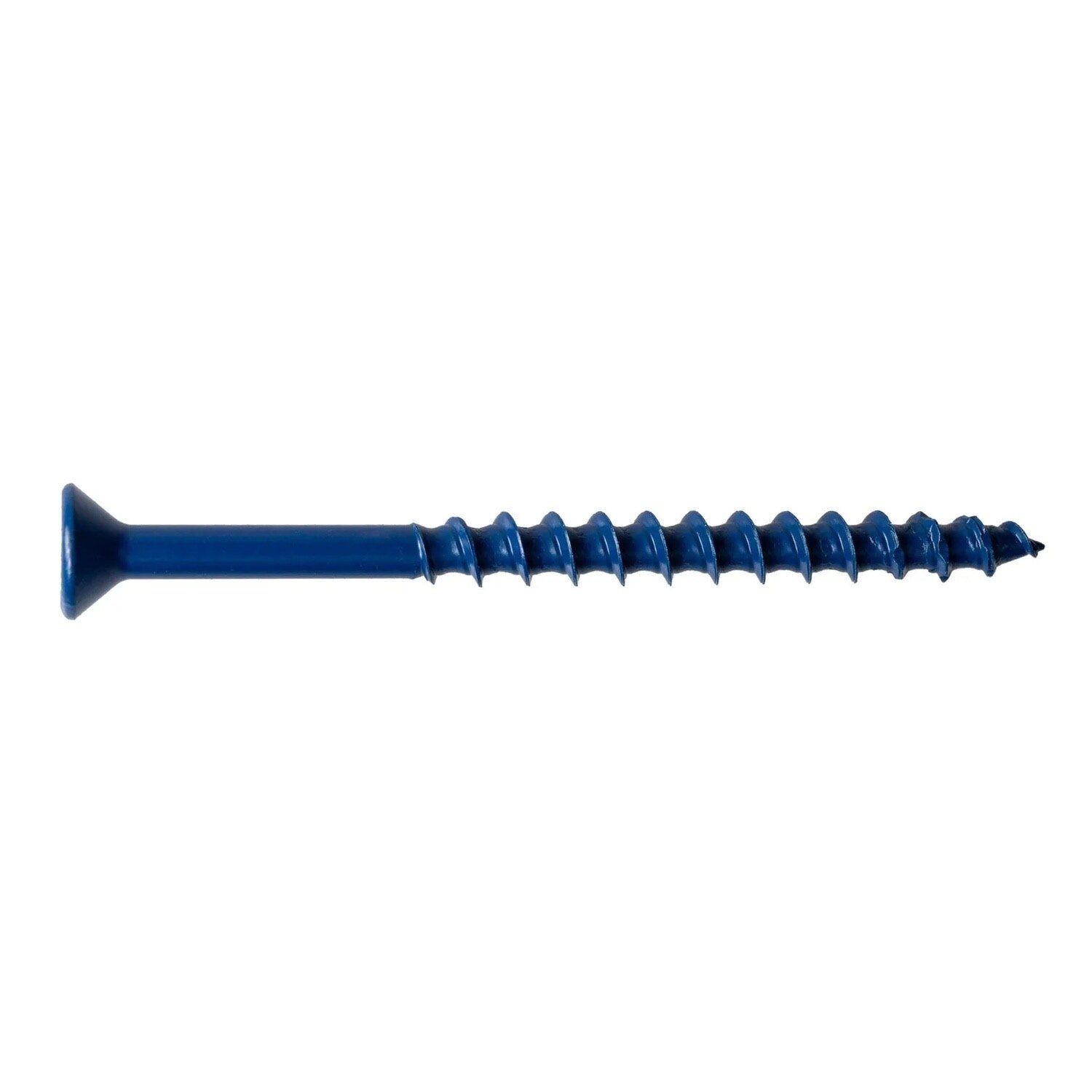

Simpson Strong-Tie TNT18314TFC8 Titen Turbo (3/16" x 3-1/4") T25 Flat-Head Concrete and Masonry Screw, Blue (8 Pack)
$3.24
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie TNT18314TFC8 Description
The Simpson Strong-Tie Titen Turbo screw anchor is a heavy-duty fastener designed for quick and easy installation in wood-to-concrete and wood-to-wood anchoring applications.
Simpson Strong-Tie TNT18314TFC8 Includes
- (8) Titen Turbo Screw Anchor
Simpson Strong-Tie TNT18314TFC8 Features

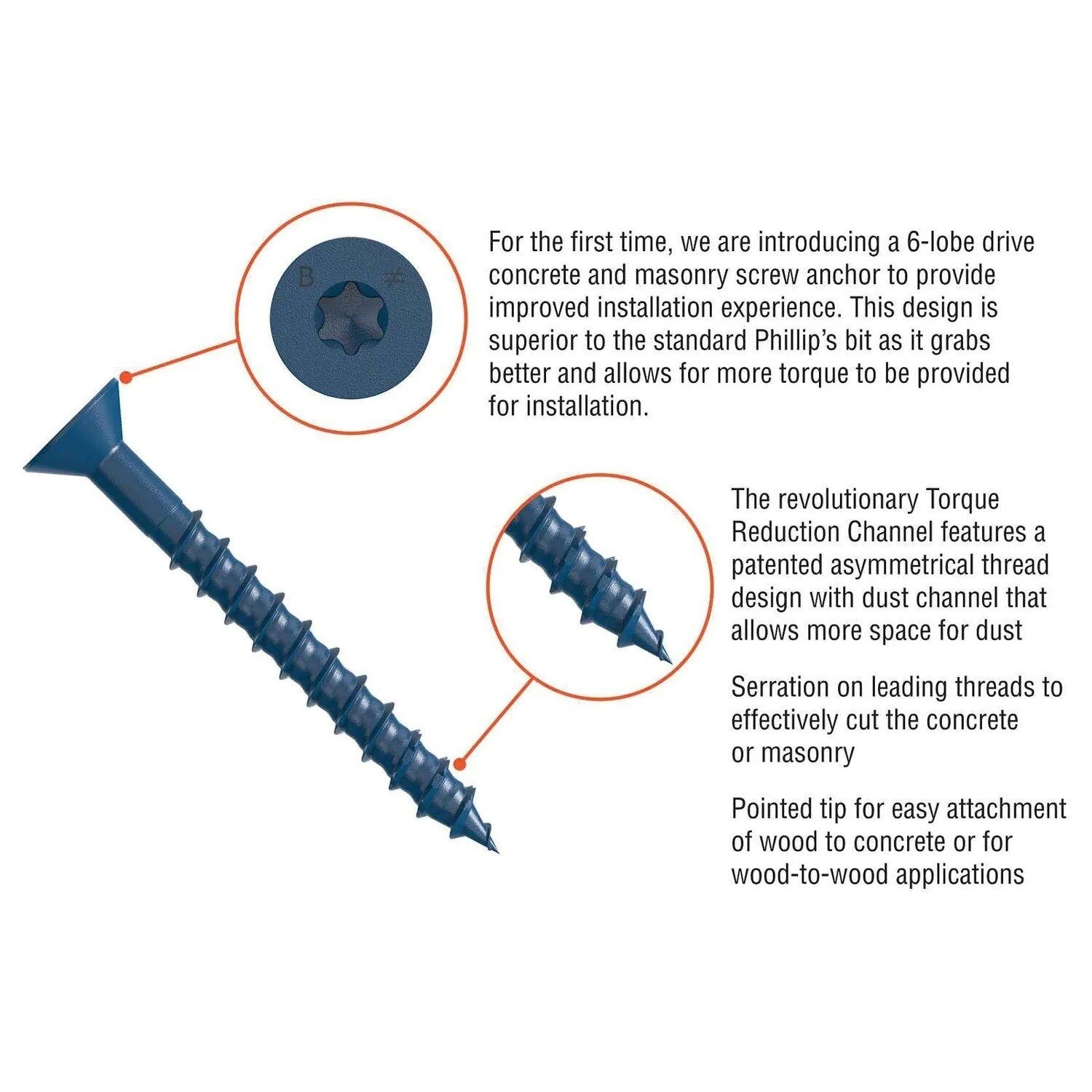

- Patented Torque Reduction Channel reduces binding and snapping.
- Available in multiple finishes including Blue Zinc.
- Flat head design for flush installation.
- Superior tension load performance.
- Designed for use with impact drivers or cordless drills.
- Code listed for uncracked concrete and masonry applications.
Simpson Strong-Tie TNT18314TFC8 Applications

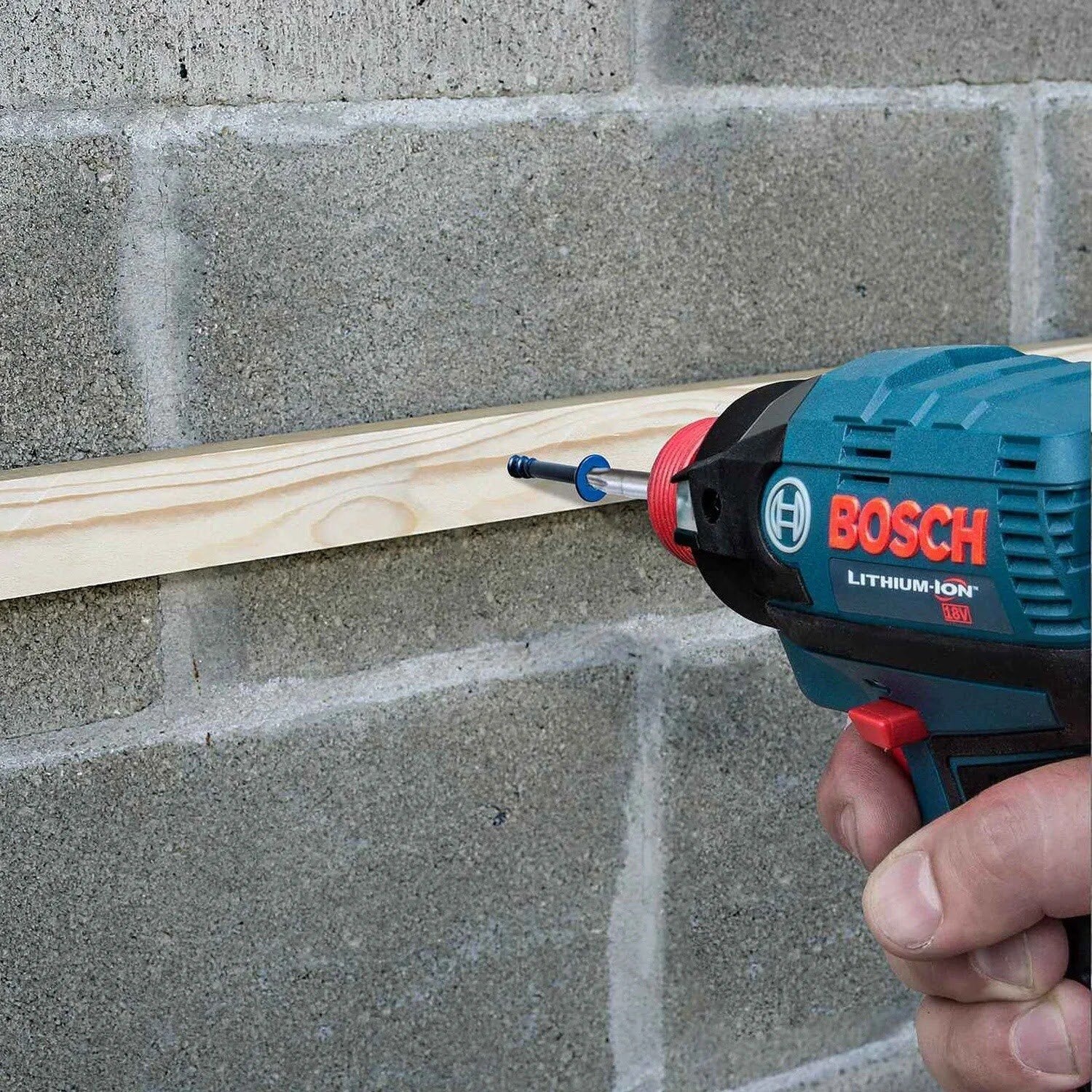

- Wood-to-concrete anchoring.
- Wood-to-wood anchoring.
- Installation of electrical boxes and conduits.

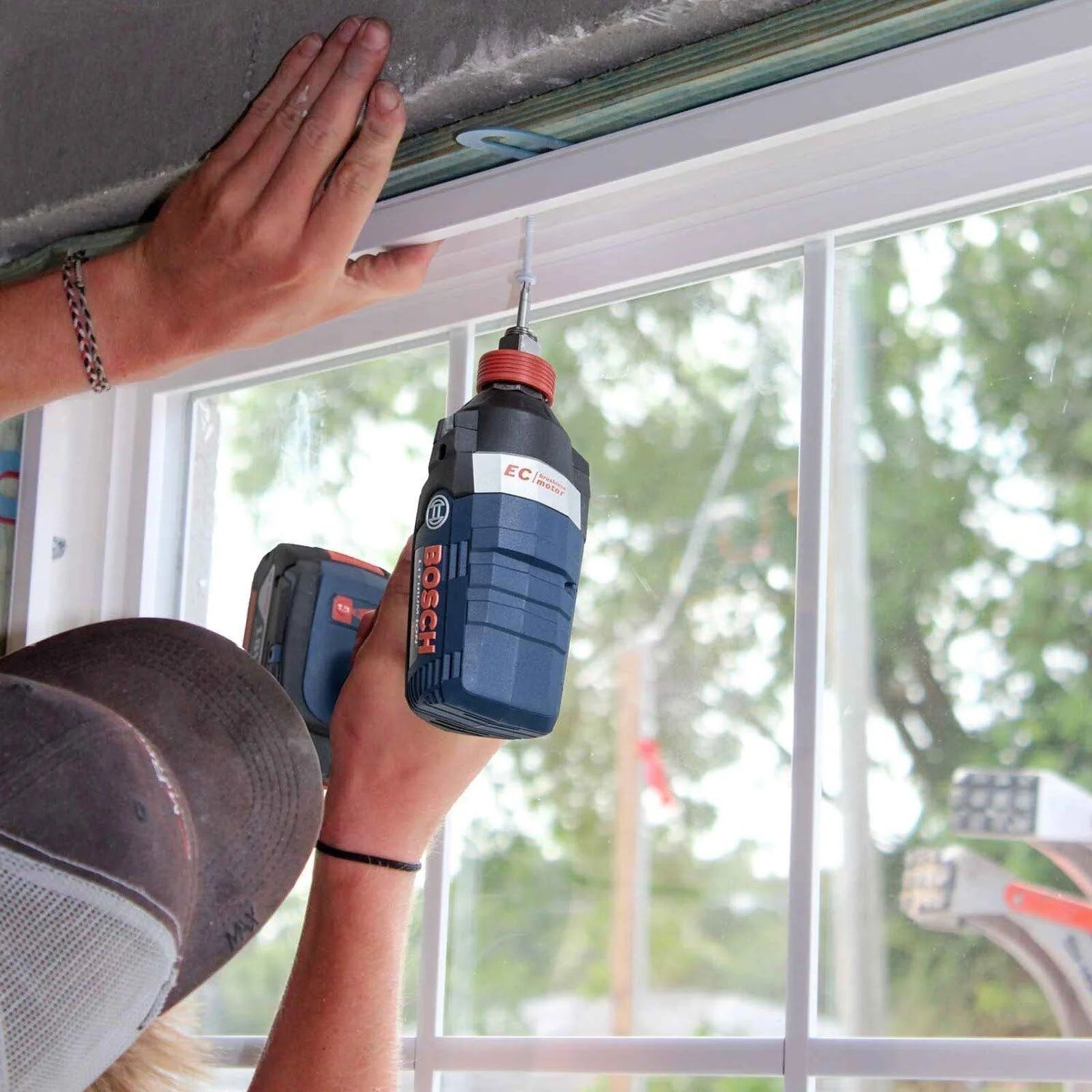

- Securing light fixtures and thresholds.
- Mounting shelves to concrete or CMU.
- Handrail installations.

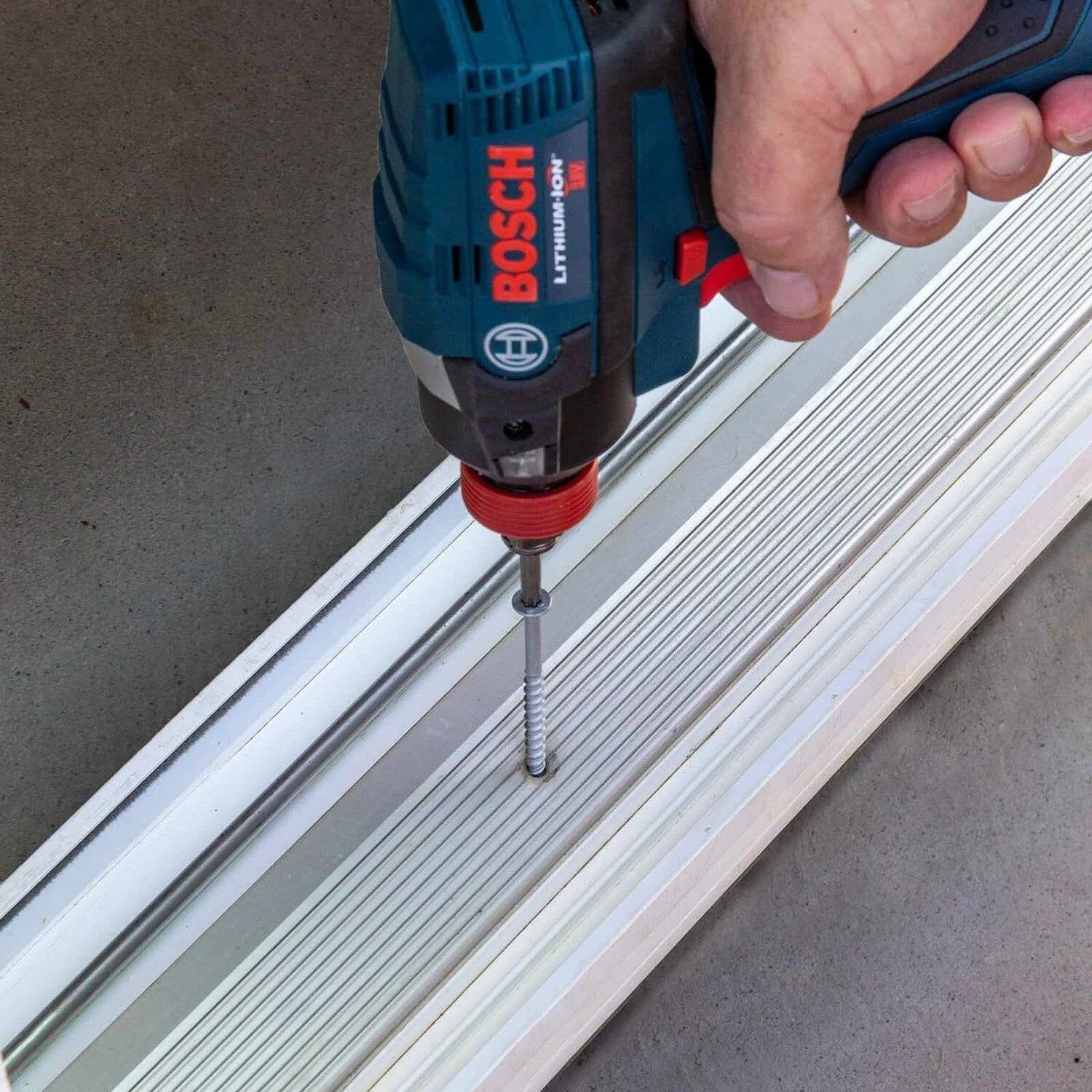

Simpson Strong-Tie TNT18314TFC8 Installation Overview
- Drill a hole using the specified diameter carbide drill bit.
- Position the fixture and insert the screw.
- Tighten using a drill and the Titen Turbo installation tool.
- Ensure the screw is securely fastened.
Simpson Strong-Tie TNT18314TFC8 Specifications
| Diameter | 3/16" |
| Finish | Blue Zinc |
| Length | 3-1/4" |
| Material | Carbon Steel |
| Drill bit size | 5/32" |
| Drive type | T25 Star Drive |
| Head type | Flat Head |
| Quantity | 8 |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
