Simpson Anchors | SKU:
TNT18334H

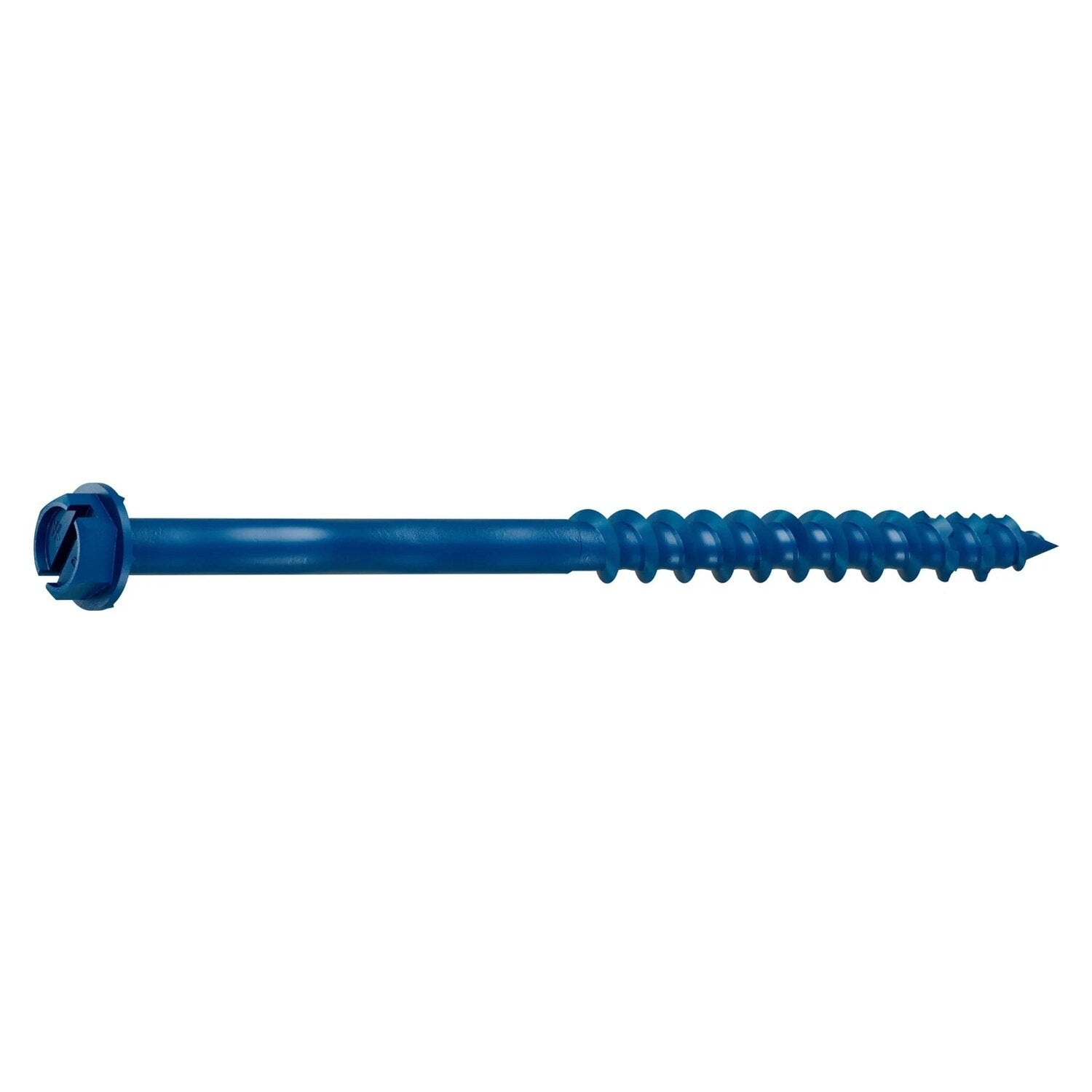

Simpson Strong-Tie TNT18334H Titen Turbo (3/16" x 3-3/4") Hex-Head Concrete and Masonry Screw, Blue (100 Pack)
$25.37
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie TNT18334H Description
The Simpson Strong-Tie Titen Turbo screw anchor is a heavy-duty fastener designed for quick and easy installation in wood-to-concrete and wood-to-wood anchoring applications. It features a patented torque reduction channel for smooth driving and superior holding power.
Simpson Strong-Tie TNT18334H Includes
- (100) Titen Turbo Screw Anchor
Simpson Strong-Tie TNT18334H Features
- Patented Torque Reduction Channel for reduced binding and smooth driving
- Available in multiple coatings and head types
- 6-lobe drive for positive bit engagement
- Superior tension load performance
- Designed for use with standard ANSI drill bits
- Serrated screw point for easier starts
- Recommended for use with Titen Turbo Installation Tool
- Code listed for uncracked concrete and masonry applications
Simpson Strong-Tie TNT18334H Applications

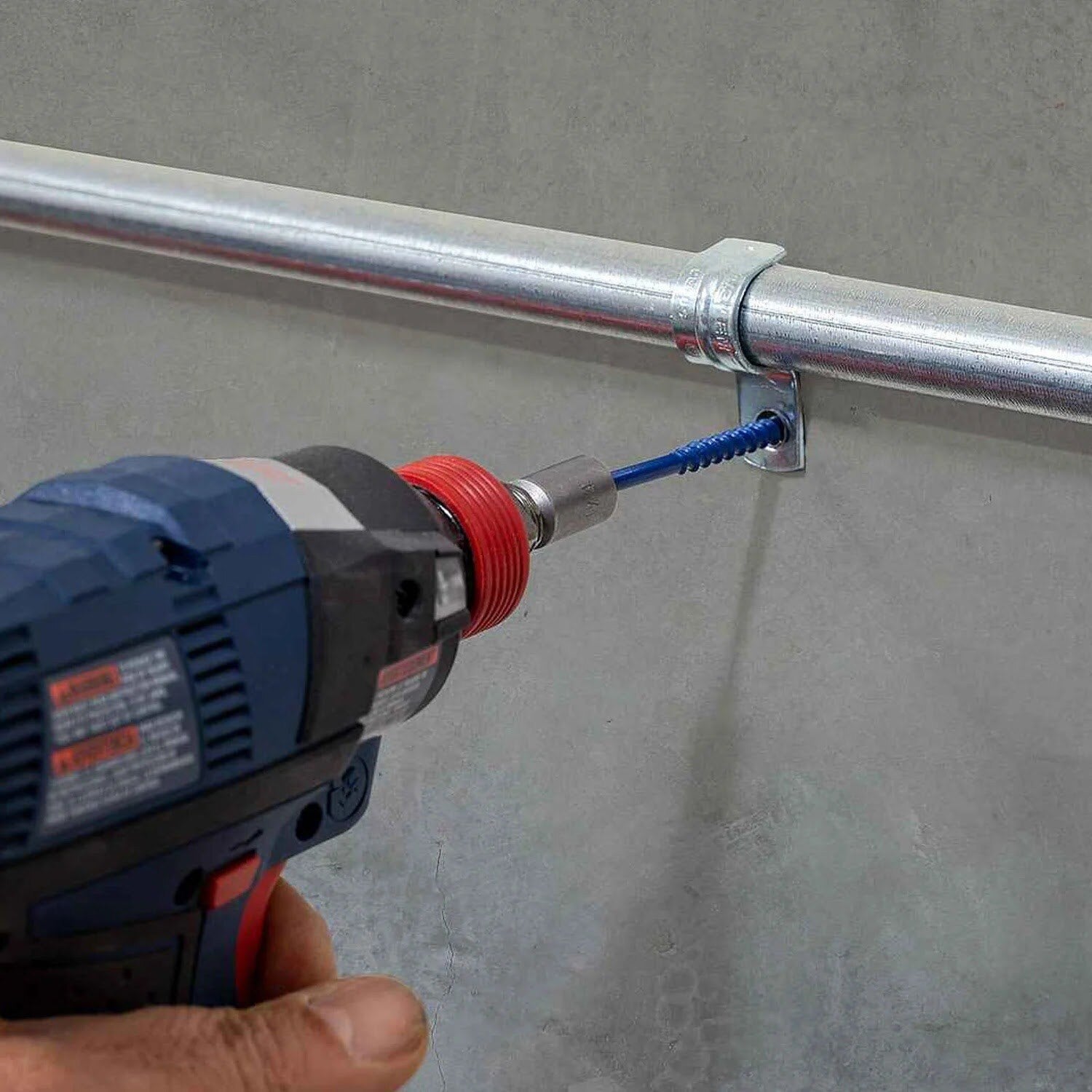

- Electrical boxes and conduit mounting

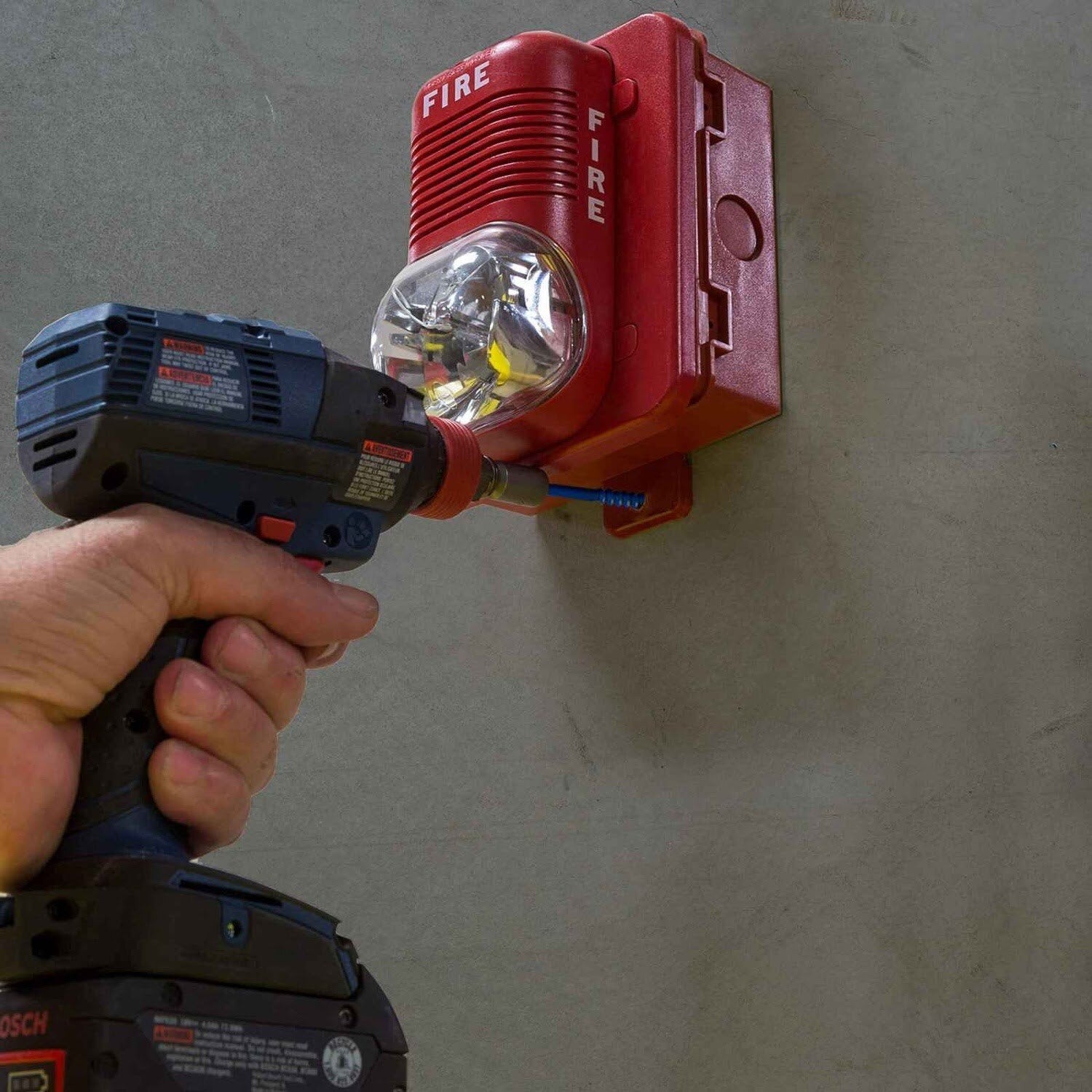

- Switch boxes and light fixtures installation
- Window and threshold anchoring
- Basement furring strips attachment

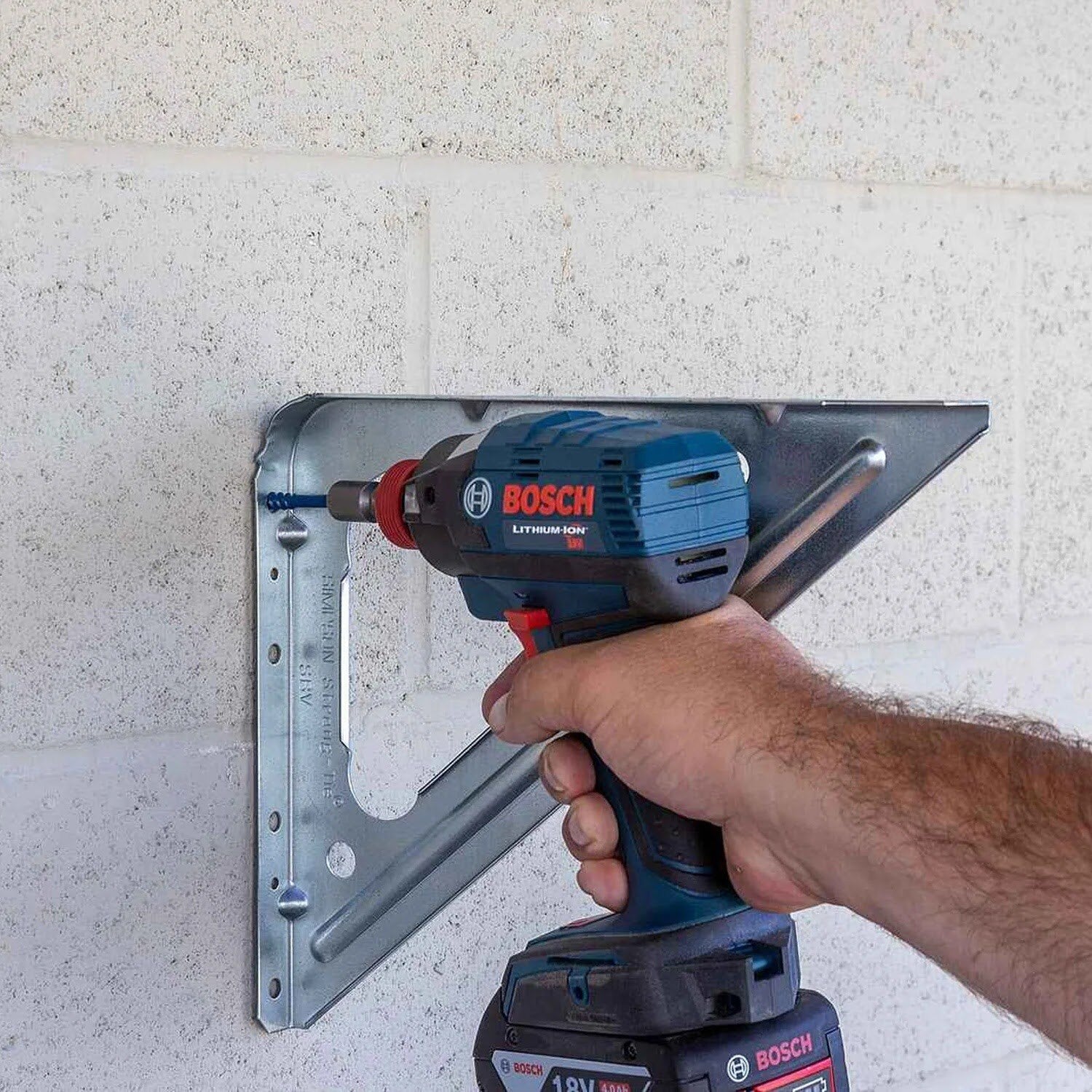

- Shelf mounting to concrete or CMU

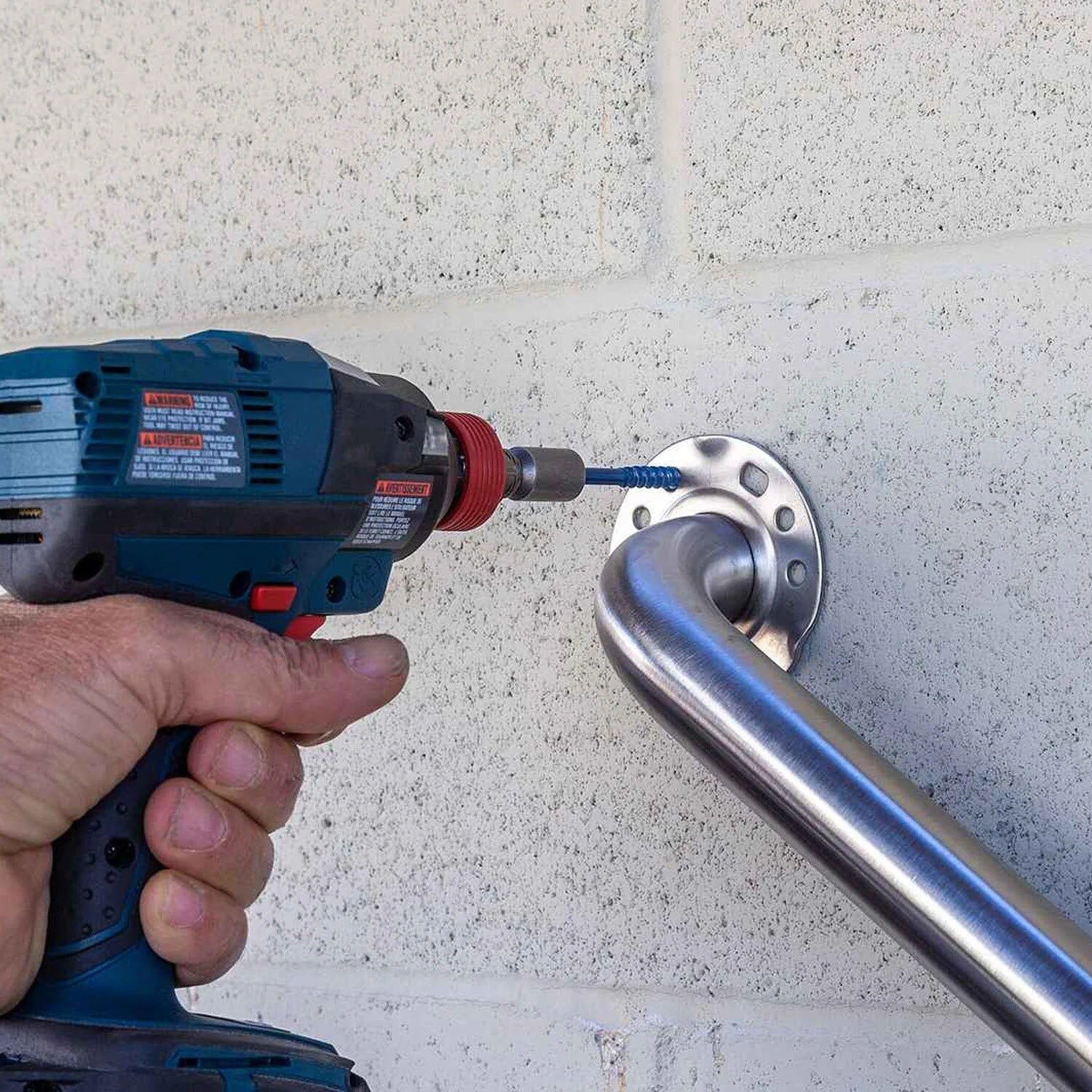

- Handrails installation
Simpson Strong-Tie TNT18334H Installation Overview
- Drill a hole in the base material using the specified diameter carbide drill bit.
- Position the fixture and insert the screw.
- Tighten using a drill and the Titen Turbo screw installation tool fitted with a hex socket or 6-lobe bit socket.
Simpson Strong-Tie TNT18334H Specifications
| Material | Carbon Steel |
| Finish | Blue Zinc |
| Diameter | 3/16 in. |
| Length | 3-3/4 in. |
| Drill Bit Size | 5/32 in. |
| Drive Type | 1/4 in. Hex |
| Head Type | Hex Head |
| Quantity | 100 |
NOTE: Designed for installation with an impact driver or cordless drill. Installation using the Titen Turbo Installation Tool is recommended. Matched-tolerance bit not required; use a standard ANSI drill bit for installation. Intended for use in dry interior environments only.
