Simpson Anchors | SKU:
TNT25134HC75

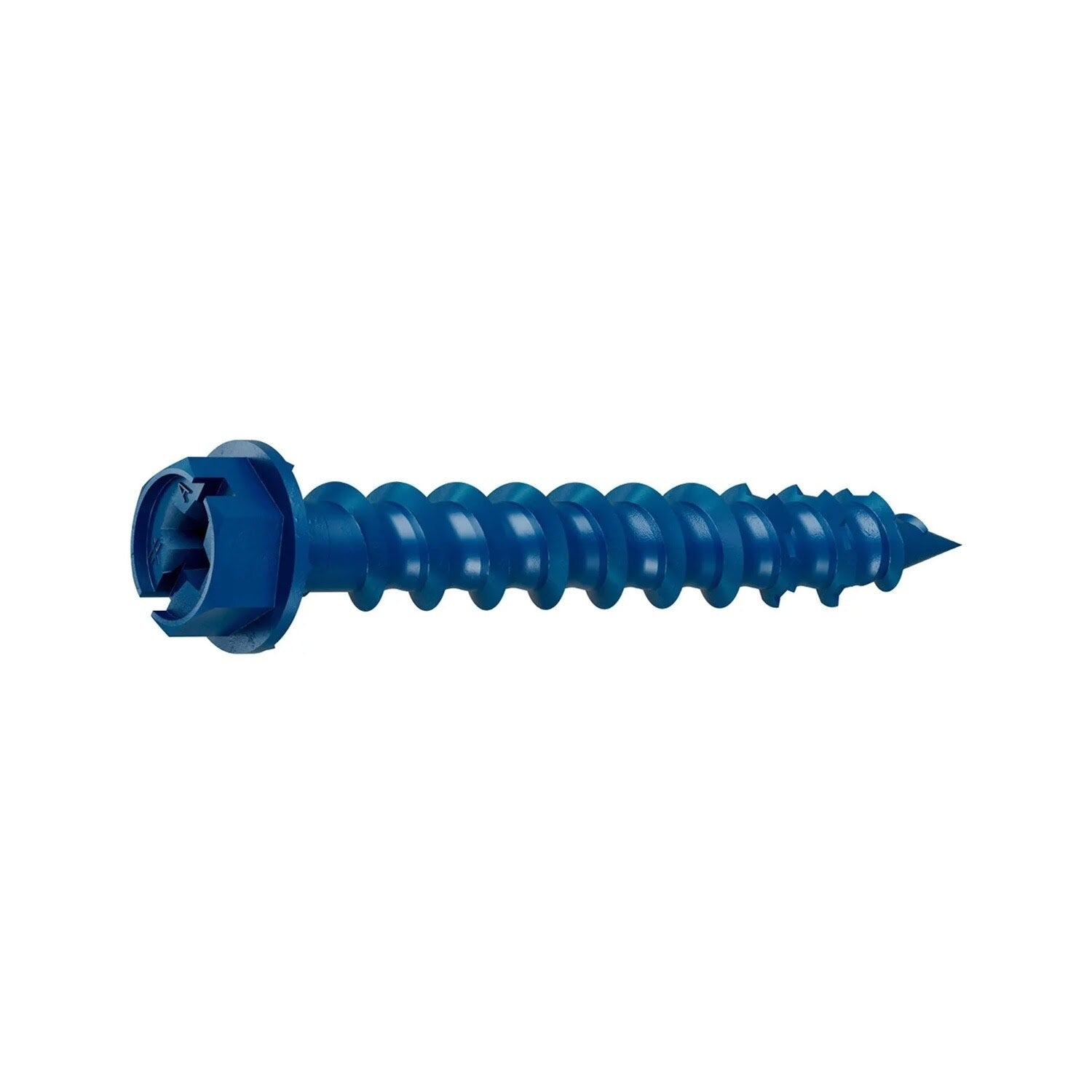

Simpson Strong-Tie TNT25134HC75 Titen Turbo(1/4" x 1-3/4") Hex-Head Concrete and Masonry Screw, Blue (75 Pack)
$17.36
Unit price
/
Unavailable
Description
Description
Simpson TNT25134HC75 Description
The Simpson Strong-Tie Titen Turbo screw anchor is a heavy-duty fastener designed for quick and easy installation in concrete and masonry applications. Featuring a patented reverse thread design, it offers superior holding power and smooth driving with reduced torque.
Simpson TNT25134HC75 Includes
- (75) 1/4" x 1-3/4" Hex-Head Concrete and Masonry Screw Anchor
- (1) Standard ANSI Drill Bit
Simpson TNT25134HC75 Features
- Innovative torque reduction channel to trap drilling dust
- Patented reverse thread design for superior holding power
- Smooth driving with less torque
- Heavy-duty fastener for concrete and masonry
- Code listed in accordance with ICC-ES AC193 and AC106
Simpson TNT25134HC75 Applications
- Wood-to-concrete anchoring
- Wood-to-wood anchoring
- Dry interior environments

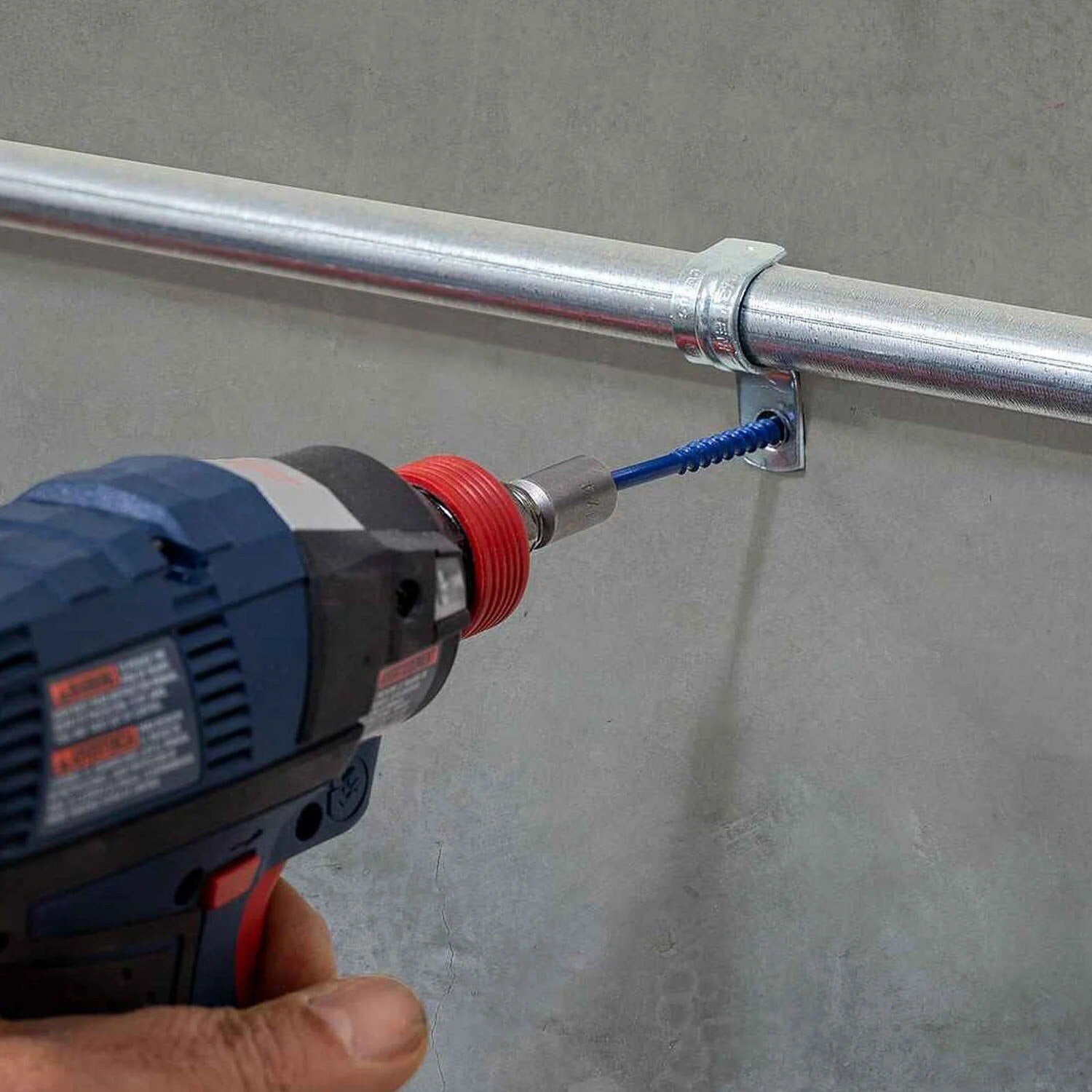

Simpson TNT25134HC75 Installation Overview
- Use an impact driver or cordless drill for installation
- Utilize the Titen Turbo Installation Tool for optimal results
- Drill using a standard ANSI drill bit
- Ensure the environment is dry and interior
Simpson TNT25134HC75 Specifications
| Diameter | 1/4" |
| Finish | Blue Zinc |
| Length | 1-3/4" |
| Material | Carbon Steel |
| Drill bit size | 3/16" |
| Drive type | 5/16" Hex |
| Head type | Hex Head |
| Quantity | 75 |
NOTE: Designed for installation with an impact driver or cordless drill. Installation using the Titen Turbo Installation Tool is recommended. Matched-tolerance bit not required; use a standard ANSI drill bit for installation. Intended for use in dry interior environments only.
