Simpson Anchors | SKU:
TNT25134TF

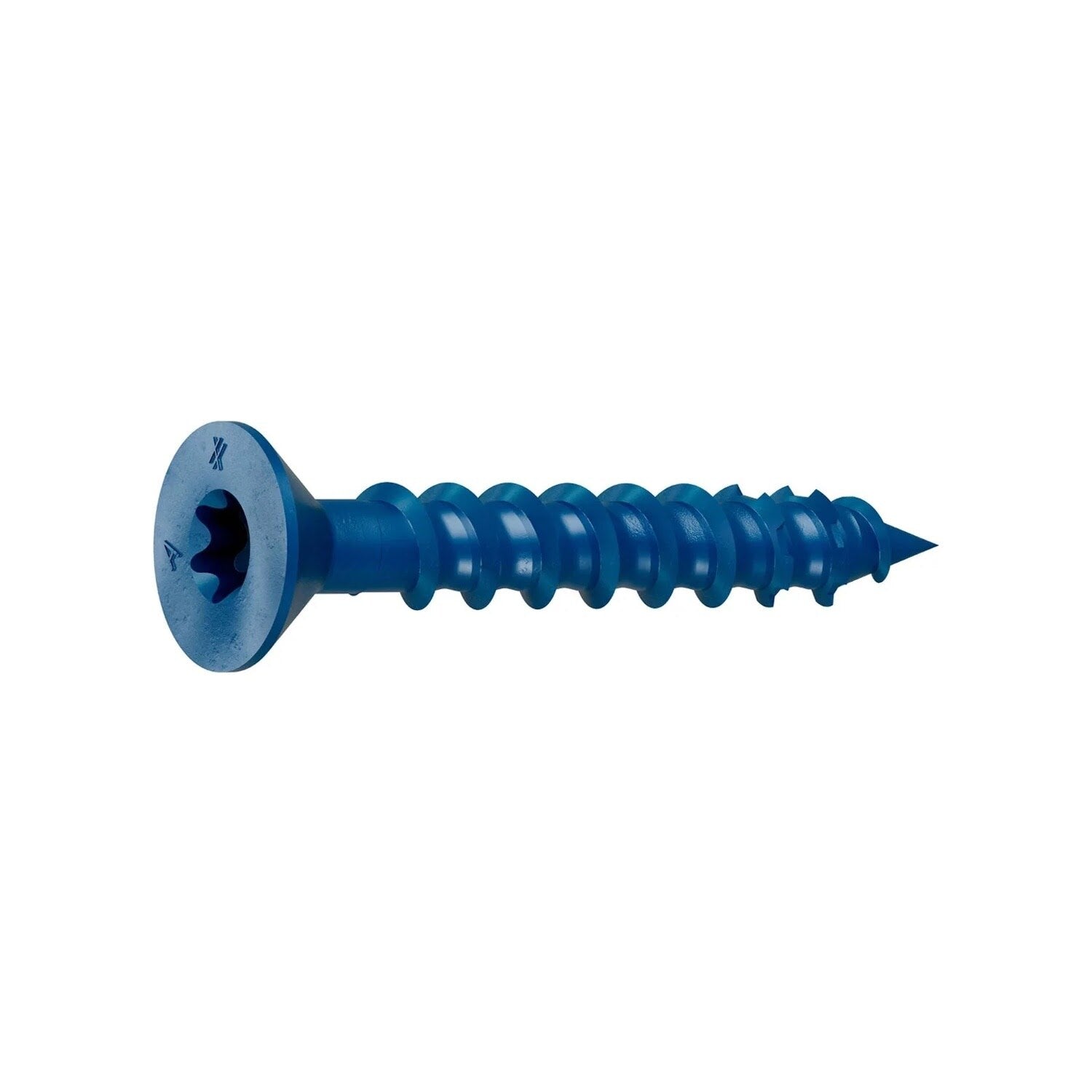

Simpson Strong-Tie TNT25134TF Titen Turbo (1/4" x 1-3/4") T30 Flat-Head Concrete and Masonry Screw, Blue (100 Pack)
$16.38
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie TNT25134TF Description
The Titen Turbo Concrete and Masonry Screw is designed for secure fastening in concrete and masonry applications, featuring a patented torque reduction channel and superior tension load performance.
Simpson Strong-Tie TNT25134TF Includes
- (100) Titen Turbo Concrete and Masonry Screw
- (1) T30 driver bit

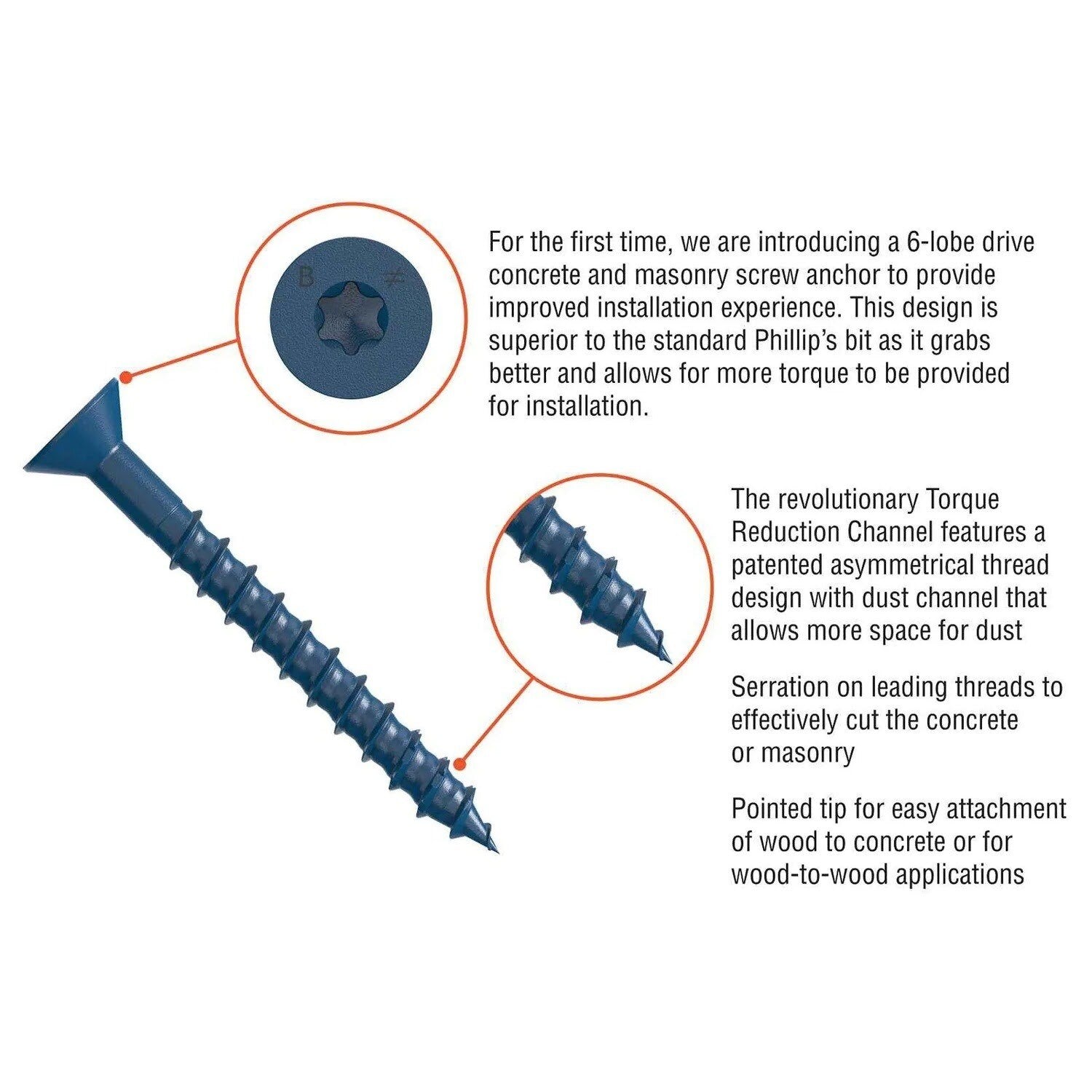

Simpson Strong-Tie TNT25134TF Features
- Patented Torque Reduction Channel for reduced binding
- Available in multiple coated versions
- Hex head or 6-lobe-drive countersunk flat head options
- 6-lobe drive for positive bit engagement
- Superior tension load performance
- Matched-tolerance bit not required
- Serrated screw point for easier starts
- Designed for impact driver or cordless drill installation
- Use in dry interior environments only
- Code listed for uncracked concrete and masonry applications
Simpson Strong-Tie TNT25134TF Applications
- Electrical boxes and conduit
- Switch boxes and light fixtures

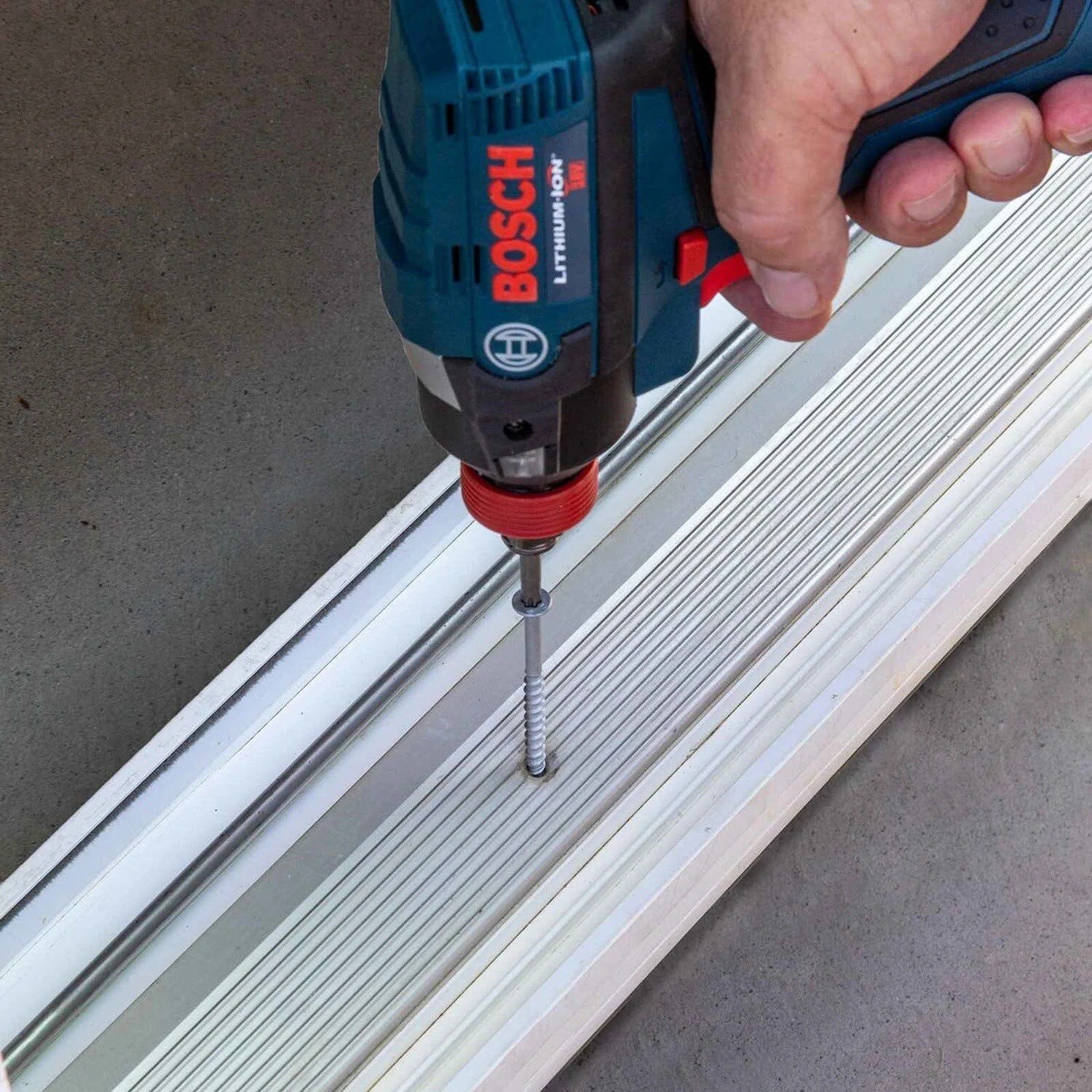

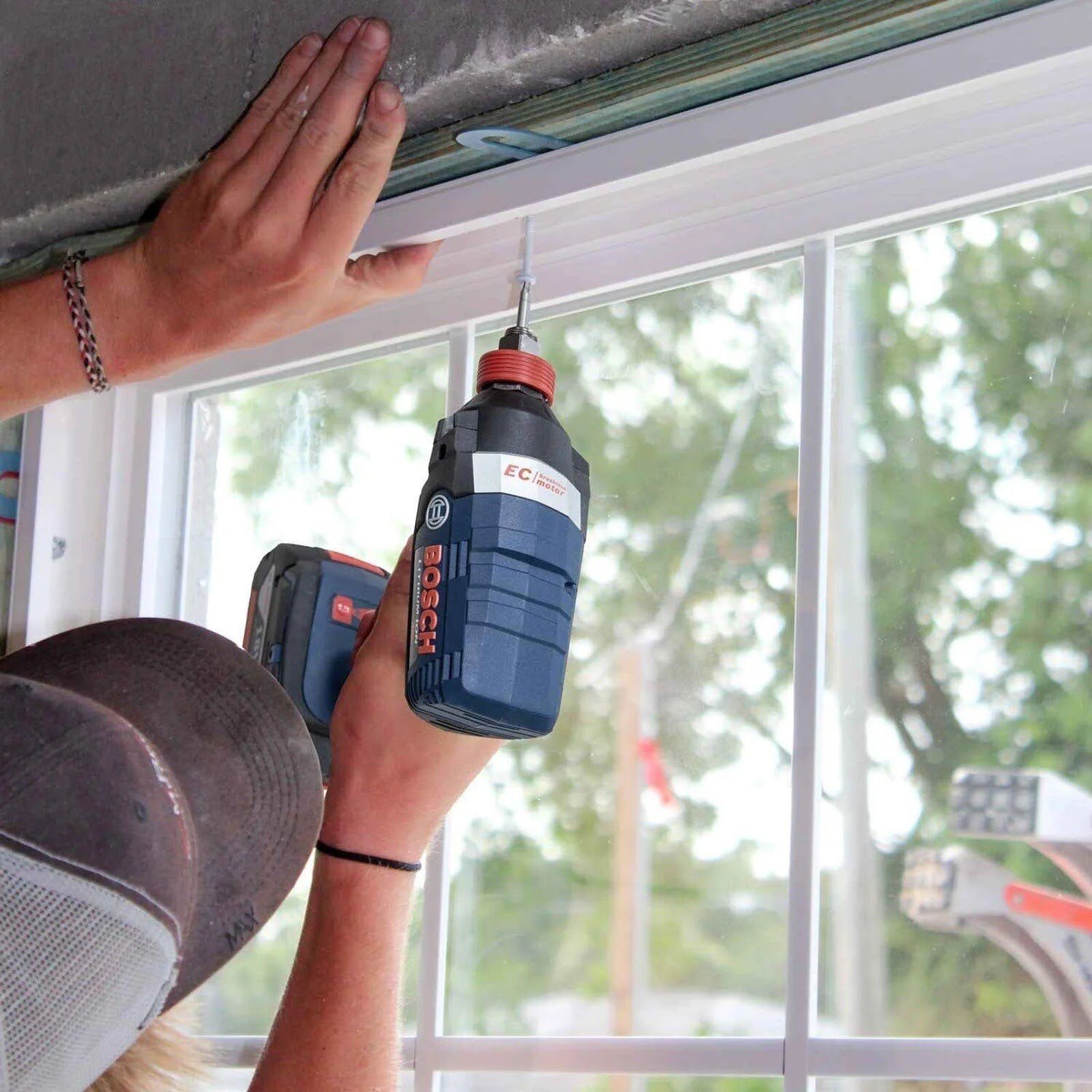

- Windows and thresholds
- Basement furring strips

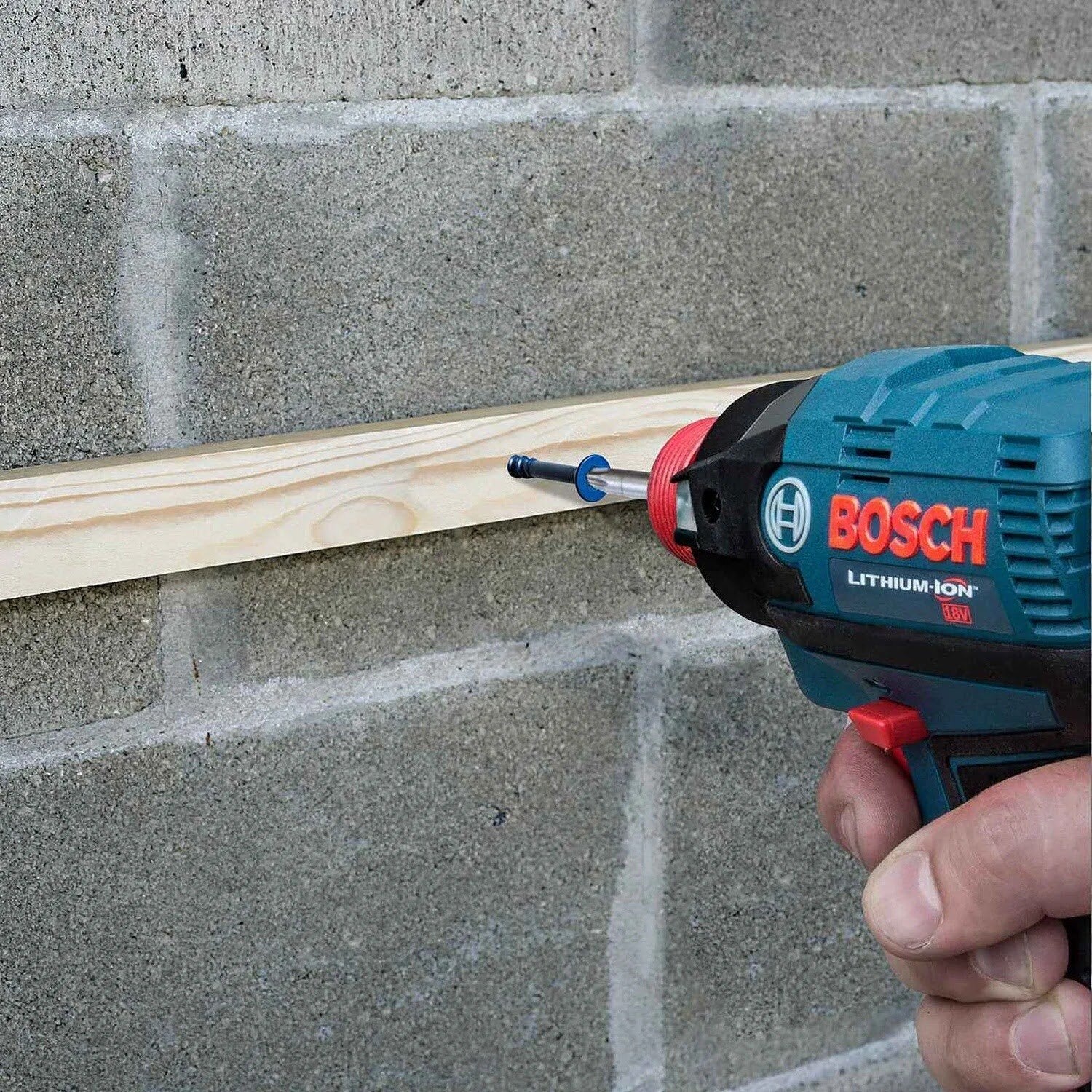

- Shelf mounting to concrete/CMU
- Handrails
Simpson Strong-Tie TNT25134TF Installation Overview
- Drill a hole using the specified diameter carbide drill bit
- Position fixture, insert screw, and tighten using drill and Titen Turbo screw installation tool
Simpson Strong-Tie TNT25134TF Specifications
| Material | Carbon Steel |
| Finish | Zinc Plated with Ceramic Coating |
| Size | 1/4 x 1 3/4 |
| Drill Bit Diameter | 16-Mar |
| Drive Type | T30 6-Lobe |
| Color | Standard Blue |
| Packaging Quantity | 100 |
NOTE: Steps must be taken to prevent inadvertent sustained loads above the listed allowable loads. Overtightening and bending moments can initiate cracks detrimental to the hardened screw’s performance.
