Simpson Anchors | SKU:
TNT25214HC75
Simpson Strong-Tie TNT25214HC75 Titen Turbo (1/4" x 2-1/4") Hex-Head Concrete and Masonry Screw, Blue (75 Pack)
$18.93
Unit price
/
Unavailable
Description
Description
Simpson TNT25214HC75 Description
The Simpson Strong-Tie Titen Turbo screw anchor is a heavy-duty fastener designed for concrete and masonry applications, featuring a patented torque reduction channel for smooth driving and superior holding power.
Simpson TNT25214HC75 Includes

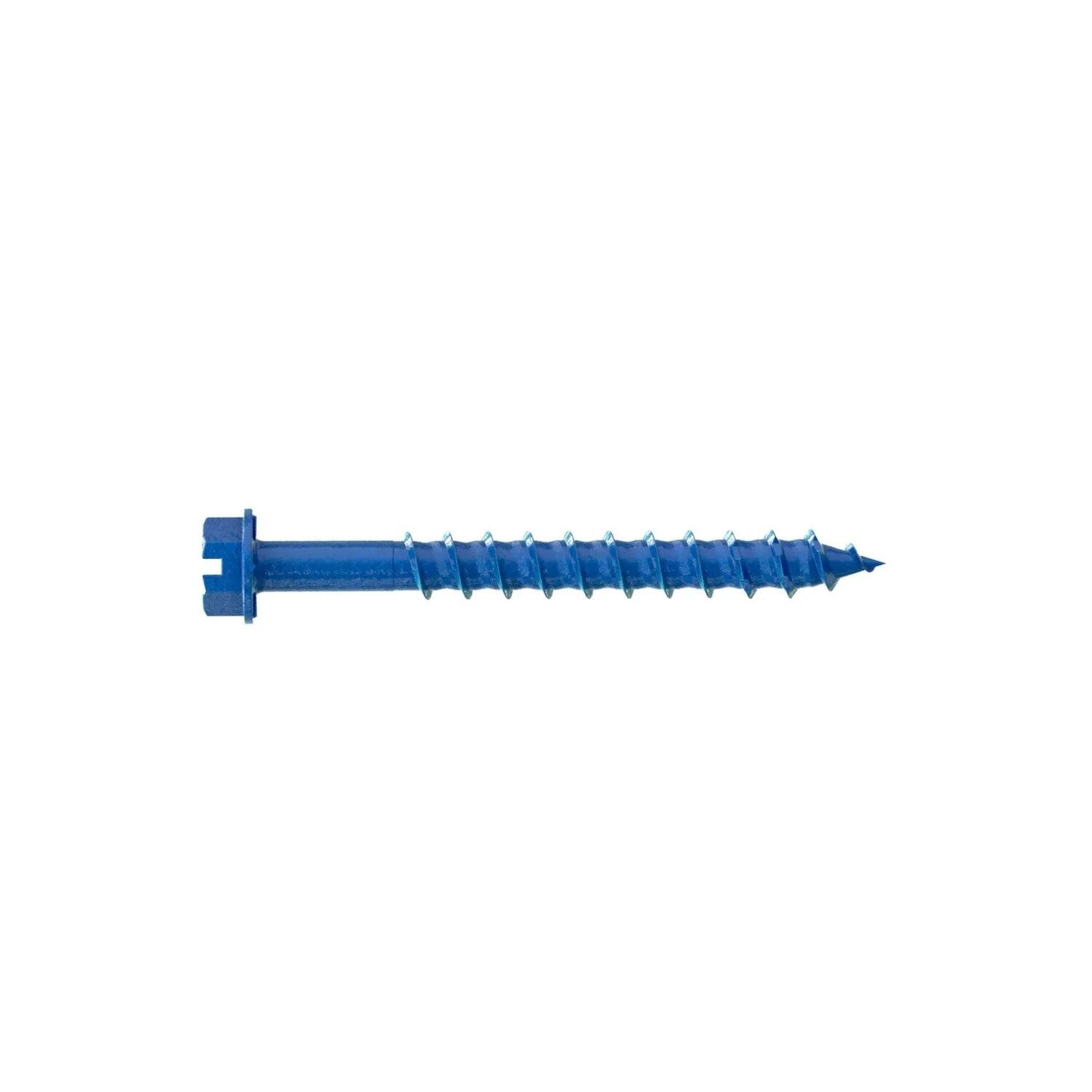

- (75) Hex-Head Concrete and Masonry Screw Anchor, Blue Zinc, 2-1/4 in. Length
Simpson TNT25214HC75 Features
- Patented Torque Reduction Channel for reduced binding and snapping
- Available in multiple coated versions including Blue Zinc
- Hex head design for secure fastening
- Superior tension load performance
- Designed for use with impact drivers or cordless drills
- Code listed for uncracked concrete and masonry applications
Simpson TNT25214HC75 Applications

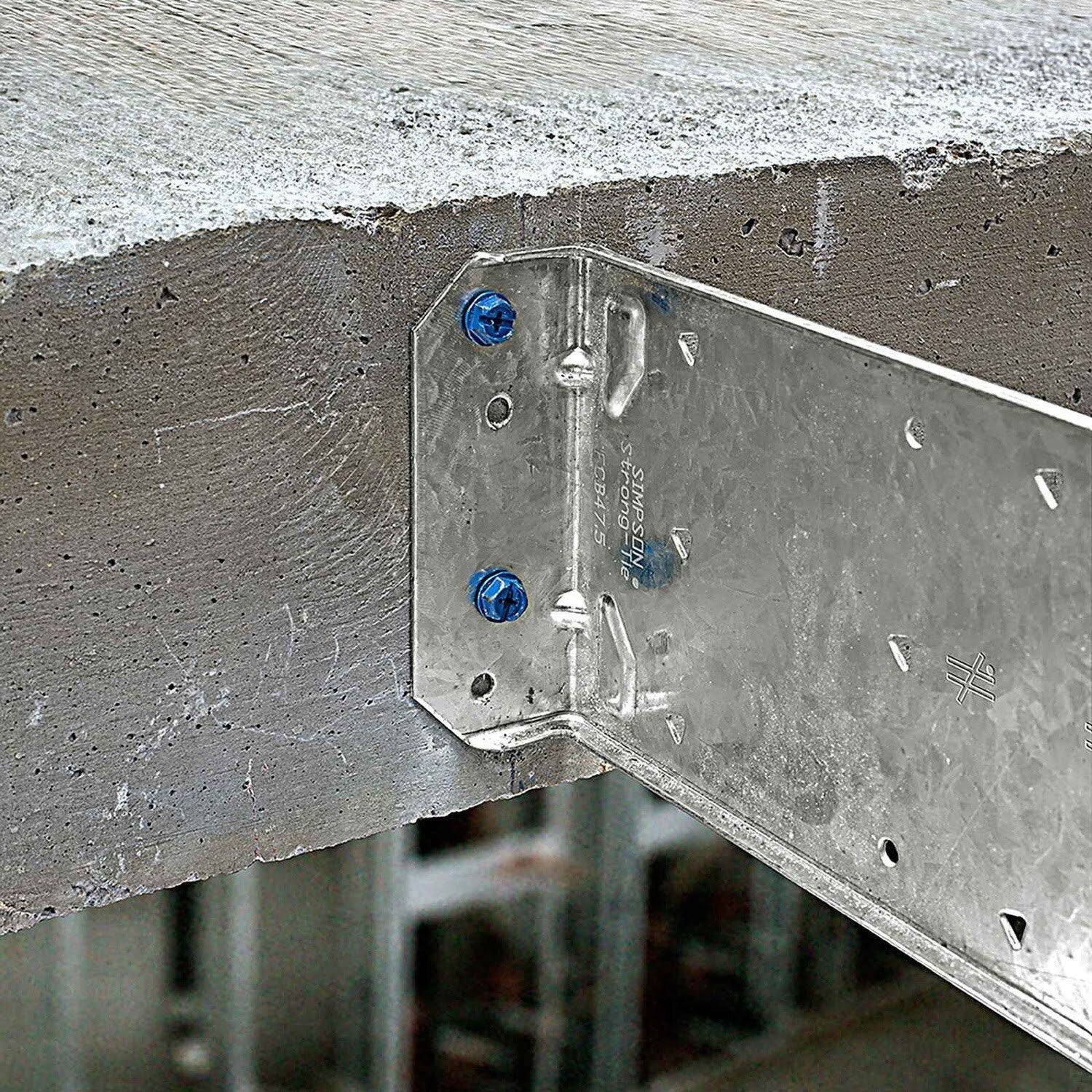

- Wood-to-concrete anchoring
- Wood-to-wood anchoring

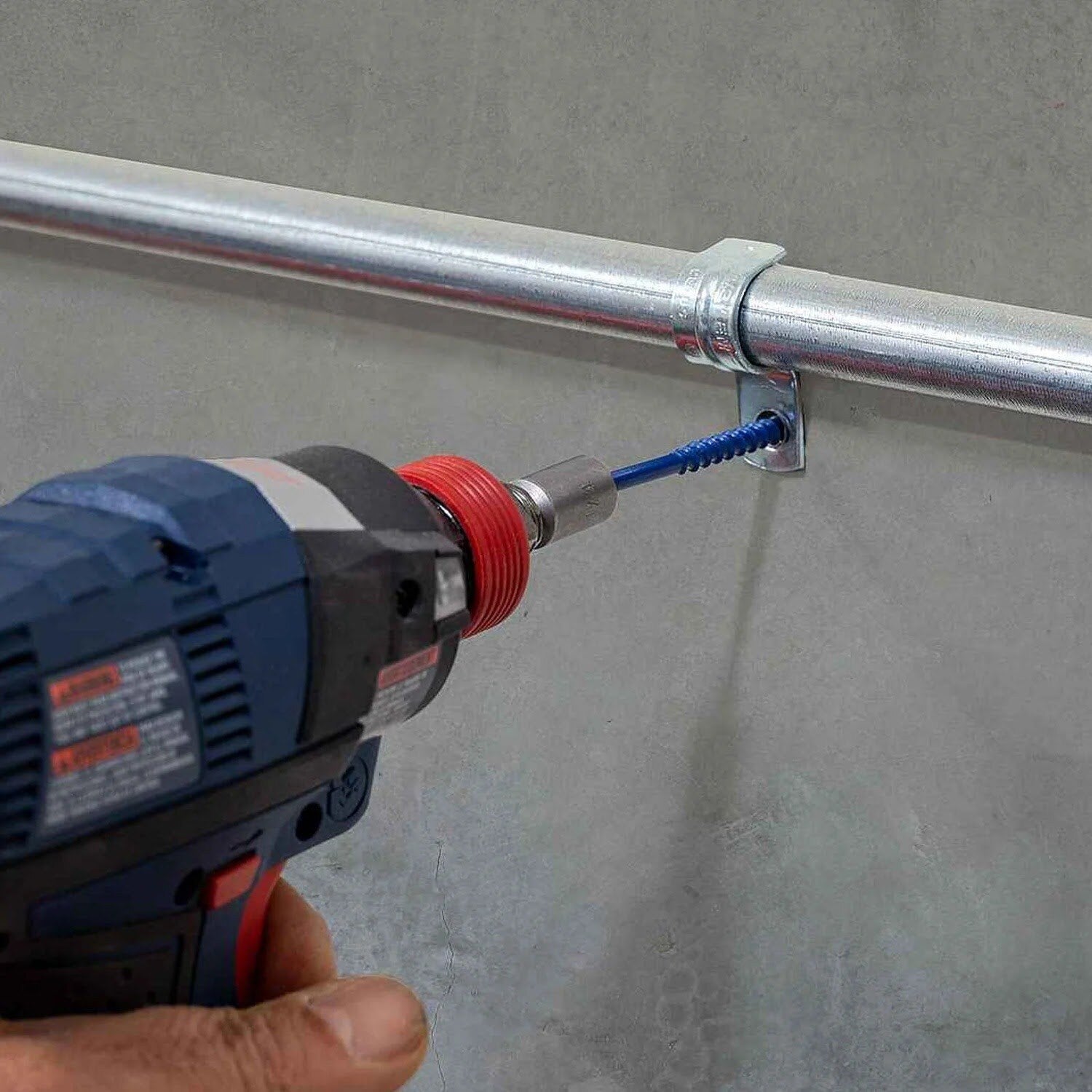

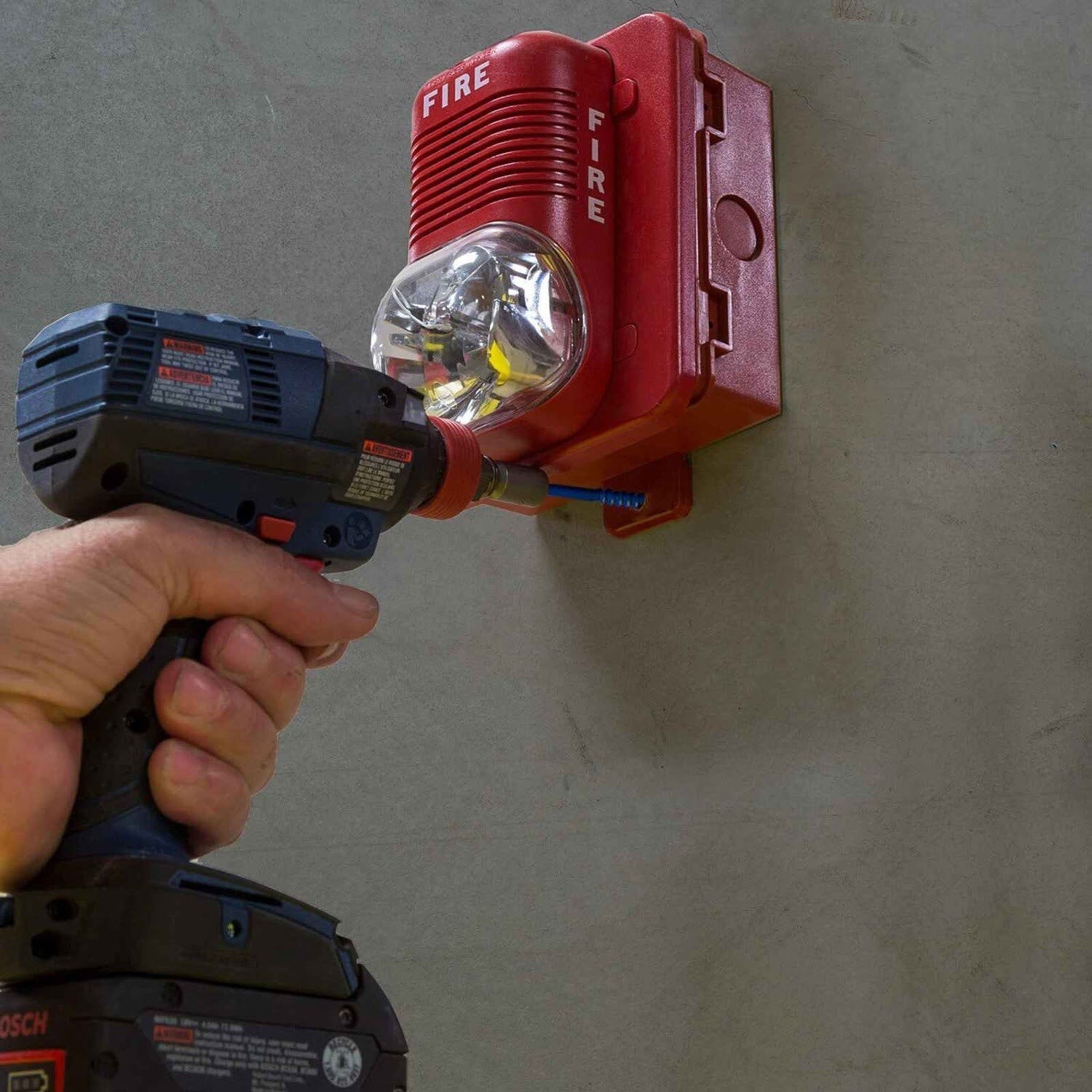

- Electrical boxes and conduit installation
- Switch boxes and light fixtures mounting
- Window and threshold fastening
- Basement furring strips installation

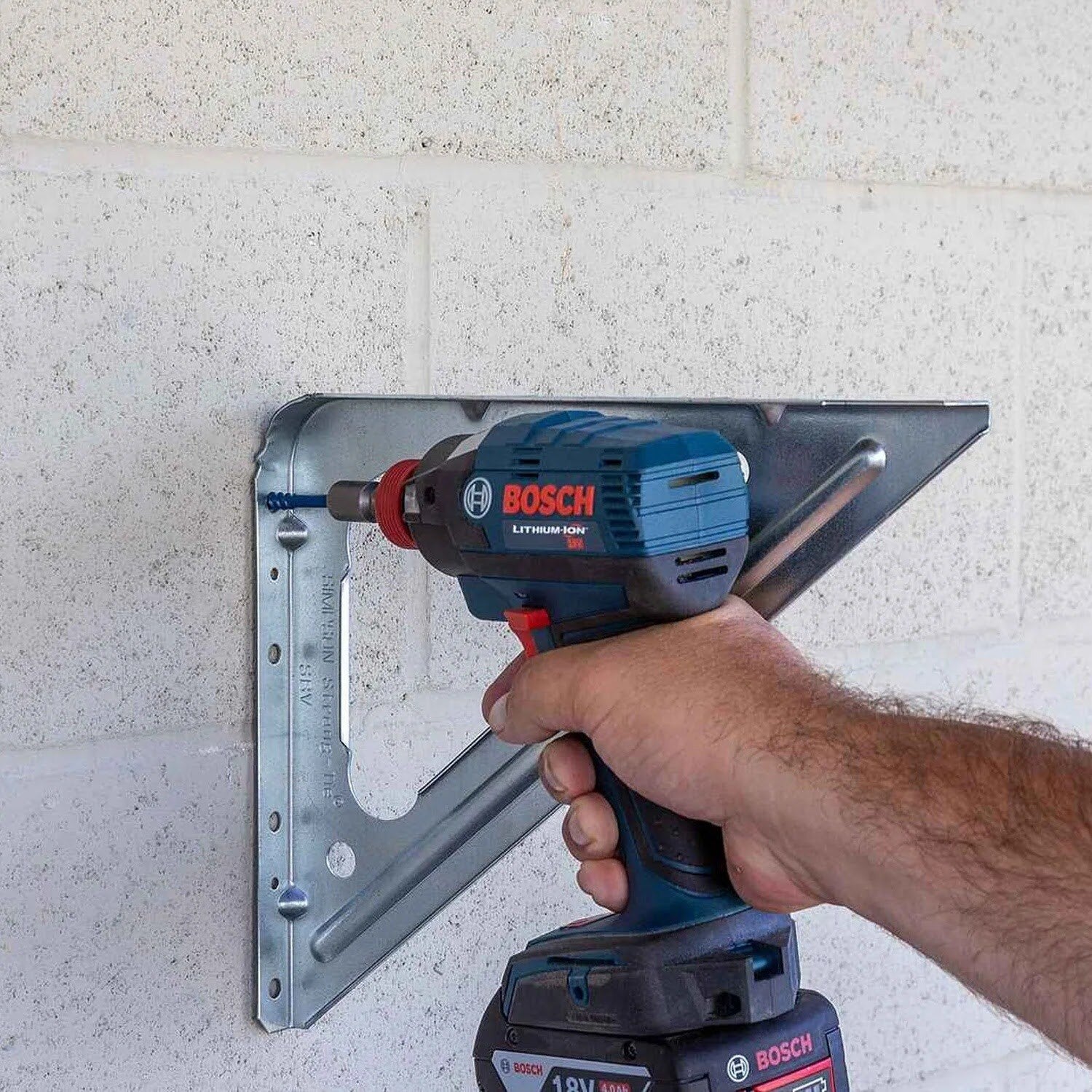

- Shelf mounting to concrete/CMU

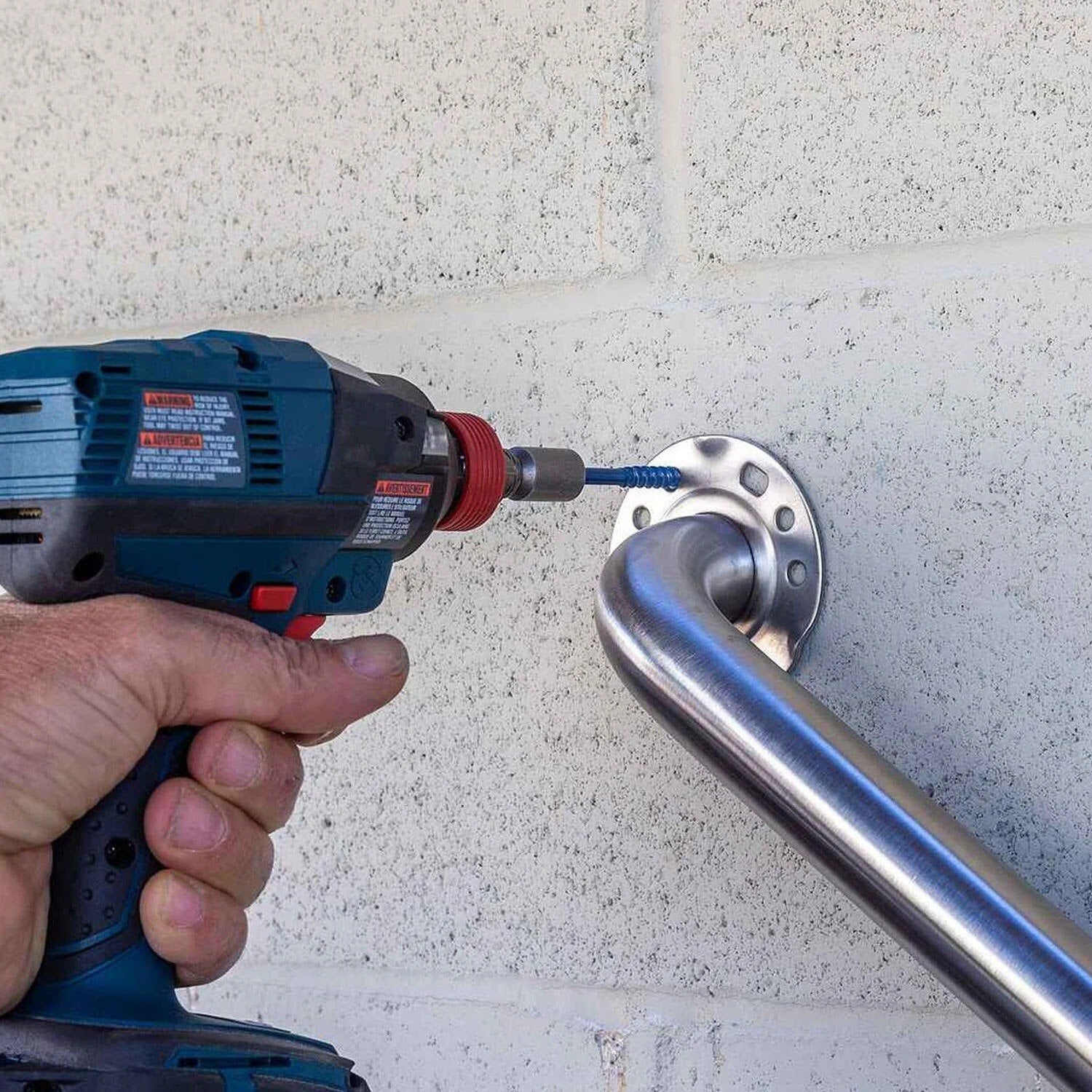

- Handrails installation
Simpson TNT25214HC75 Installation Overview
- Drill a hole in the base material using the specified diameter carbide drill bit.
- Position the fixture and insert the screw.
- Tighten using a drill and the Titen Turbo screw installation tool fitted with a hex socket.
Simpson TNT25214HC75 Specifications
| Diameter | 1/4" |
| Finish | Blue Zinc |
| Length | 2-1/4" |
| Material | Carbon Steel |
| Drill bit size | 3/16" |
| Drive type | 5/16" Hex |
| Head type | Hex Head |
| Quantity | 75 |
NOTE: Ensure the correct fasteners are installed in the correct position to achieve published load values
