Simpson Anchors | SKU:
TNT25214TFC75
Simpson Strong-Tie TNT25214TFC75 Titen Turbo (1/4" x 2-1/4") T30 Flat-Head Concrete and Masonry Screw, Blue (75 Pack)
$18.93
Unit price
/
Unavailable
Description
Description

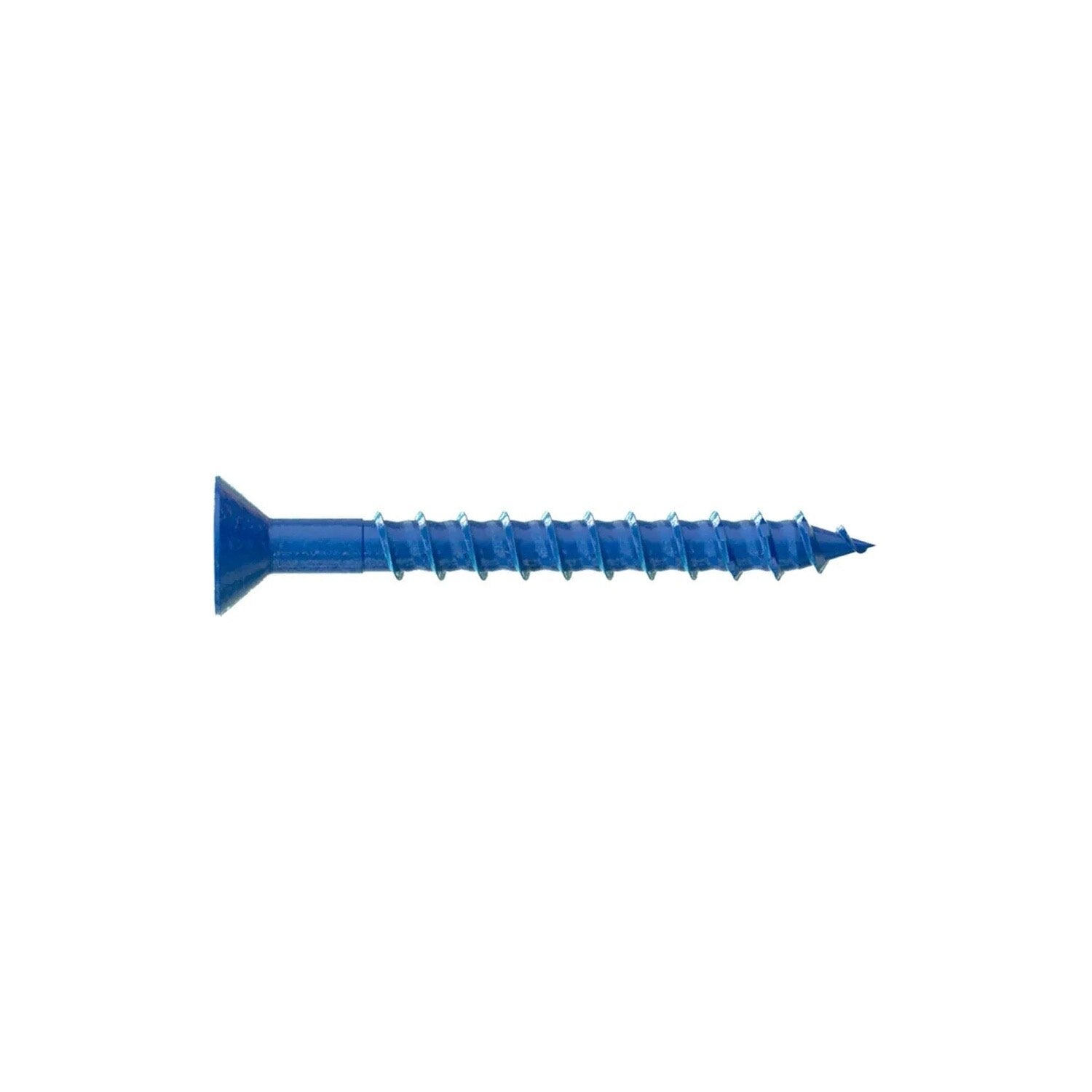

Simpson TNT25214TFC75 Description
The Simpson Strong-Tie Titen Turbo screw anchor is a heavy-duty fastener designed for quick and easy installation in concrete and masonry applications.
Simpson TNT25214TFC75 Includes
- (75) Flat Head Concrete and Masonry Screw
- (1) T30 Drive Bit
- (1) Standard ANSI Drill Bit
Simpson TNT25214TFC75 Features

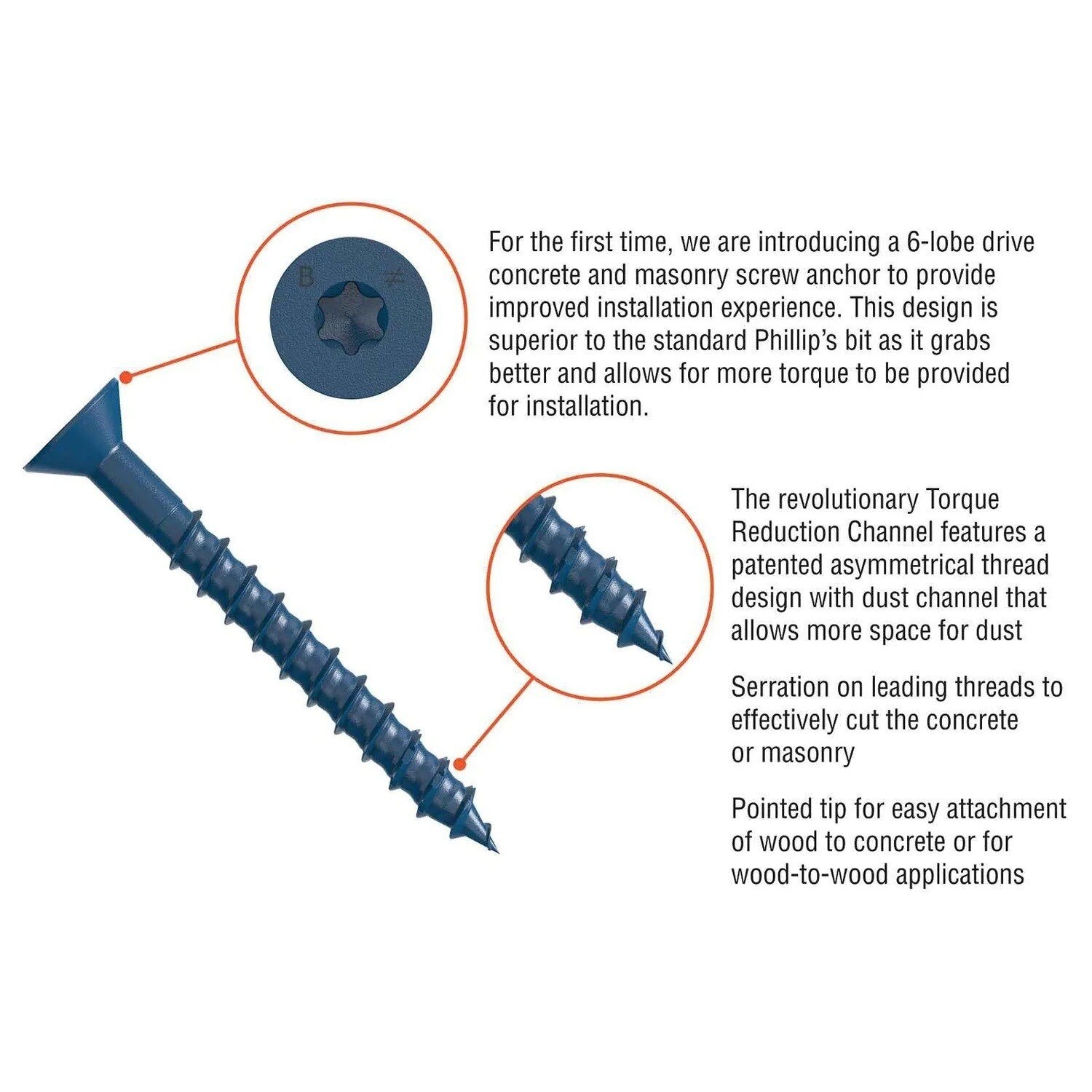

- Patented Torque Reduction Channel for reduced binding
- Available in multiple coated versions
- Flush profile with 6-lobe-drive countersunk flat head
- Superior tension load performance
- Designed for use with impact driver or cordless drill
- Code listed for uncracked concrete and masonry applications
Simpson TNT25214TFC75 Applications

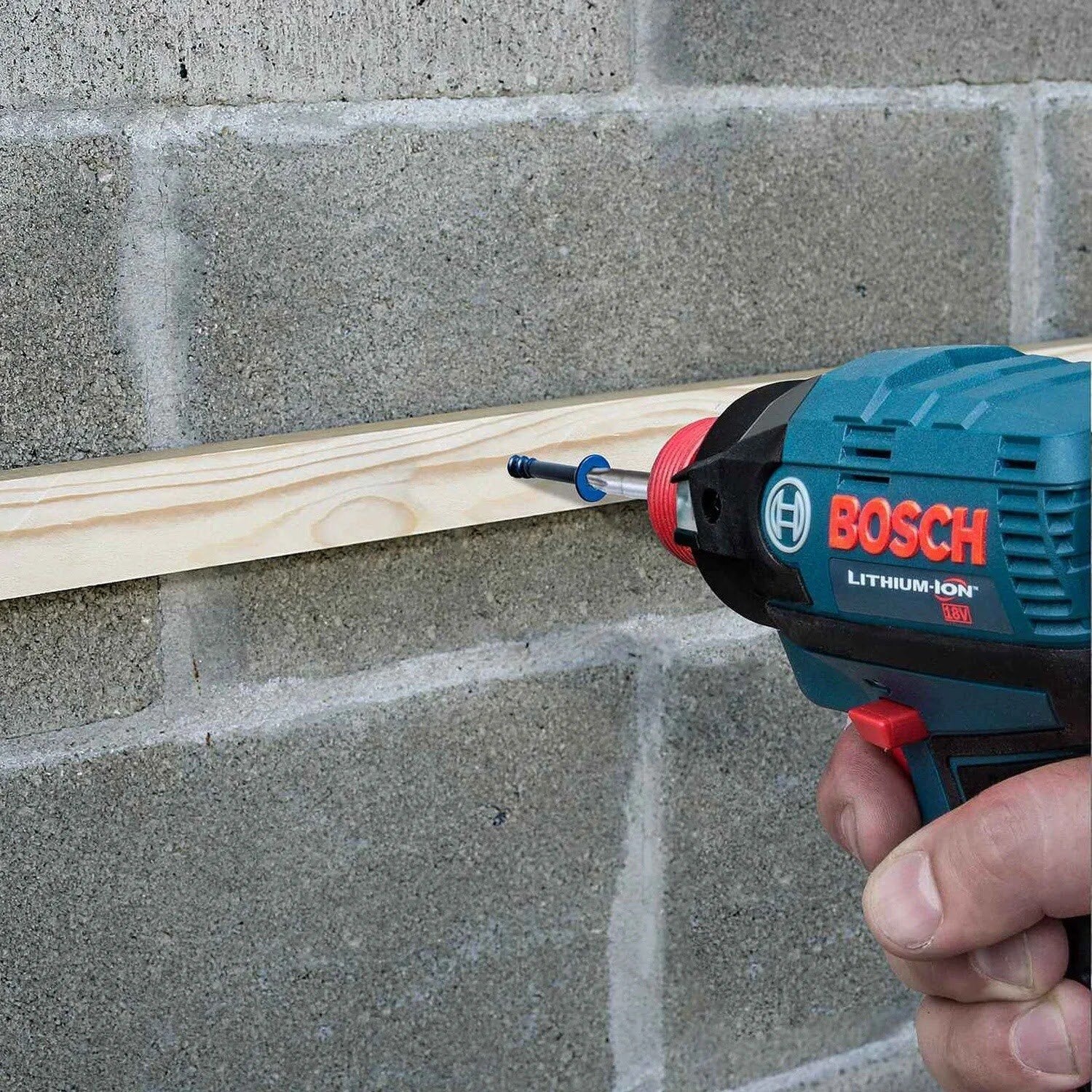

- Wood-to-concrete anchoring
- Wood-to-wood anchoring
- Electrical boxes and conduit
- Switch boxes and light fixtures

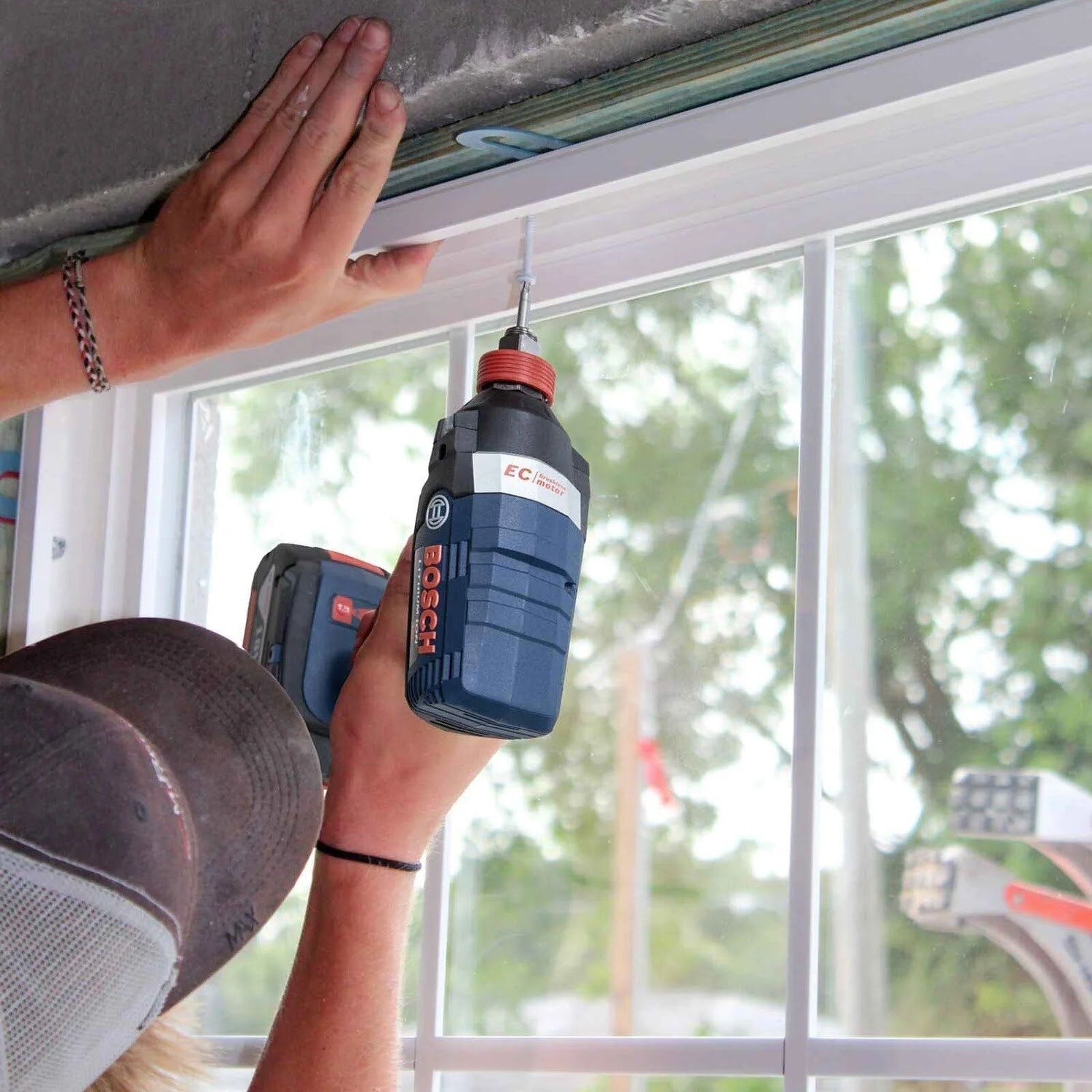

- Windows and thresholds
- Basement furring strips
- Shelf mounting to concrete/CMU
- Handrails

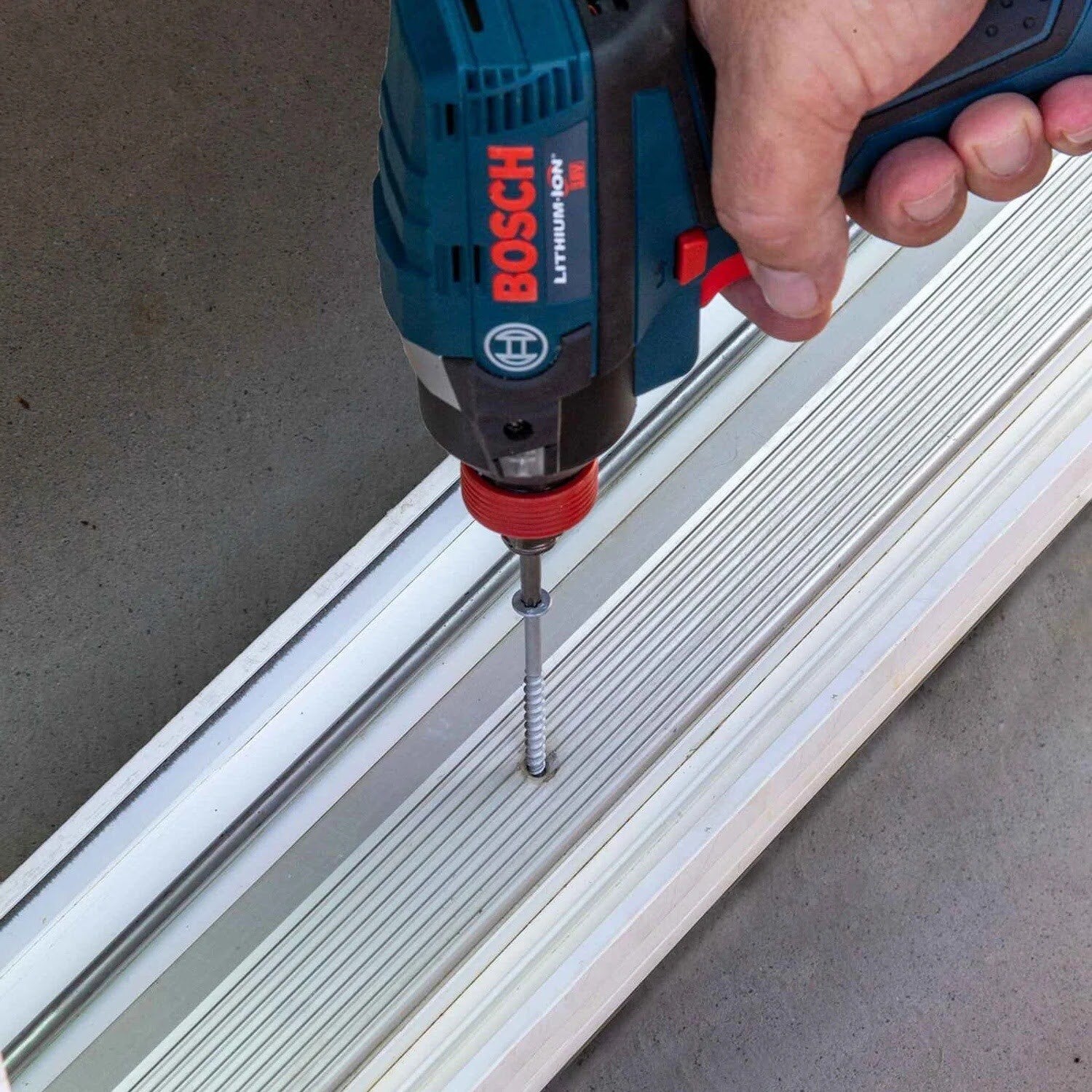

Simpson TNT25214TFC75 Installation Overview
- Drill a hole using the specified diameter carbide drill bit
- Position fixture and insert screw
- Tighten using drill and Titen Turbo screw installation tool
Simpson TNT25214TFC75 Specifications
| Diameter | 1/4" |
| Finish | Blue Zinc |
| Length | 2-1/4" |
| Material | Carbon Steel |
| Drill bit size | 3/16" |
| Drive type | T30 Star Drive |
| Head type | Flat Head |
| Quantity | 75 |
NOTE: Designed for installation with an impact driver or cordless drill. Installation using the Titen Turbo Installation Tool is recommended
