Simpson Anchors | SKU:
TNT25234TF

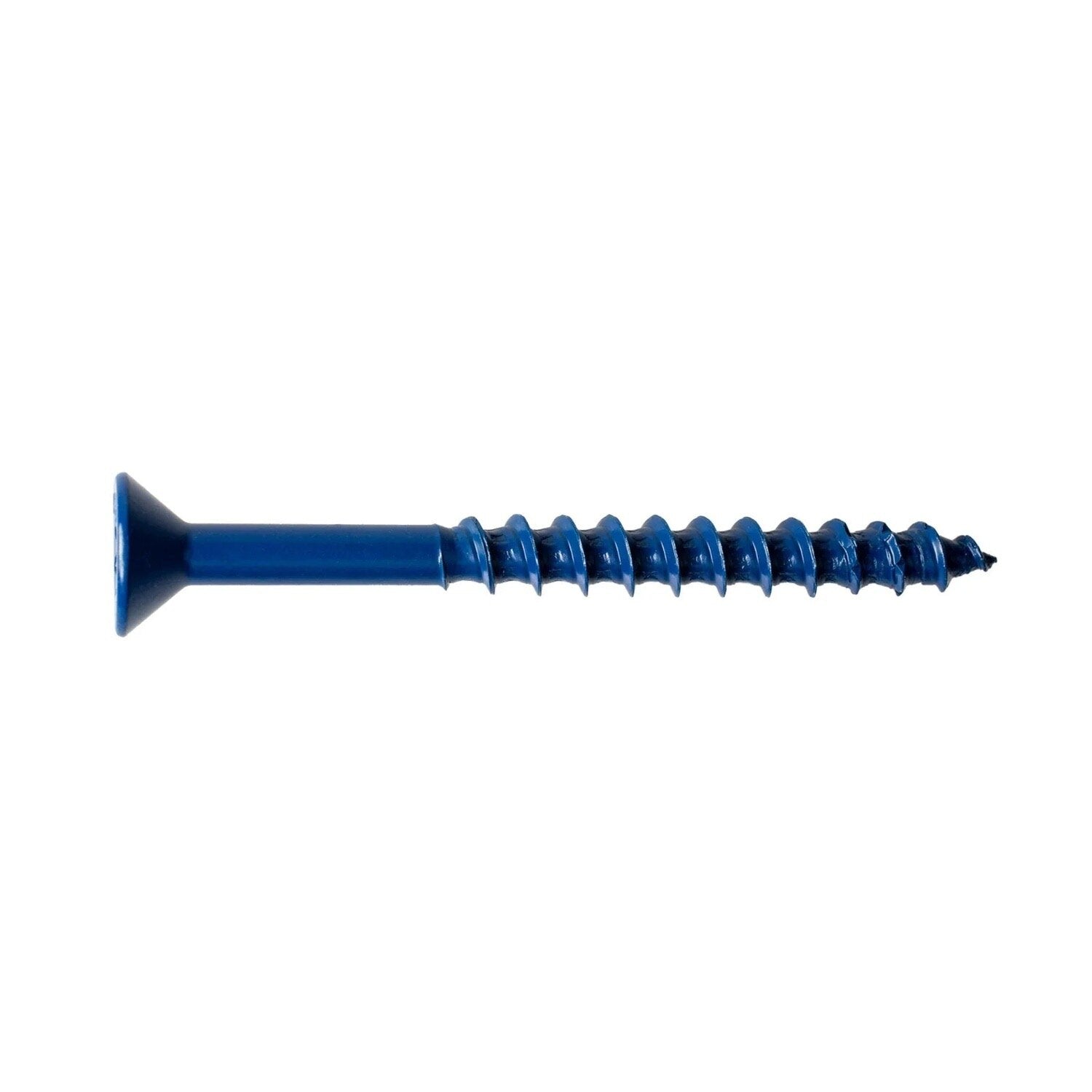

Simpson Strong-Tie TNT25234TF Titen Turbo (1/4" x 2-3/4") T30 Flat-Head Concrete and Masonry Screw, Blue (100 Pack)
$18.63
Unit price
/
Unavailable
Description
Description
Simpson TNT25234TF Description
The Simpson Strong-Tie Titen Turbo screw anchor is a heavy-duty fastener designed for quick and easy installation in concrete and masonry applications. Featuring a patented torque reduction channel, it ensures smooth driving and superior holding power.
Simpson TNT25234TF Includes
- (100) 1/4 x 2-3/4 Titen Turbo Concrete and Masonry Screw Anchor
- (1) T30 driver bit
Simpson TNT25234TF Features

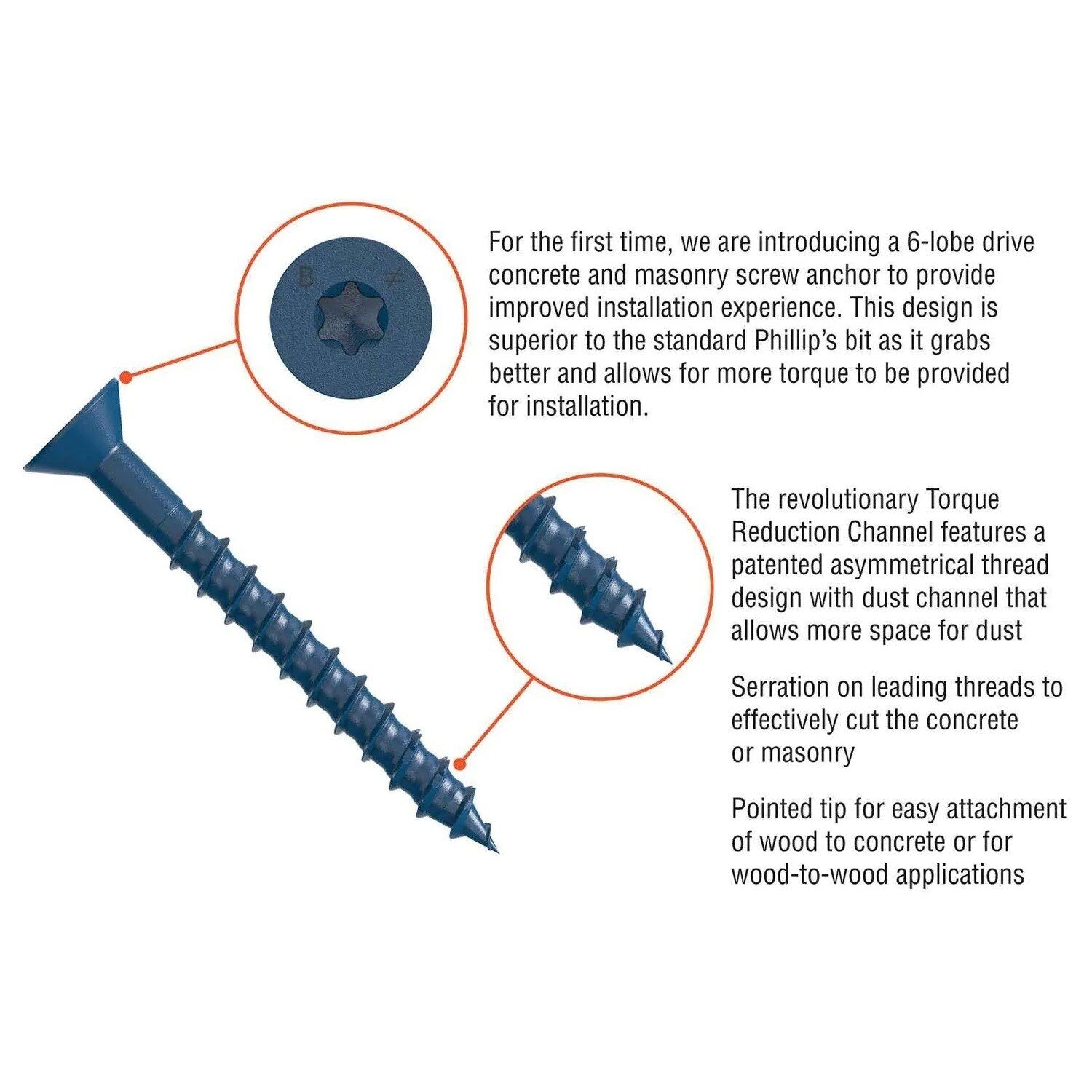

- Patented Torque Reduction Channel reduces binding and snapping.
- Available in multiple coated versions including Blue Zinc.
- Flat head design for flush profile.
- 6-lobe drive for positive bit engagement.
- Superior tension load performance.
- Matched-tolerance bit not required.
- Serrated screw point for easier starts.

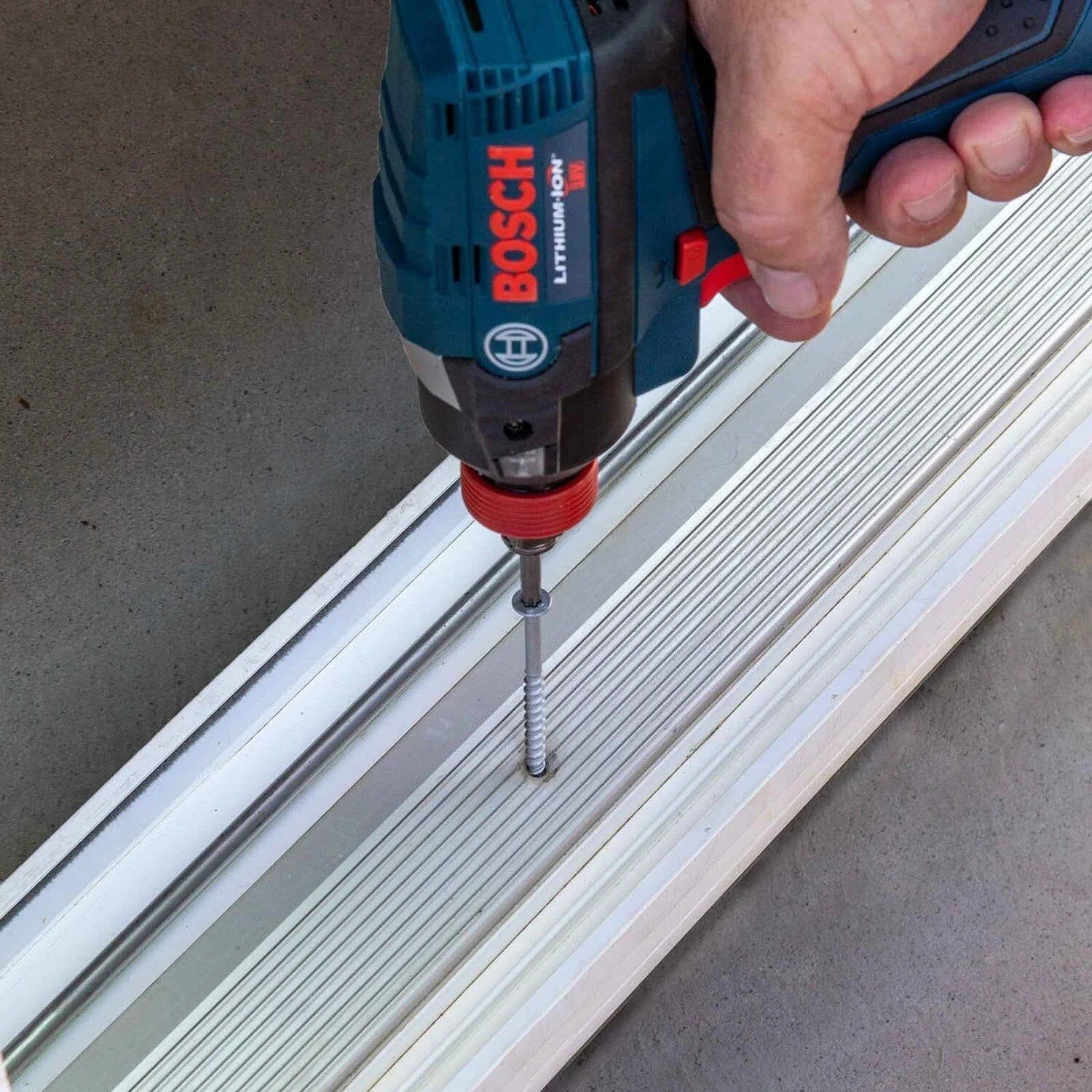

- Designed for installation with impact driver or cordless drill.
- Code listed for uncracked concrete and masonry applications.
Simpson TNT25234TF Applications
- Electrical boxes and conduit mounting.
- Switch boxes and light fixtures installation.

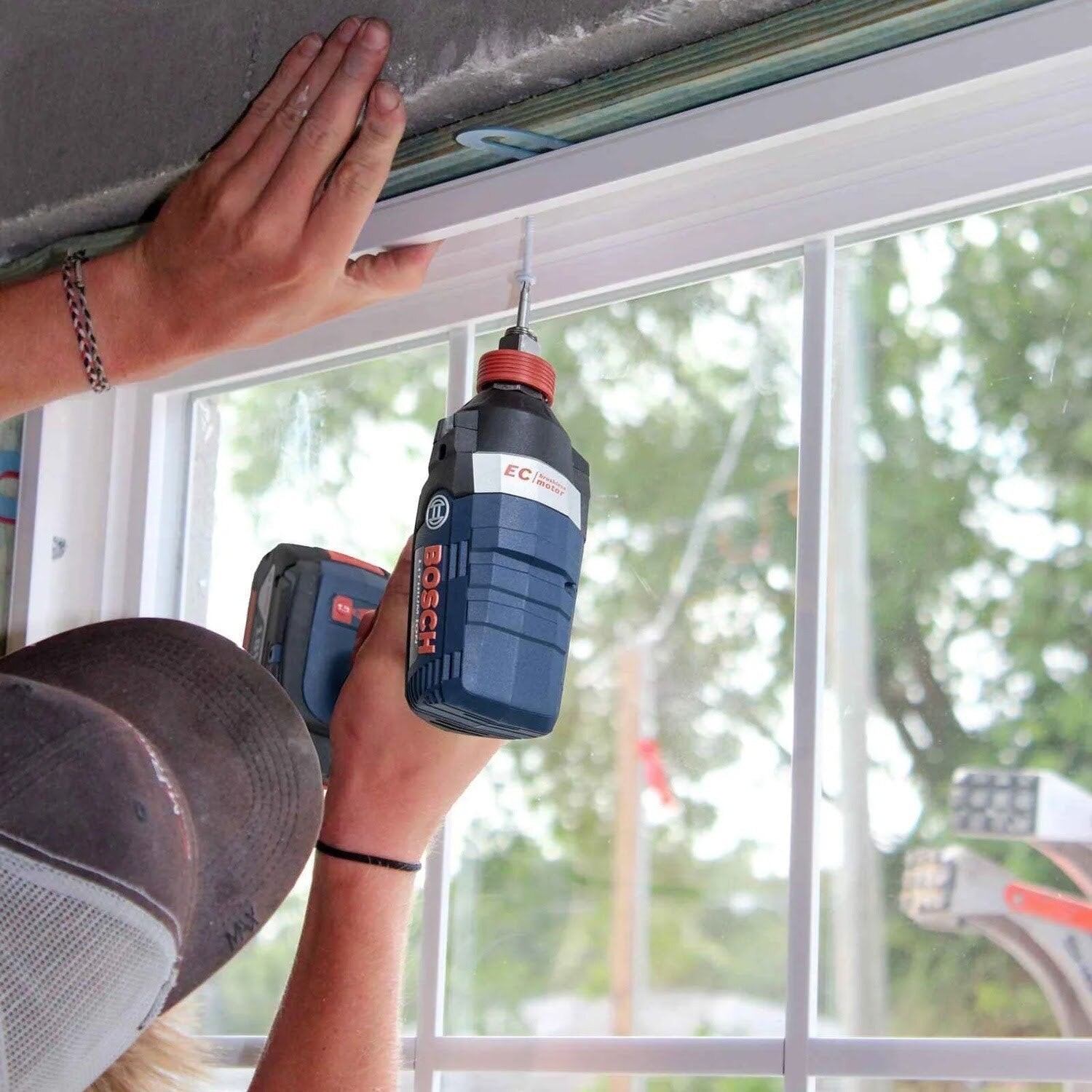

- Window and threshold anchoring.

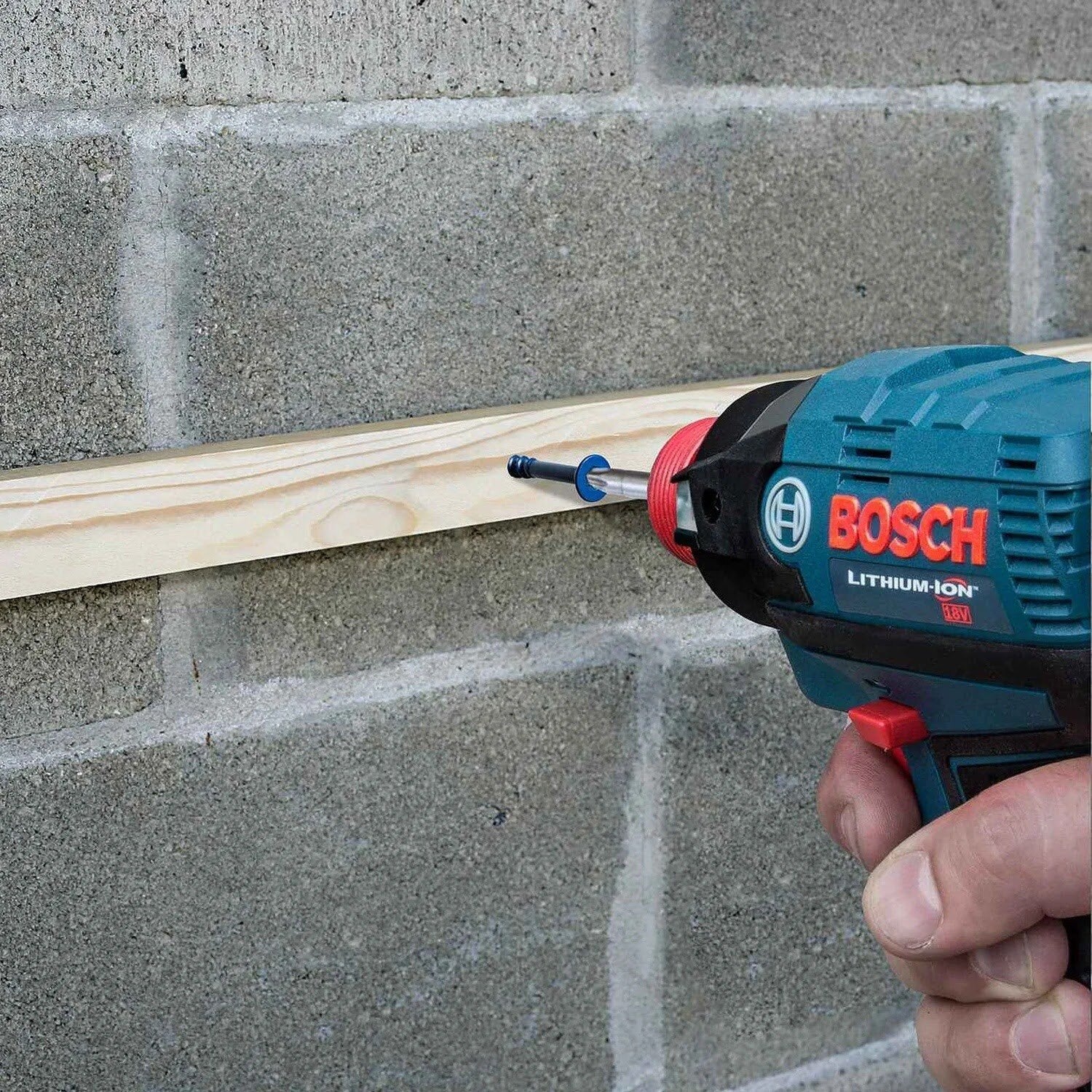

- Basement furring strips attachment.
- Shelf mounting to concrete/CMU.
- Handrails installation.
Simpson TNT25234TF Installation Overview
- Drill a hole using the specified diameter carbide drill bit.
- Position fixture, insert screw, and tighten using drill and Titen Turbo screw installation tool.
- Ensure proper embedment depth and alignment.
Simpson TNT25234TF Specifications
| Material | Carbon Steel |
| Finish | Blue Zinc |
| Diameter | 1/4" |
| Length | 2-3/4" |
| Drill Bit Size | 3/16" |
| Drive Type | T30 Star Drive |
| Head Type | Flat Head |
| Quantity | 100 |
NOTE: Designed for installation with an impact driver or cordless drill. Installation using the Titen Turbo Installation Tool is recommended.
