Simpson Anchors | SKU:
TNT25234TFC75

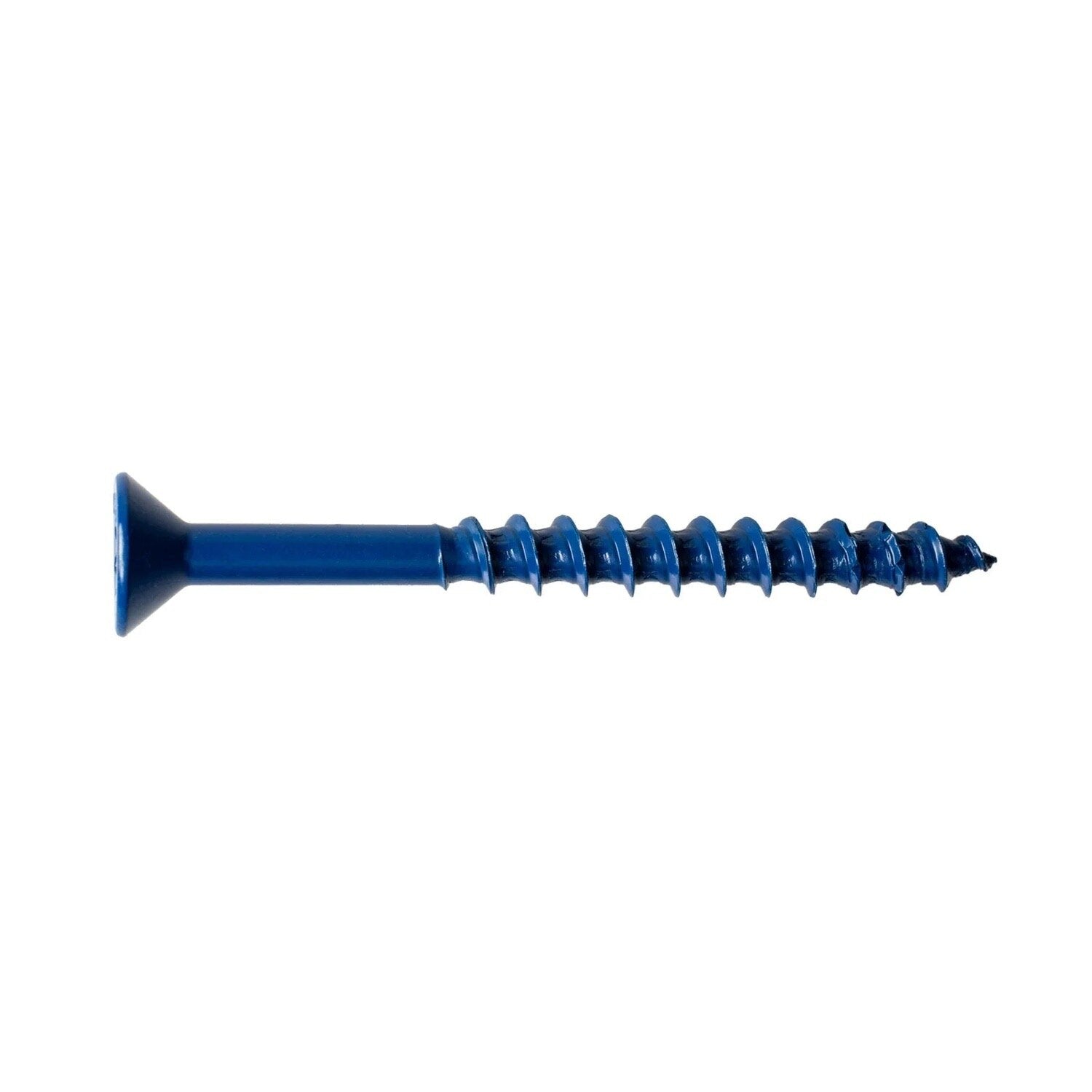

Simpson Strong-Tie TNT25234TFC75 Titen Turbo(1/4" x 2-3/4") T30 Flat-Head Concrete and Masonry Screw, Blue (75 Pack)
$23.18
Unit price
/
Unavailable
Description
Description
Simpson TNT25234TFC75 Description
The Simpson Strong-Tie Titen Turbo Screw Anchor is a heavy-duty fastener designed for quick and easy installation in concrete and masonry applications.
Simpson TNT25234TFC75 Includes
- (75) 1/4 in. x 2-3/4 in. Titen Turbo Screw Anchor
- (1) T30 Drive Bit
- (1) Standard ANSI Drill Bit
Simpson TNT25234TFC75 Features

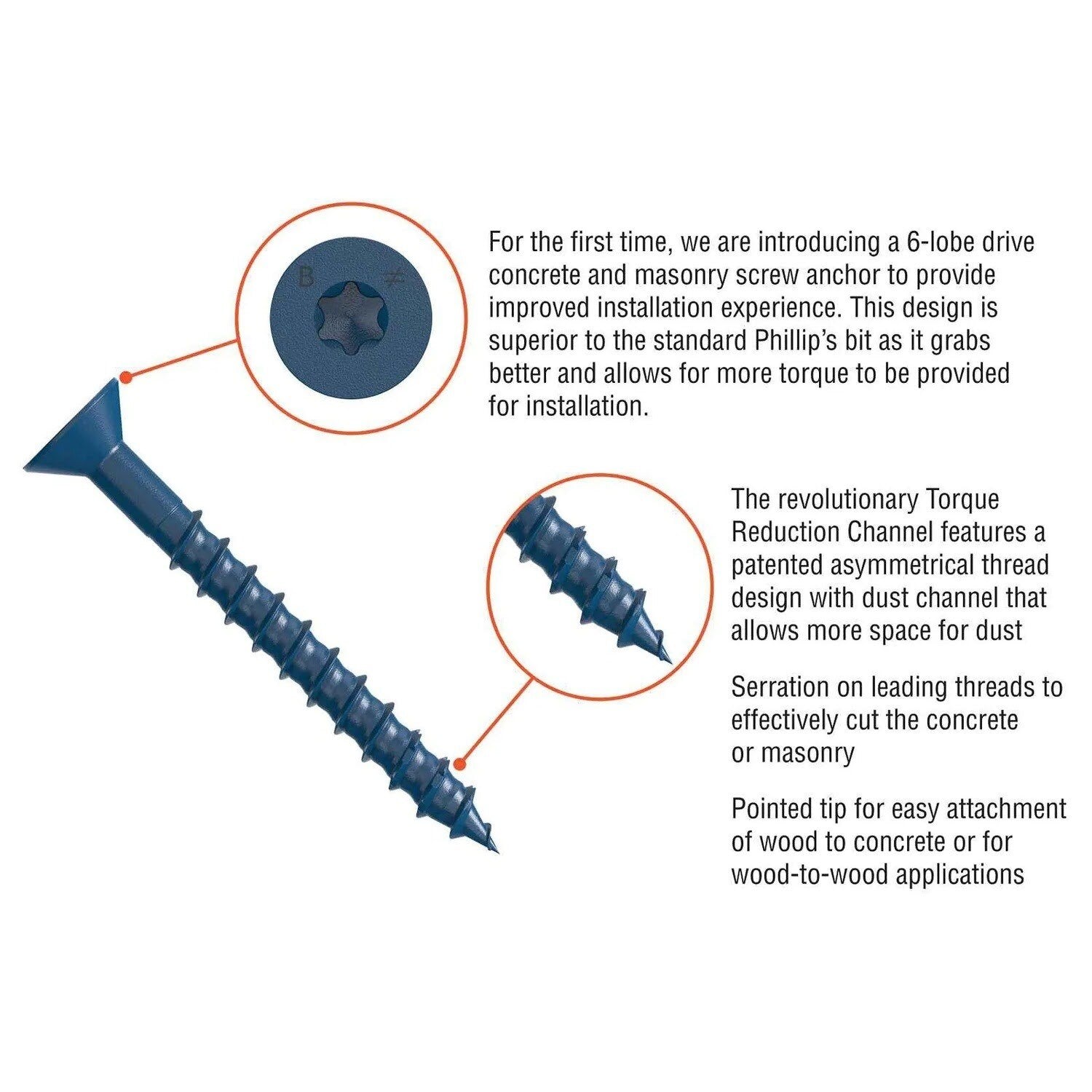

- Patented Torque Reduction Channel reduces binding and snapping.
- Available in multiple finishes including Blue Zinc.
- Superior tension load performance.
- Designed for use with impact drivers or cordless drills.
- Matched-tolerance bit not required; use a standard ANSI drill bit for installation.
Simpson TNT25234TFC75 Applications

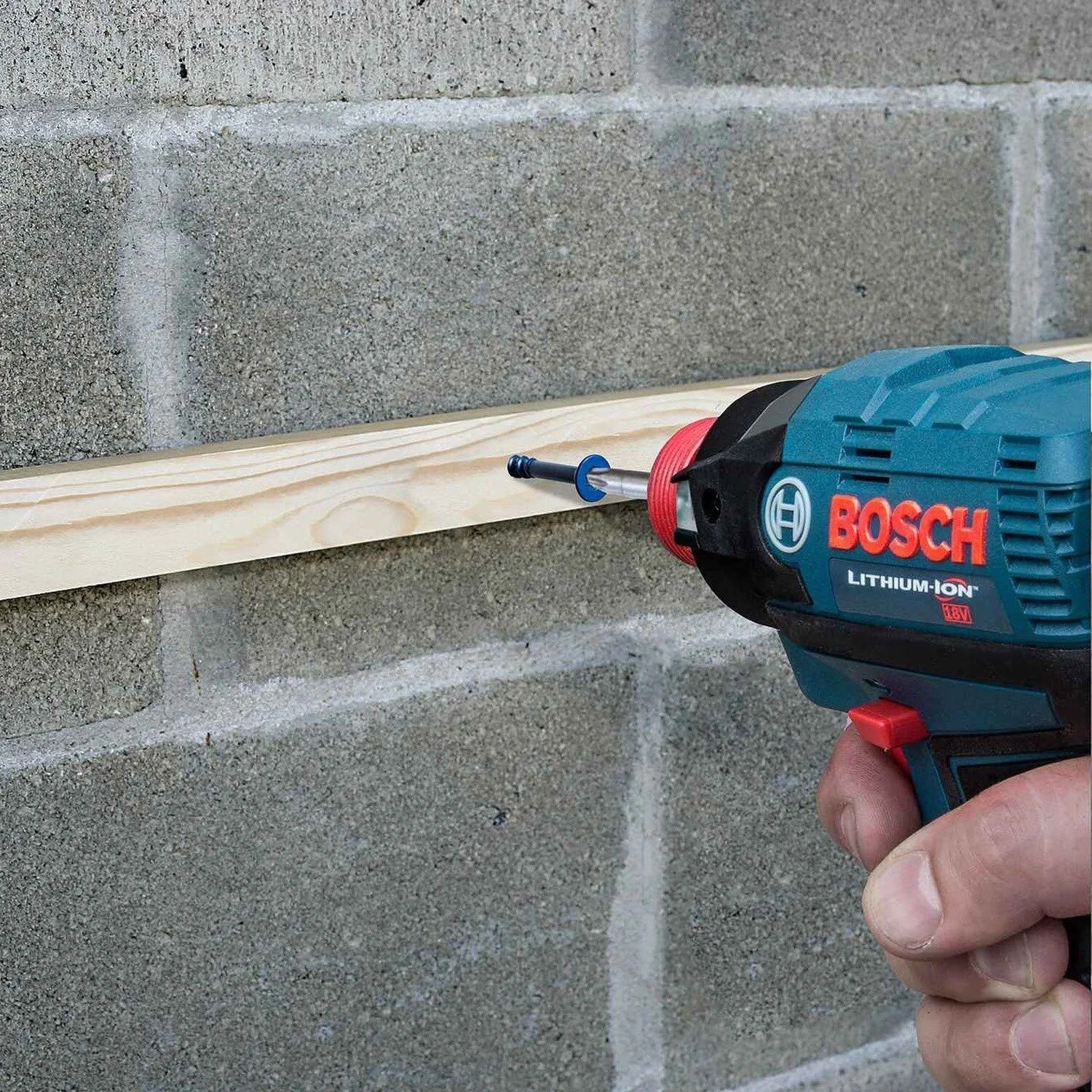

- Wood-to-concrete anchoring.
- Wood-to-wood anchoring.
- Electrical boxes and conduit installation.
- Shelf mounting to concrete/CMU.

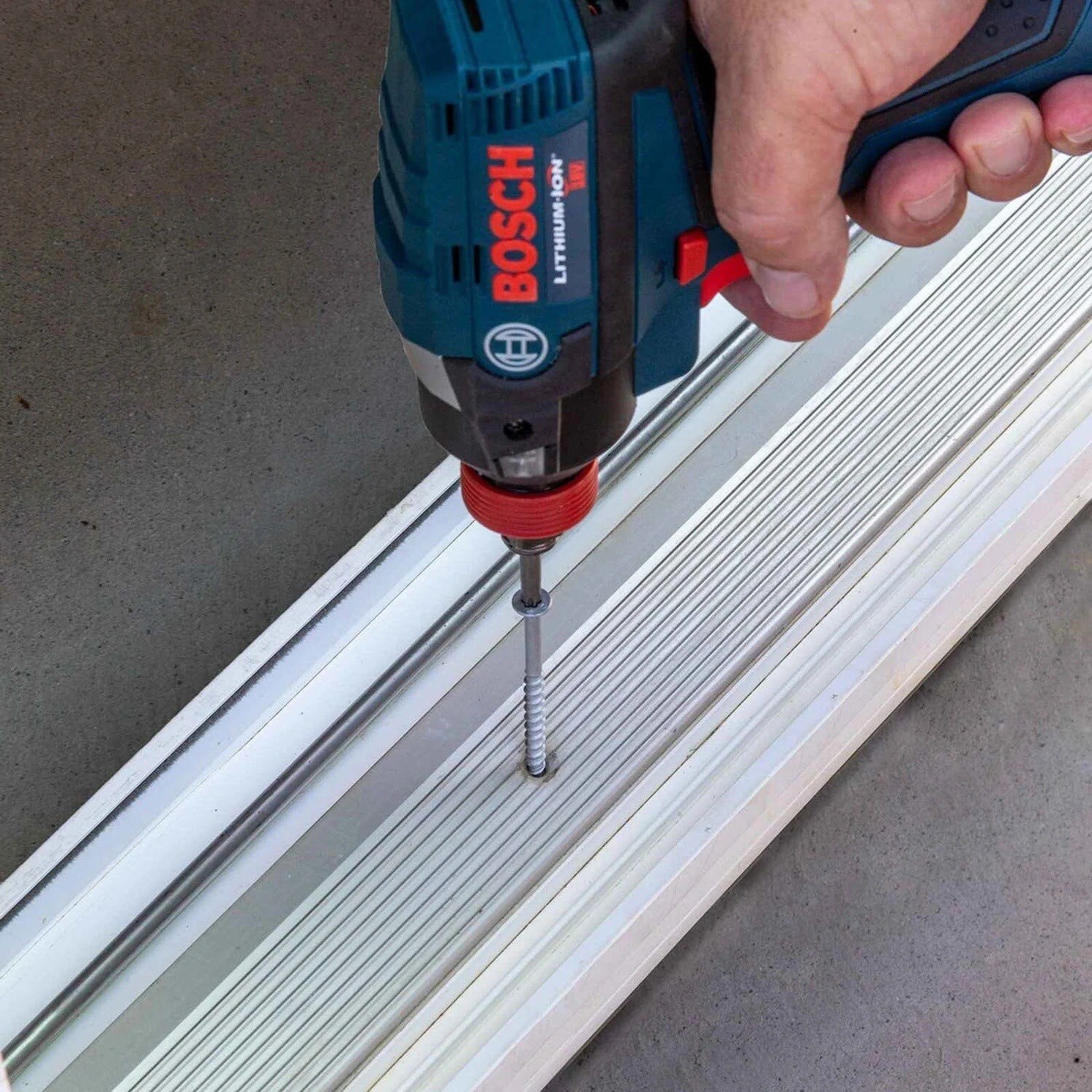

- Handrails and thresholds.
Simpson TNT25234TFC75 Installation Overview
- Drill a hole using the specified diameter carbide drill bit.
- Position the fixture and insert the screw.
- Tighten using a drill and the Titen Turbo screw installation tool.
Simpson TNT25234TFC75 Specifications
| Diameter | 1/4" |
| Finish | Blue Zinc |
| Length | 2-3/4" |
| Material | Carbon Steel |
| Drill bit size | 3/16" |
| Drive type | T30 Star Drive |
| Head type | Flat Head |
| Quantity | 75 |
NOTE: Ensure the correct fasteners are installed in the correct position to achieve published load values
