Simpson Anchors | SKU:
TNT25314H

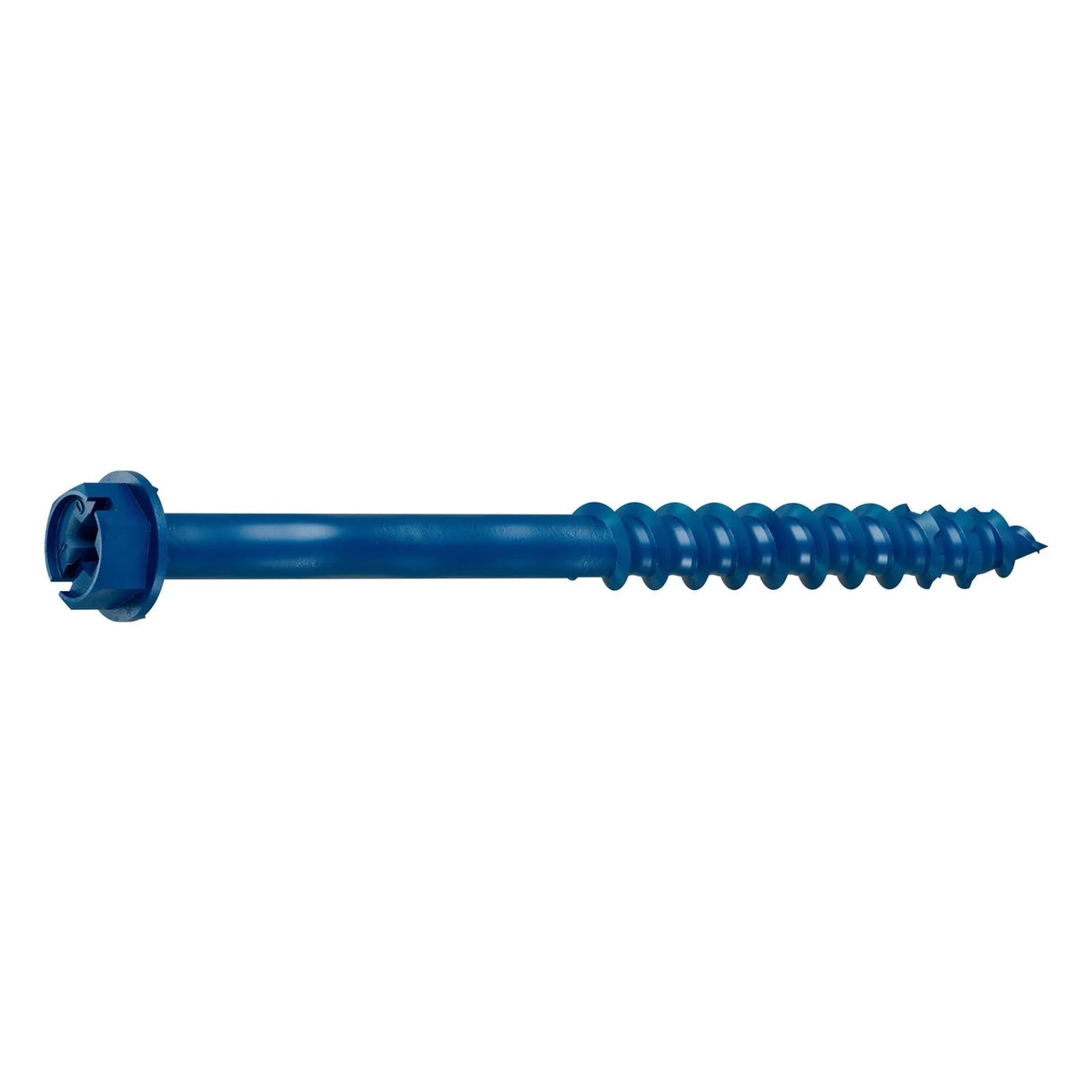

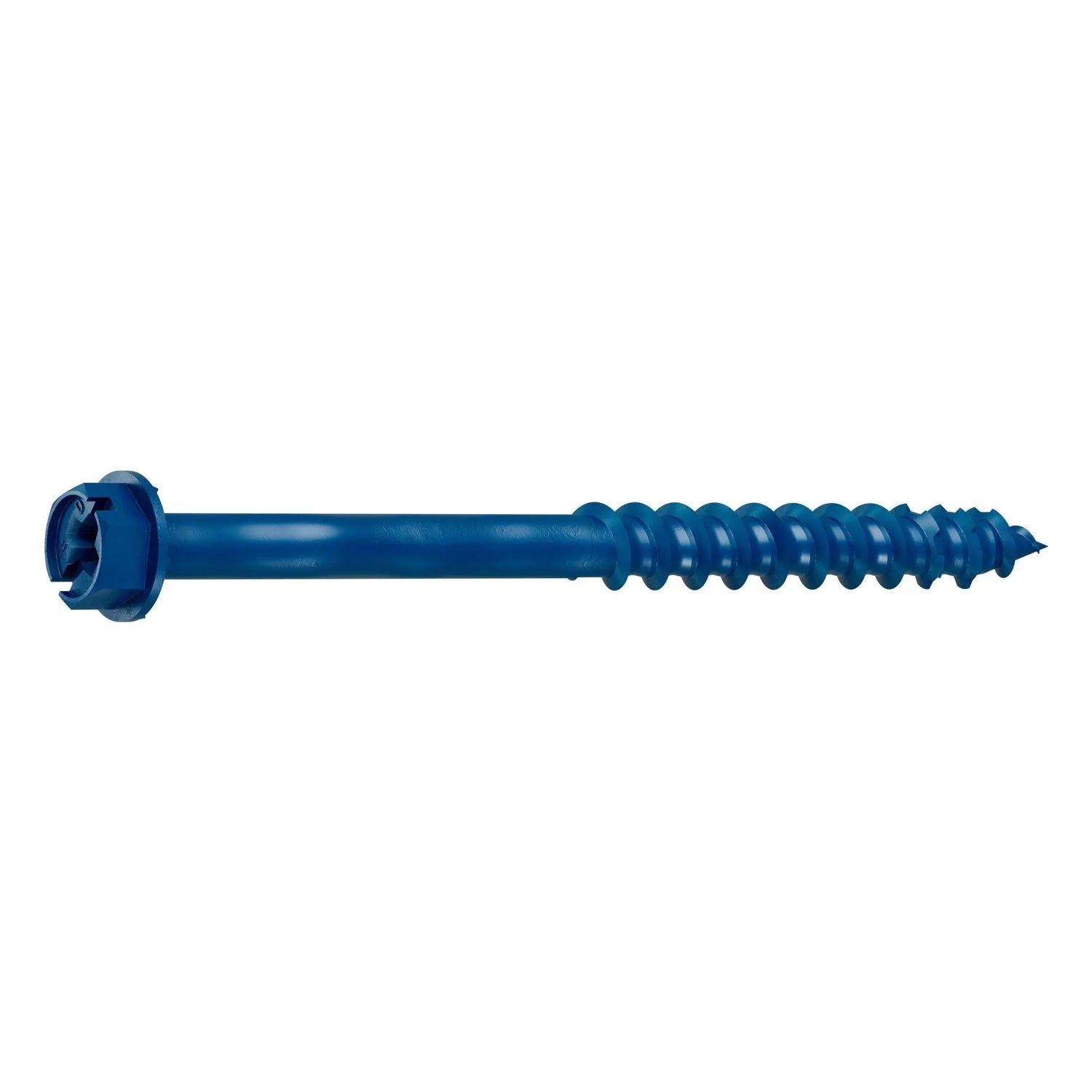

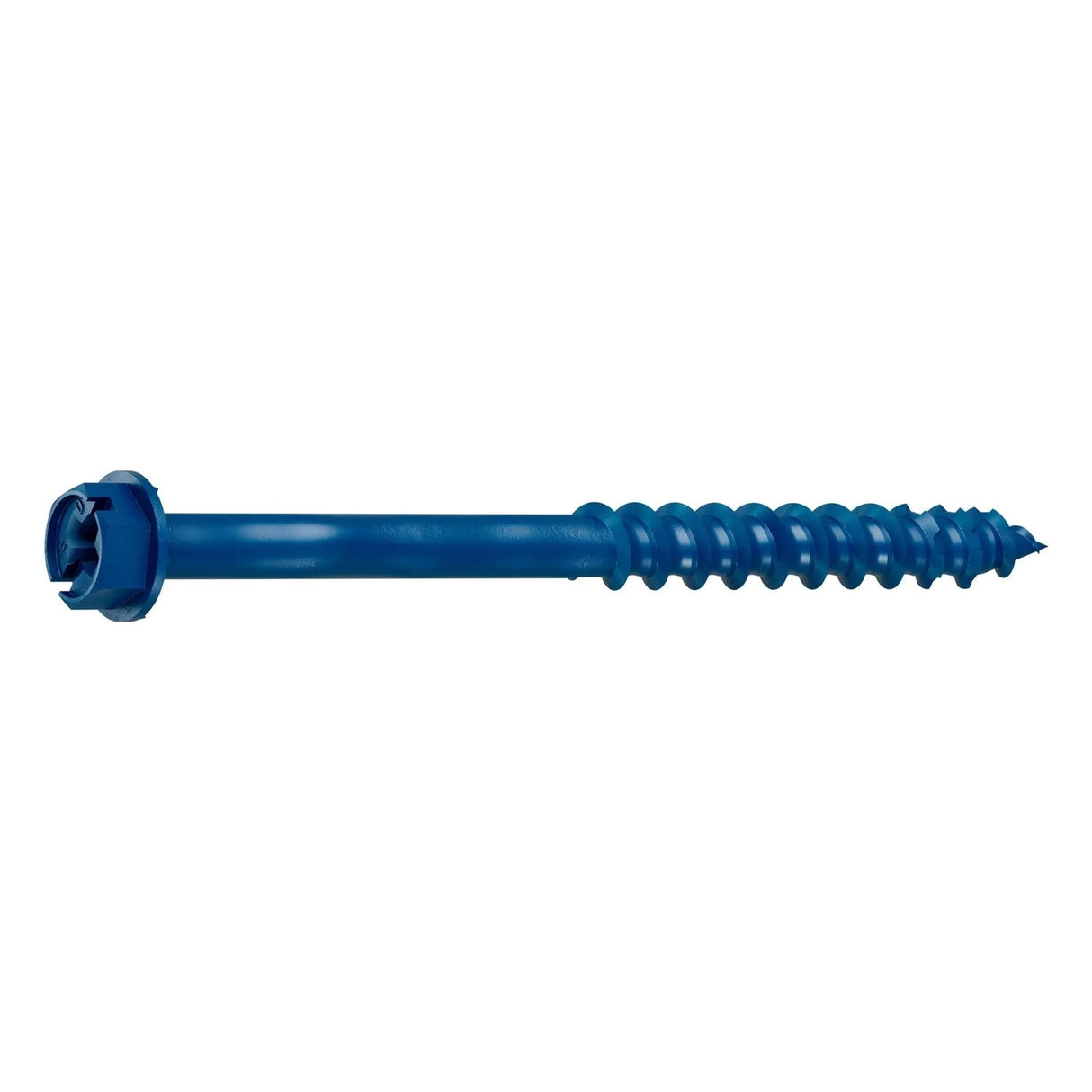

Simpson Strong-Tie TNT25314H Titen Turbo (1/4" x 3-1/4") Hex-Head Concrete and Masonry Screw, Blue (100 Pack)
$22.89
Unit price
/
Unavailable
Description
Description
Simpson TNT25314H Description
The Simpson Titen Turbo Screw Anchor is a heavy-duty fastener with innovative features for superior performance in concrete and masonry applications.
Simpson TNT25314H Includes
- (100) 1/4" x 3-1/4" Titen Turbo Screw Anchor
Simpson TNT25314H Features
- Patented Torque Reduction Channel reduces binding and snapping.
- Smooth driving with less torque.
- Superior holding power due to reverse thread design.
- Code listed for uncracked concrete and masonry applications.
- Designed for use in dry interior environments.
Simpson TNT25314H Applications

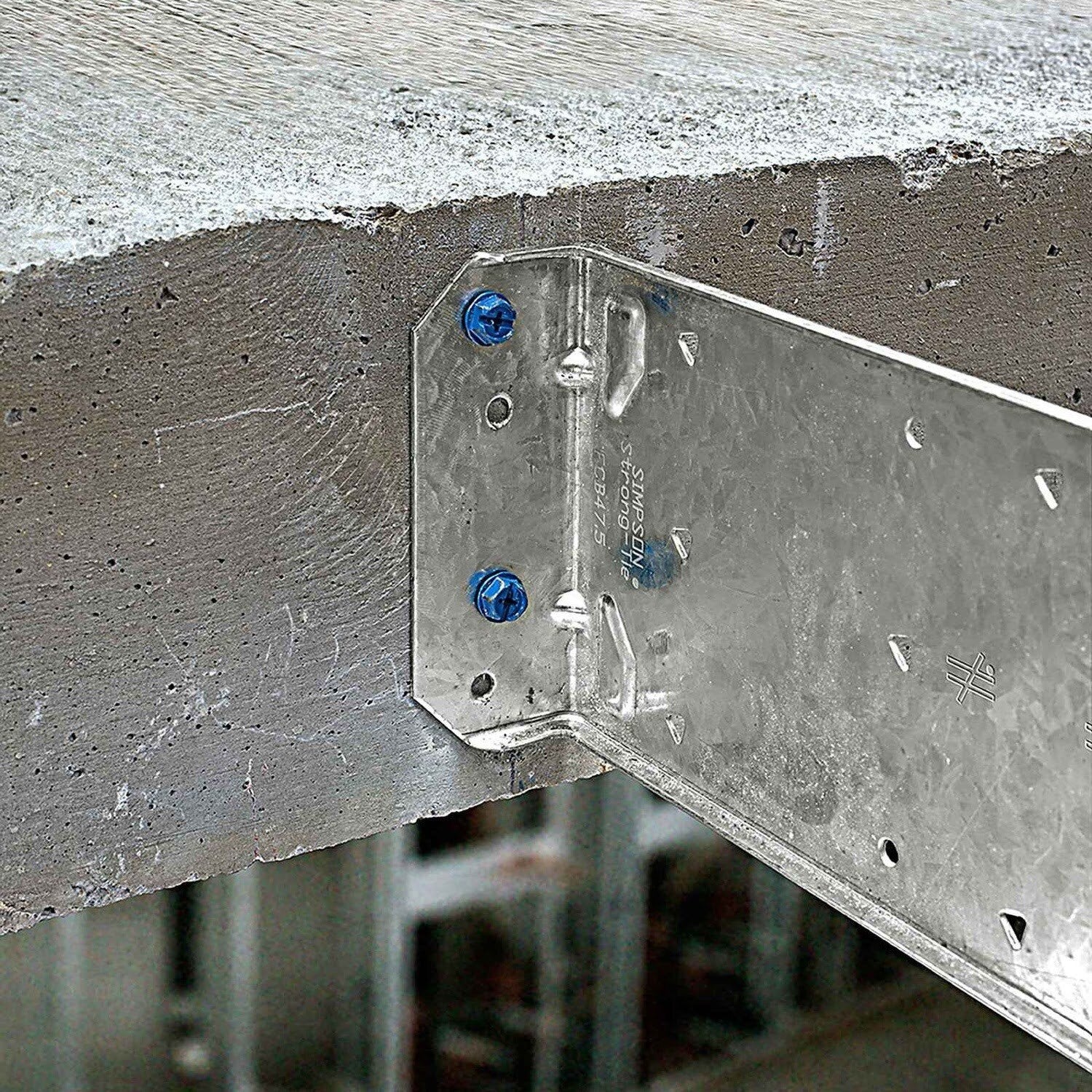

- Wood-to-concrete anchoring.
- Wood-to-wood anchoring.

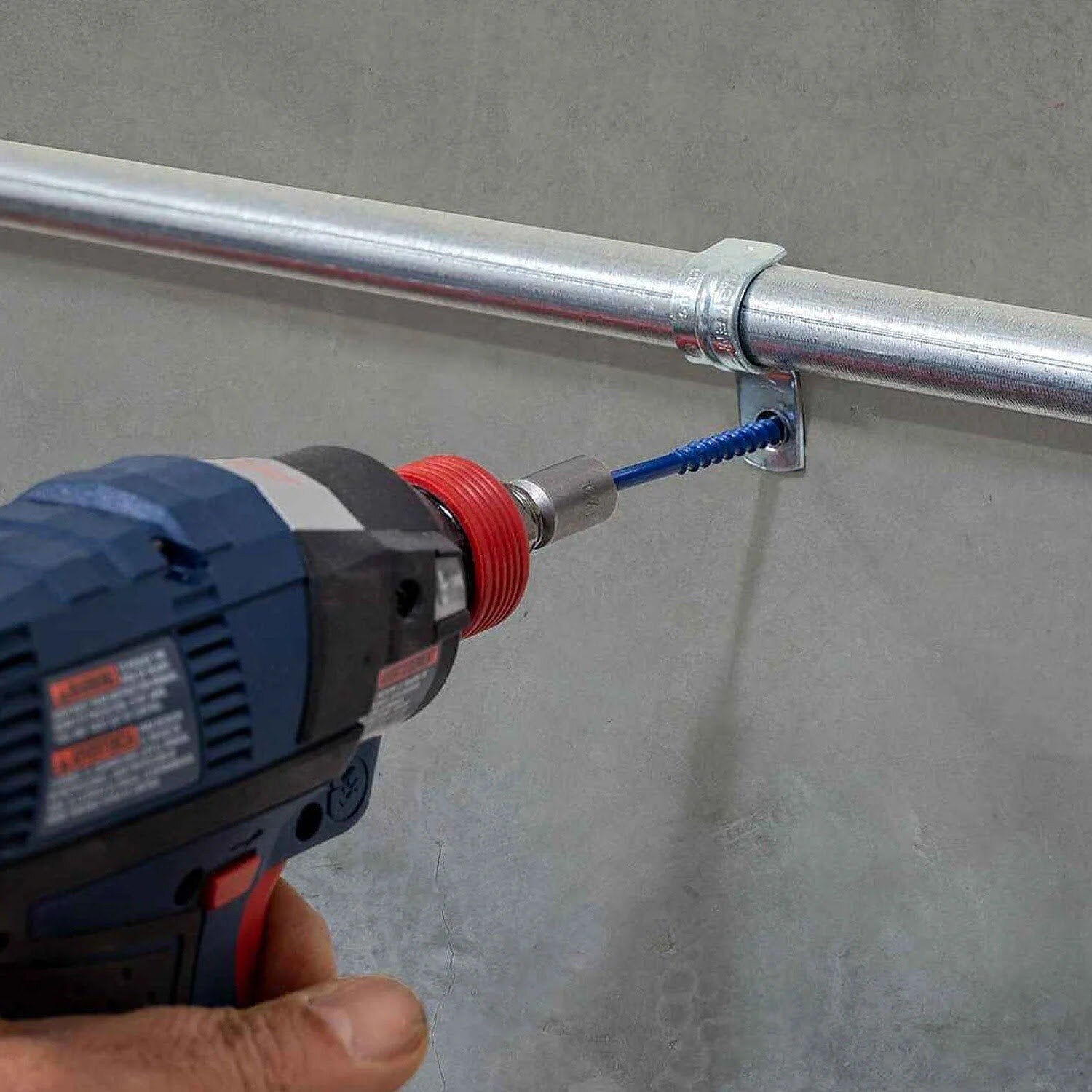

- Electrical boxes and conduit.

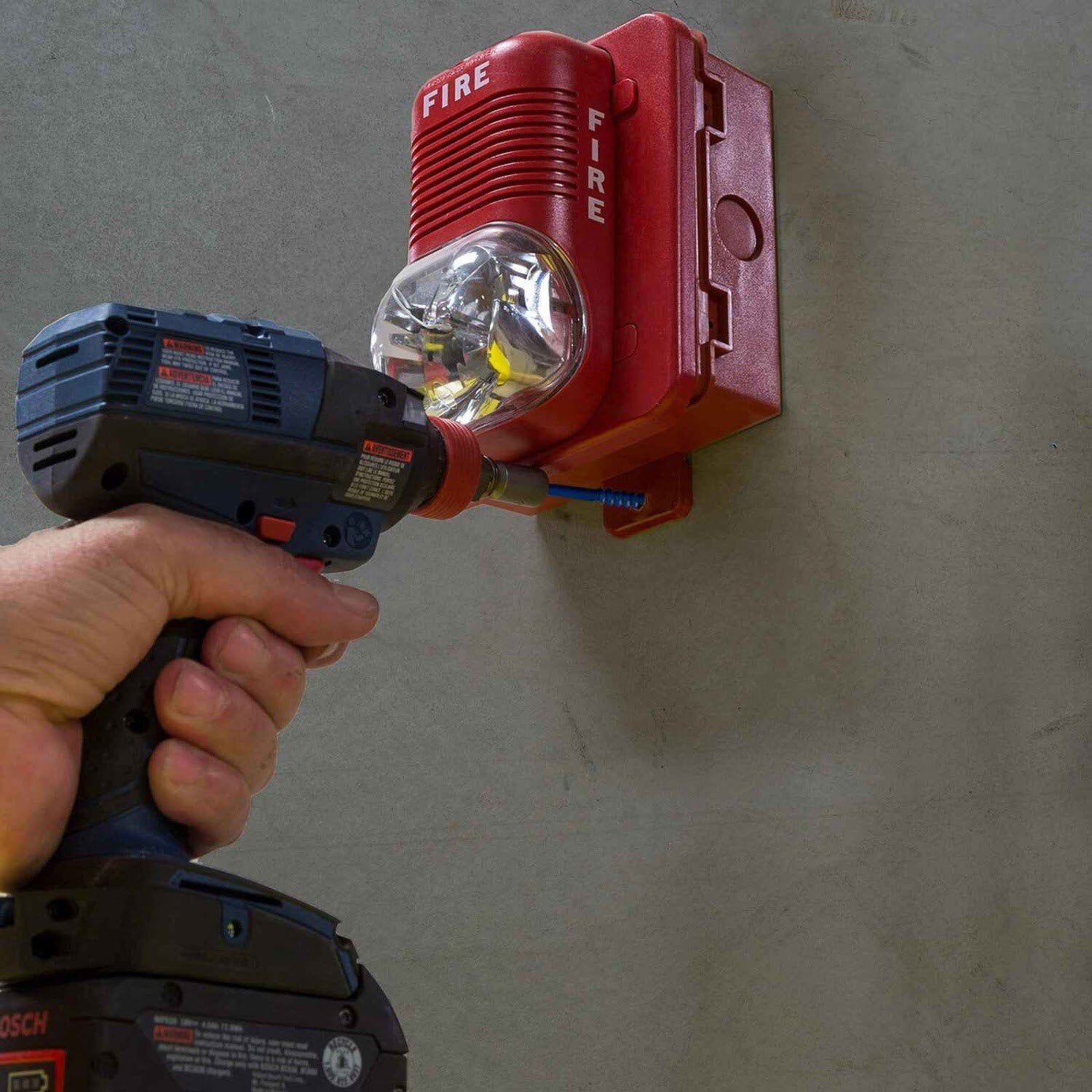

- Switch boxes and light fixtures.
- Windows and thresholds.
- Basement furring strips.

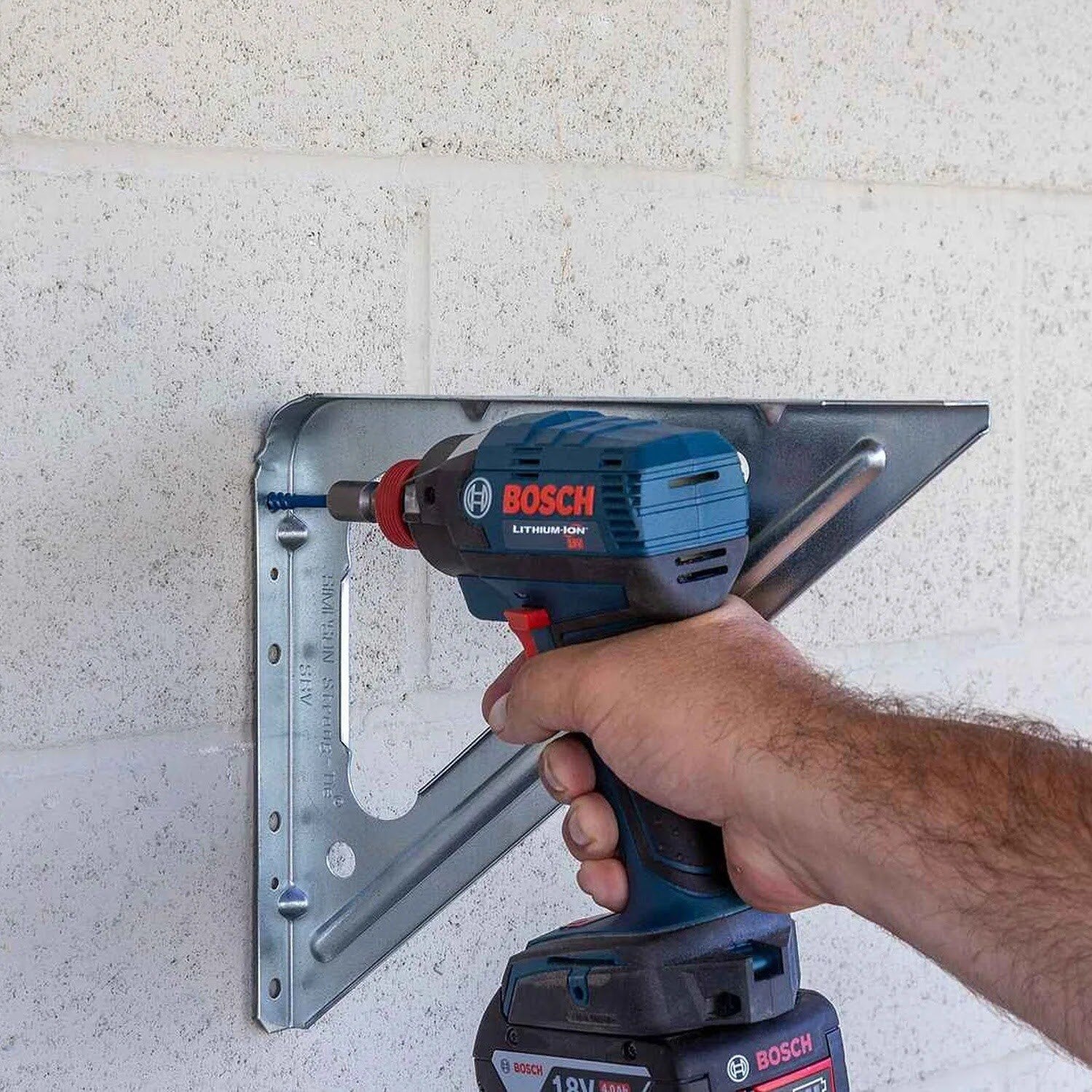

- Shelf mounting to concrete/CMU.

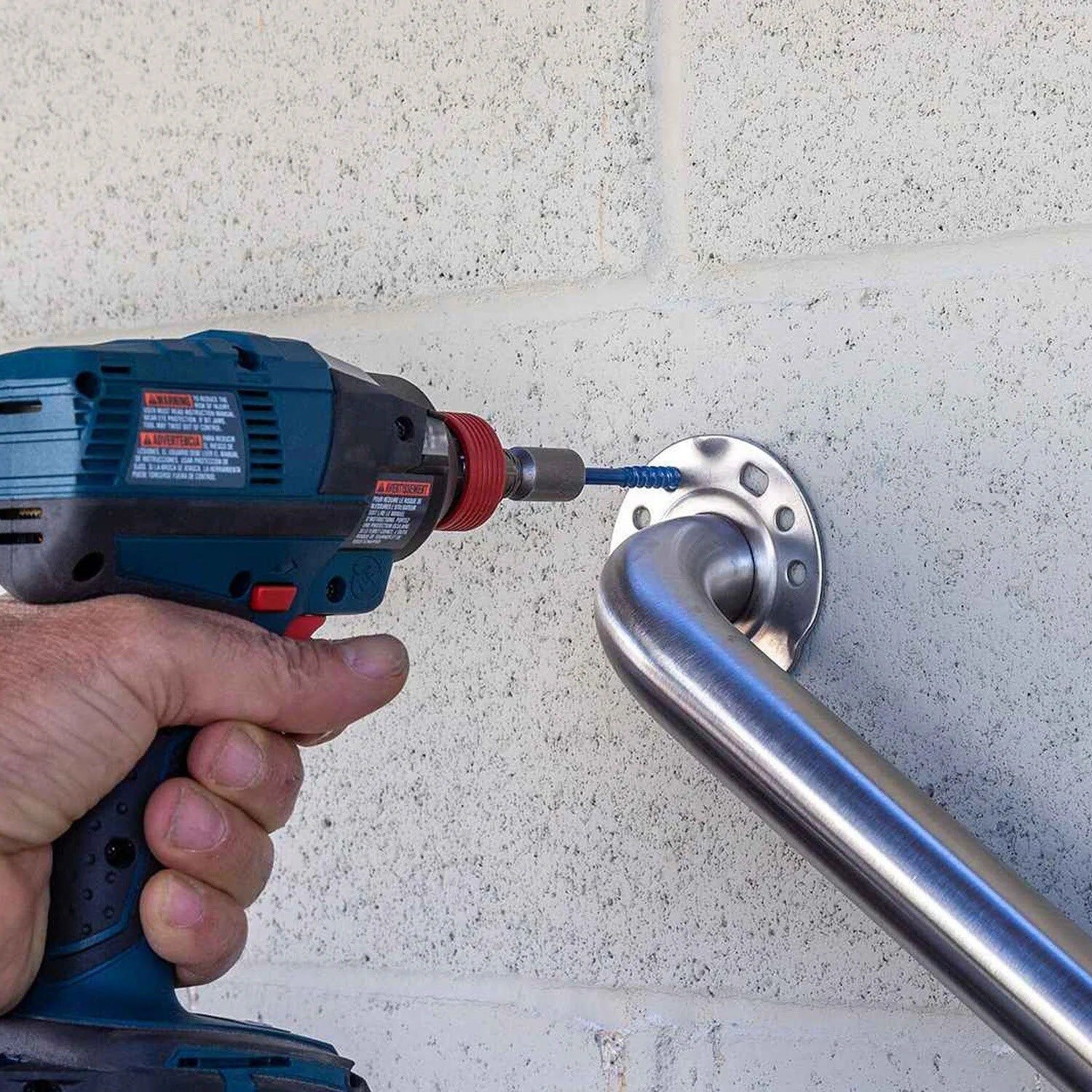

- Handrails.
Simpson TNT25314H Installation Overview
- Drill a hole in the base material using the specified diameter carbide drill bit.
- Position fixture, insert screw, and tighten using a drill and Titen Turbo screw installation tool.
- Ensure the thread tapping dust settles for optimal performance.
Simpson TNT25314H Specifications
| Diameter | 1/4" |
| Finish | Blue Zinc |
| Length | 3-1/4" |
| Material | Carbon Steel |
| Drill bit size | 3/16" |
| Drive type | 5/16" Hex |
| Head type | Hex Head |
| Quantity | 100 |
NOTE: Designed for installation with an impact driver or cordless drill. Installation using the Titen Turbo Installation Tool is recommended. Matched-tolerance bit not required; use a standard ANSI drill bit for installation. Intended for use in dry interior environments only.
