Simpson Anchors | SKU:
TNT25334TF

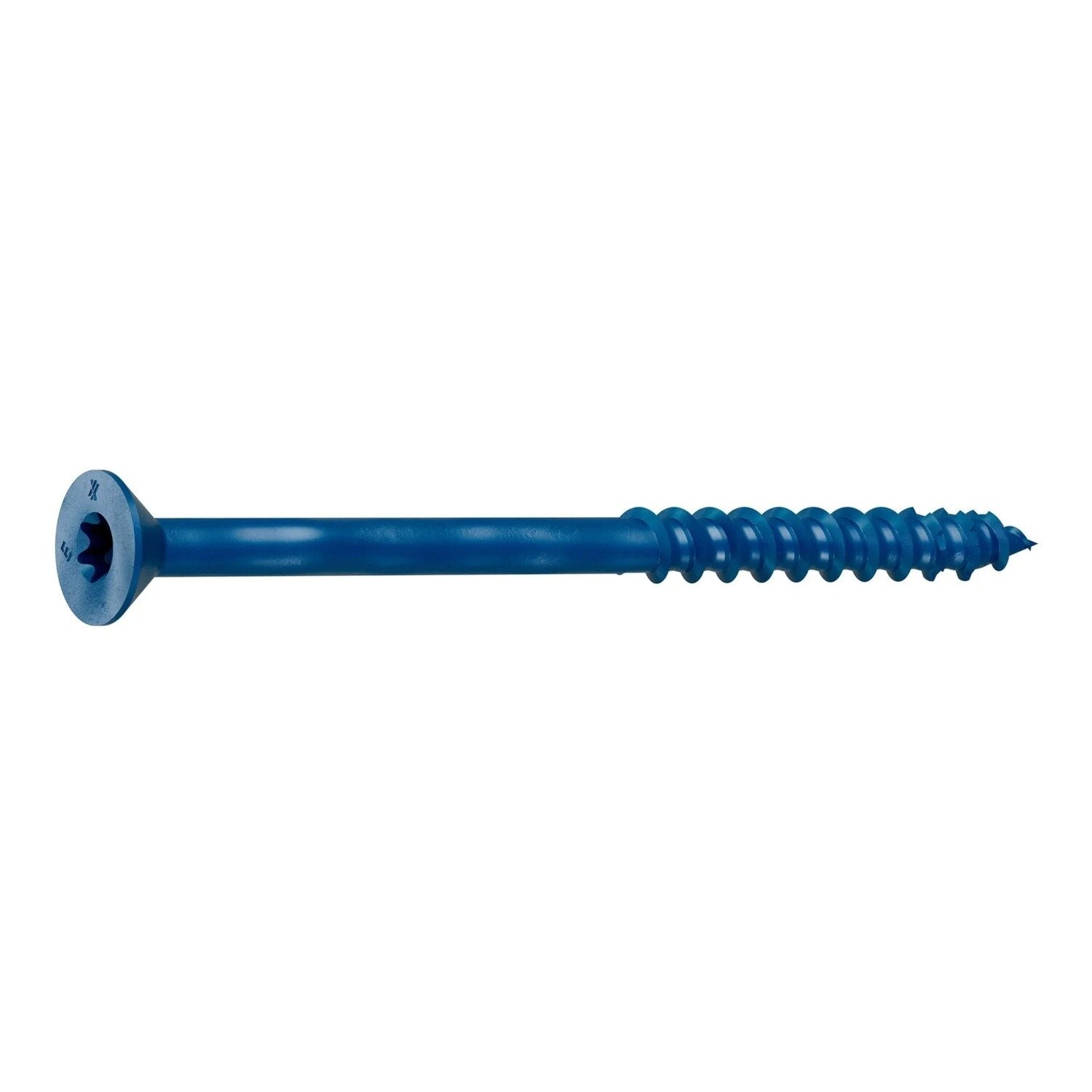

Simpson Strong-Tie TNT25334TF Titen Turbo(1/4" x 3-3/4") T30 Flat-Head Concrete and Masonry Screw, Blue (100 Pack)
$30.88
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie TNT25334TF Description
The Simpson Strong-Tie Titen Turbo screw anchor is a heavy-duty fastener designed for quick and easy installation in concrete and masonry applications. It features a patented torque reduction channel for smooth driving and superior holding power.
Simpson Strong-Tie TNT25334TF Includes
- (100) 1/4in x 3-3/4in Titen Turbo Concrete and Masonry Screws
- (1) T30 Driver Bit
Simpson Strong-Tie TNT25334TF Features

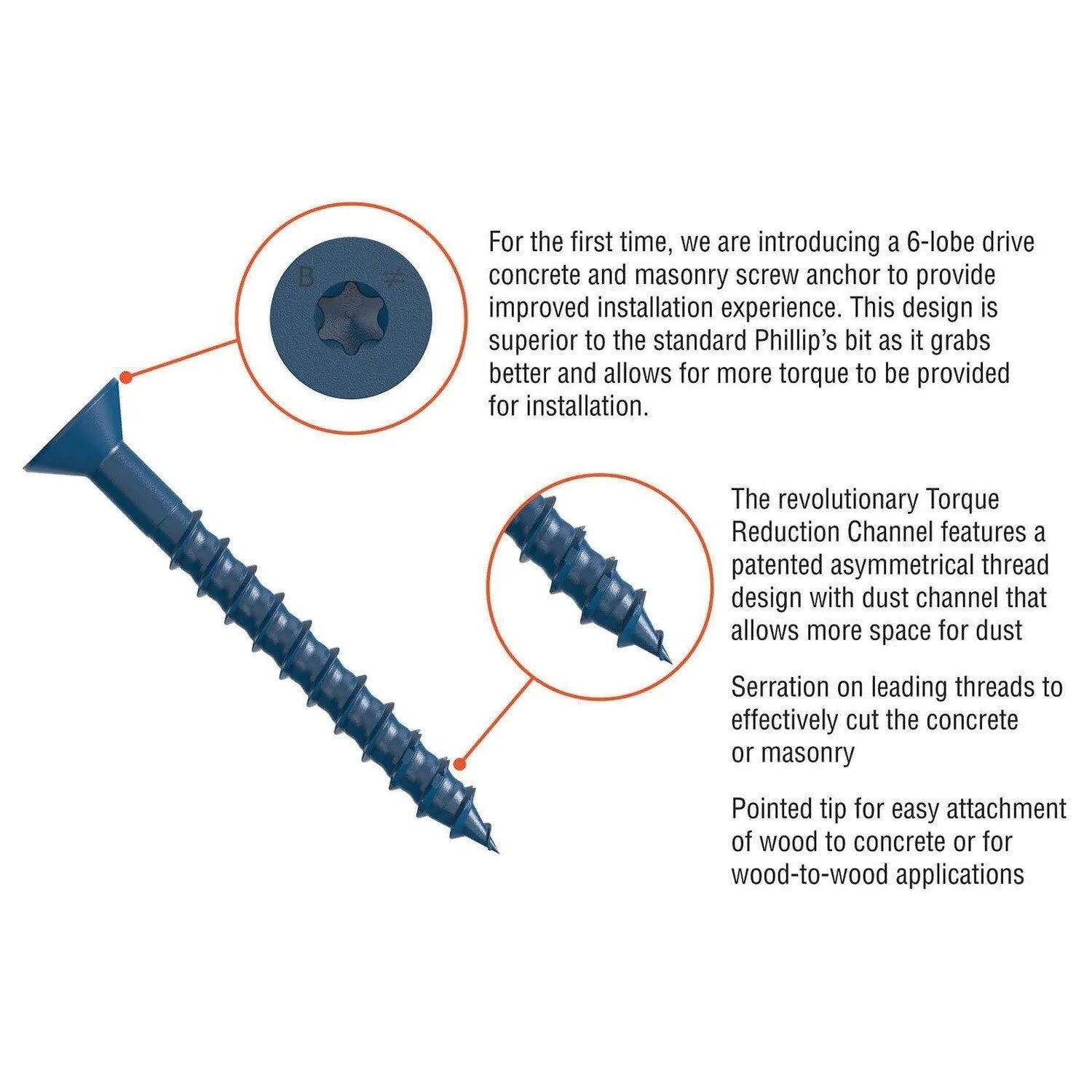

- Patented Torque Reduction Channel for reduced binding and smooth driving
- Available in multiple coatings and head types for various applications
- 6-lobe drive for positive bit engagement and long bit life
- Superior tension load performance
- Designed for use with standard ANSI drill bits
- Serrated screw point for easier starts when fastening wood
- Code listed for uncracked concrete and masonry applications
Simpson Strong-Tie TNT25334TF Applications
- Electrical boxes and conduit mounting
- Switch boxes and light fixtures installation
- Window and threshold anchoring
- Basement furring strips attachment
- Shelf mounting to concrete or CMU
- Handrails installation
Simpson Strong-Tie TNT25334TF Installation Overview
- Drill a hole in the base material using the specified diameter carbide drill bit.
- Position the fixture and insert the screw.
- Tighten using a drill and the Titen Turbo screw installation tool fitted with a hex socket or 6-lobe bit socket.
Simpson Strong-Tie TNT25334TF Specifications
| Material | Carbon Steel |
| Finish | Zinc plated with a baked-on ceramic coating |
| Diameter | 1/4 in. |
| Length | 3-3/4 in. |
| Drill Bit Size | 3/16 in. |
| Drive Type | T30 Star Drive |
| Head Type | Flat Head |
| Quantity | 100 |
NOTE: Designed for installation with an impact driver or cordless drill. Installation using the Titen Turbo Installation Tool is recommended.
