Simpson Anchors | SKU:
TNT25334TFC25

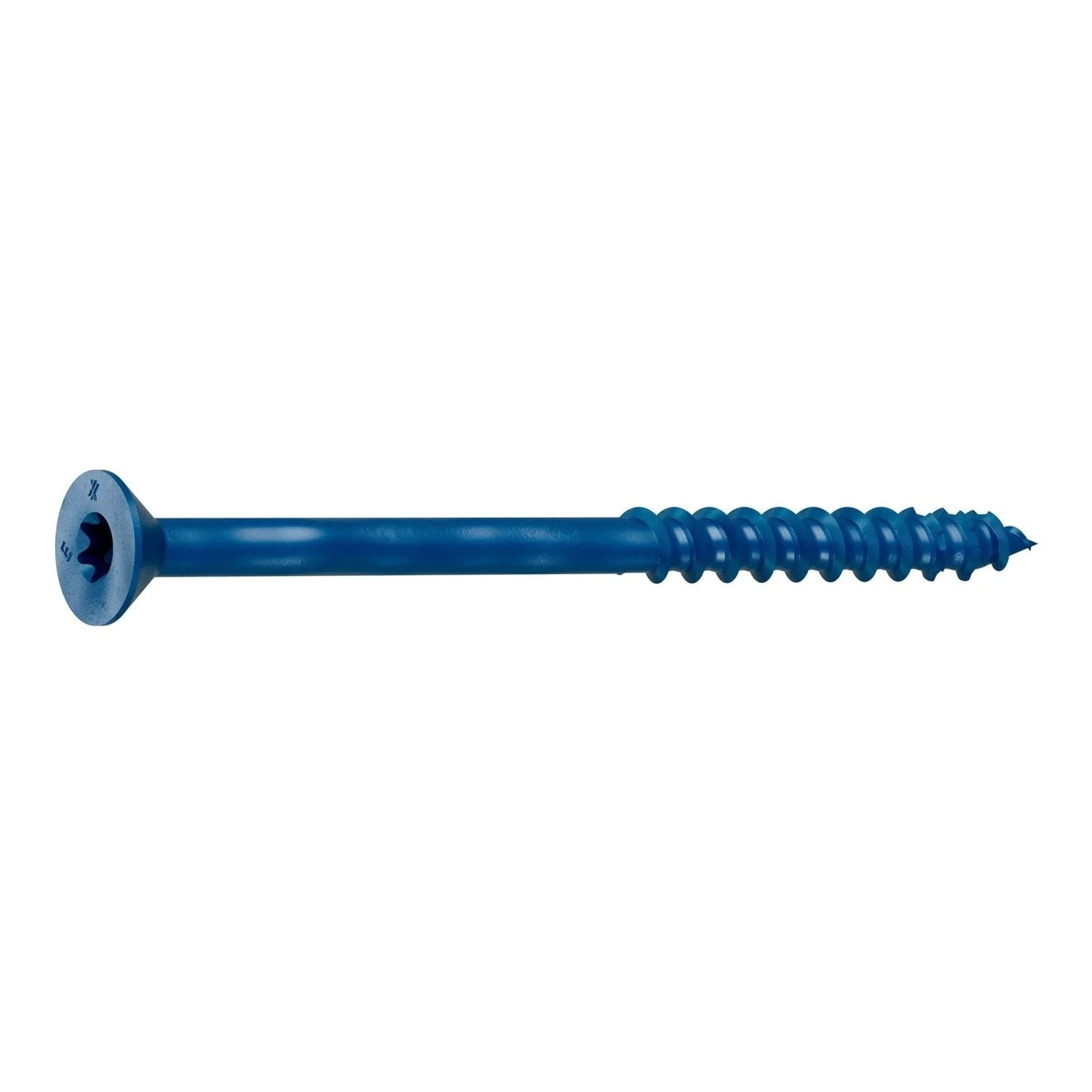

Simpson Strong-Tie TNT25334TFC25 Titen Turbo (1/4" x 3-3/4") T30 Flat-Head Concrete and Masonry Screw, Blue (25 Pack)
$11.08
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie TNT25334TFC25 Description
The Simpson Strong-Tie Titen Turbo screw anchor is a heavy-duty fastener featuring an innovative torque reduction channel for smooth driving and superior holding power.
Simpson Strong-Tie TNT25334TFC25 Includes
- (25) Flat Head Titen Turbo Screw Anchor
Simpson Strong-Tie TNT25334TFC25 Features

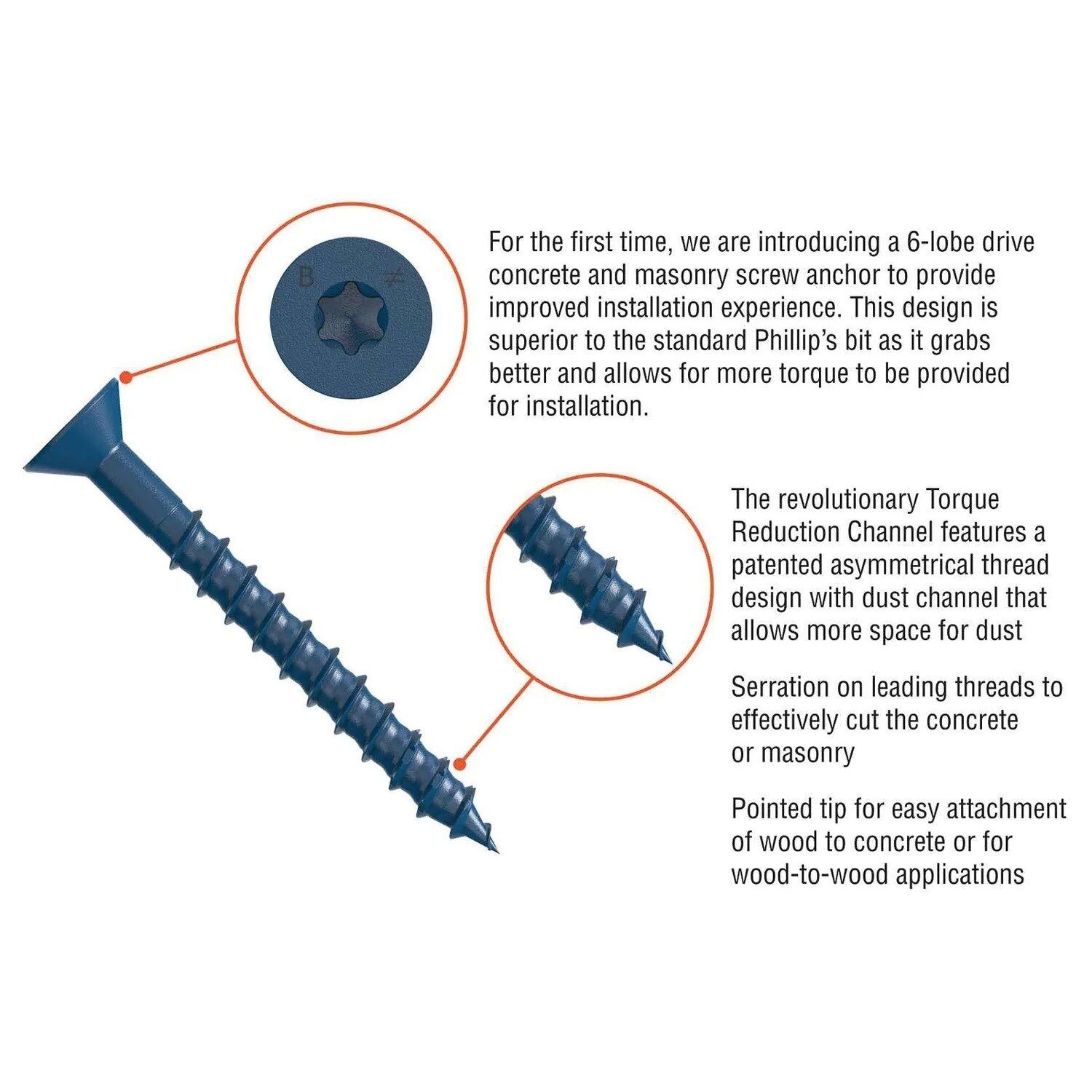

- Patented Torque Reduction Channel for reduced binding and snapping
- Available in multiple coated versions
- Hex head or 6-lobe-drive countersunk flat head options
- Superior tension load performance
- Designed for installation with an impact driver or cordless drill
- Code listed for uncracked concrete and masonry applications
Simpson Strong-Tie TNT25334TFC25 Applications
- Wood-to-concrete anchoring
- Wood-to-wood anchoring
- Electrical boxes and conduit
- Switch boxes and light fixtures

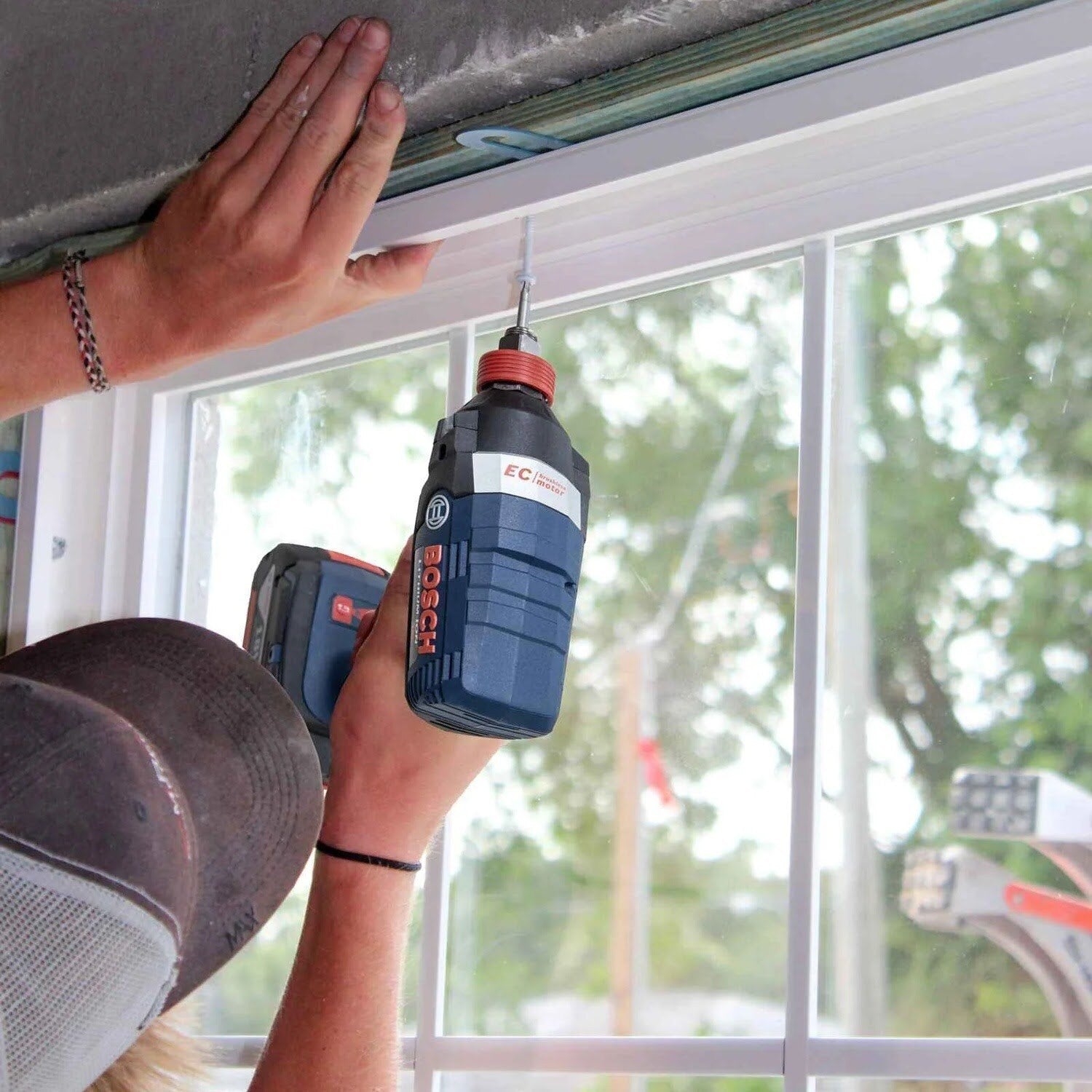

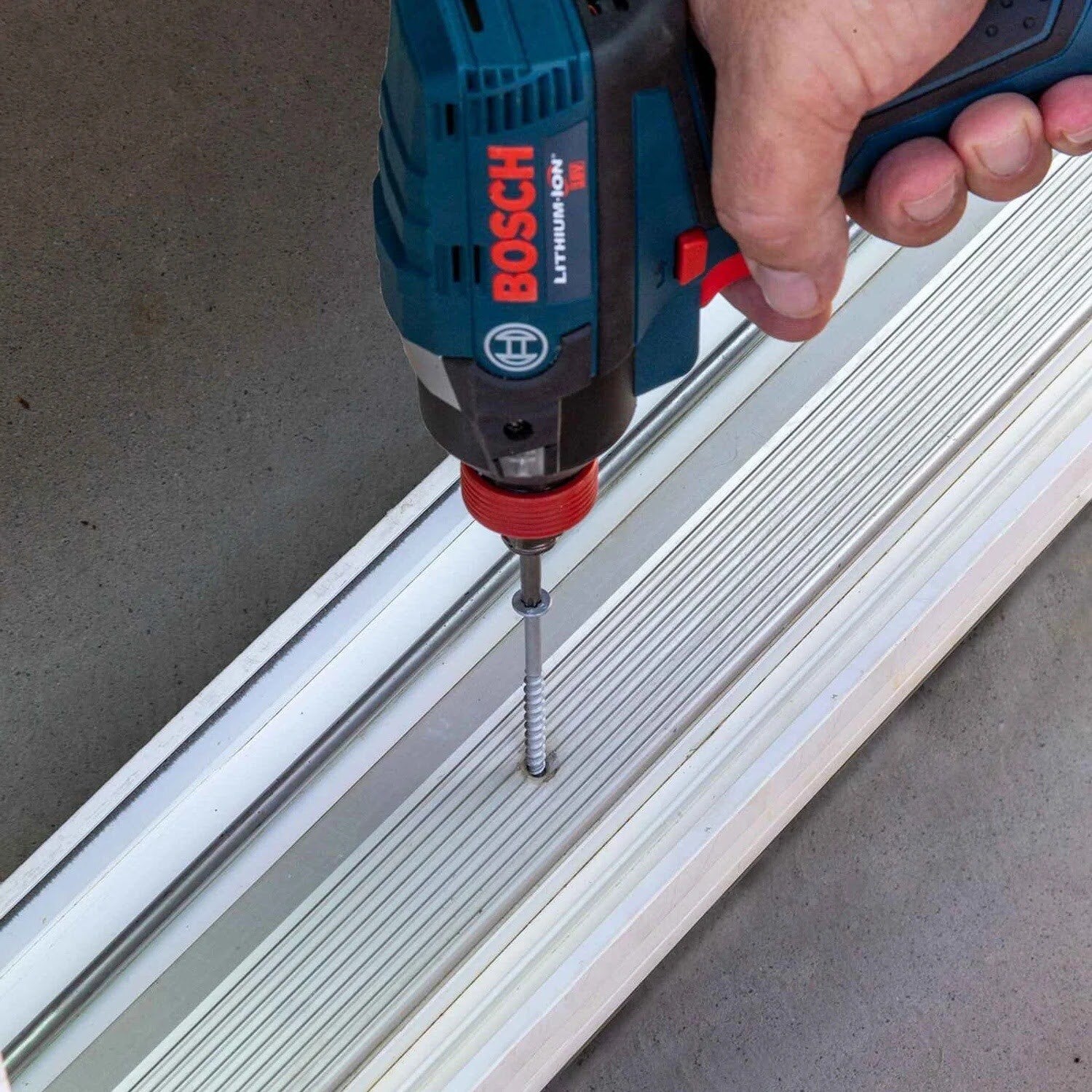

- Windows and thresholds

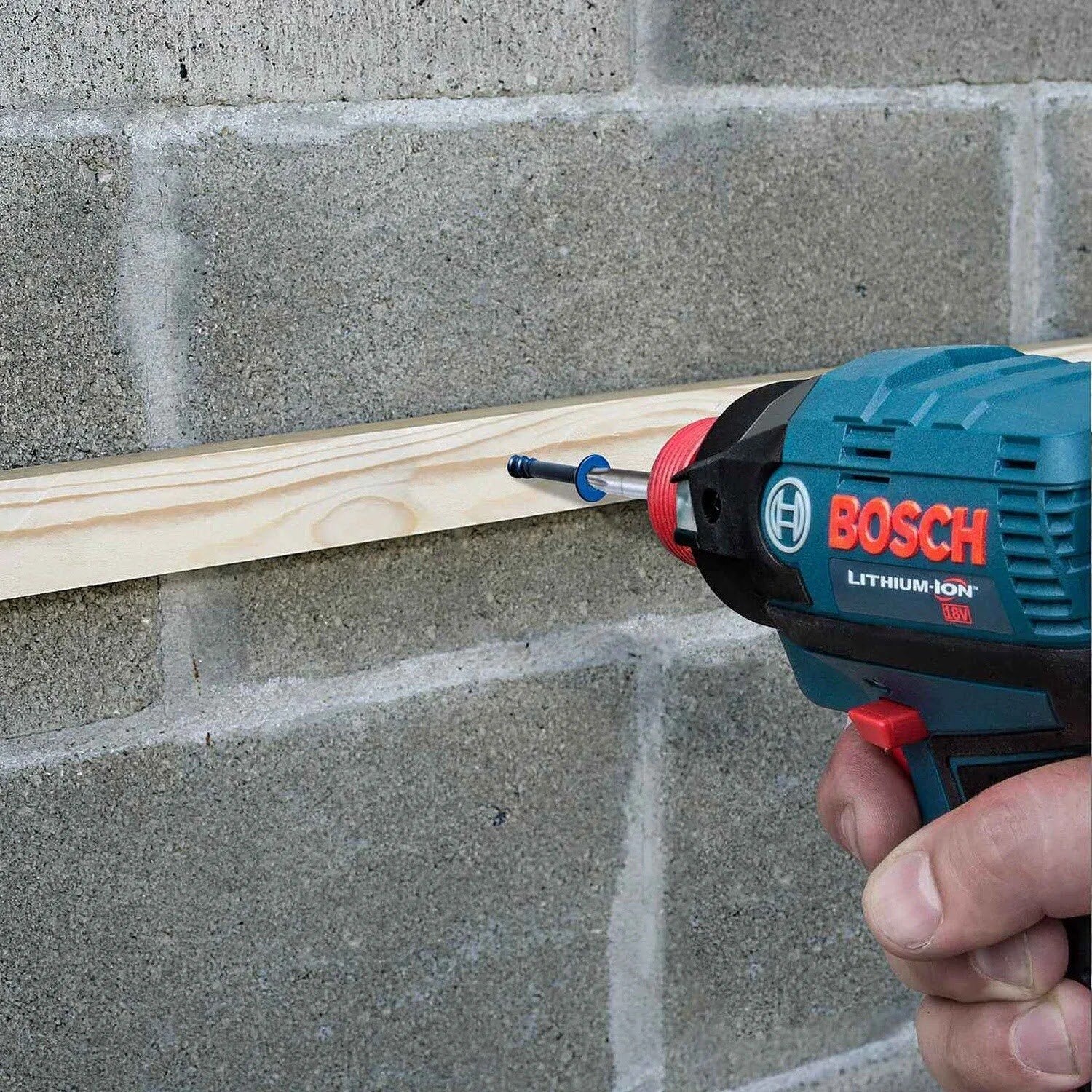

- Basement furring strips
- Shelf mounting to concrete/CMU
- Handrails
Simpson Strong-Tie TNT25334TFC25 Installation Overview
- Drill a hole in the base material using the specified diameter carbide drill bit.
- Position fixture, insert screw, and tighten using a drill and Titen Turbo screw installation tool.
- Ensure the thread tapping dust settles for optimal installation.
Simpson Strong-Tie TNT25334TFC25 Specifications
| Diameter | 1/4" |
| Finish | Blue Zinc |
| Length | 3-3/4" |
| Material | Carbon Steel |
| Drill bit size | 3/16" |
| Drive type | T30 Star Drive |
| Head type | Flat Head |
| Quantity | 25 |
NOTE: Designed for installation with an impact driver or cordless drill. Installation using the Titen Turbo Installation Tool is recommended. Matched-tolerance bit not required; use a standard ANSI drill bit for installation. Intended for use in dry interior environments only.
