Simpson Anchors | SKU:
TNT25400TFC25

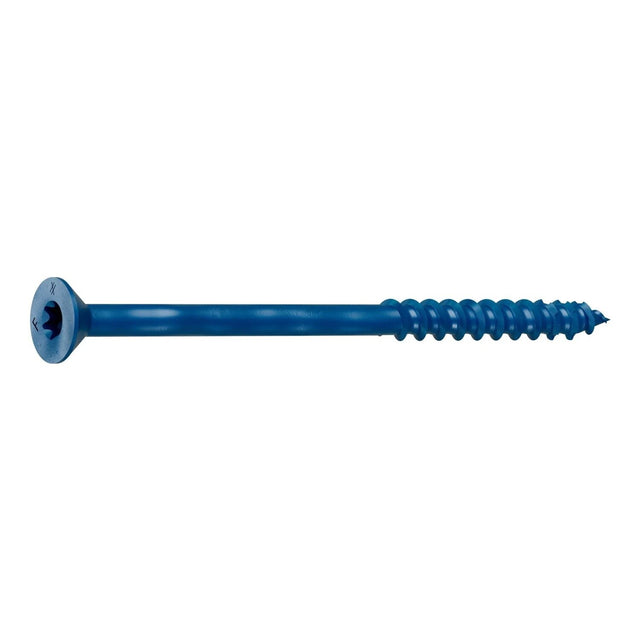

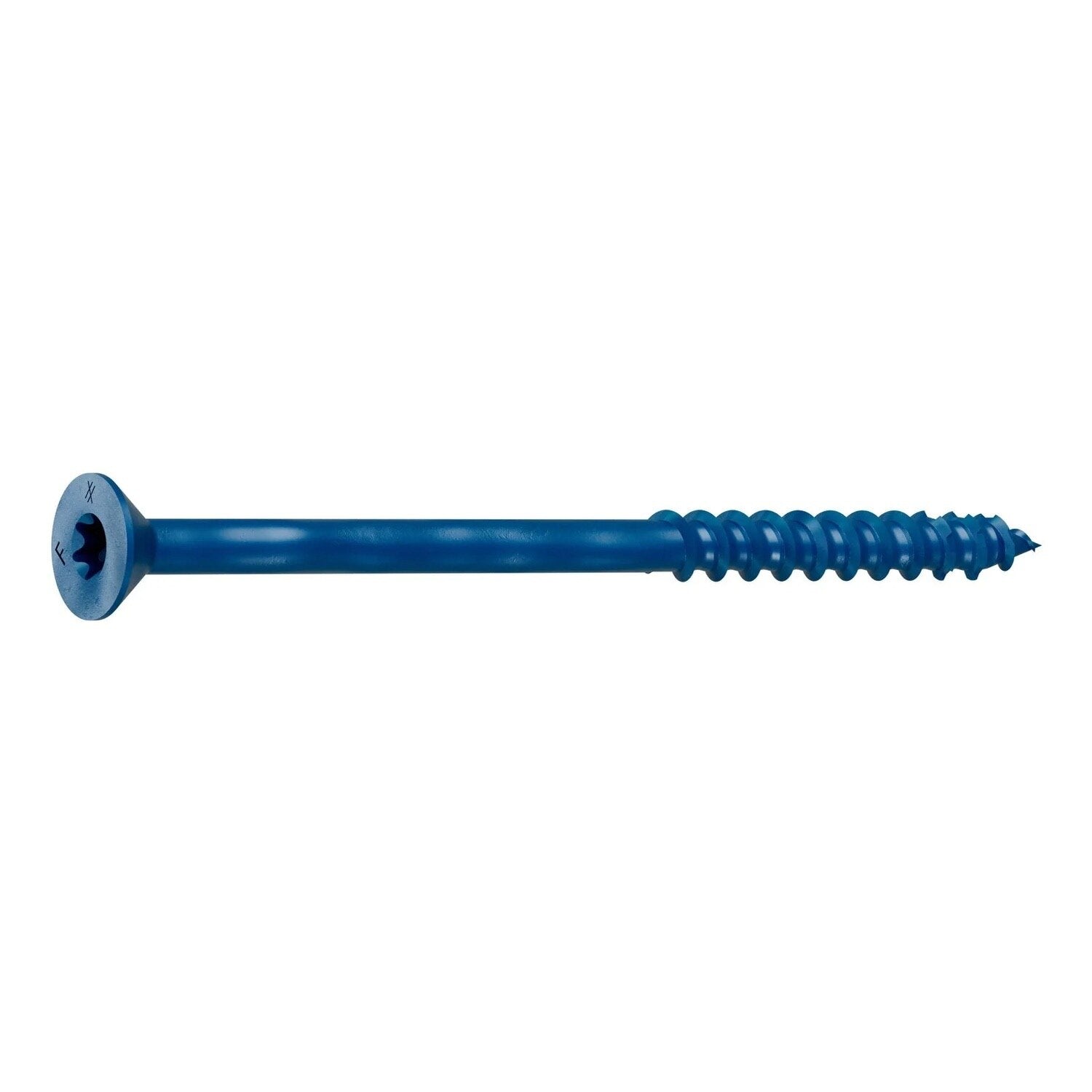

Simpson Strong-Tie TNT25400TFC25 Titen Turbo (1/4" x 4") T30 Flat-Head Concrete and Masonry Screw, Blue (25 Pack)
$13.04
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie TNT25400TFC25 Description
The Simpson Strong-Tie Titen Turbo screw anchor is a heavy-duty fastener designed for quick and easy installation in wood-to-concrete and wood-to-wood anchoring applications.
Simpson Strong-Tie TNT25400TFC25 Includes
- (25) 1/4 in. x 4 in. Titen Turbo Screw Anchor
Simpson Strong-Tie TNT25400TFC25 Features

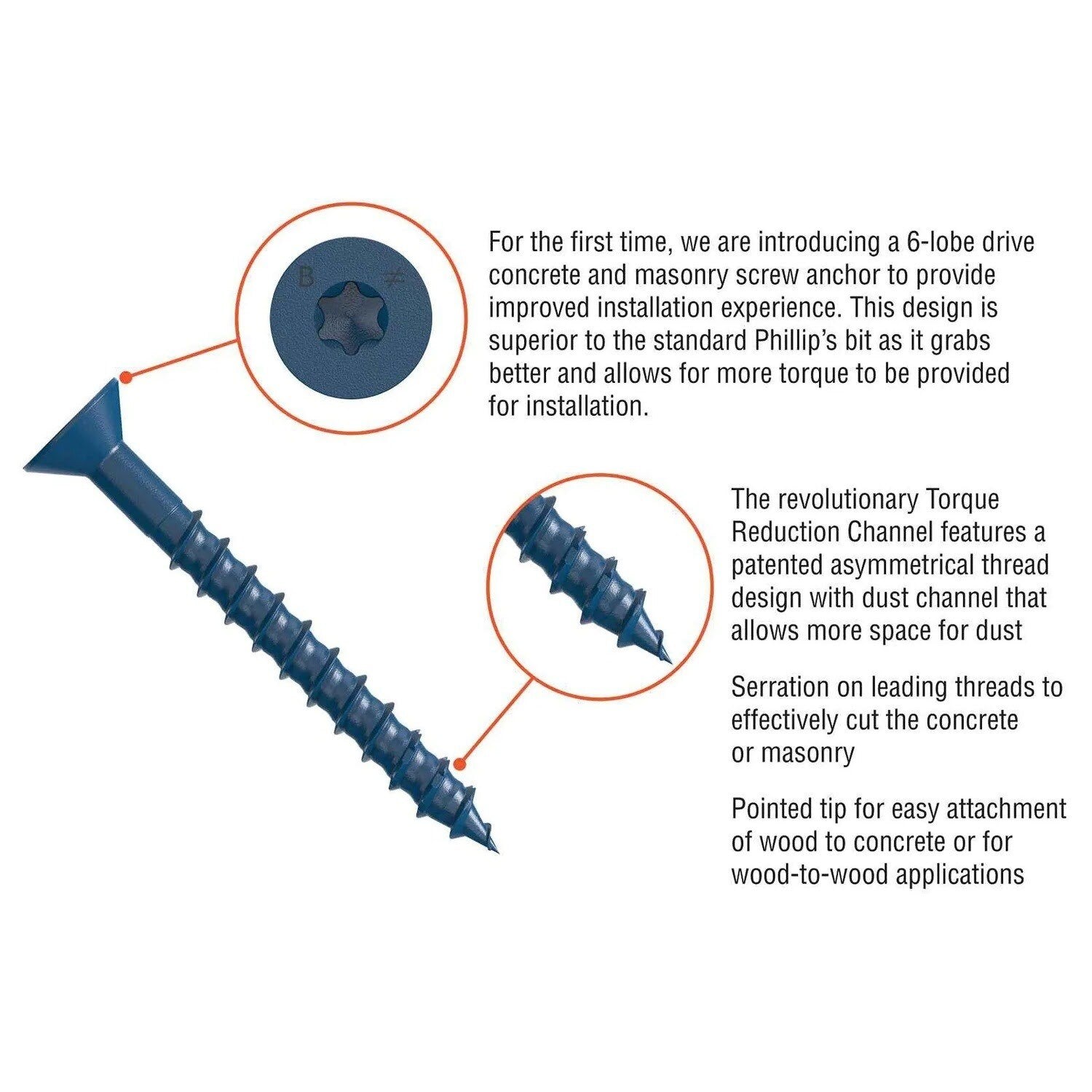

- Patented Torque Reduction Channel for reduced binding
- Available in multiple coated versions
- 6-lobe drive for positive bit engagement
- Superior tension load performance
- Designed for use with standard ANSI drill bits
Simpson Strong-Tie TNT25400TFC25 Applications

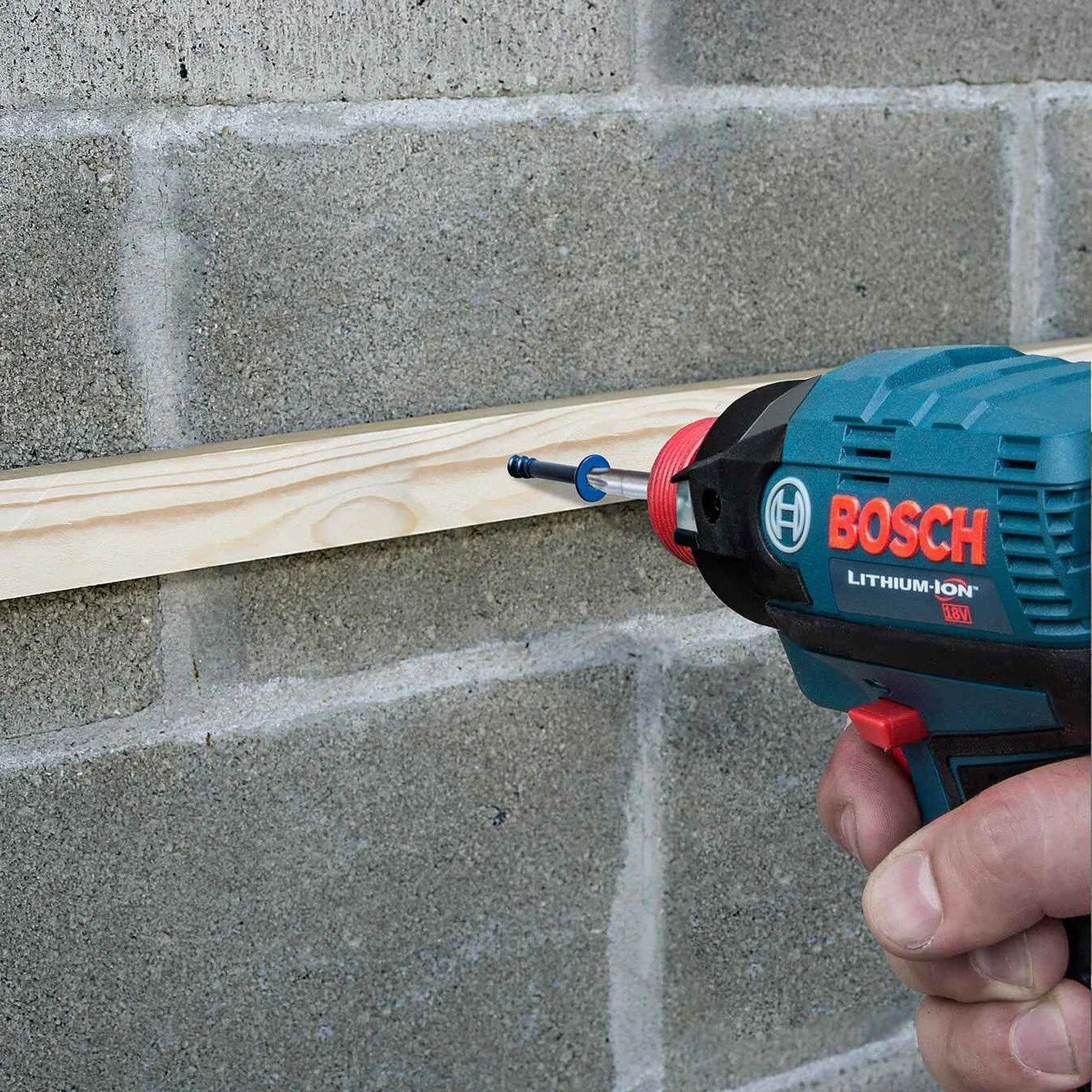

- Wood-to-concrete anchoring
- Wood-to-wood anchoring
- Electrical boxes and conduit mounting

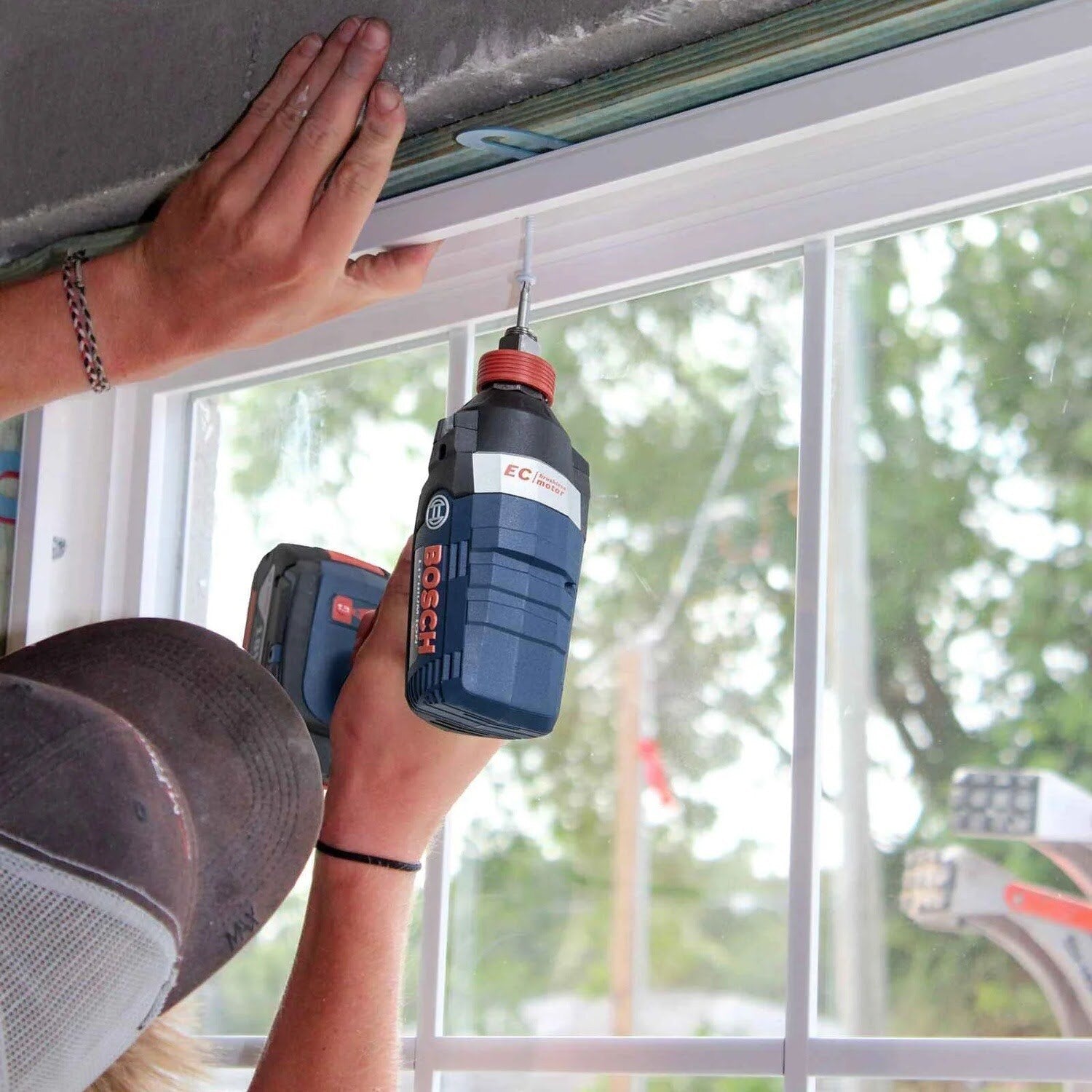

- Light fixtures and window installations
Simpson Strong-Tie TNT25400TFC25 Installation Overview

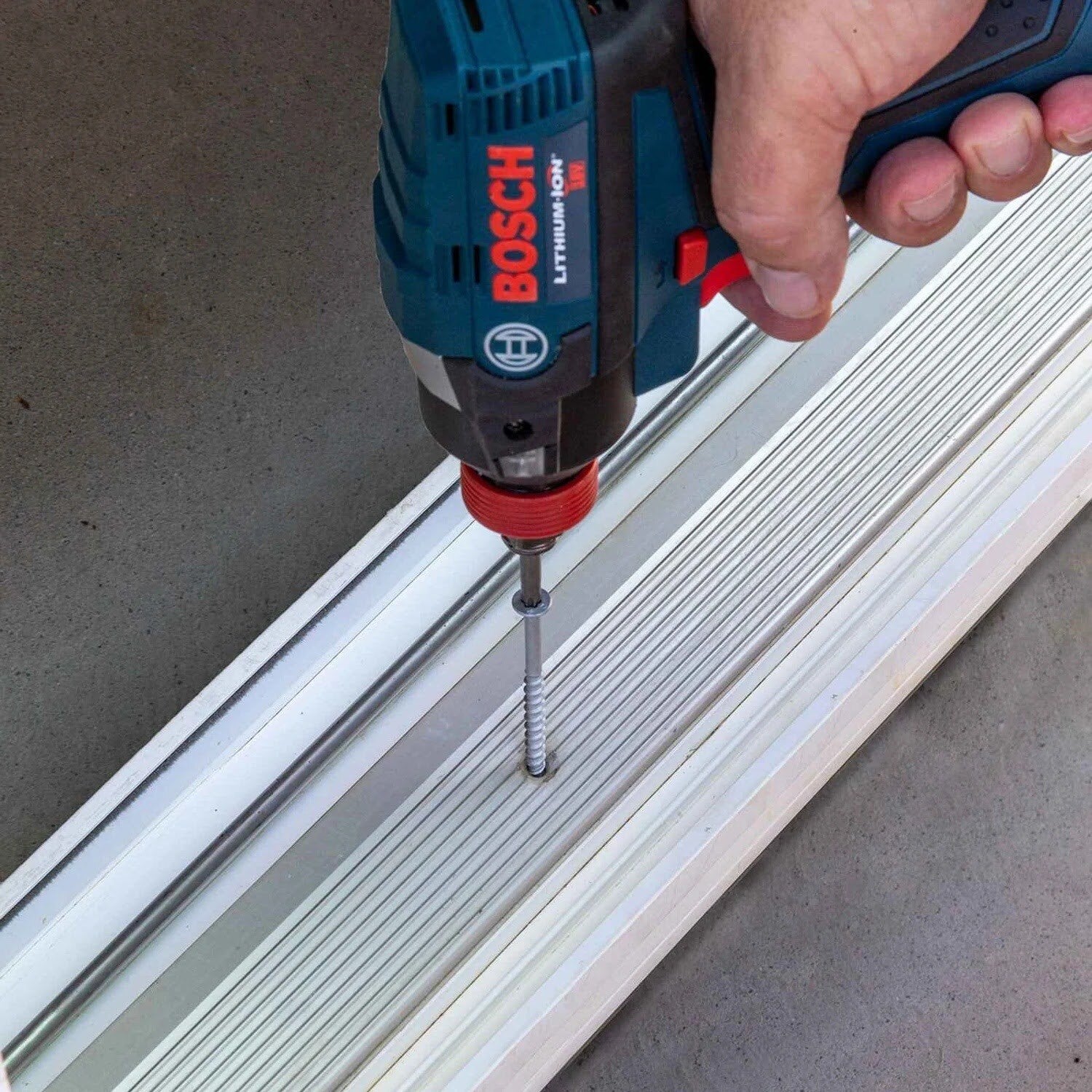

- Drill a hole using the specified diameter carbide drill bit.
- Position the fixture and insert the screw.
- Tighten using a drill and the Titen Turbo installation tool.
Simpson Strong-Tie TNT25400TFC25 Specifications
| Diameter | 1/4 in. |
| Length | 4 in. |
| Material | Carbon Steel |
| Finish | Blue Zinc |
| Drive Type | T30 Star Drive |
| Head Type | Flat Head |
| Drill Bit Size | 3/16 in. |
NOTE: Designed for installation with an impact driver or cordless drill. Installation using the Titen Turbo Installation Tool is recommended. Matched-tolerance bit not required; use a standard ANSI drill bit for installation. Intended for use in dry interior environments only.
