Simpson Anchors | SKU:
TNT25500H

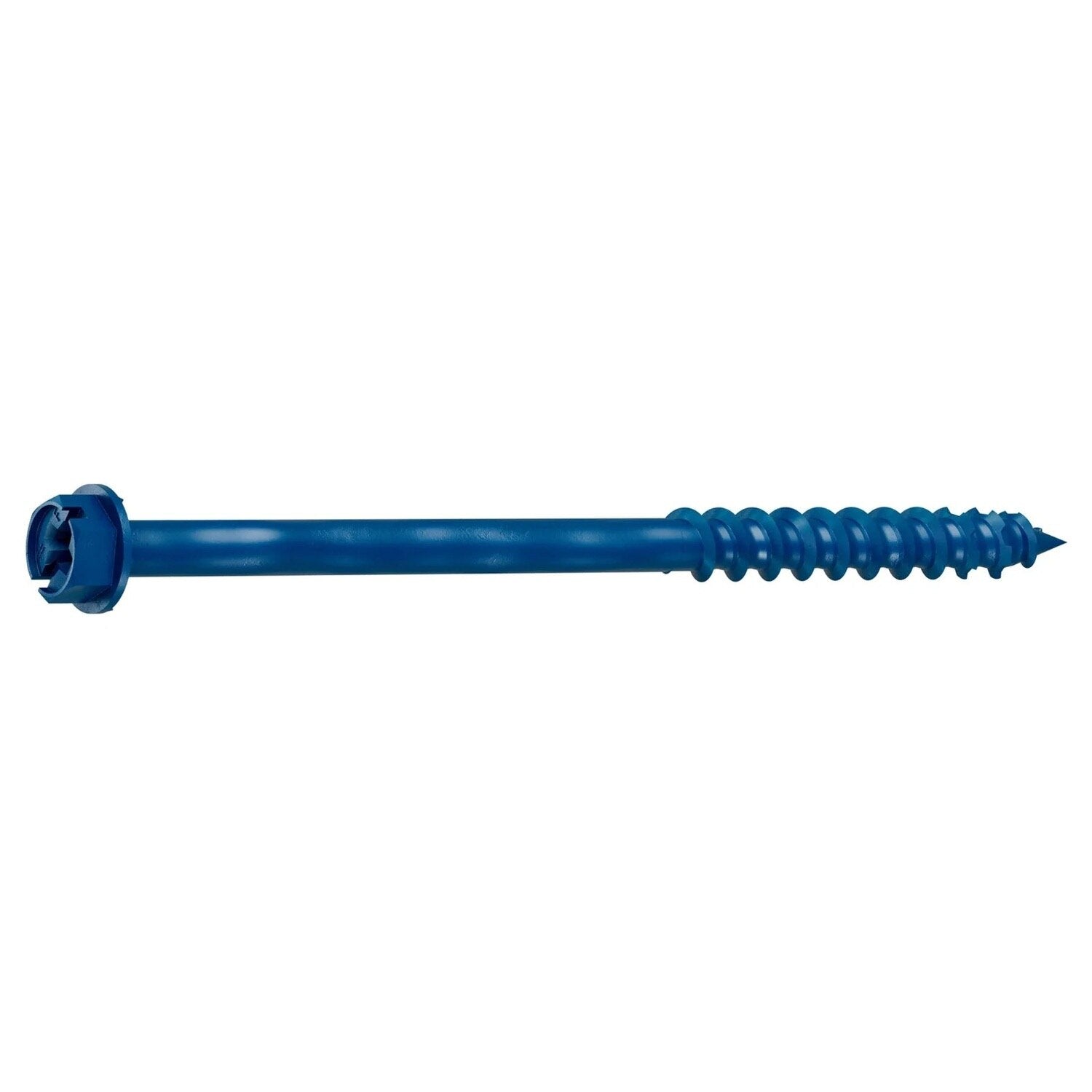

Simpson Strong-Tie TNT25500H Titen Turbo(1/4" x 5") Hex-Head Concrete and Masonry Screw, Blue (100 Pack)
$45.12
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie TNT25500H Description
The Simpson Strong-Tie Titen Turbo screw anchor is a heavy-duty fastener featuring an innovative torque reduction channel for reduced binding and superior holding power. Ideal for wood-to-concrete and wood-to-wood anchoring applications.
Simpson Strong-Tie TNT25500H Includes
- (100) 1/4 in. x 5 in. Titen Turbo Screw Anchor
Simpson Strong-Tie TNT25500H Features
- Patented Torque Reduction Channel for reduced binding
- Available in multiple coated versions including Blue Zinc
- Hex head design for secure fastening
- 6-lobe drive for positive bit engagement
- Superior tension load performance
- Designed for use with standard ANSI drill bits
- Serrated screw point for easier starts
- Recommended for use with impact drivers or cordless drills
Simpson Strong-Tie TNT25500H Applications

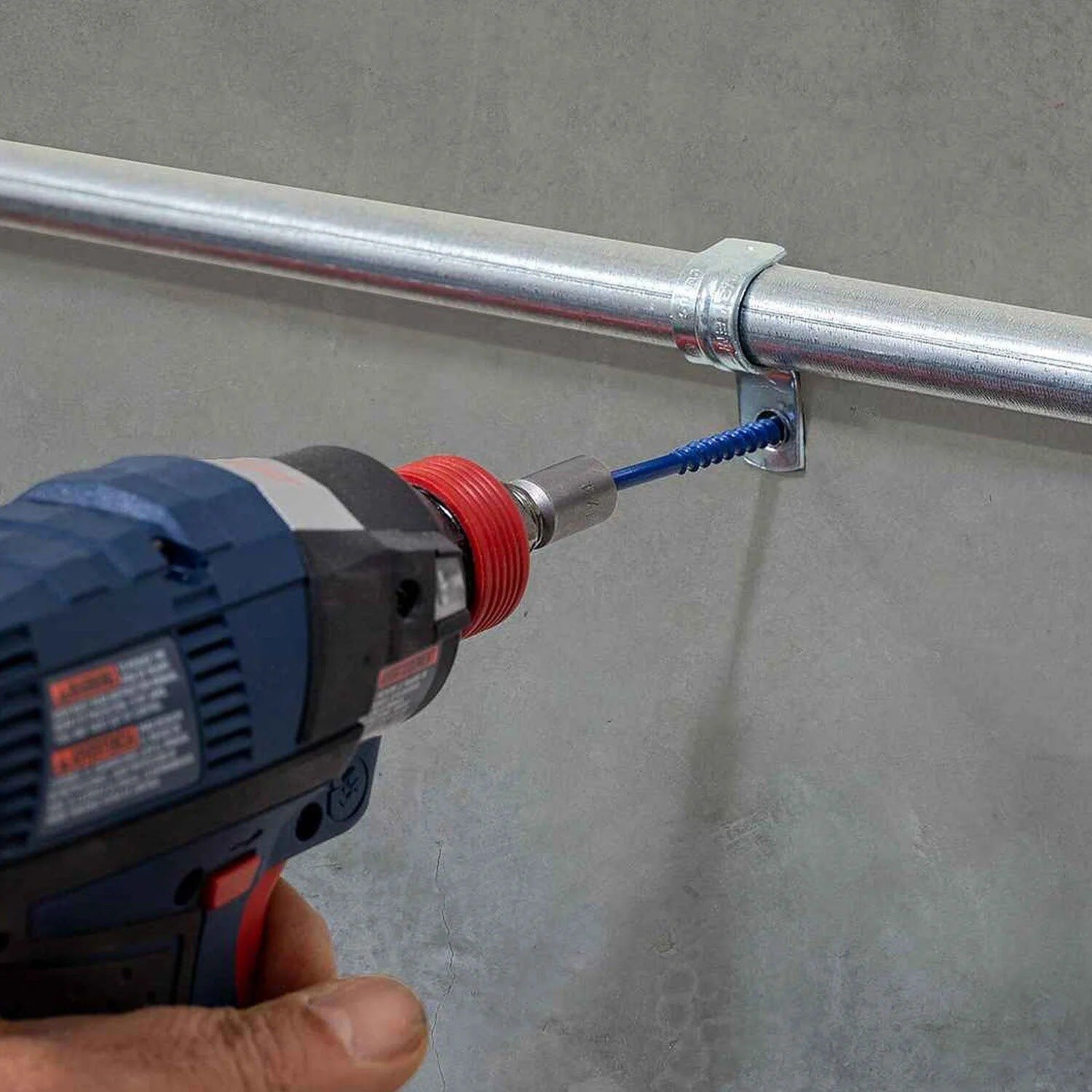

- Electrical boxes and conduit mounting
- Switch boxes and light fixtures installation
- Window and threshold anchoring
- Basement furring strips attachment
- Shelf mounting to concrete or CMU

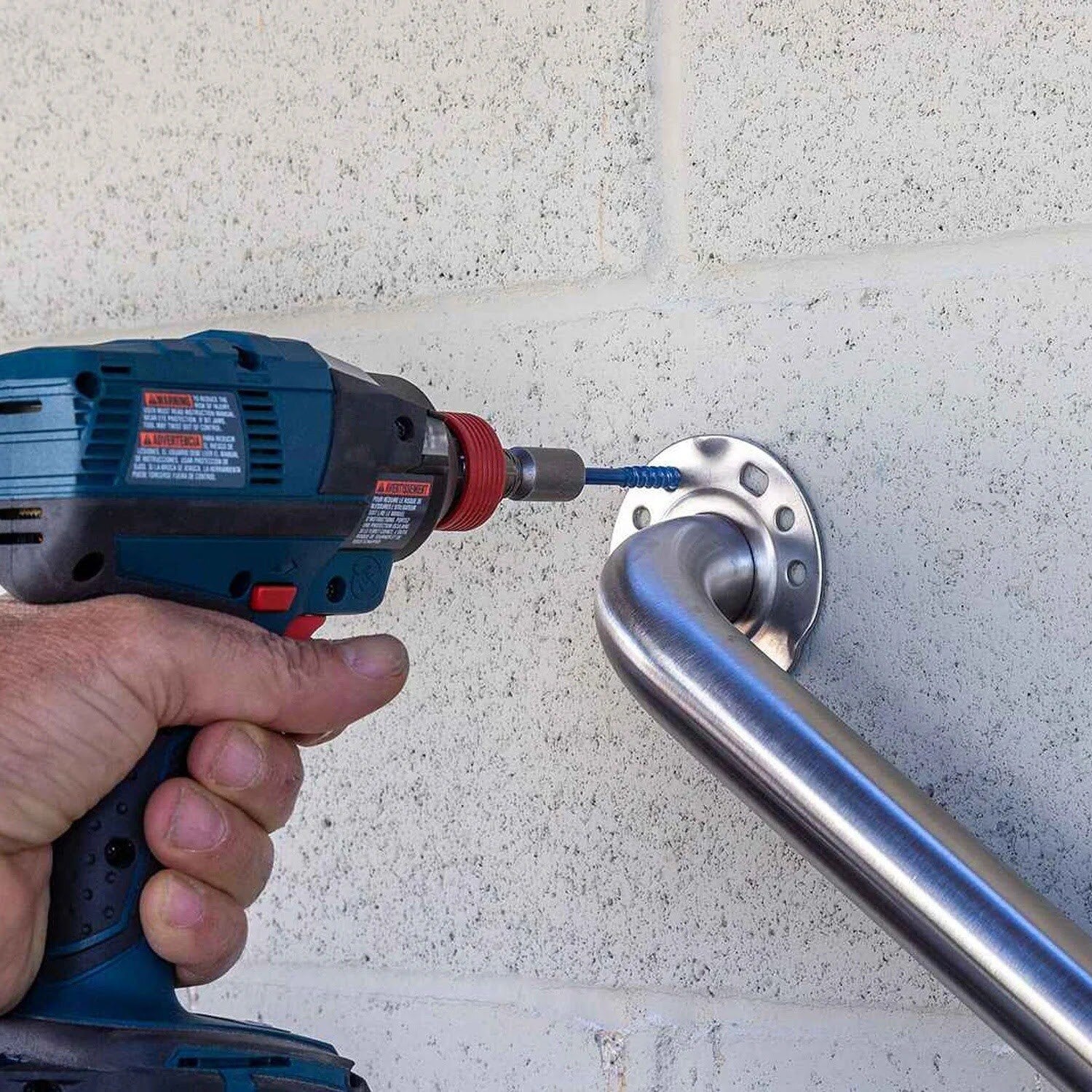

- Handrails installation
Simpson Strong-Tie TNT25500H Installation Overview
- Drill a hole in the base material using a 3/16 in. carbide drill bit to the specified depth.
- Position the fixture and insert the screw.
- Tighten using a drill and the Titen Turbo screw installation tool fitted with a hex socket.
Simpson Strong-Tie TNT25500H Specifications
| Material | Carbon Steel |
| Finish | Blue Zinc |
| Diameter | 1/4 in. |
| Length | 5 in. |
| Drill Bit Size | 3/16 in. |
| Drive Type | 5/16 in. Hex |
| Head Type | Hex Head |
| Quantity | 100 |
NOTE: Designed for installation with an impact driver or cordless drill. Installation using the Titen Turbo Installation Tool is recommended. Matched-tolerance bit not required; use a standard ANSI drill bit for installation. Intended for use in dry interior environments only.
