Simpson Anchors | SKU:
TNTBL18134TF
Simpson Strong-Tie TNTBL18134TF Titen Turbo (3/16" x 1-3/4") T25 Flat-Head Concrete and Masonry Screw, Black (100 Pack)
$11.53
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie TNTBL18134TF Description

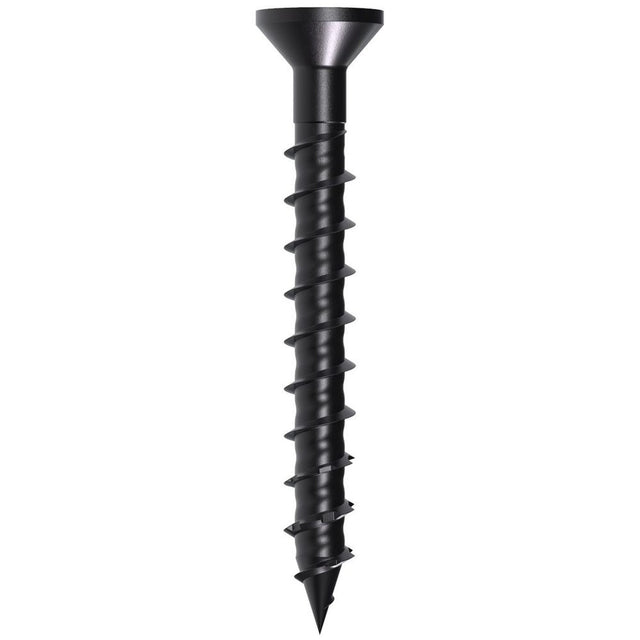

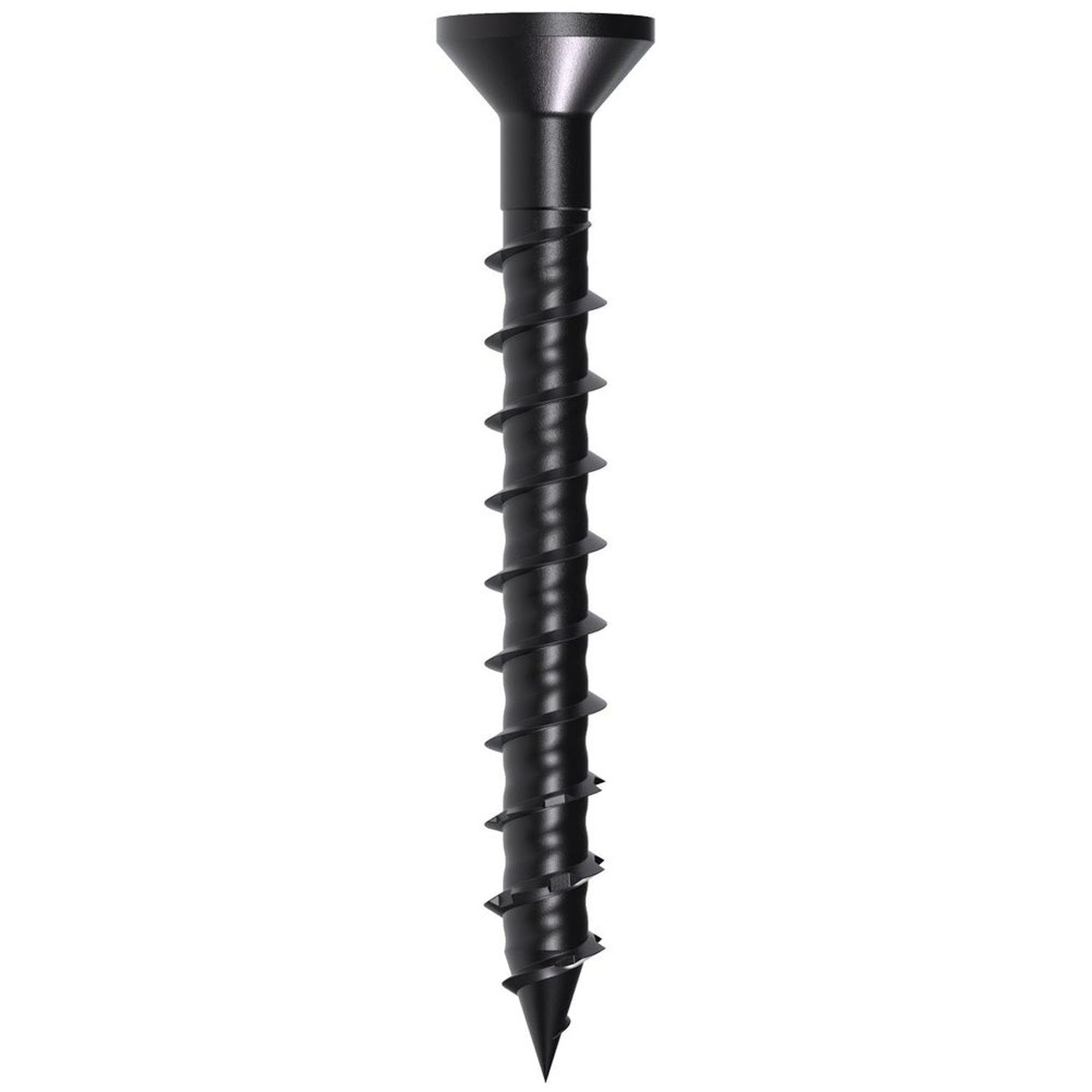

The Titen Turbo 3/16 in. x 1-3/4 in. 6-Lobe Flat-Head Concrete and Masonry Screw is designed for secure and efficient fastening in concrete and masonry applications.
Simpson Strong-Tie TNTBL18134TF Includes
- (100) Titen Turbo 3/16 in. x 1-3/4 in. 6-Lobe Flat-Head Concrete and Masonry Screw
- (1) T25 driver bit
Simpson Strong-Tie TNTBL18134TF Features
- Patented Torque Reduction Channel for reduced binding
- Available in multiple coated versions including black

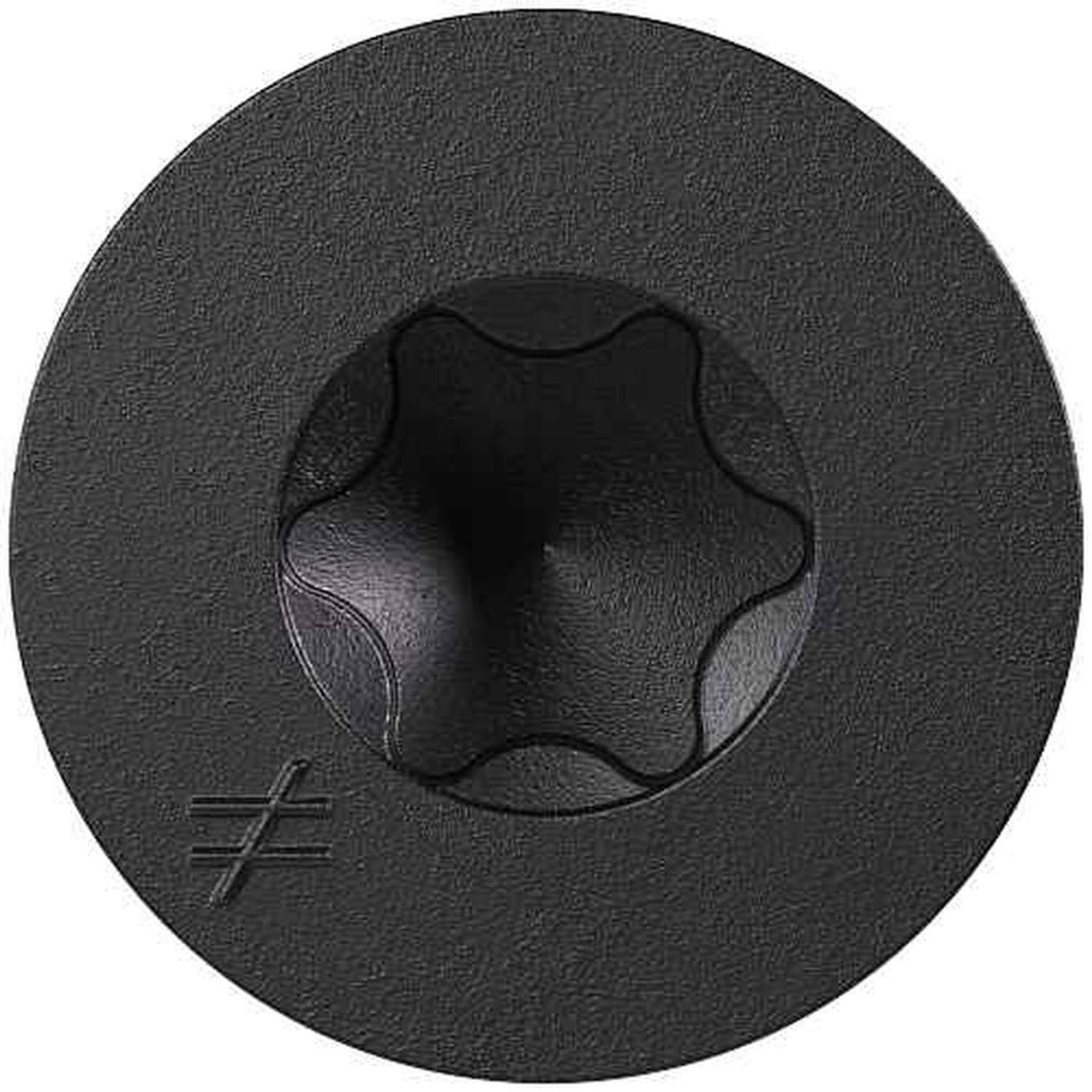

- 6-lobe drive for positive bit engagement
- Superior tension load performance
- Designed for use with standard ANSI drill bits
- Serrated screw point for easier starts
- Recommended for use with impact drivers or cordless drills
- Code listed for uncracked concrete and masonry applications
Simpson Strong-Tie TNTBL18134TF Applications
- Electrical boxes and conduit mounting
- Switch boxes and light fixtures installation
- Window and threshold fastening
- Basement furring strips attachment
- Shelf mounting to concrete or CMU
- Handrail installation
Simpson Strong-Tie TNTBL18134TF Installation Overview
- Drill a hole using the specified diameter carbide drill bit.
- Position the fixture and insert the screw.
- Tighten using a drill and the Titen Turbo installation tool.
Simpson Strong-Tie TNTBL18134TF Specifications
| Material | Carbon steel |
| Finish | Zinc plated with a baked-on ceramic coating |
| Size | 3/16 x 1 3/4 |
| Drill Bit Diameter | May-32 |
| Drive Type | T25 6-Lobe |
| Color | Black |
| Packaging Quantity | 100 |
NOTE: Steps must be taken to prevent inadvertent sustained loads above the listed allowable loads. Overtightening and bending moments can initiate cracks detrimental to the hardened screw’s performance.
