Simpson Strong-Tie TNTBL25334H Description

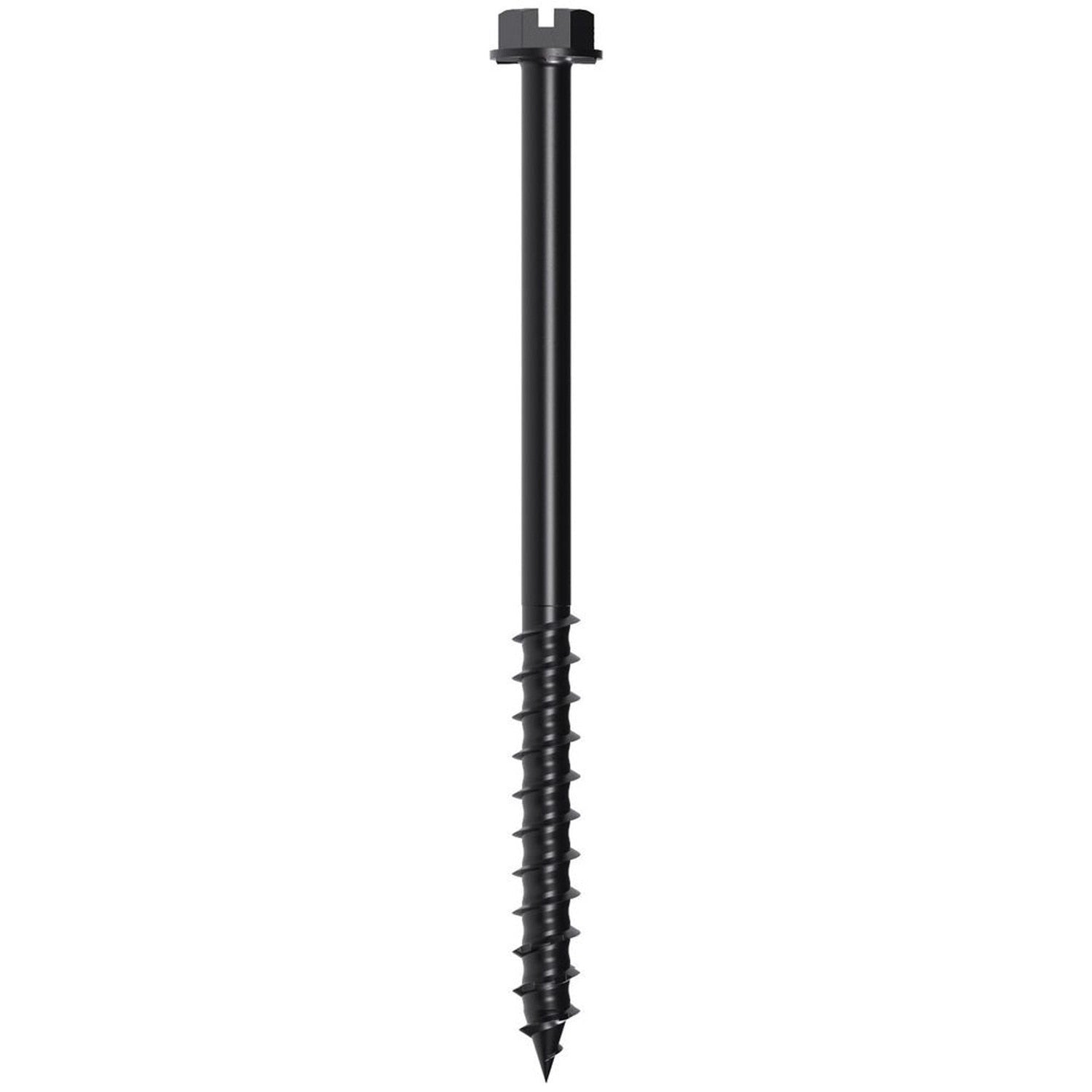

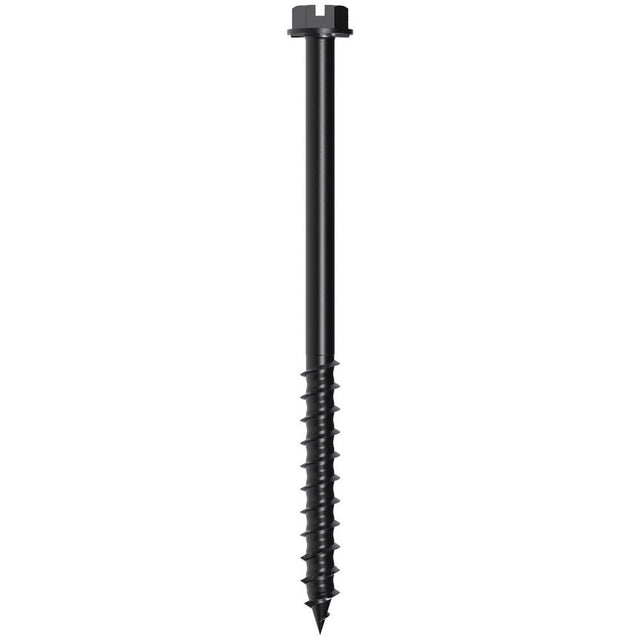

The Titen Turbo Hex-Head Concrete and Masonry Screw is designed for secure fastening in concrete and masonry applications, featuring a black coating and superior tension load performance.
Simpson Strong-Tie TNTBL25334H Includes
- (100) 1/4 in. x 3-3/4 in. Hex-Head Concrete and Masonry Screw
Simpson Strong-Tie TNTBL25334H Features
- Patented Torque Reduction Channel for reduced binding
- Available in multiple coated versions including black

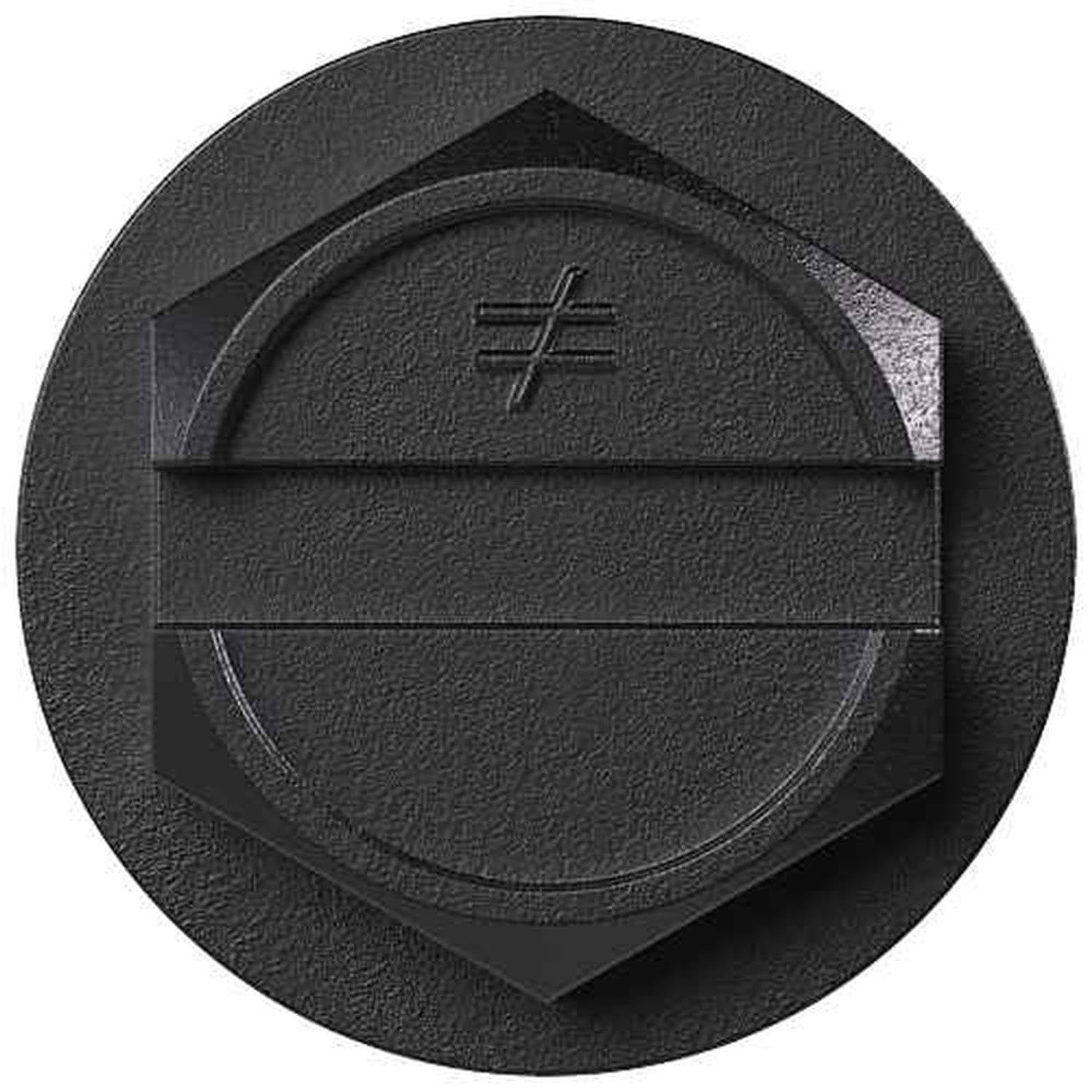

- Hex head design for secure fastening
- Superior tension load performance
- Designed for use with impact drivers or cordless drills
- Code listed for uncracked concrete and masonry applications
Simpson Strong-Tie TNTBL25334H Applications
- Electrical boxes and conduit
- Switch boxes and light fixtures
- Windows and thresholds
- Basement furring strips
- Shelf mounting to concrete/CMU
- Handrails
Simpson Strong-Tie TNTBL25334H Installation Overview
- Drill a hole using the specified diameter carbide drill bit
- Position fixture and insert screw
- Tighten using drill and Titen Turbo screw installation tool
Simpson Strong-Tie TNTBL25334H Specifications
| Material | Carbon Steel |
| Finish | Zinc plated with a baked-on ceramic coating |
| Size | 1/4 x 3 3/4 |
| Drill Bit Diameter | 16-Mar |
| Drive Type | 5/16 in. Hex |
| Color | Black |
| Packaging Quantity | 100 |
NOTE: Steps must be taken to prevent inadvertent sustained loads above the listed allowable loads. Overtightening and bending moments can initiate cracks detrimental to the hardened screw’s performance.
