Simpson Anchors  |  SKU: TNTBL25400TF  |  Barcode: 707392026068

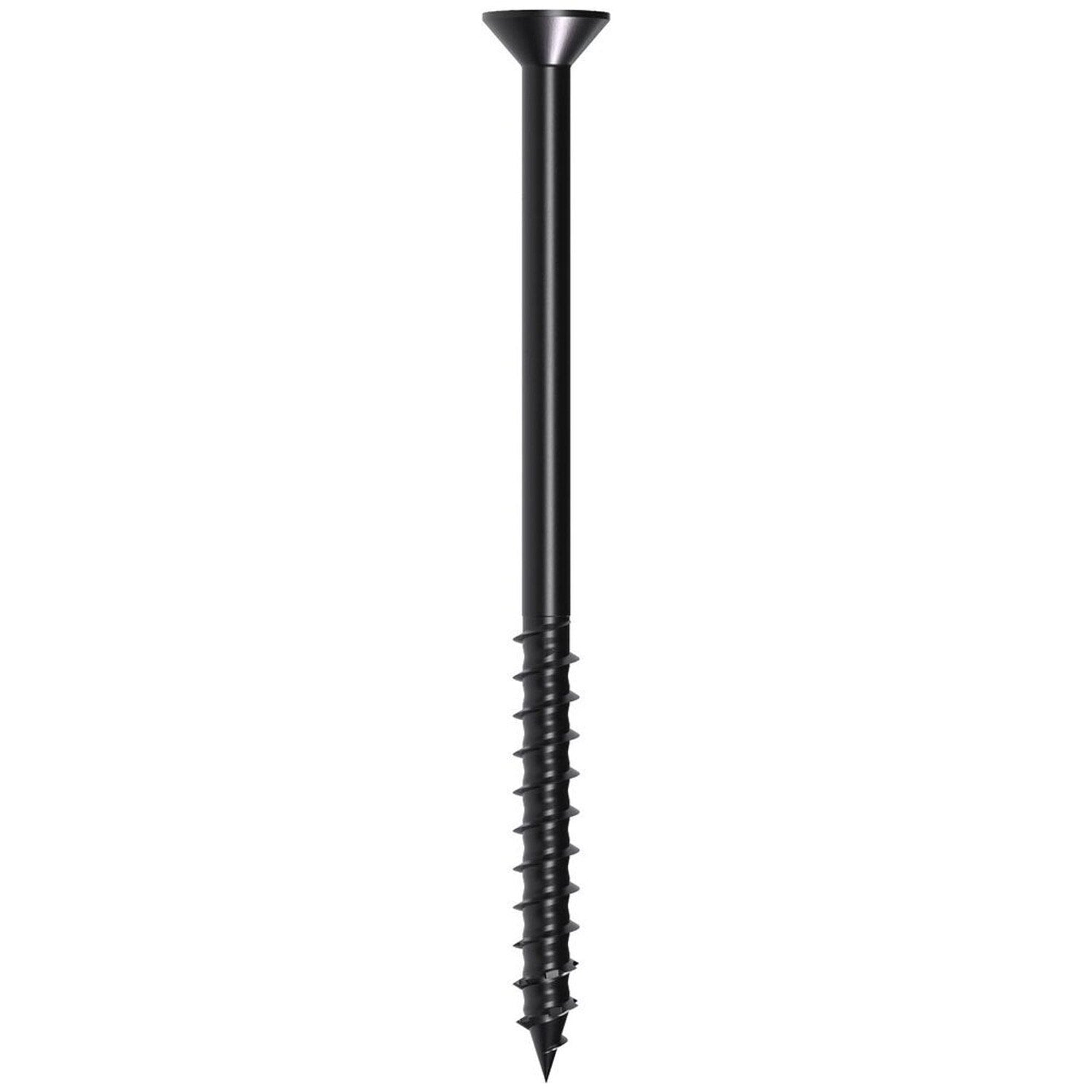

Simpson Strong-Tie TNTBL25400TF Titen Turbo (1/4" x 4") T30 Flat-Head Concrete and Masonry Screw, Black (100 Pack)

$34.12

Description

Simpson Strong-Tie TNTBL25400TF Description

The Titen Turbo 1/4 in. x 4 in. 6-Lobe Flat-Head Concrete and Masonry Screw is designed for secure and efficient fastening in concrete and masonry applications.

Simpson Strong-Tie TNTBL25400TF Includes

  • (100) 1/4 in. x 4 in. 6-Lobe Flat-Head Concrete and Masonry Screw
  • (1) T30 driver bit

Simpson Strong-Tie TNTBL25400TF Features

  • Patented Torque Reduction Channel for reduced binding
  • Available in multiple coated versions including black

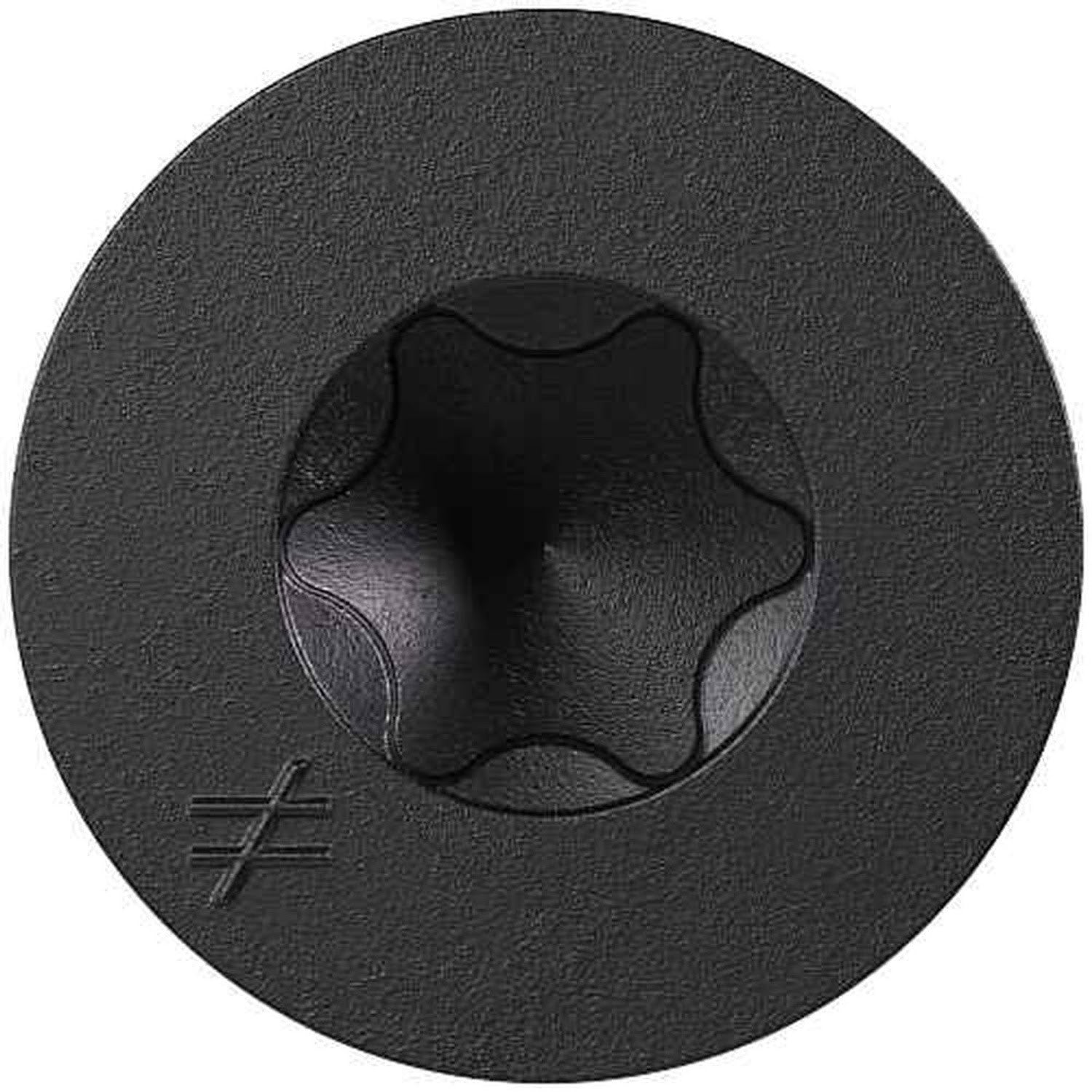

  • 6-lobe drive for positive bit engagement
  • Superior tension load performance
  • Designed for use with standard ANSI drill bits
  • Serrated screw point for easier starts
  • Recommended for use with impact drivers or cordless drills
  • Code listed for uncracked concrete and masonry applications

Simpson Strong-Tie TNTBL25400TF Applications

  • Electrical boxes and conduit mounting
  • Switch boxes and light fixtures installation
  • Window and threshold fastening
  • Basement furring strips attachment
  • Shelf mounting to concrete or CMU
  • Handrail installation

Simpson Strong-Tie TNTBL25400TF Installation Overview

  1. Drill a hole in the base material using the specified diameter carbide drill bit.
  2. Position the fixture and insert the screw.
  3. Tighten using a drill and the Titen Turbo screw installation tool fitted with a hex socket or 6-lobe bit socket.

Simpson Strong-Tie TNTBL25400TF Specifications

Material Carbon steel
Finish Zinc plated with a baked-on ceramic coating
Size 1/4 x 4 in.
Drill Bit Diameter 3/16 in.
Drive Type T30 6-Lobe
Color Black
Packaging Quantity 100

NOTE: Steps must be taken to prevent inadvertent sustained loads above the listed allowable loads. Overtightening and bending moments can initiate cracks detrimental to the hardened screw’s performance.
