Simpson Strong-Tie TNTS18134TFB Description
The Simpson Strong-Tie Titen Turbo screw anchor is a heavy-duty fastener designed for quick and easy installation in concrete and masonry applications. It features a patented torque reduction channel for smooth driving and superior holding power.
Simpson Strong-Tie TNTS18134TFB Includes
- (1000) 3/16 x 1-3/4 in. Titen Turbo Concrete and Masonry Screws
- (2) T25 Drive Bits
Simpson Strong-Tie TNTS18134TFB Features
- Patented Torque Reduction Channel for reduced binding and smooth driving
- Available in multiple finishes including Silver Zinc
- Flat head design for flush installation

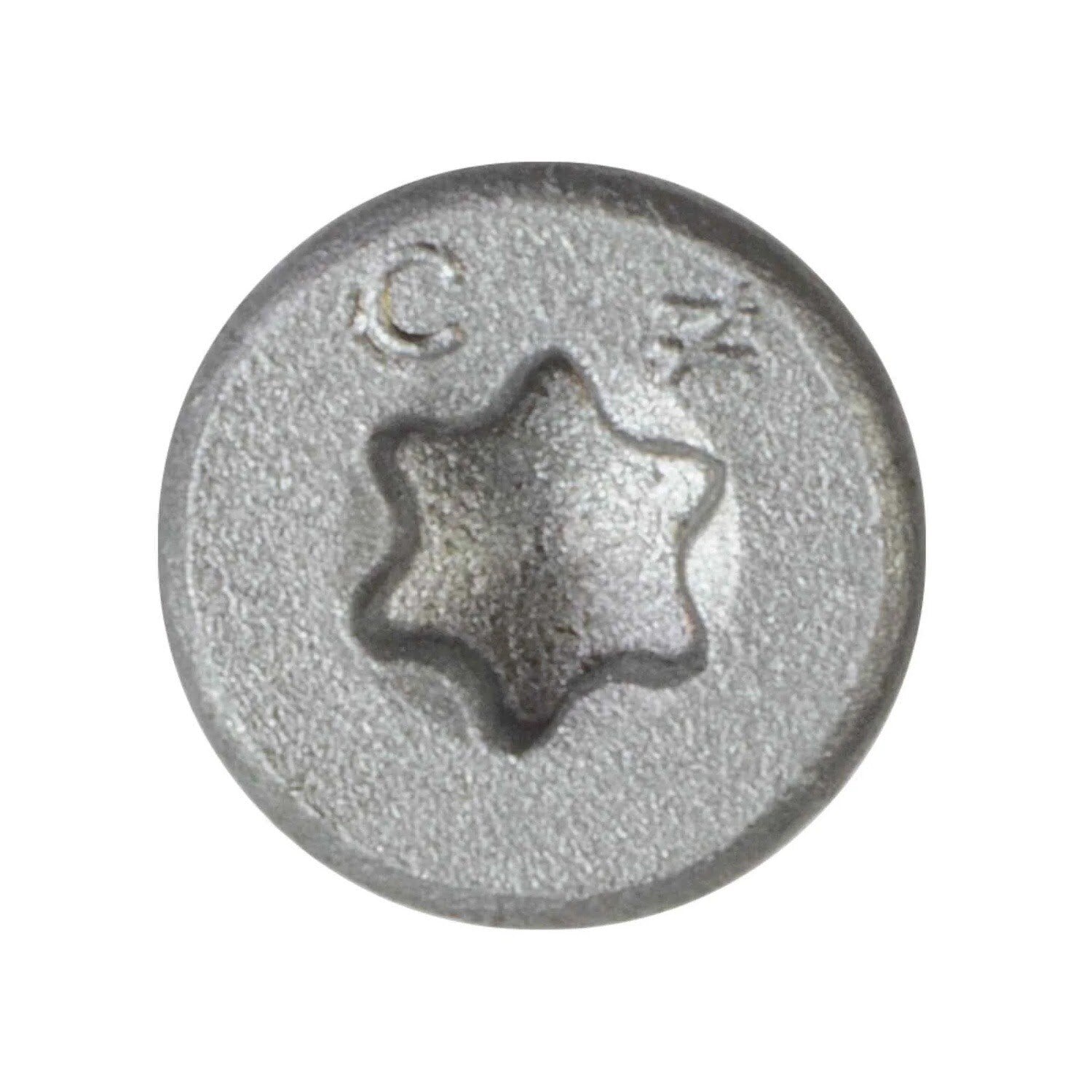

- 6-lobe drive for positive bit engagement and long bit life
- Superior tension load performance
- Designed for use with standard ANSI drill bits
- Serrated screw point for easier starts when fastening wood
- Code listed for uncracked concrete and masonry applications
Simpson Strong-Tie TNTS18134TFB Applications
- Electrical boxes and conduit installation
- Switch boxes and light fixtures mounting
- Window and threshold anchoring
- Basement furring strips attachment
- Shelf mounting to concrete or CMU
- Handrails installation
Simpson Strong-Tie TNTS18134TFB Installation Overview
- Drill a hole in the base material using a 5/32" carbide drill bit to the specified depth.
- Position the fixture and insert the screw.
- Tighten using a drill and the Titen Turbo installation tool fitted with a hex socket or 6-lobe bit socket.
Simpson Strong-Tie TNTS18134TFB Specifications
| Material | Carbon Steel |
| Finish | Silver Zinc |
| Diameter | 3/16" |
| Length | 1-3/4" |
| Drill Bit Size | 5/32" |
| Drive Type | T25 Star Drive |
| Head Type | Flat Head |
| Packaging Quantity | 1000 |
NOTE: Designed for installation with an impact driver or cordless drill. Installation using the Titen Turbo Installation Tool is recommended. Matched-tolerance bit not required; use a standard ANSI drill bit for installation. Intended for use in dry interior environments only.
