Simpson Strong-Tie TNTS25234TFB Description

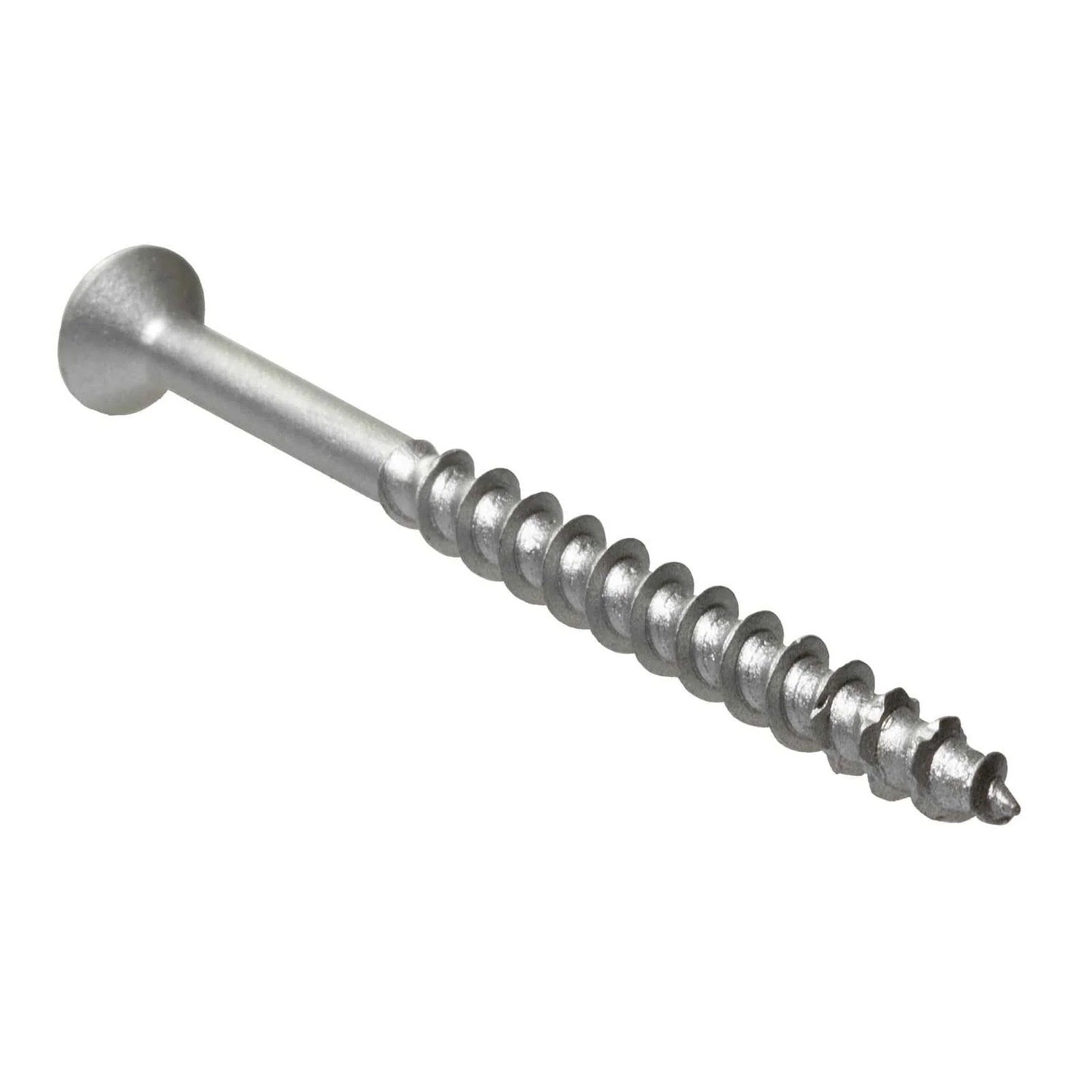

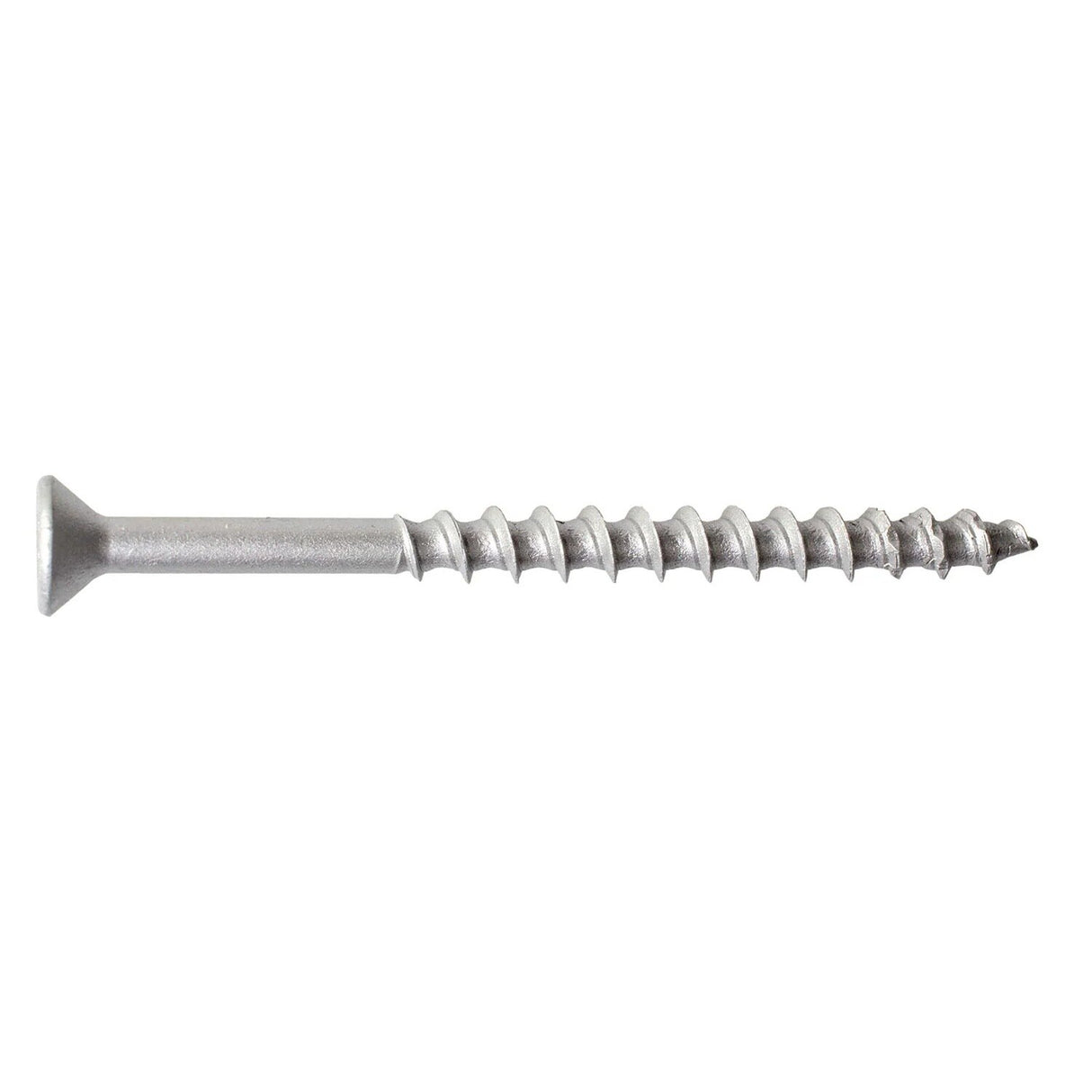

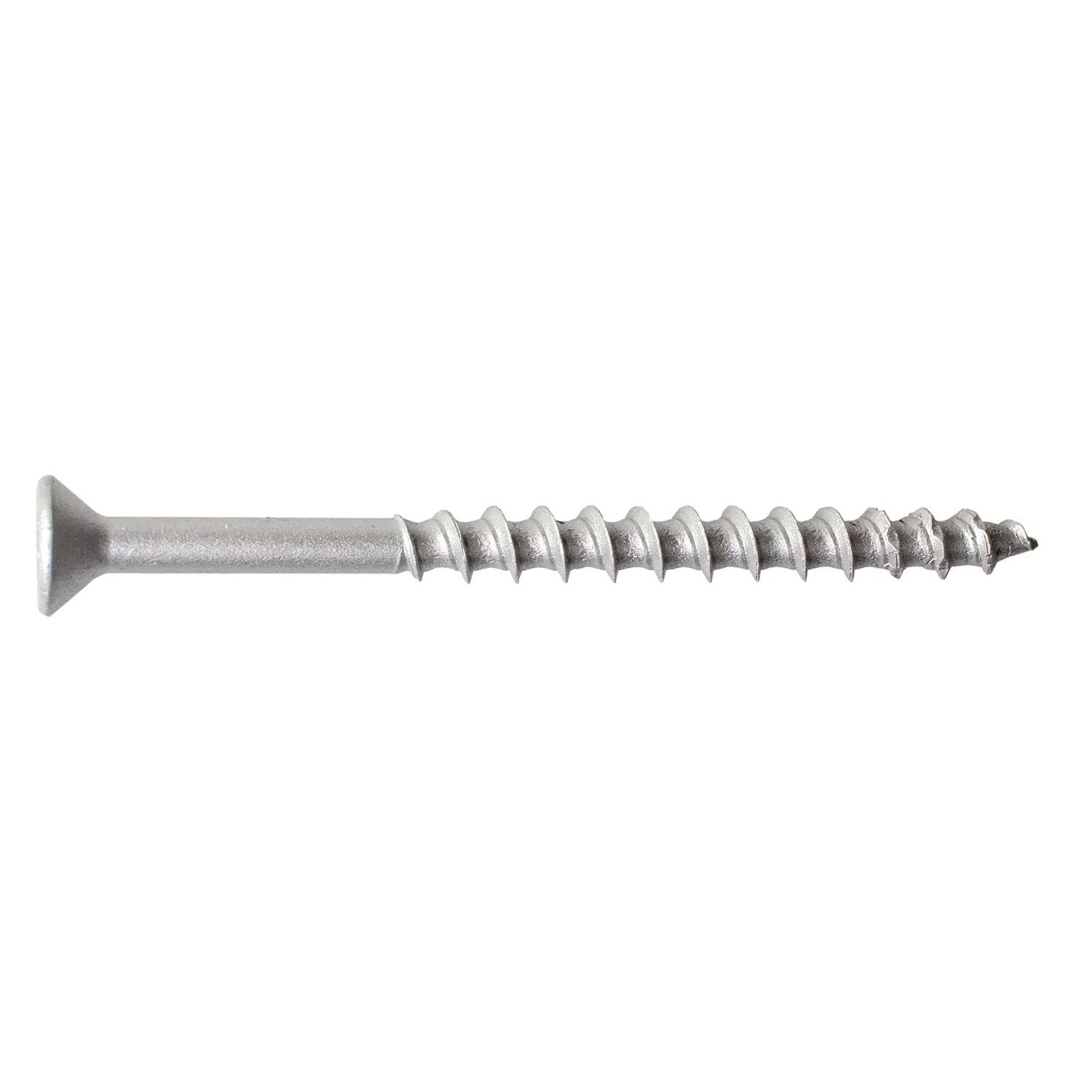

The Simpson Strong-Tie Titen Turbo screw anchor is a heavy-duty fastener designed for quick and easy installation in concrete and masonry.
Simpson Strong-Tie TNTS25234TFB Includes
- (1000) 1/4in x 2-3/4in Titen Turbo Concrete and Masonry Screws
- (2) T25 Drive Bits
Simpson Strong-Tie TNTS25234TFB Features
- Patented Torque Reduction Channel for reduced binding
- Available in multiple finishes including Silver
- Hex head or 6-lobe-drive countersunk flat head options

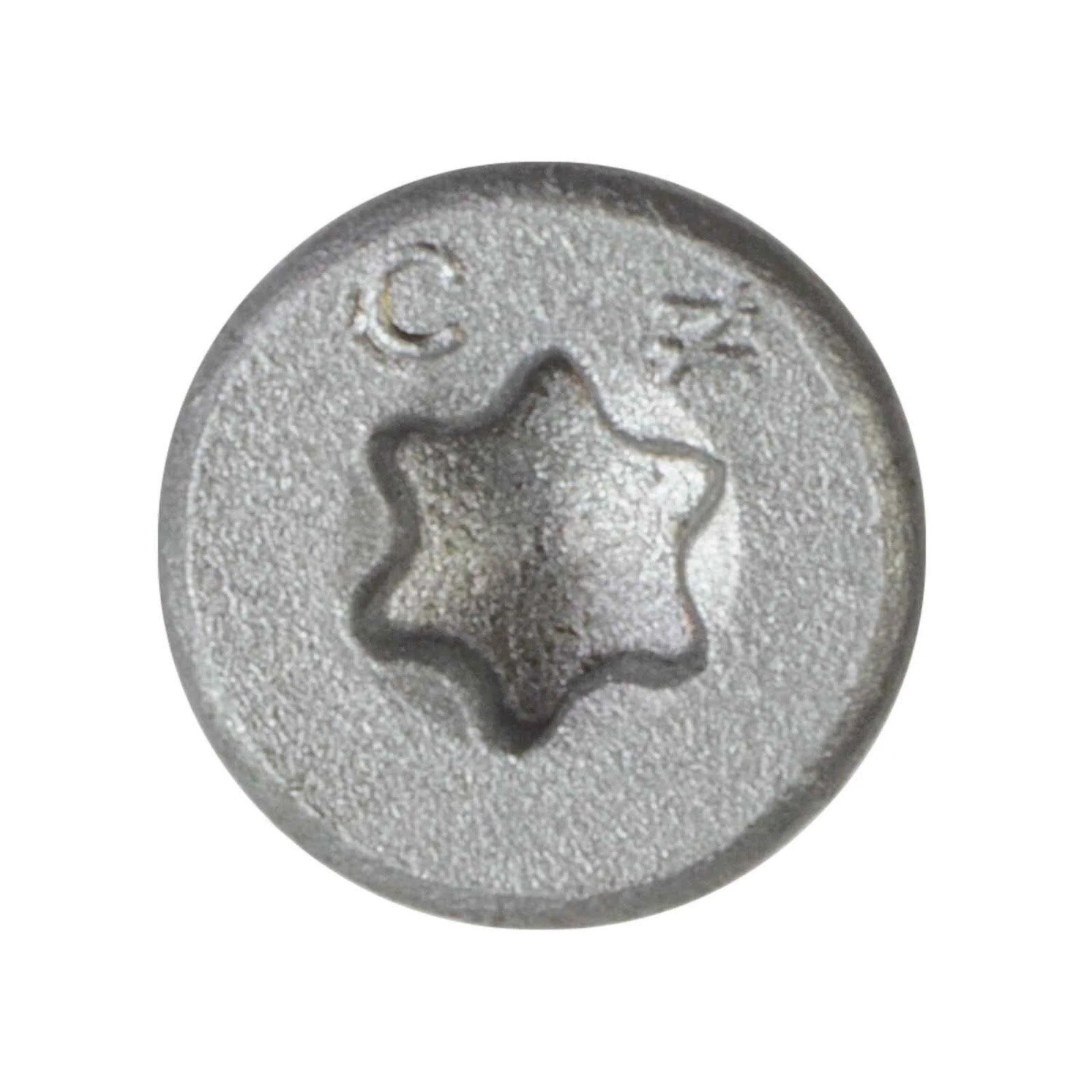

- 6-lobe drive for easy installation and long bit life
- Superior tension load performance
- Designed for use with standard ANSI drill bits
- Serrated screw point for easier starts
- Recommended for use with impact drivers or cordless drills
- Code listed for uncracked concrete and masonry applications
Simpson Strong-Tie TNTS25234TFB Applications
- Electrical boxes and conduit mounting
- Switch boxes and light fixtures installation
- Window and threshold anchoring
- Basement furring strips attachment
- Shelf mounting to concrete or CMU
- Handrail installation
Simpson Strong-Tie TNTS25234TFB Installation Overview
- Drill a hole using the specified diameter carbide drill bit
- Position the fixture and insert the screw
- Tighten using a drill and the Titen Turbo installation tool
Simpson Strong-Tie TNTS25234TFB Specifications
| Material | Carbon Steel |
| Finish | Zinc plated with a baked-on ceramic coating |
| Diameter | 1/4 in. |
| Length | 2-3/4 in. |
| Drill Bit Diameter | 3/16 in. |
| Drive Type | T30 6-Lobe |
| Head Type | Flat Head |
| Color | Silver |
| Packaging Quantity | 1000 |
NOTE: Designed for installation with an impact driver or cordless drill. Installation using the Titen Turbo Installation Tool is recommended. Matched-tolerance bit not required; use a standard ANSI drill bit for installation. Intended for use in dry interior environments only.
