Simpson Strong-Tie TNTS25314TFB Description

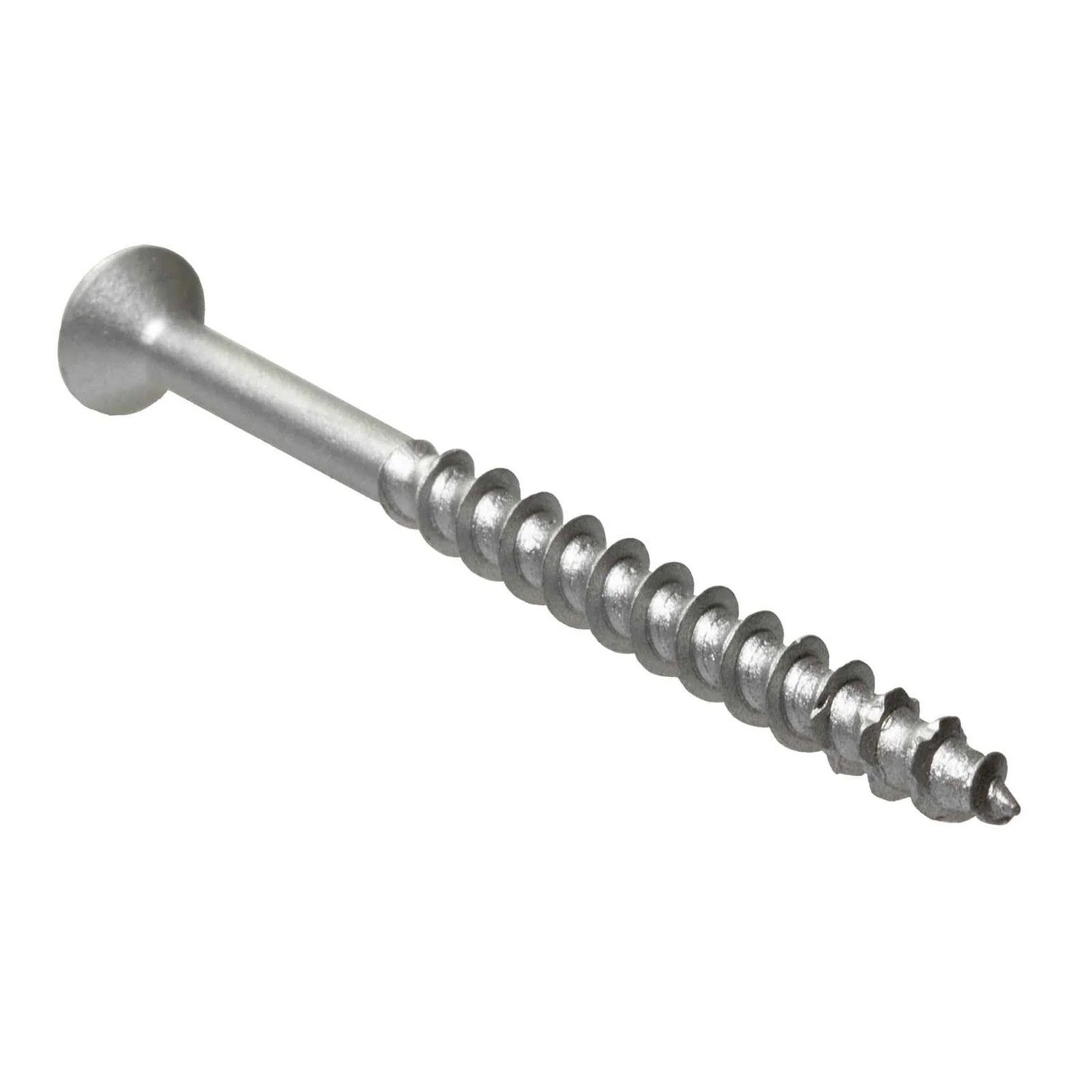

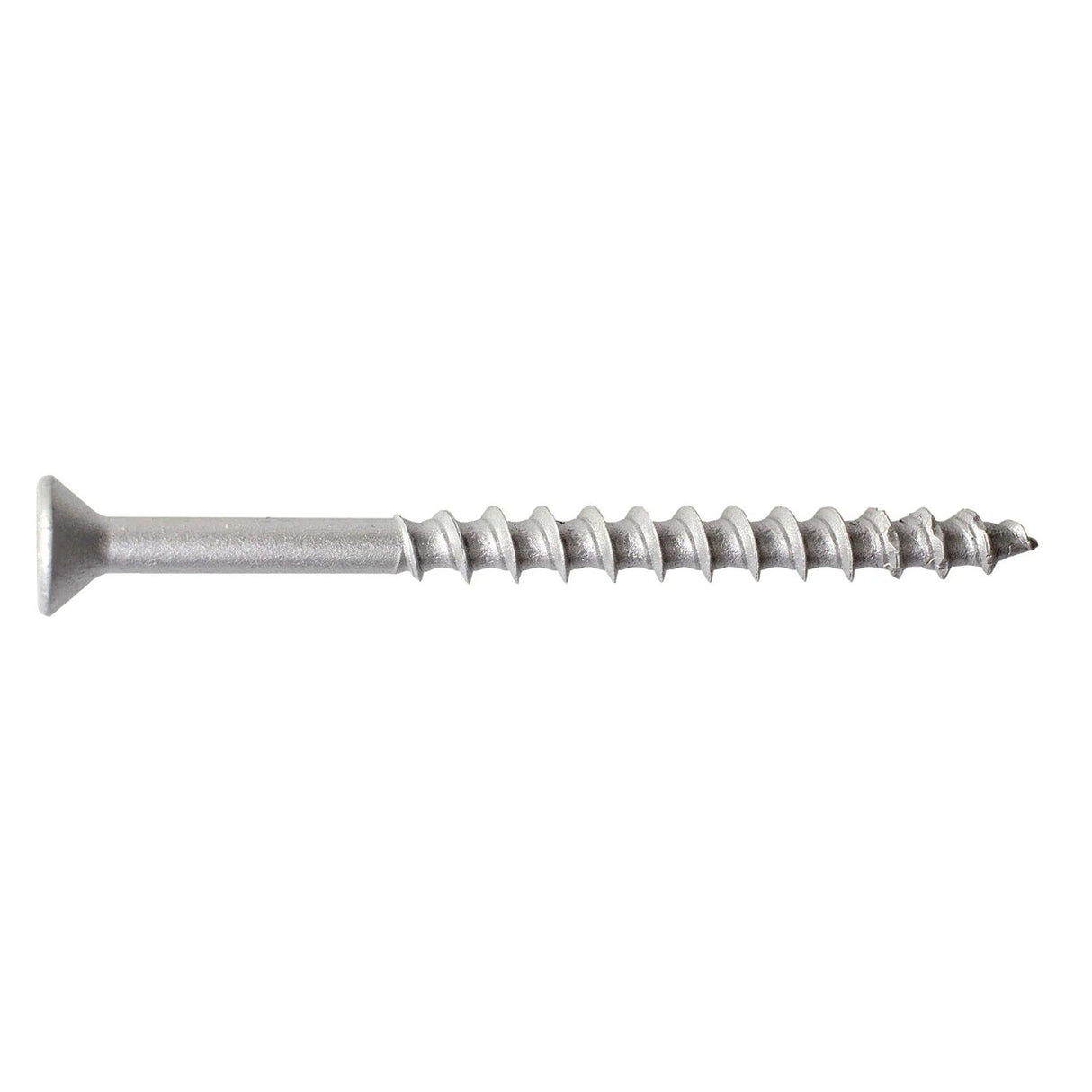

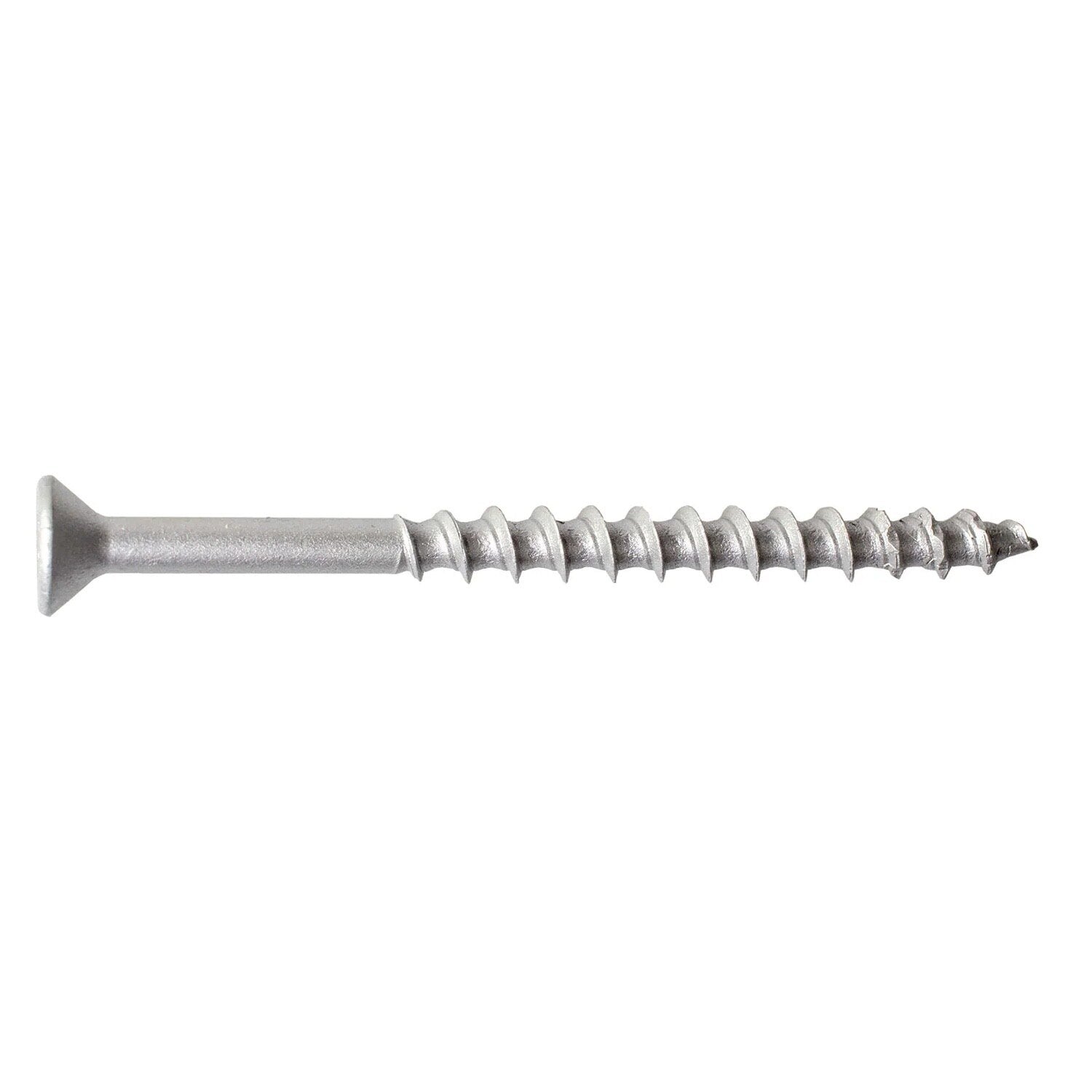

The Titen Turbo Concrete and Masonry Screw is designed for secure and efficient fastening in concrete and masonry applications, featuring a patented torque reduction channel and a durable zinc-plated ceramic coating.
Simpson Strong-Tie TNTS25314TFB Includes
- (1000) 1/4in x 3-1/4in Titen Turbo Concrete and Masonry Screw
- (2) T25 Drive Bits
Simpson Strong-Tie TNTS25314TFB Features
- Patented Torque Reduction Channel for reduced binding
- Available in multiple coated versions
- Hex head or 6-lobe-drive countersunk flat head options

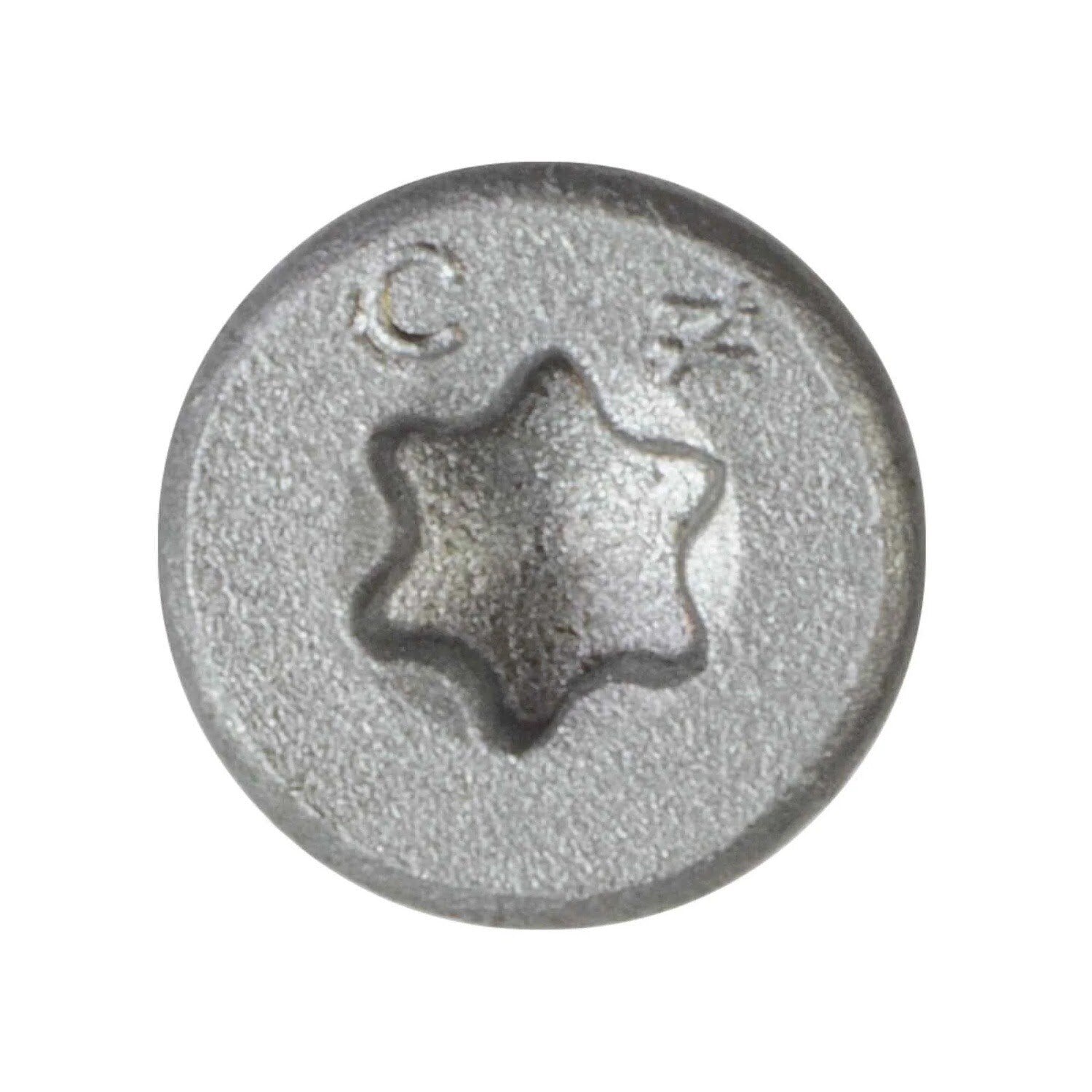

- 6-lobe drive for positive bit engagement
- Superior tension load performance
- Standard ANSI drill bit compatible
- Serrated screw point for easier starts
- Designed for impact driver or cordless drill installation
- Recommended for dry interior environments
- Code listed for uncracked concrete and masonry applications
Simpson Strong-Tie TNTS25314TFB Applications
- Electrical boxes and conduit installation
- Switch boxes and light fixtures mounting
- Window and threshold fastening
- Basement furring strips attachment
- Shelf mounting to concrete/CMU
- Handrails installation
Simpson Strong-Tie TNTS25314TFB Installation Overview
- Drill a hole in the base material using the specified diameter carbide drill bit.
- Position the fixture, insert the screw, and tighten using a drill and the Titen Turbo installation tool.
Simpson Strong-Tie TNTS25314TFB Specifications
| Material | Carbon steel |
| Finish | Zinc plated with a baked-on ceramic coating |
| Size | 1/4 x 3 1/4 in. |
| Drill Bit Diameter | 3/16 in. |
| Drive Type | T30 6-Lobe |
| Color | Silver |
| Packaging Quantity | 1000 |
NOTE: Steps must be taken to prevent inadvertent sustained loads above the listed allowable loads. Overtightening and bending moments can initiate cracks detrimental to the hardened screw’s performance.
Toolup Part # :
826281
