Simpson Anchors | SKU:
TNTW18134TFC75

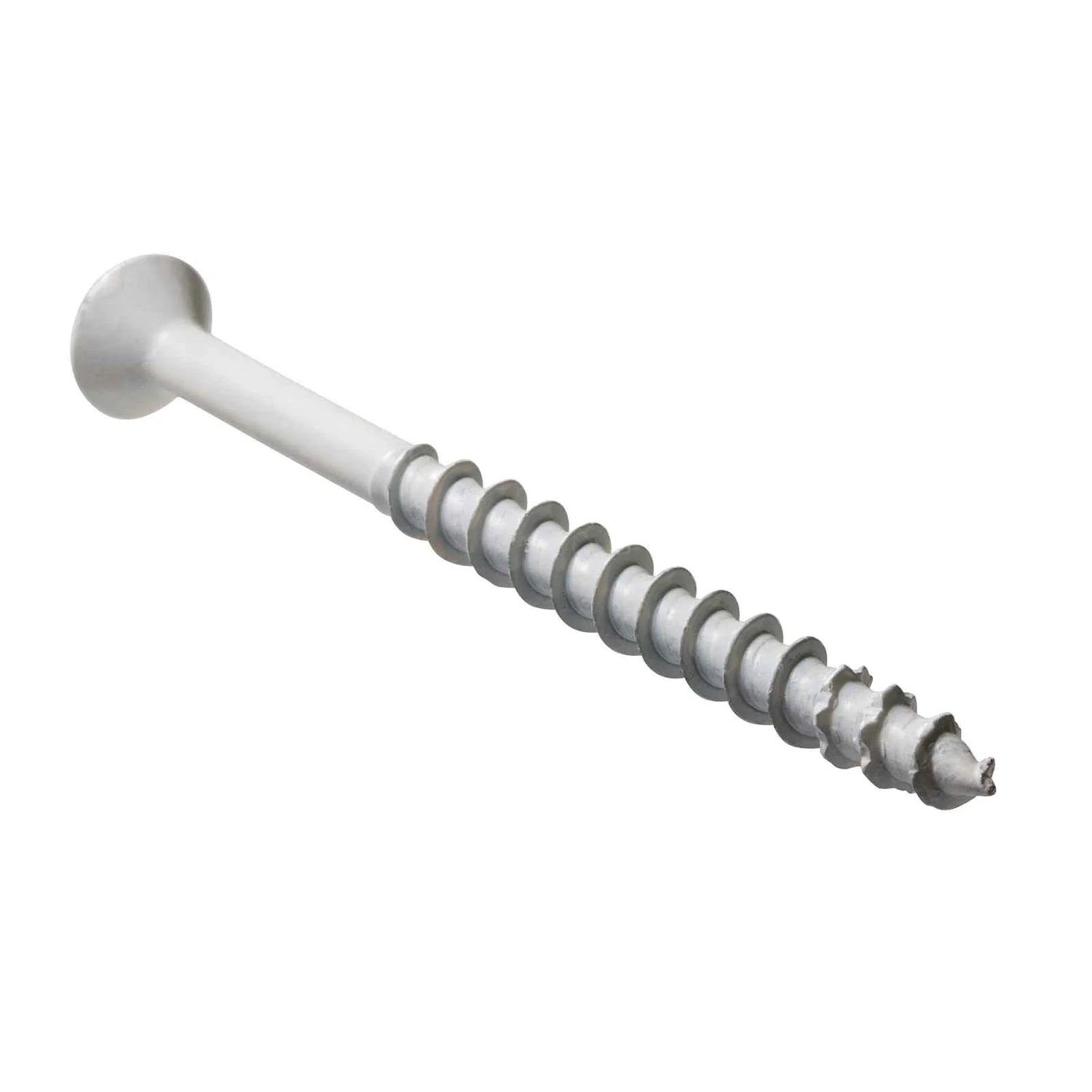

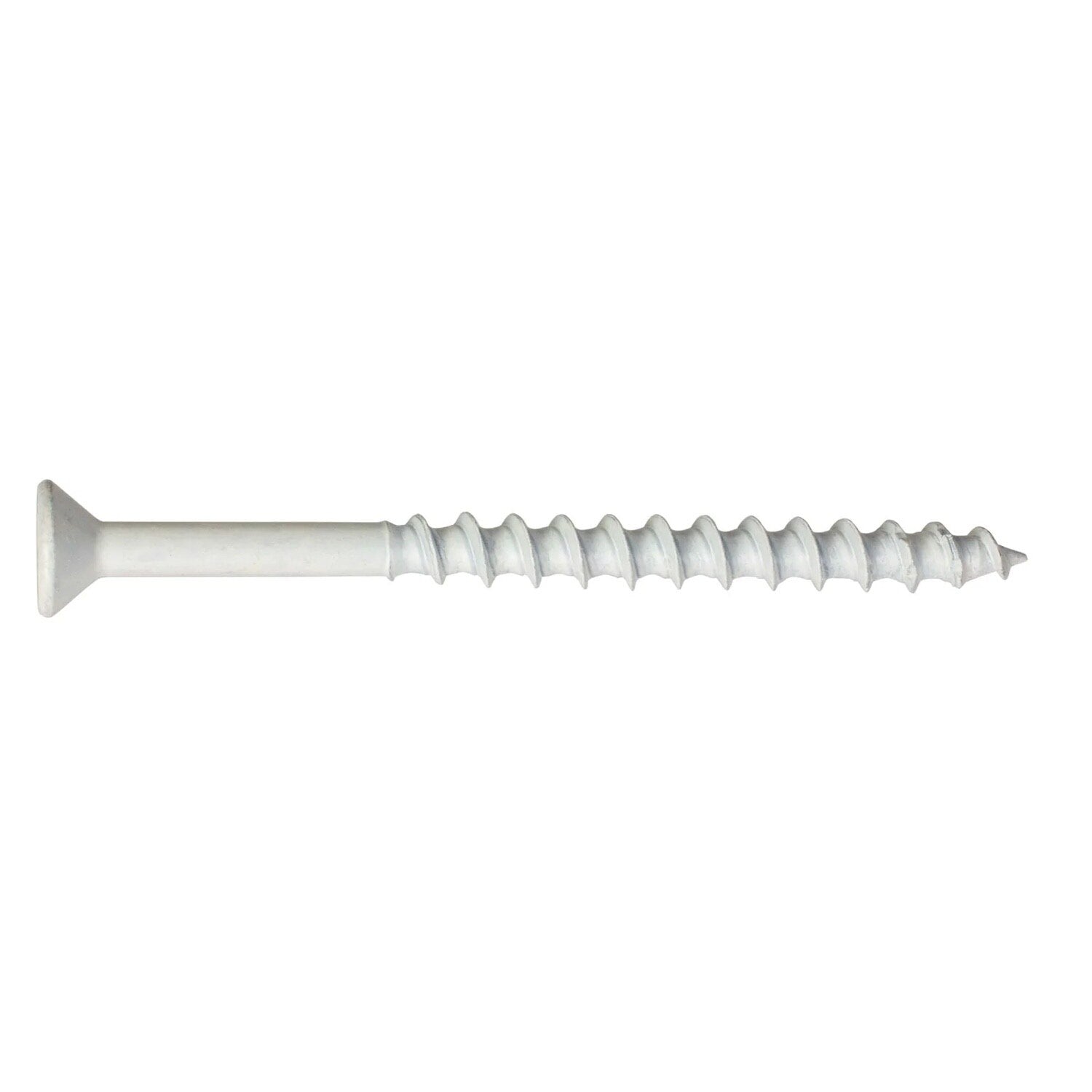

Simpson Strong-Tie TNTW18134TFC75 Titen Turbo (3/16" x 1-3/4") T25 Flat-Head Concrete and Masonry Screw, White (75 Pack)
$9.14
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie TNTW18134TFC75 Description
The Simpson Strong-Tie Titen Turbo screw anchor is a heavy-duty fastener designed for quick and easy installation in concrete and masonry.
Simpson Strong-Tie TNTW18134TFC75 Includes
- (75) 3/16 x 1-3/4 in. Flat Head Concrete and Masonry Screws
- (1) T25 Drive Bit
- (1) Standard ANSI Drill Bit
Simpson Strong-Tie TNTW18134TFC75 Features
- Patented Torque Reduction Channel for reduced binding
- Available in multiple coated versions

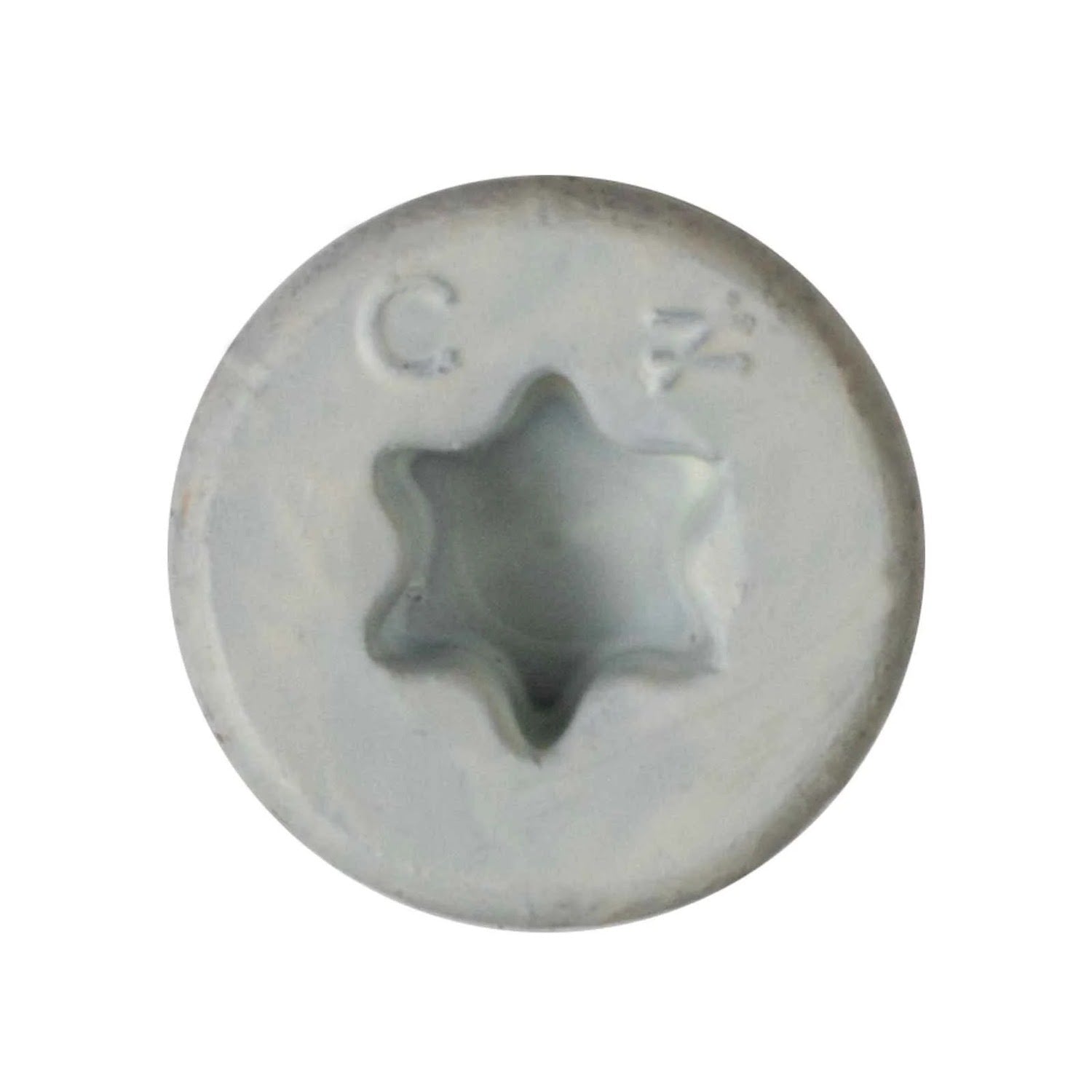

- 6-lobe drive for easy installation
- Superior tension load performance
- Designed for use with impact drivers or cordless drills
Simpson Strong-Tie TNTW18134TFC75 Applications
- Wood-to-concrete anchoring
- Wood-to-wood anchoring
- Electrical boxes and conduit mounting
- Light fixtures and window installations
Simpson Strong-Tie TNTW18134TFC75 Installation Overview
- Drill a hole using the specified diameter carbide drill bit.
- Position the fixture and insert the screw.
- Tighten using a drill and the Titen Turbo installation tool.
Simpson Strong-Tie TNTW18134TFC75 Specifications
| Diameter | 3/16" |
| Length | 1-3/4" |
| Material | Carbon Steel |
| Finish | White Zinc |
| Drive Type | T25 Star Drive |
| Head Type | Flat Head |
| Drill Bit Size | 5/32" |
NOTE: Designed for installation with an impact driver or cordless drill. Installation using the Titen Turbo Installation Tool is recommended. Matched-tolerance bit not required; use a standard ANSI drill bit for installation. Intended for use in dry interior environments only.
