Simpson Anchors  |  SKU: TNTW18134TFC8  |  Barcode: 707392011477

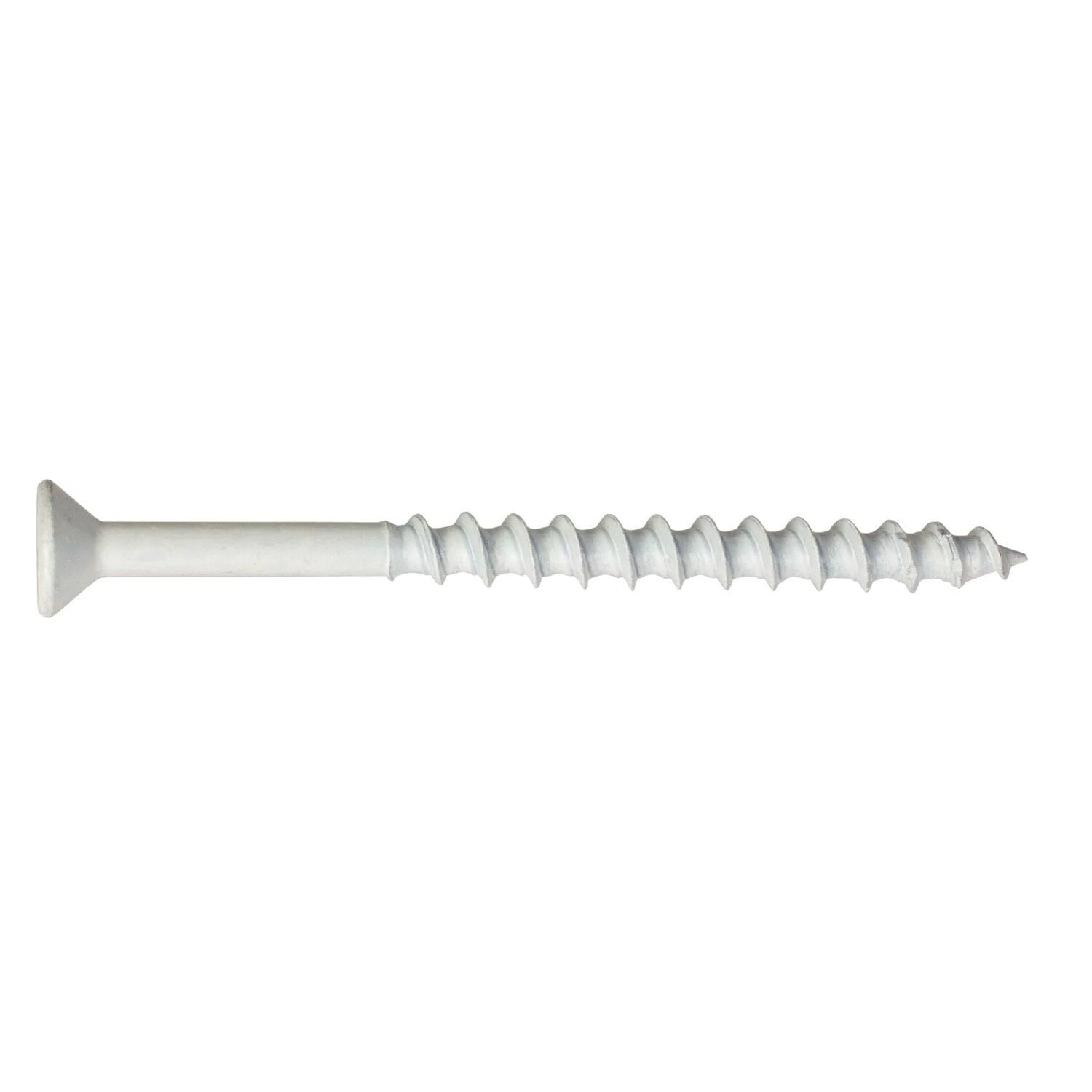

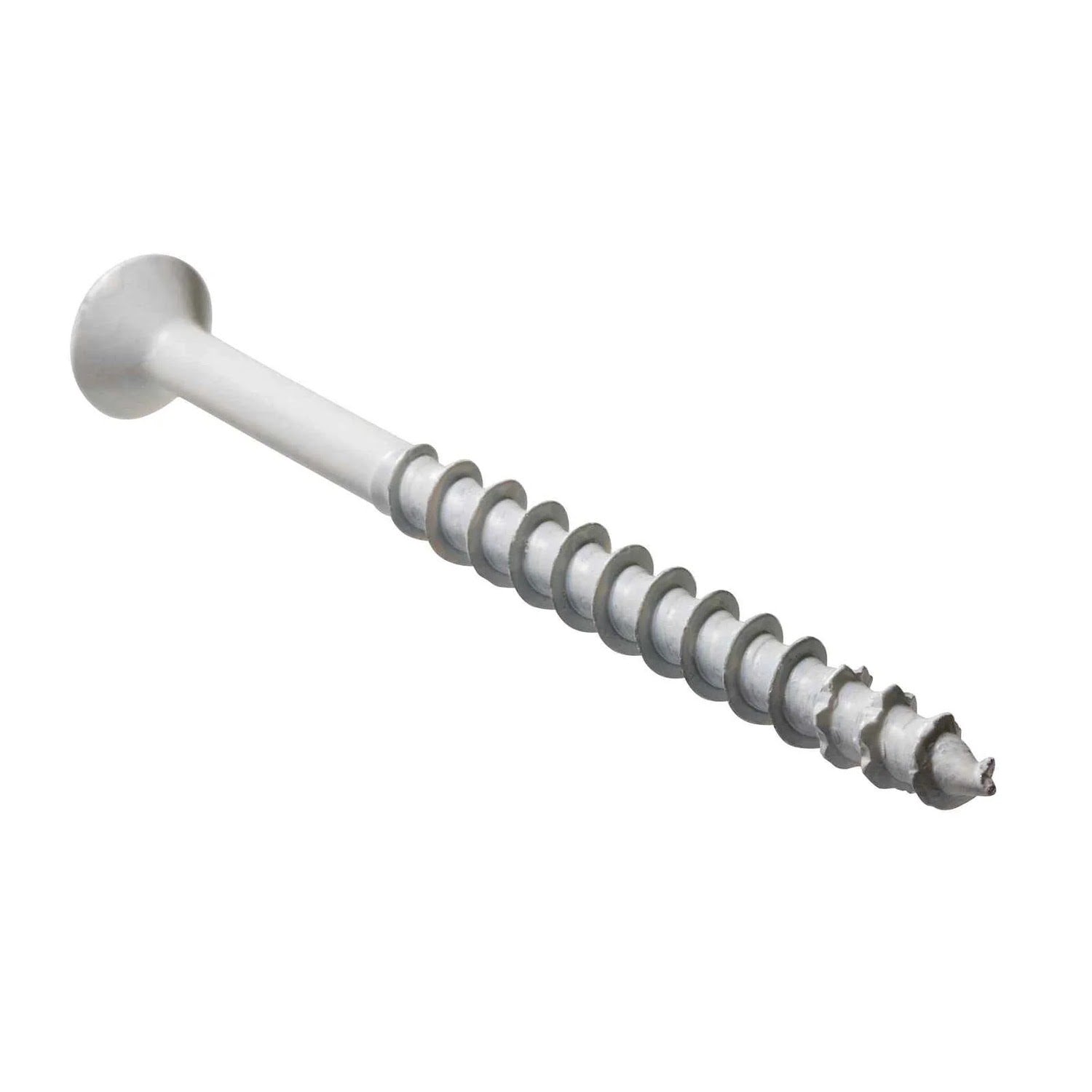

Simpson Strong-Tie TNTW18134TFC8 Titen Turbo (3/16" x 1-3/4") T25 Flat-Head Concrete and Masonry Screw, White (8 Pack)

$3.14

Description

Simpson Strong-Tie TNTW18134TFC8 Description

The Simpson Strong-Tie Titen Turbo screw anchor is a heavy-duty fastener featuring an innovative torque reduction channel to trap drilling dust, reducing binding and snapping. It offers smooth driving with less torque and superior holding power.

Simpson Strong-Tie TNTW18134TFC8 Includes

  • (8) Titen Turbo Screw Anchor

Simpson Strong-Tie TNTW18134TFC8 Features

  • Patented Torque Reduction Channel for reduced binding
  • Available in multiple coated versions including White Zinc

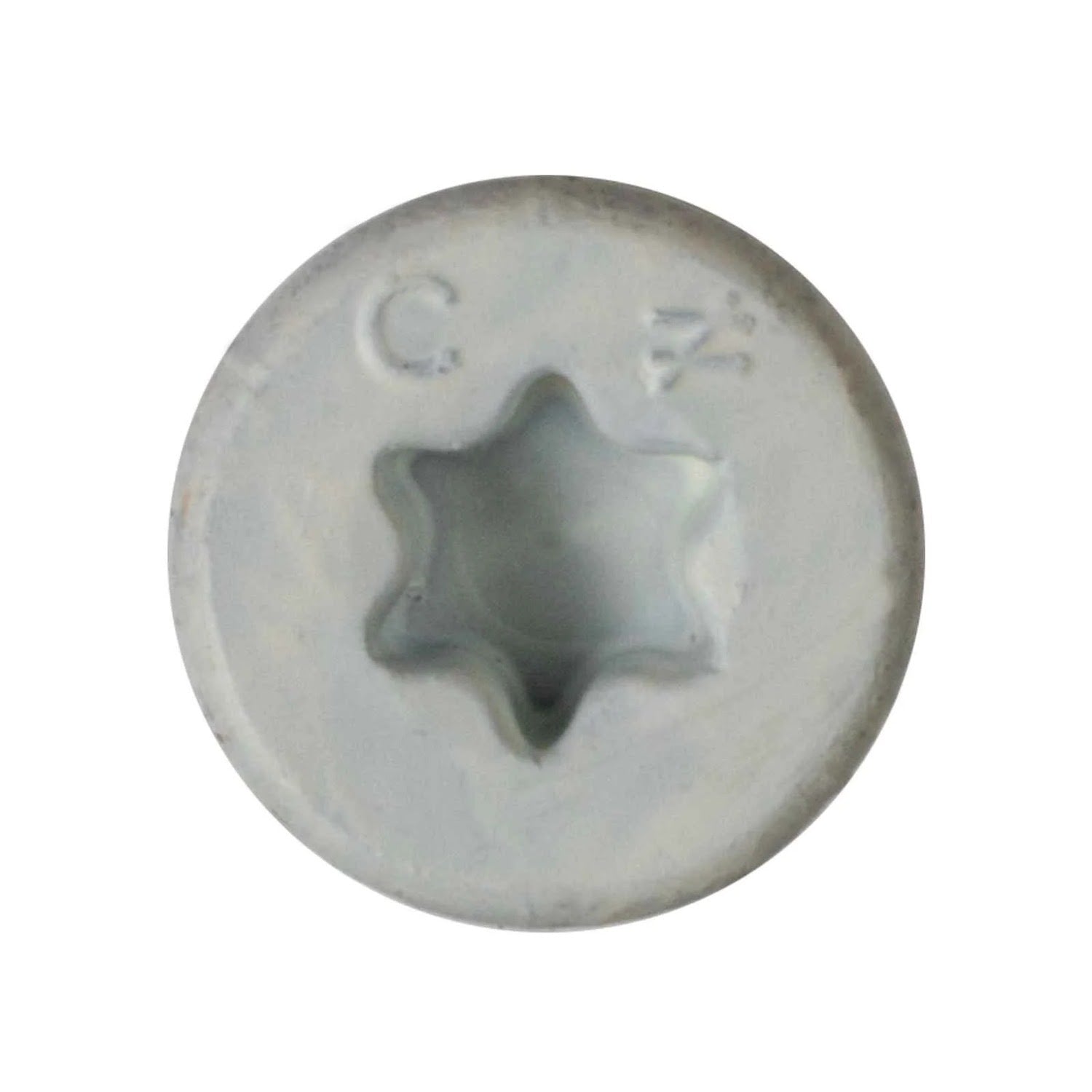

  • 6-lobe drive for positive bit engagement
  • Superior tension load performance
  • Designed for use with standard ANSI drill bits
  • Serrated screw point for easier starts
  • Recommended for use with impact drivers or cordless drills

Simpson Strong-Tie TNTW18134TFC8 Applications

  • Wood-to-concrete anchoring
  • Wood-to-wood anchoring
  • Electrical boxes and conduit mounting
  • Switch boxes and light fixtures installation
  • Window and threshold anchoring
  • Basement furring strips attachment
  • Shelf mounting to concrete or CMU
  • Handrails installation

Simpson Strong-Tie TNTW18134TFC8 Installation Overview

  1. Drill a hole in the base material using the specified diameter carbide drill bit.
  2. Position the fixture, insert the screw, and tighten using a drill and the Titen Turbo screw installation tool.

Simpson Strong-Tie TNTW18134TFC8 Specifications

Diameter 3/16"
Finish White Zinc
Length 1-3/4"
Material Carbon Steel
Drill bit size 5/32"
Drive type T25 Star Drive
Head type Flat Head
Quantity 8

NOTE: Designed for installation with an impact driver or cordless drill. Installation using the Titen Turbo Installation Tool is recommended. Matched-tolerance bit not required; use a standard ANSI drill bit for installation. Intended for use in dry interior environments only.
