Simpson Anchors  |  SKU: TNTW18214TFC75  |  Barcode: 707392011484

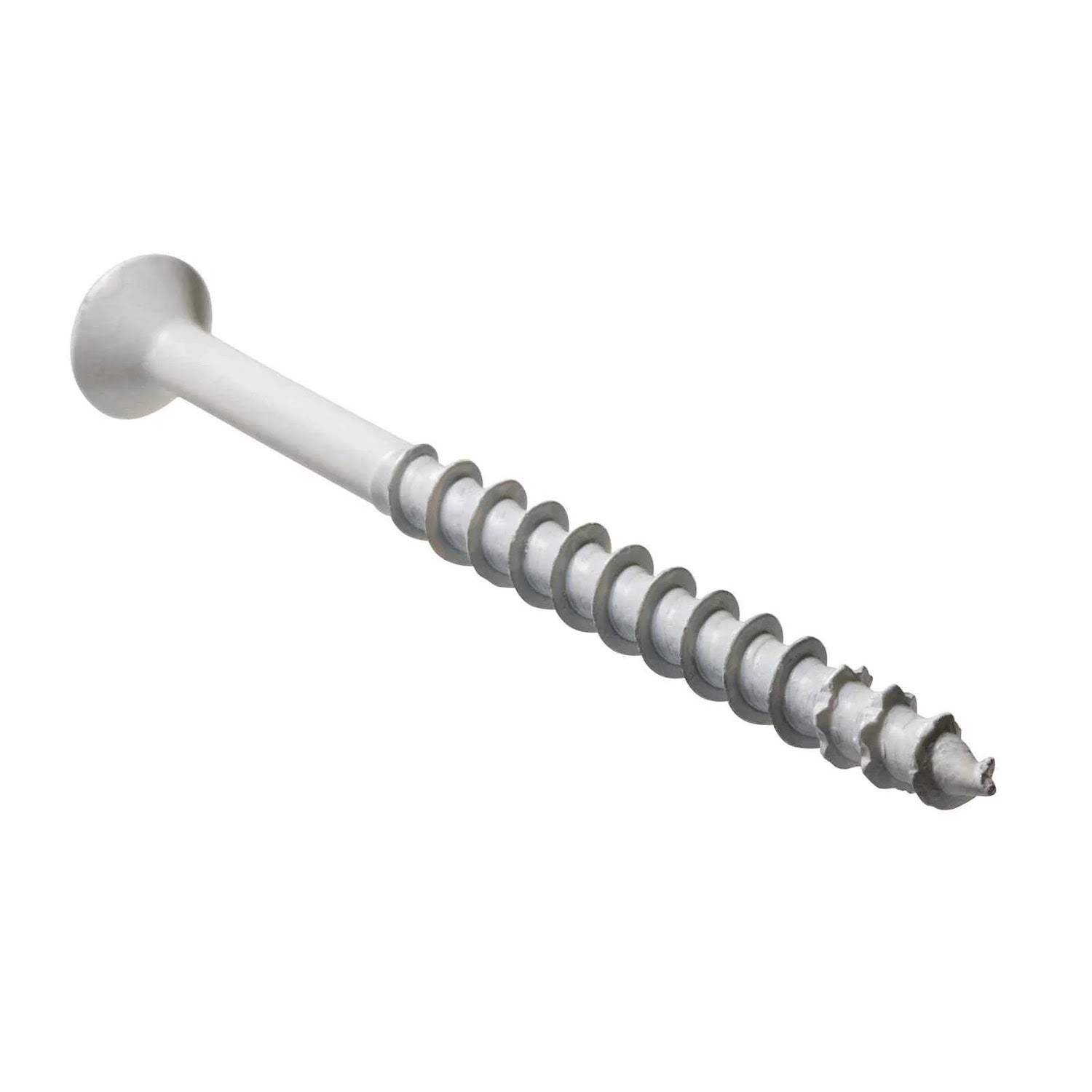

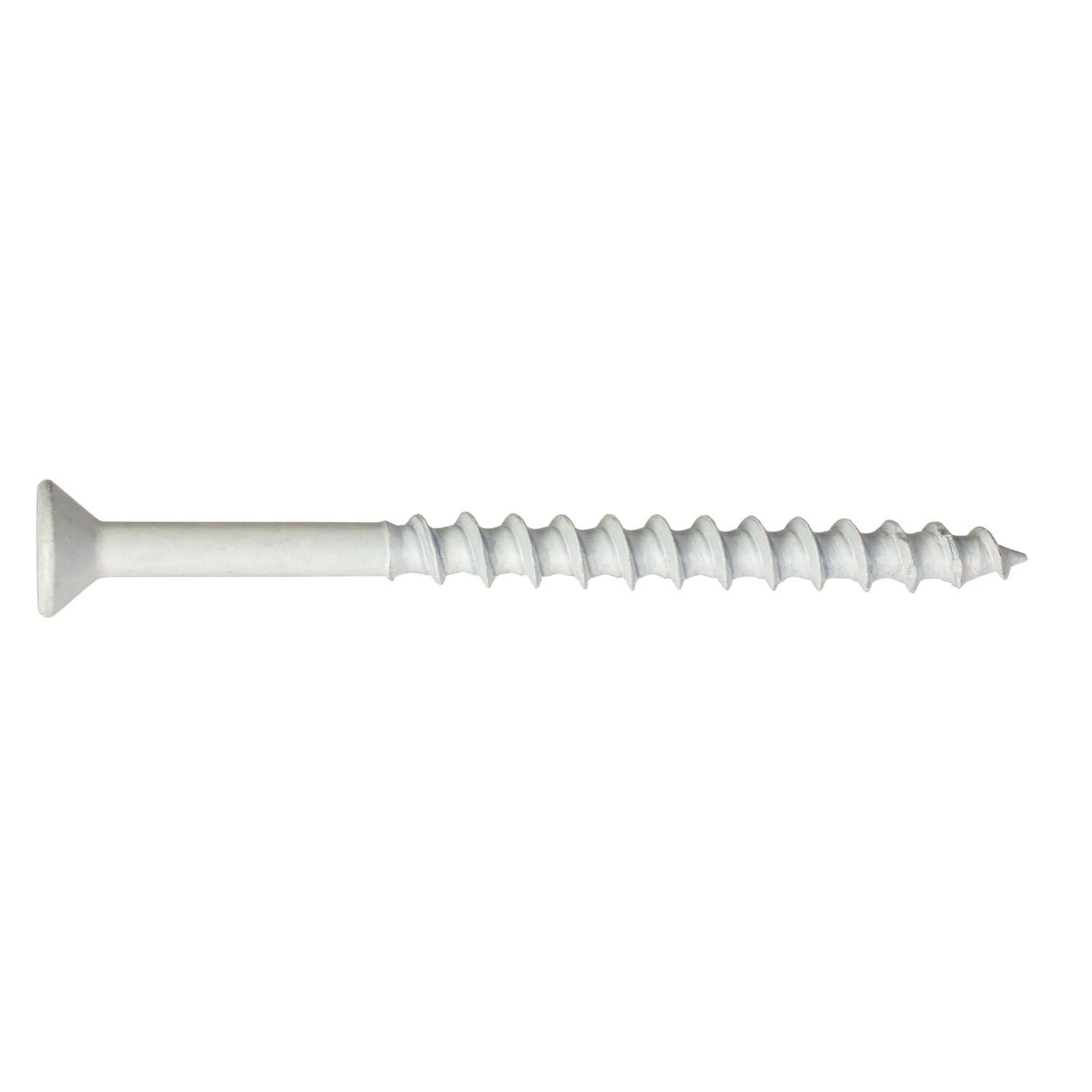

Simpson Strong-Tie TNTW18214TFC75 Titen Turbo (3/16" x 2-1/4") T25 Flat-Head Concrete and Masonry Screw, White (75 Pack)

$10.80

Description

Simpson Strong-Tie TNTW18214TFC75 Description

The Simpson Strong-Tie Titen Turbo screw anchor is a heavy-duty fastener designed for quick and easy installation in concrete and masonry.

Simpson Strong-Tie TNTW18214TFC75 Includes

  • (75) 3/16" x 2-1/4" Flat Head Concrete and Masonry Screw Anchor
  • (1) T25 drive bit
  • (1) standard ANSI drill bit

Simpson Strong-Tie TNTW18214TFC75 Features

  • Patented torque reduction channel for reduced binding and stripping
  • Smooth driving with less torque
  • Superior holding power with reverse thread design
  • Quick and easy installation in concrete and masonry
  • Code listed for uncracked concrete and masonry applications

Simpson Strong-Tie TNTW18214TFC75 Applications

  • Wood-to-concrete anchoring
  • Wood-to-wood anchoring
  • General concrete and masonry fastening

Simpson Strong-Tie TNTW18214TFC75 Installation Overview

  1. Drill a hole using the specified diameter carbide drill bit.
  2. Position the fixture and insert the screw.
  3. Tighten using a drill and the Titen Turbo installation tool.

Simpson Strong-Tie TNTW18214TFC75 Specifications

Diameter 3/16"
Length 2-1/4"
Material Carbon Steel
Finish White Zinc

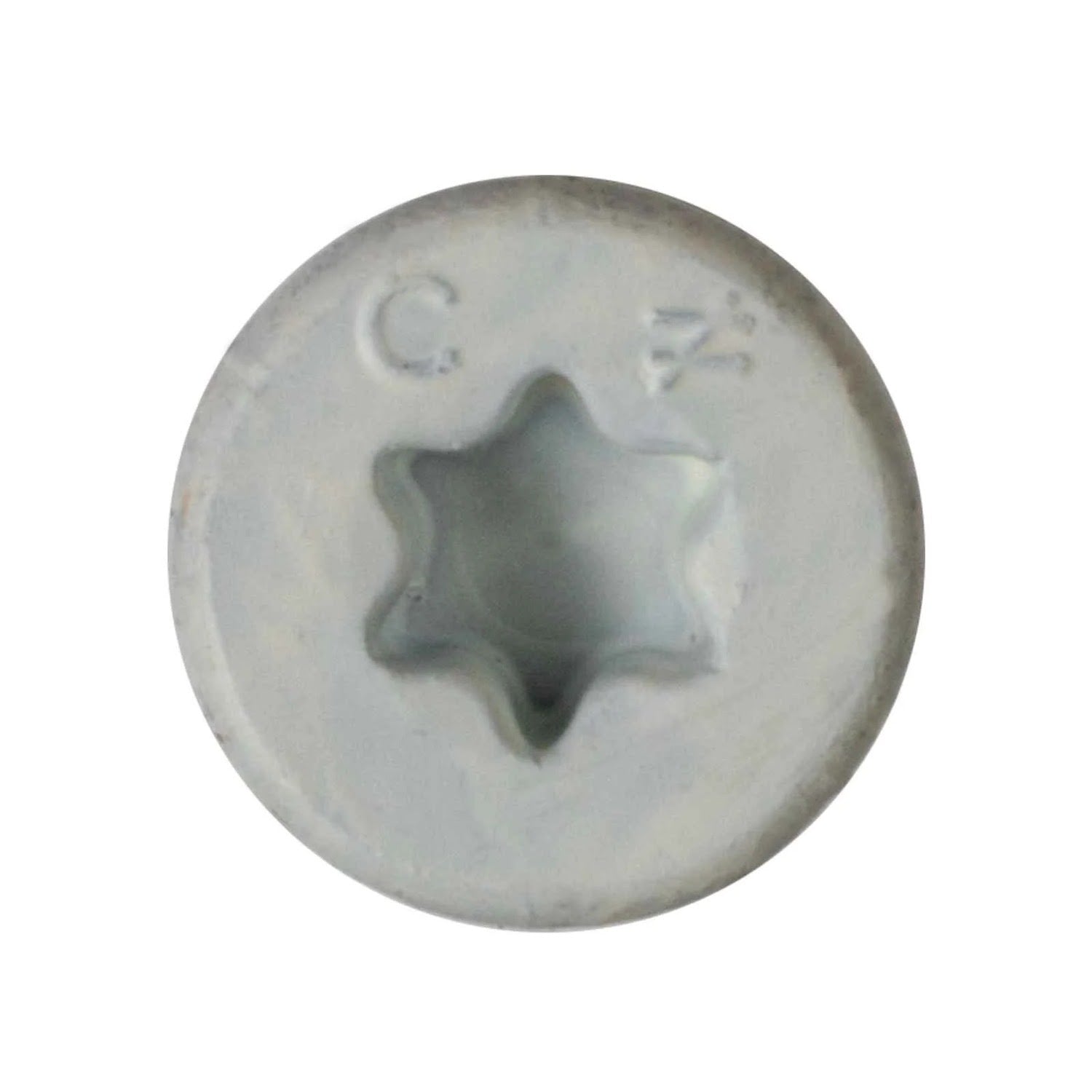

Drive Type T25 Star Drive
Head Type Flat Head
Drill Bit Size 5/32"

NOTE: Ensure the correct fasteners are used in the correct position to achieve published load values.
