Simpson Anchors | SKU:
TNTW18234TF

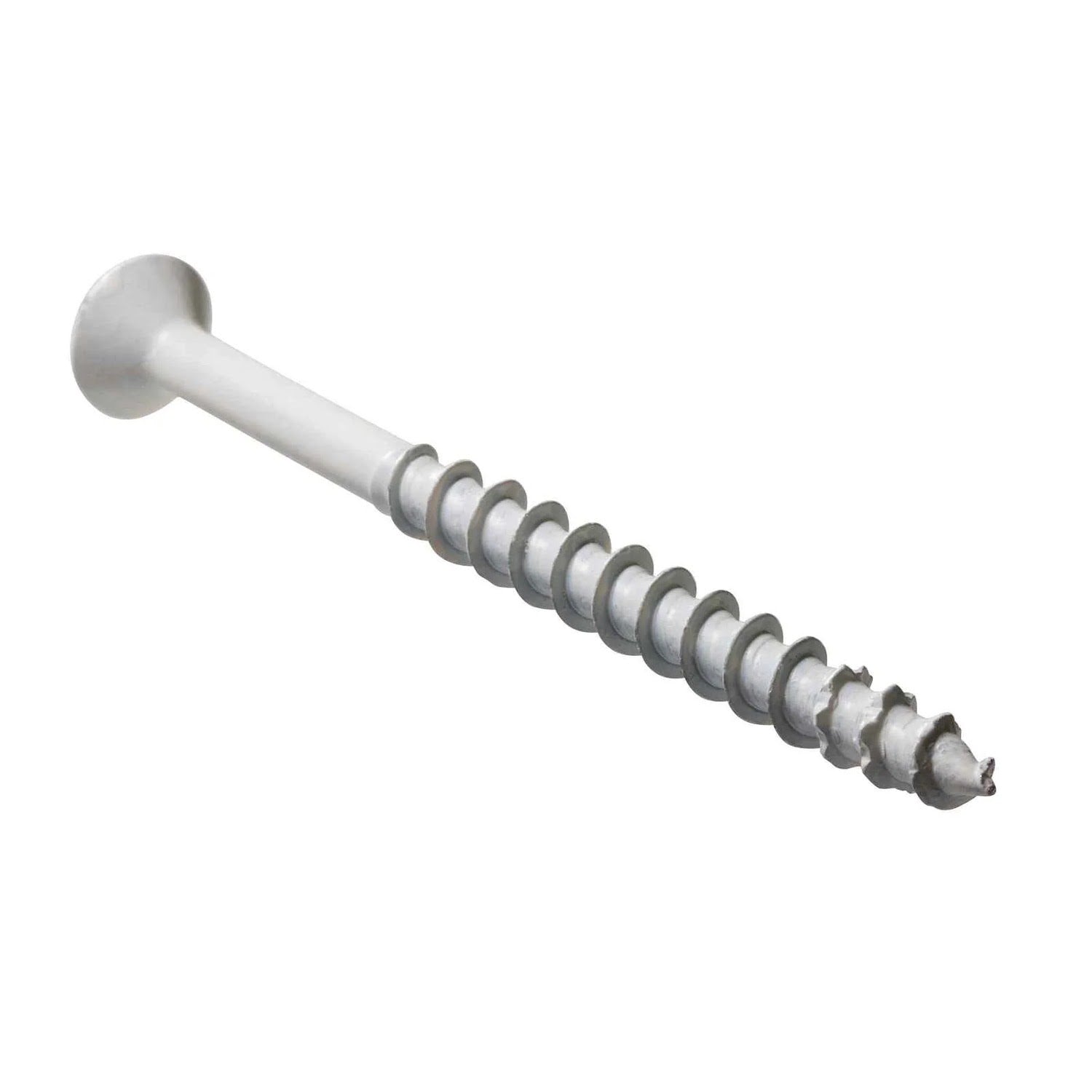

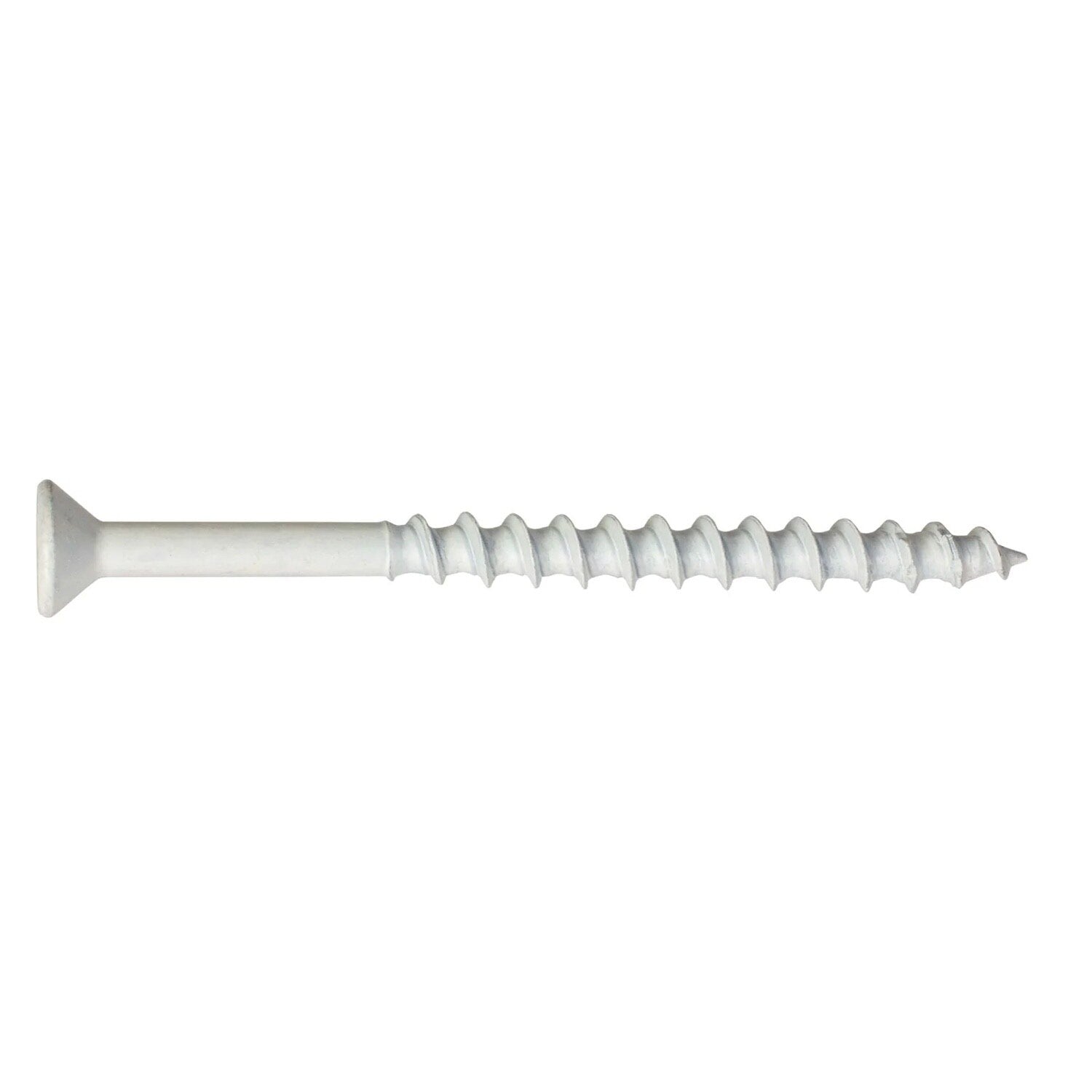

Simpson Strong-Tie TNTW18234TF Titen Turbo (3/16" x 2-3/4") T25 Flat-Head Concrete and Masonry Screw, White (100 Pack)
$14.60
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie TNTW18234TF Description
The Simpson Strong-Tie Titen Turbo screw anchor is a heavy-duty fastener designed for quick and easy installation in concrete and masonry applications. It features a patented torque reduction channel for smooth driving and superior holding power.
Simpson Strong-Tie TNTW18234TF Includes
- (100) 3/16 in. x 2-3/4 in. Titen Turbo Concrete and Masonry Screw
- (1) T25 drive bit
Simpson Strong-Tie TNTW18234TF Features
- Patented Torque Reduction Channel for reduced binding and smooth driving
- Available in multiple coatings and head types for various applications

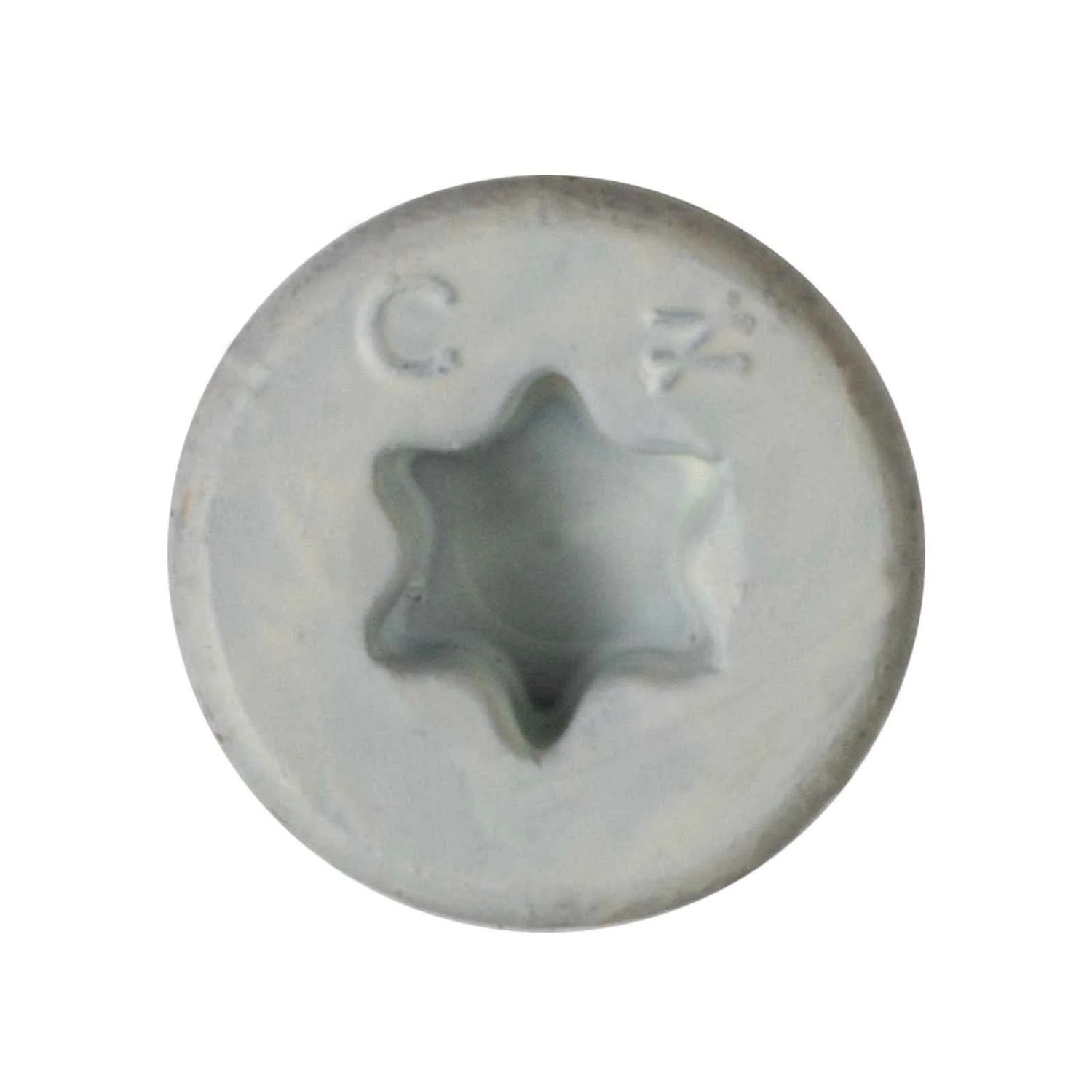

- 6-lobe drive for positive bit engagement and long bit life
- Superior tension load performance
- Designed for use with impact drivers or cordless drills
Simpson Strong-Tie TNTW18234TF Applications
- Electrical boxes and conduit mounting
- Switch boxes and light fixtures installation
- Window and threshold anchoring
- Basement furring strips attachment
- Shelf mounting to concrete or CMU
- Handrail installation
Simpson Strong-Tie TNTW18234TF Installation Overview
- Drill a hole in the base material using the specified diameter carbide drill bit.
- Position the fixture and insert the screw.
- Tighten using a drill and the Titen Turbo screw installation tool fitted with a hex socket or 6-lobe bit socket.
Simpson Strong-Tie TNTW18234TF Specifications
| Material | Carbon Steel |
| Finish | White Zinc |
| Diameter | 3/16 in. |
| Length | 2-3/4 in. |
| Drill Bit Size | 5/32 in. |
| Drive Type | T25 Star Drive |
| Head Type | Flat Head |
| Quantity | 100 |
NOTE: Designed for installation with an impact driver or cordless drill. Installation using the Titen Turbo Installation Tool is recommended. Matched-tolerance bit not required; use a standard ANSI drill bit for installation. Intended for use in dry interior environments only.
