Simpson Anchors | SKU:
TNTW18234TFC25
Simpson Strong-Tie TNTW18234TFC25 Titen Turbo (3/16" x 2-3/4") T25 Flat-Head Concrete and Masonry Screw, White (25 Pack)
$8.17
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie TNTW18234TFC25 Description

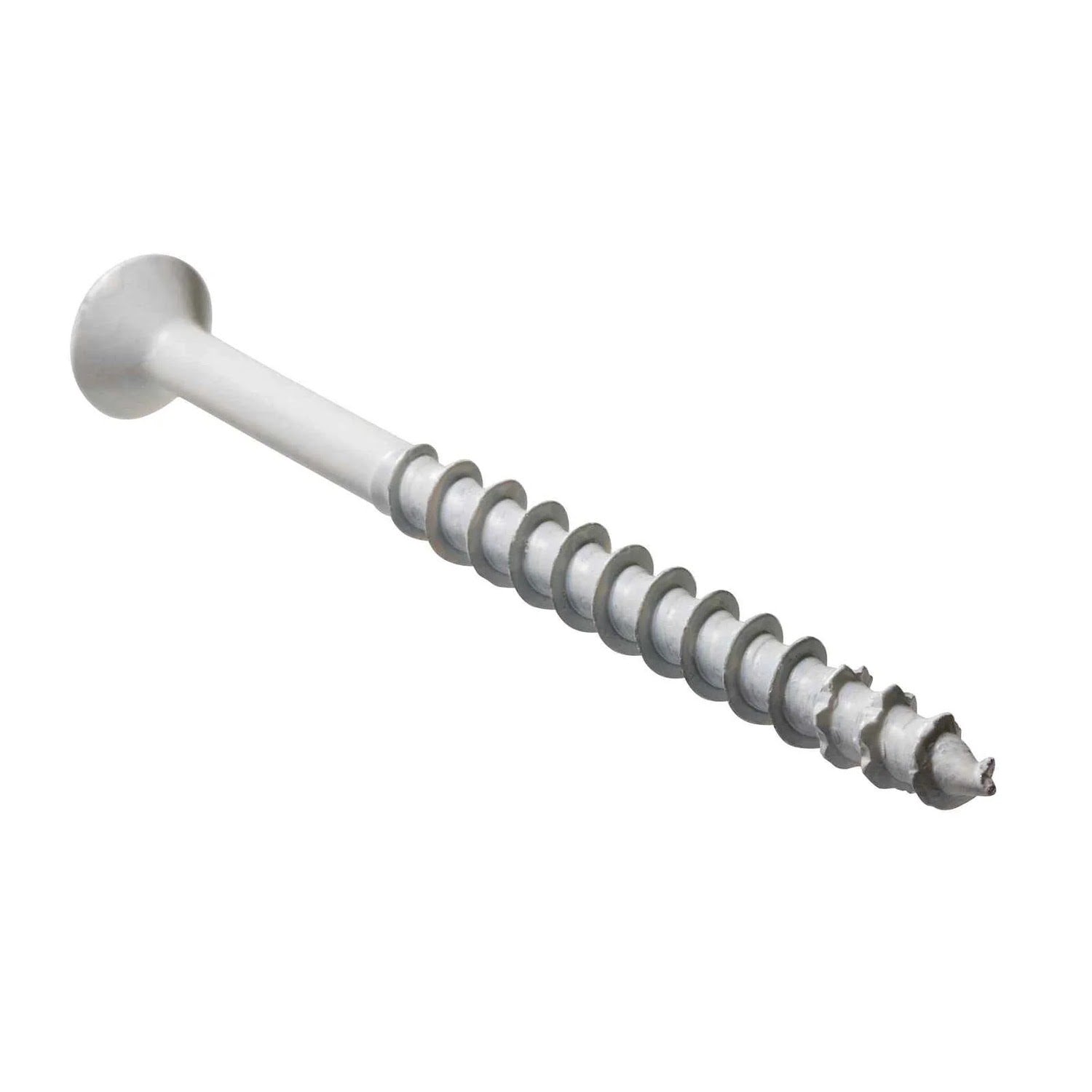

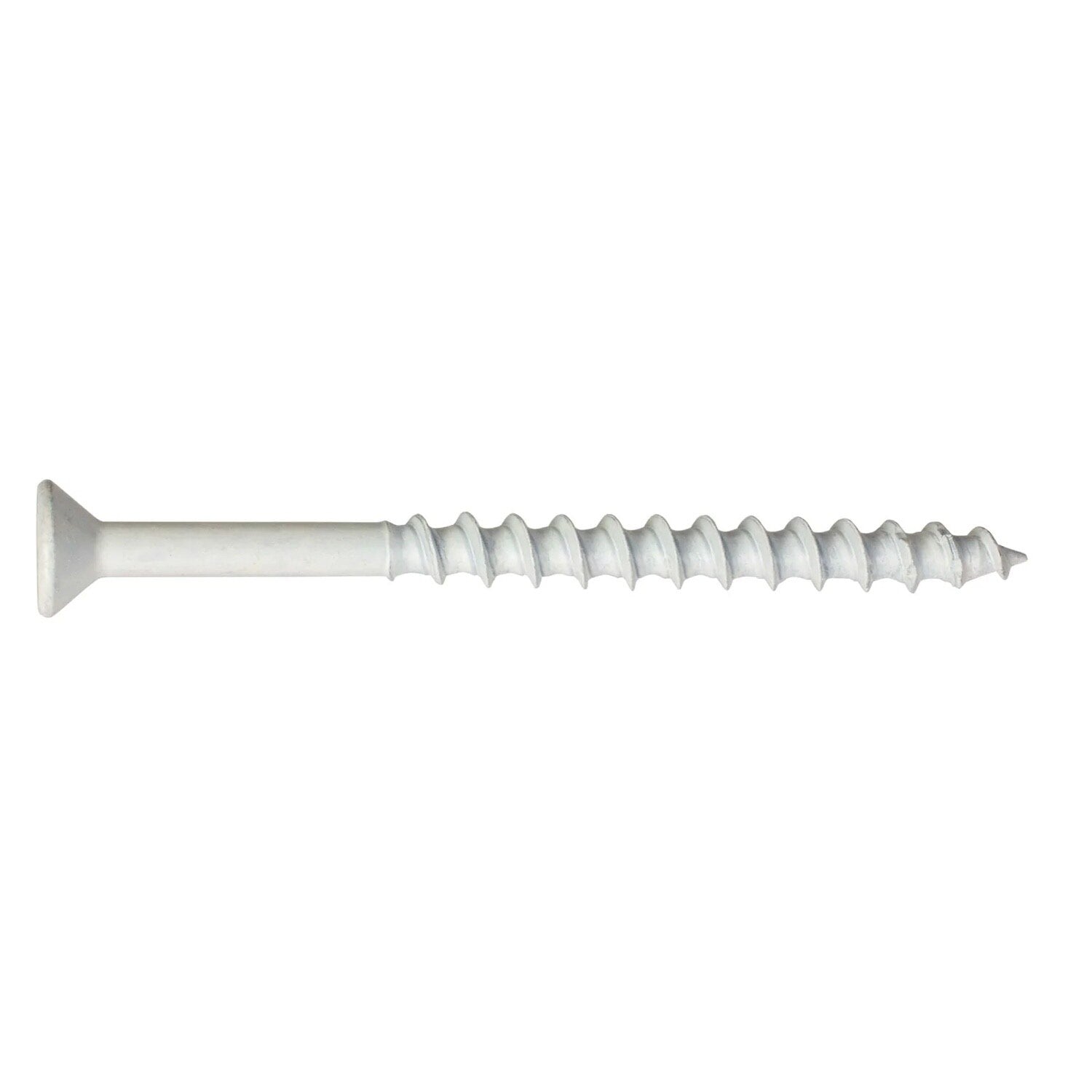

The Simpson Strong-Tie Titen Turbo screw anchor is a heavy-duty fastener featuring an innovative torque reduction channel for reduced binding and superior holding power.
Simpson Strong-Tie TNTW18234TFC25 Includes
- (25) Titen Turbo Screw Anchor
Simpson Strong-Tie TNTW18234TFC25 Features
- Patented Torque Reduction Channel for reduced binding
- Available in multiple coated versions including White Zinc

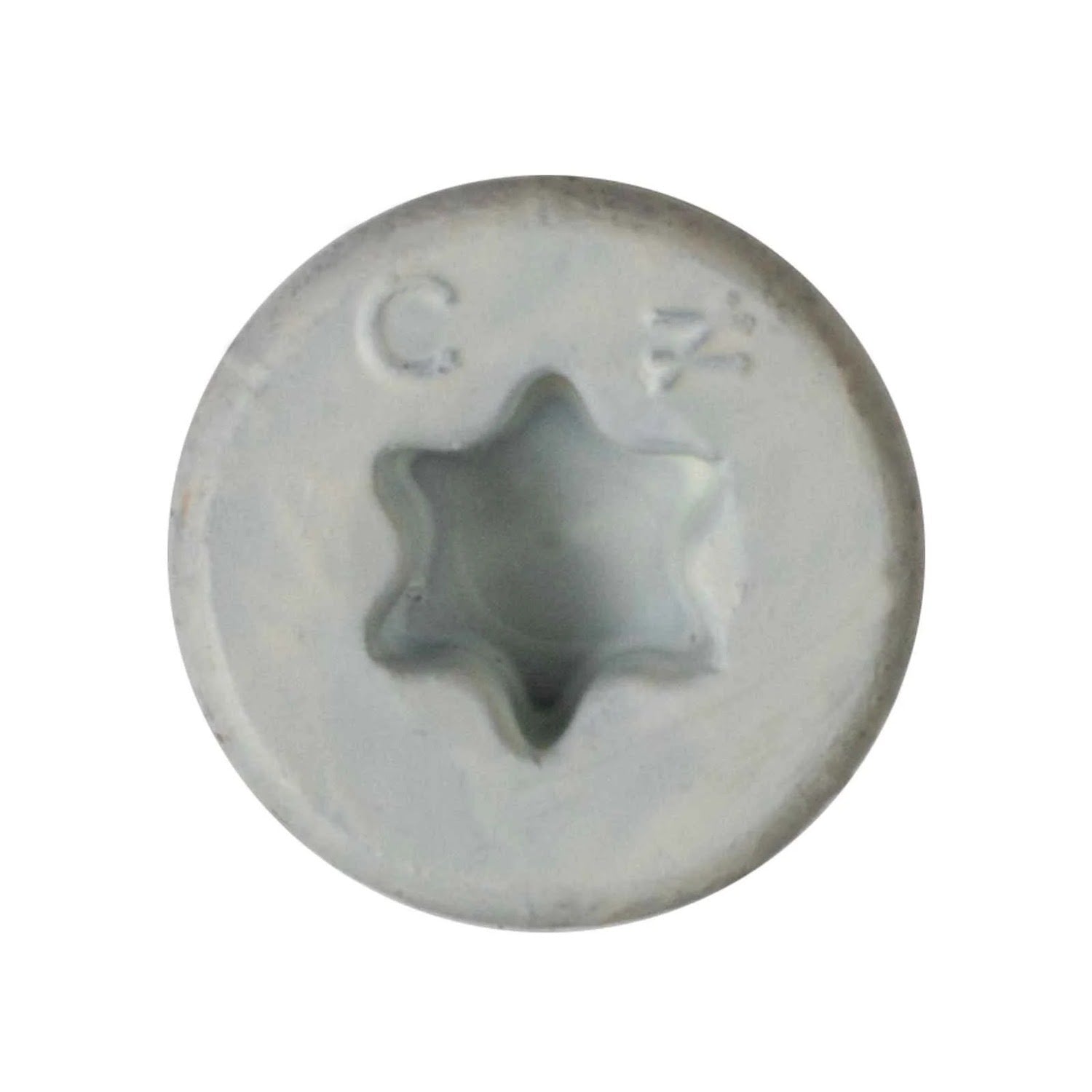

- 6-lobe drive for positive bit engagement
- Superior tension load performance
- Designed for use with standard ANSI drill bits
- Serrated screw point for easier starts
- Code listed for uncracked concrete and masonry applications
Simpson Strong-Tie TNTW18234TFC25 Applications
- Wood-to-concrete anchoring
- Wood-to-wood anchoring
- Electrical boxes and conduit mounting
- Light fixtures and window installations
- Handrails and thresholds
Simpson Strong-Tie TNTW18234TFC25 Installation Overview
- Drill a hole using the specified diameter carbide drill bit.
- Position the fixture and insert the screw.
- Tighten using a drill and the Titen Turbo installation tool.
Simpson Strong-Tie TNTW18234TFC25 Specifications
| Diameter | 3/16" |
| Finish | White Zinc |
| Length | 2-3/4" |
| Material | Carbon Steel |
| Drill bit size | 5/32" |
| Drive type | T25 Star Drive |
| Head type | Flat Head |
| Quantity | 25 |
NOTE: Designed for installation with an impact driver or cordless drill. Installation using the Titen Turbo Installation Tool is recommended. Matched-tolerance bit not required; use a standard ANSI drill bit for installation. Intended for use in dry interior environments only.
