Simpson Anchors | SKU:
TNTW18234TFC75

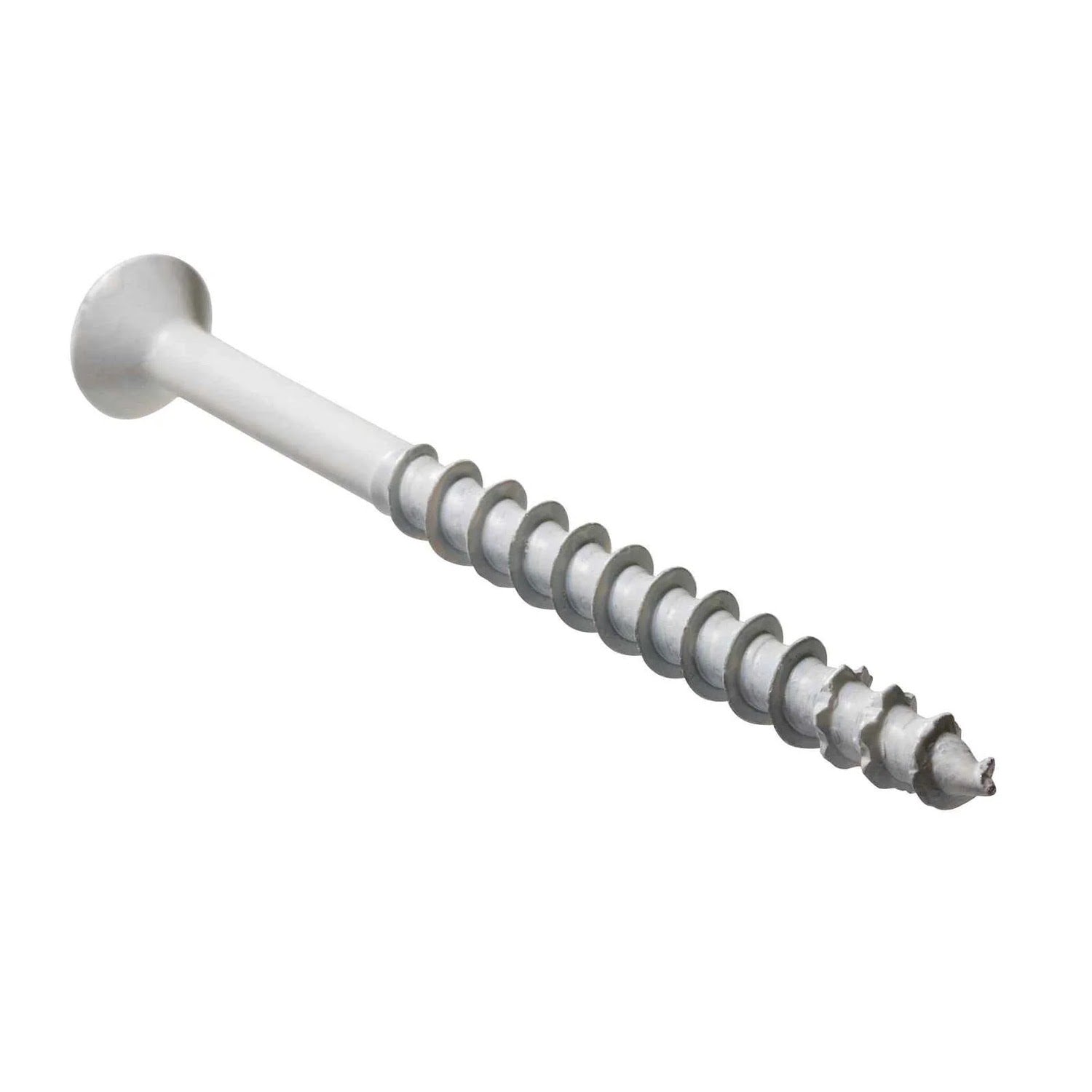

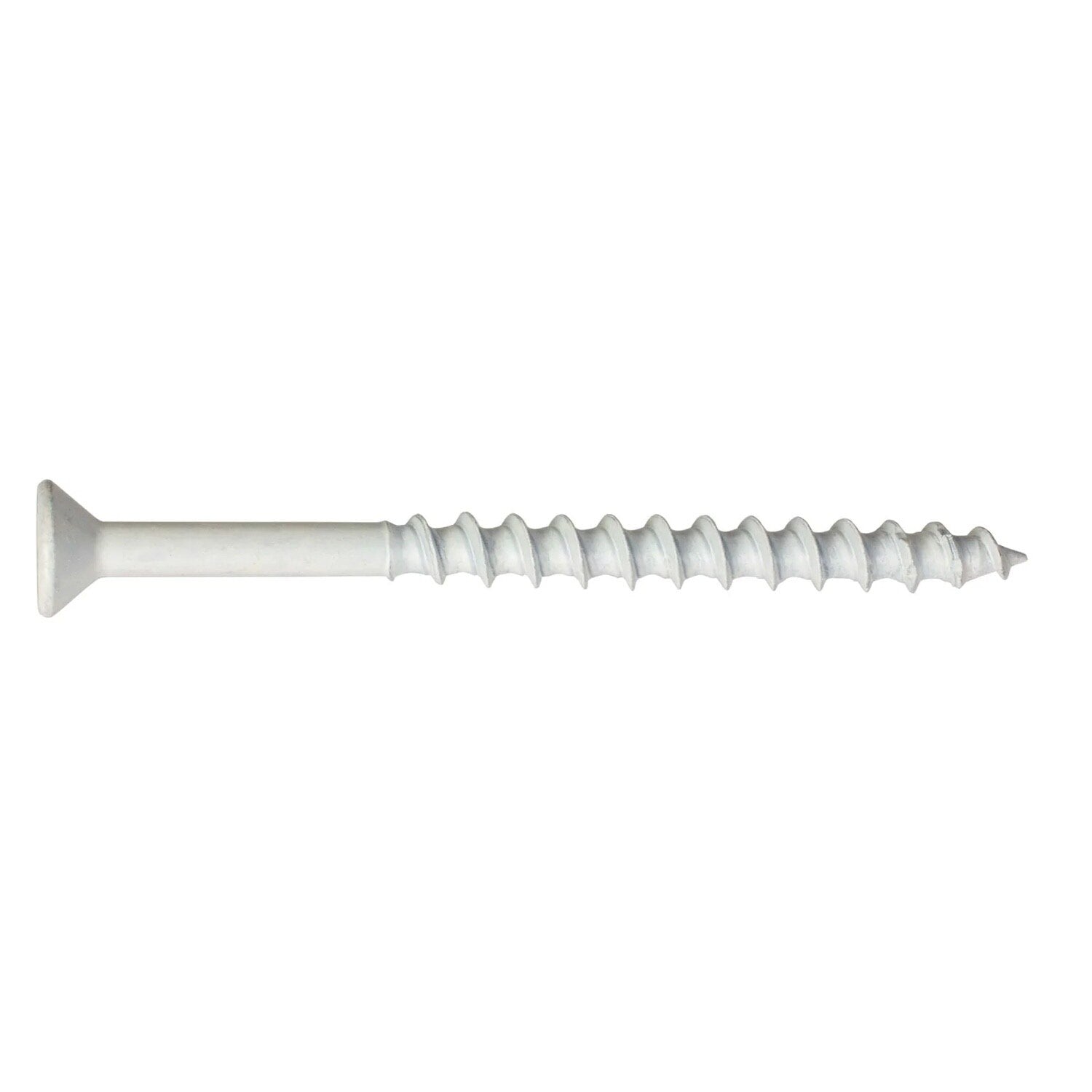

Simpson Strong-Tie TNTW18234TFC75 Titen Turbo (3/16" x 2-3/4") T25 Flat-Head Concrete and Masonry Screw, White (75 Pack)
$17.52
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie TNTW18234TFC75 Description
The Simpson Strong-Tie Titen Turbo screw anchor is a heavy-duty fastener featuring an innovative torque reduction channel to trap drilling dust, reducing binding and snapping while ensuring superior holding power.
Simpson Strong-Tie TNTW18234TFC75 Includes
- (75) 3/16" x 2-3/4" Screw Anchors
- (1) T25 Drive Bit
- (1) Standard ANSI Drill Bit
Simpson Strong-Tie TNTW18234TFC75 Features
- Patented Torque Reduction Channel for reduced binding
- Available in multiple coated versions
- Hex head or 6-lobe-drive countersunk flat head options
- Superior tension load performance
- Designed for use with impact drivers or cordless drills
- Code listed for uncracked concrete and masonry applications
Simpson Strong-Tie TNTW18234TFC75 Applications
- Wood-to-concrete anchoring
- Wood-to-wood anchoring
- Electrical boxes and conduit
- Light fixtures and thresholds
- Basement furring strips
- Shelf mounting to concrete/CMU
- Handrails
Simpson Strong-Tie TNTW18234TFC75 Installation Overview
- Drill a hole using the specified diameter carbide drill bit.
- Position fixture and insert screw.
- Tighten using drill and Titen Turbo screw installation tool fitted with a hex socket or 6-lobe bit socket.
Simpson Strong-Tie TNTW18234TFC75 Specifications
| Diameter | 3/16" |
| Finish | White Zinc |
| Length | 2-3/4" |
| Material | Carbon Steel |
| Drill bit size | 5/32" |
| Drive type | T25 Star Drive |

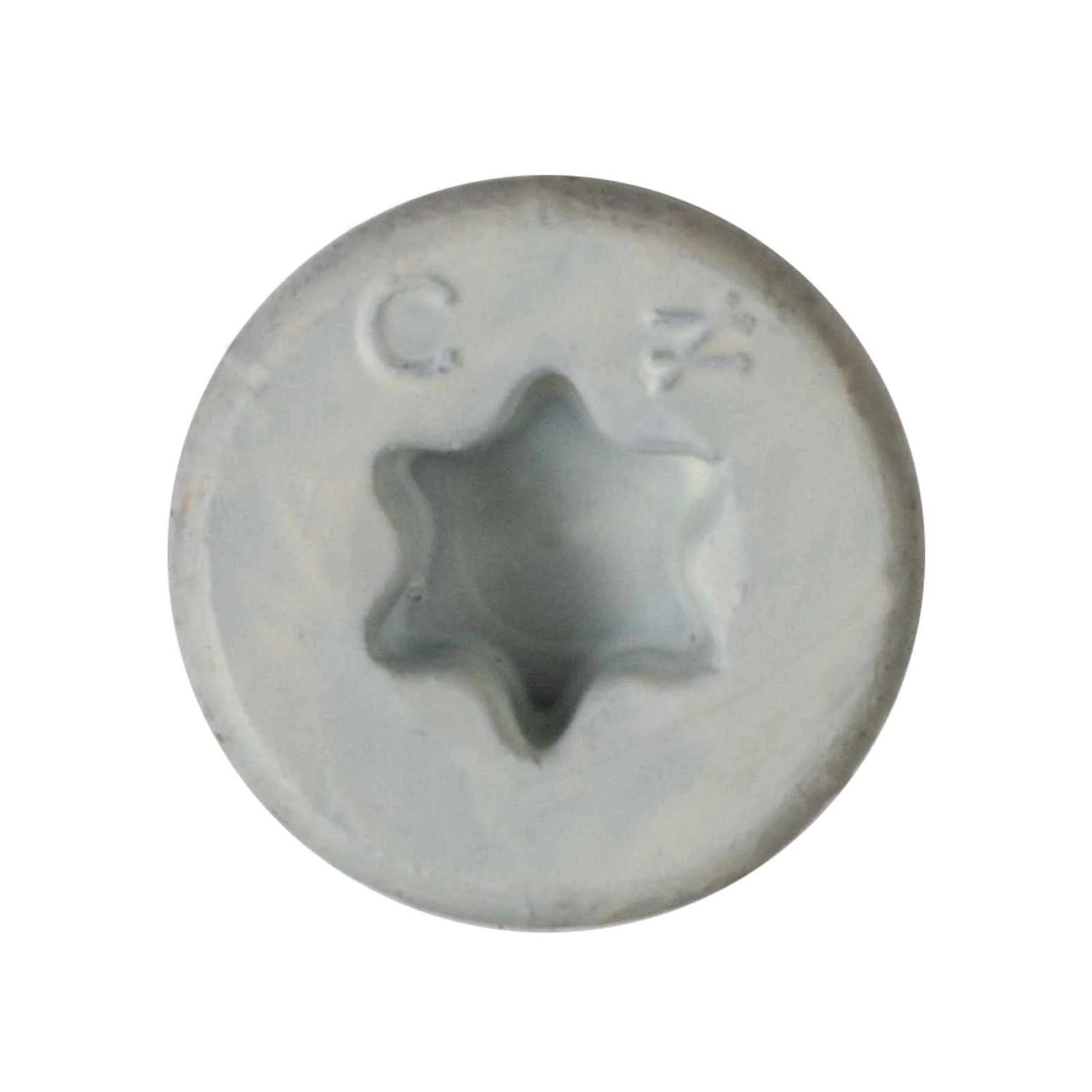

| Head type | Flat Head |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 75 |
NOTE: Designed for installation with an impact driver or cordless drill. Installation using the Titen Turbo Installation Tool is recommended. Matched-tolerance bit not required; use a standard ANSI drill bit for installation. Intended for use in dry interior environments only.
