Simpson Anchors | SKU:
TNTW18234TFC8

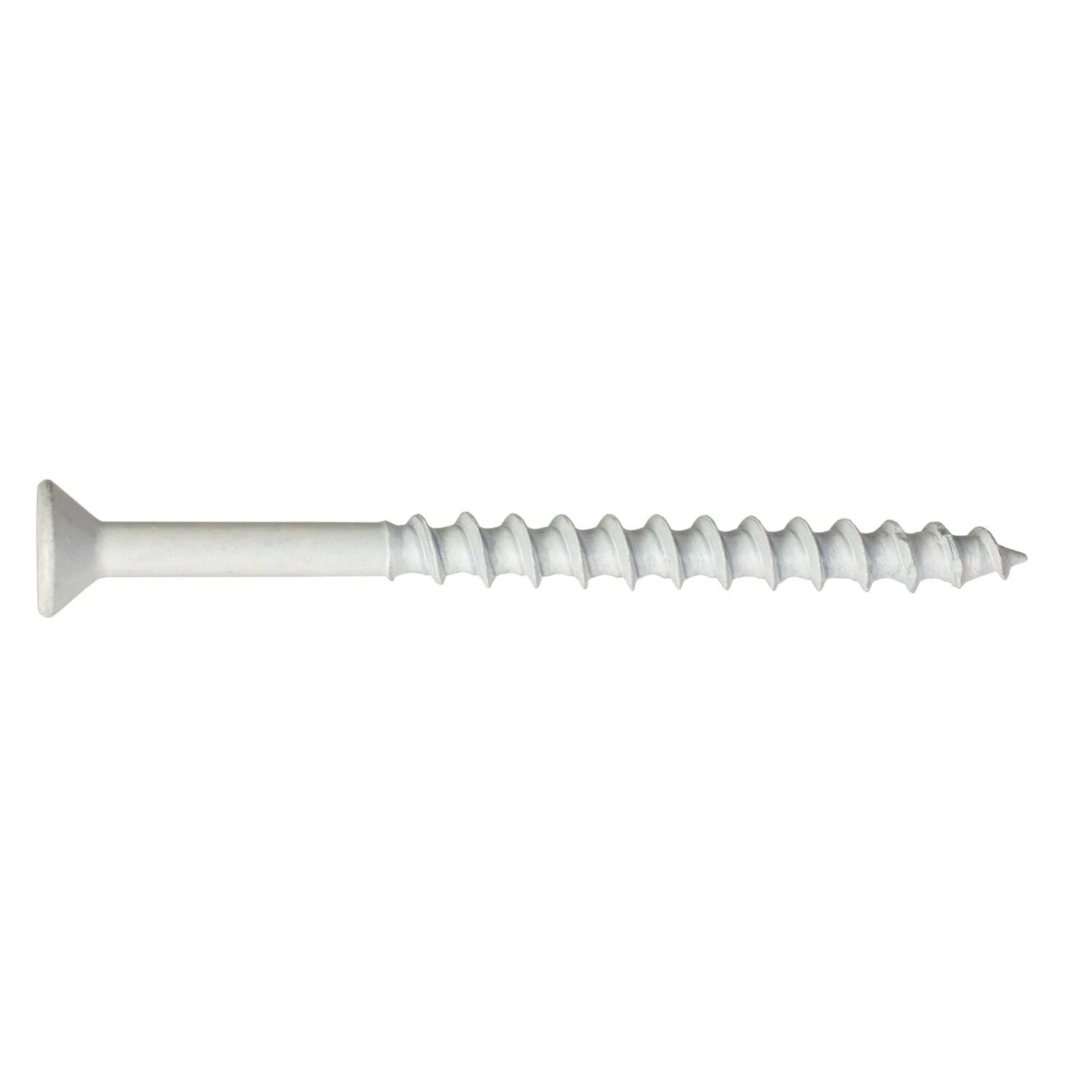

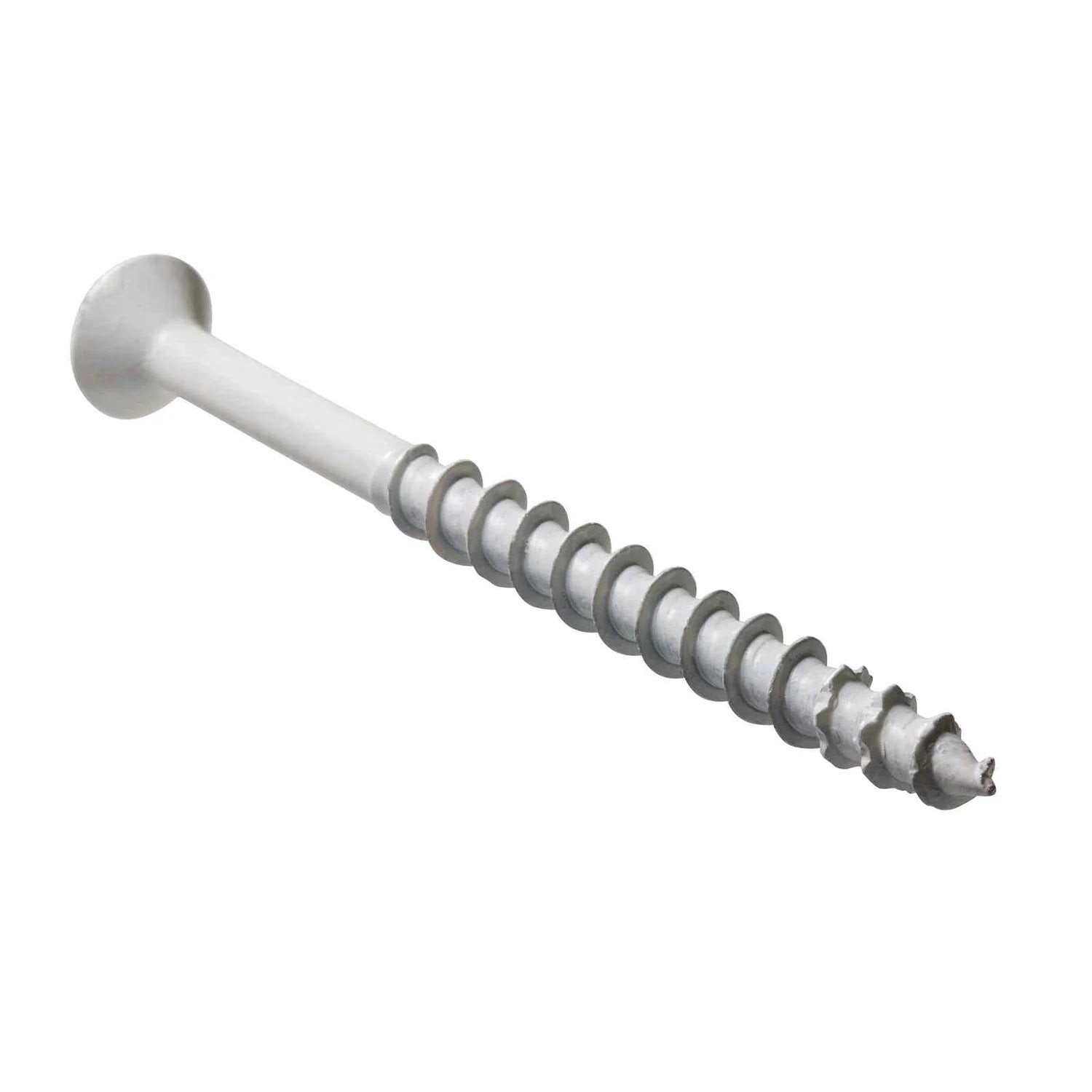

Simpson Strong-Tie TNTW18234TFC8 Titen Turbo(3/16" x 2-3/4") T25 Flat-Head Concrete and Masonry Screw, White (8 Pack)
$3.74
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie TNTW18234TFC8 Description
The Simpson Strong-Tie Titen Turbo screw anchor is a heavy-duty fastener designed for quick and easy installation in wood-to-concrete and wood-to-wood anchoring applications.
Simpson Strong-Tie TNTW18234TFC8 Includes
- (8) 3/16" x 2-3/4" Flat Head Titen Turbo Screw Anchor
Simpson Strong-Tie TNTW18234TFC8 Features
- Patented Torque Reduction Channel for reduced binding
- Available in multiple coated versions including White Zinc

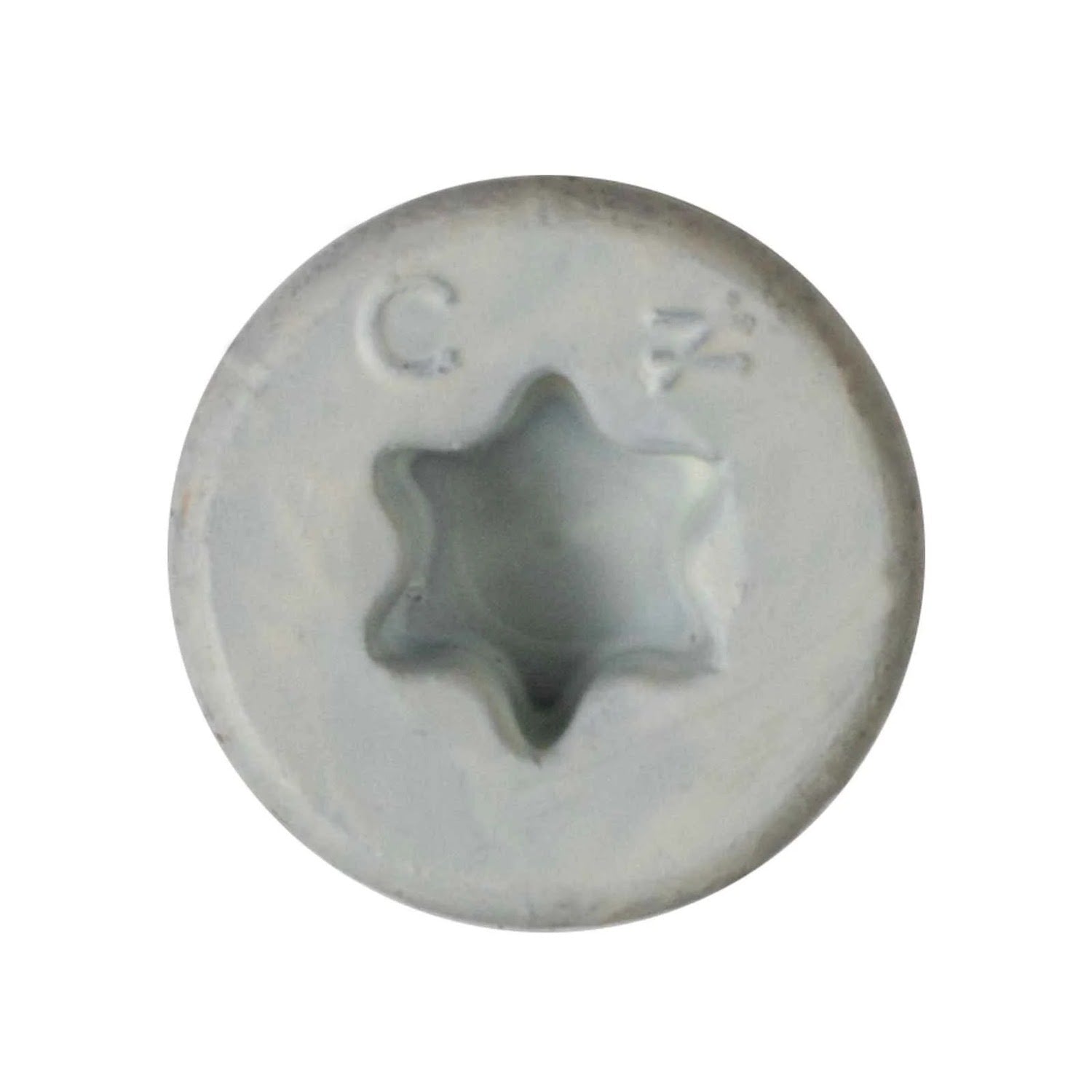

- 6-lobe drive for positive bit engagement
- Superior tension load performance
- Designed for use with impact drivers or cordless drills
Simpson Strong-Tie TNTW18234TFC8 Applications
- Wood-to-concrete anchoring
- Wood-to-wood anchoring
- Electrical boxes and conduit mounting
- Light fixtures and window installations
- Shelf mounting to concrete or CMU
Simpson Strong-Tie TNTW18234TFC8 Installation Overview
- Drill a hole using the specified diameter carbide drill bit.
- Position the fixture and insert the screw.
- Tighten using a drill and the Titen Turbo installation tool.
Simpson Strong-Tie TNTW18234TFC8 Specifications
| Diameter | 3/16" |
| Finish | White Zinc |
| Length | 2-3/4" |
| Material | Carbon Steel |
| Drill bit size | 5/32" |
| Drive type | T25 Star Drive |
| Head type | Flat Head |
| Quantity | 8 |
NOTE: Designed for installation with an impact driver or cordless drill. Installation using the Titen Turbo Installation Tool is recommended. Matched-tolerance bit not required; use a standard ANSI drill bit for installation. Intended for use in dry interior environments only.
