Simpson Anchors | SKU:
TNTW18314TF

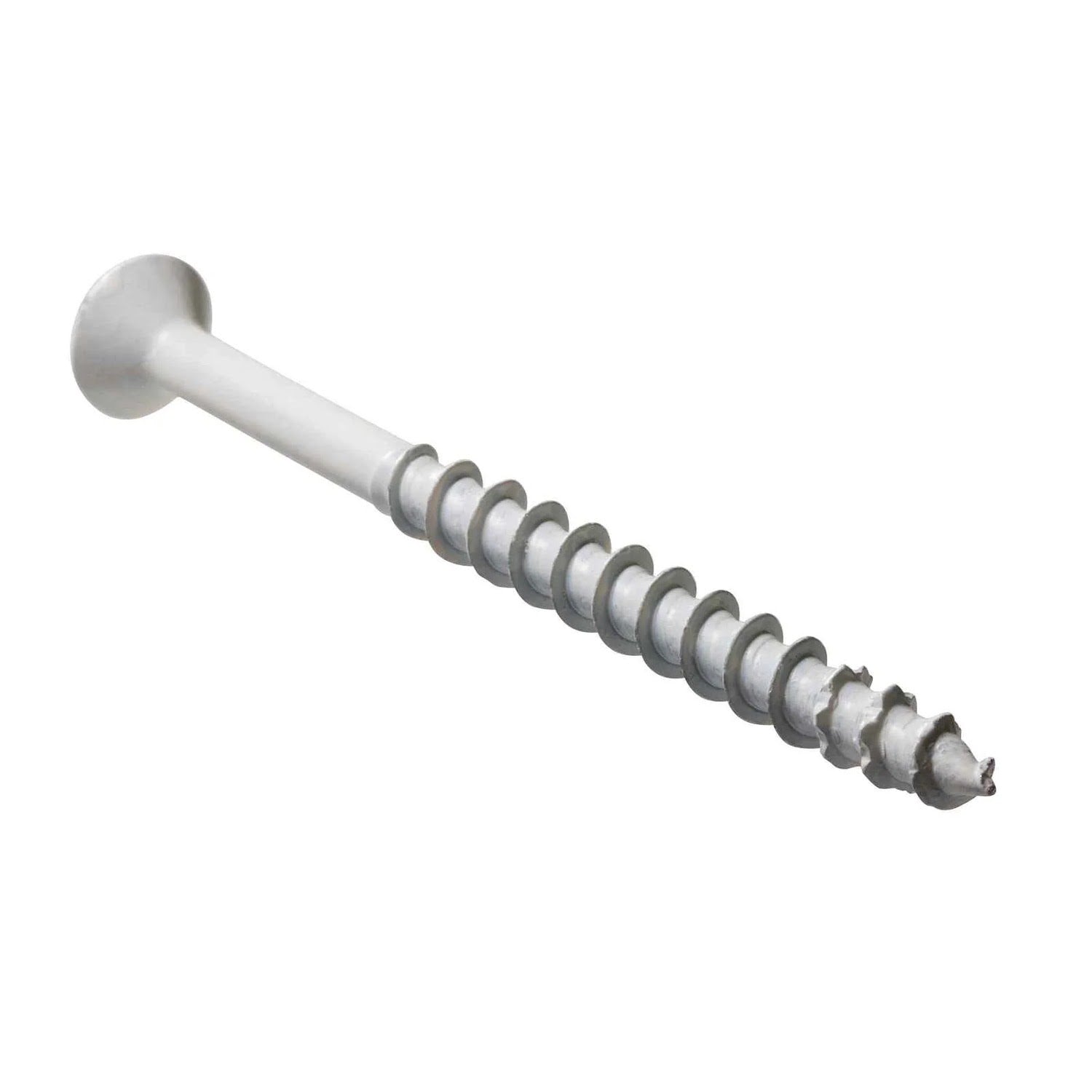

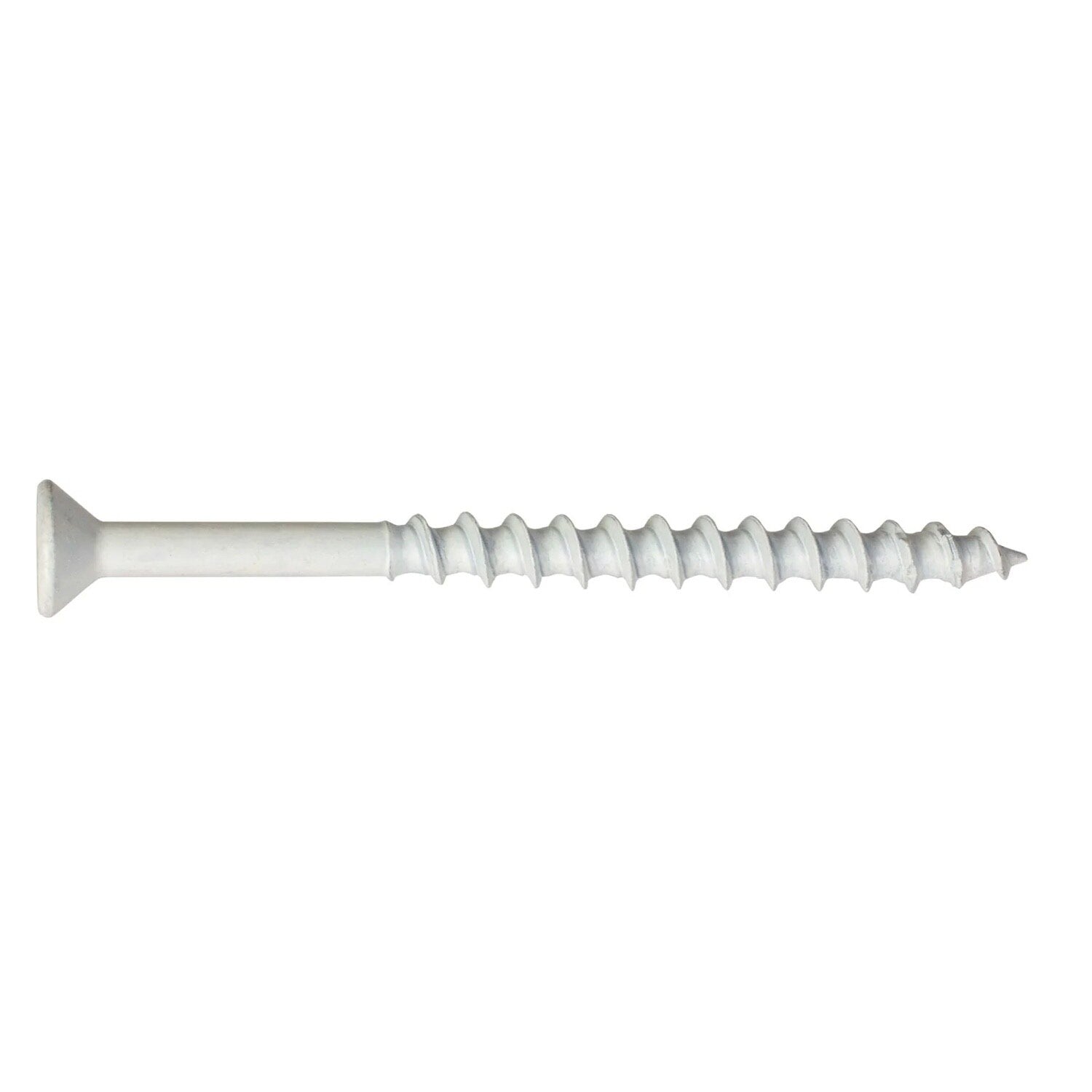

Simpson Strong-Tie TNTW18314TF Titen Turbo (3/16" x 3-1/4") T25 Flat-Head Concrete and Masonry Screw, White (100 Pack)
$16.67
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie TNTW18314TF Description
The Simpson Strong-Tie Titen Turbo screw anchor is a heavy-duty fastener designed for quick and easy installation in concrete and masonry applications. It features a patented torque reduction channel for smooth driving and superior holding power.
Simpson Strong-Tie TNTW18314TF Includes
- (100) 3/16 x 3-1/4 in. Titen Turbo Concrete and Masonry Screws
- (1) T25 driver bit
Simpson Strong-Tie TNTW18314TF Features
- Patented Torque Reduction Channel for reduced binding and smooth driving
- Available in multiple finishes including White Zinc
- Flat head design for a flush profile

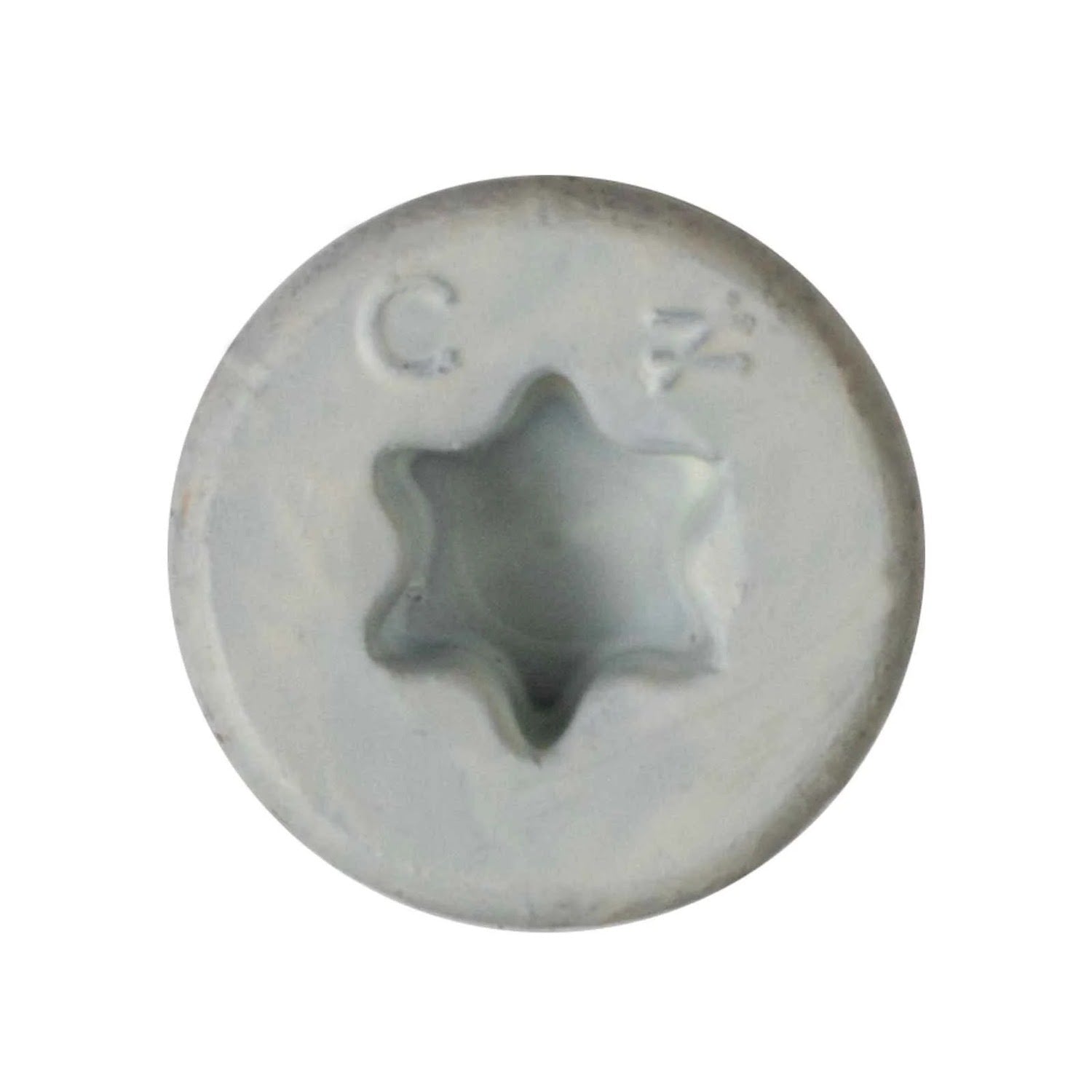

- 6-lobe drive for positive bit engagement and long bit life
- Superior tension load performance
- Designed for use with standard ANSI drill bits
- Serrated screw point for easier starts when fastening wood
- Code listed for uncracked concrete and masonry applications
Simpson Strong-Tie TNTW18314TF Applications
- Electrical boxes and conduit installation
- Mounting light fixtures and windows
- Securing thresholds and basement furring strips
- Shelf mounting to concrete or CMU
- Handrail installation
Simpson Strong-Tie TNTW18314TF Installation Overview
- Drill a hole in the base material using a 5/32 in. carbide drill bit to the specified depth.
- Position the fixture and insert the screw.
- Tighten using a drill and the Titen Turbo screw installation tool fitted with a hex socket or 6-lobe bit socket.
Simpson Strong-Tie TNTW18314TF Specifications
| Material | Carbon Steel |
| Finish | White Zinc |
| Diameter | 3/16 in. |
| Length | 3-1/4 in. |
| Drill Bit Size | 5/32 in. |
| Drive Type | T25 Star Drive |
| Head Type | Flat Head |
| Quantity | 100 |
NOTE: Designed for installation with an impact driver or cordless drill. Installation using the Titen Turbo Installation Tool is recommended.
