Simpson Anchors | SKU:
TNTW25134TF

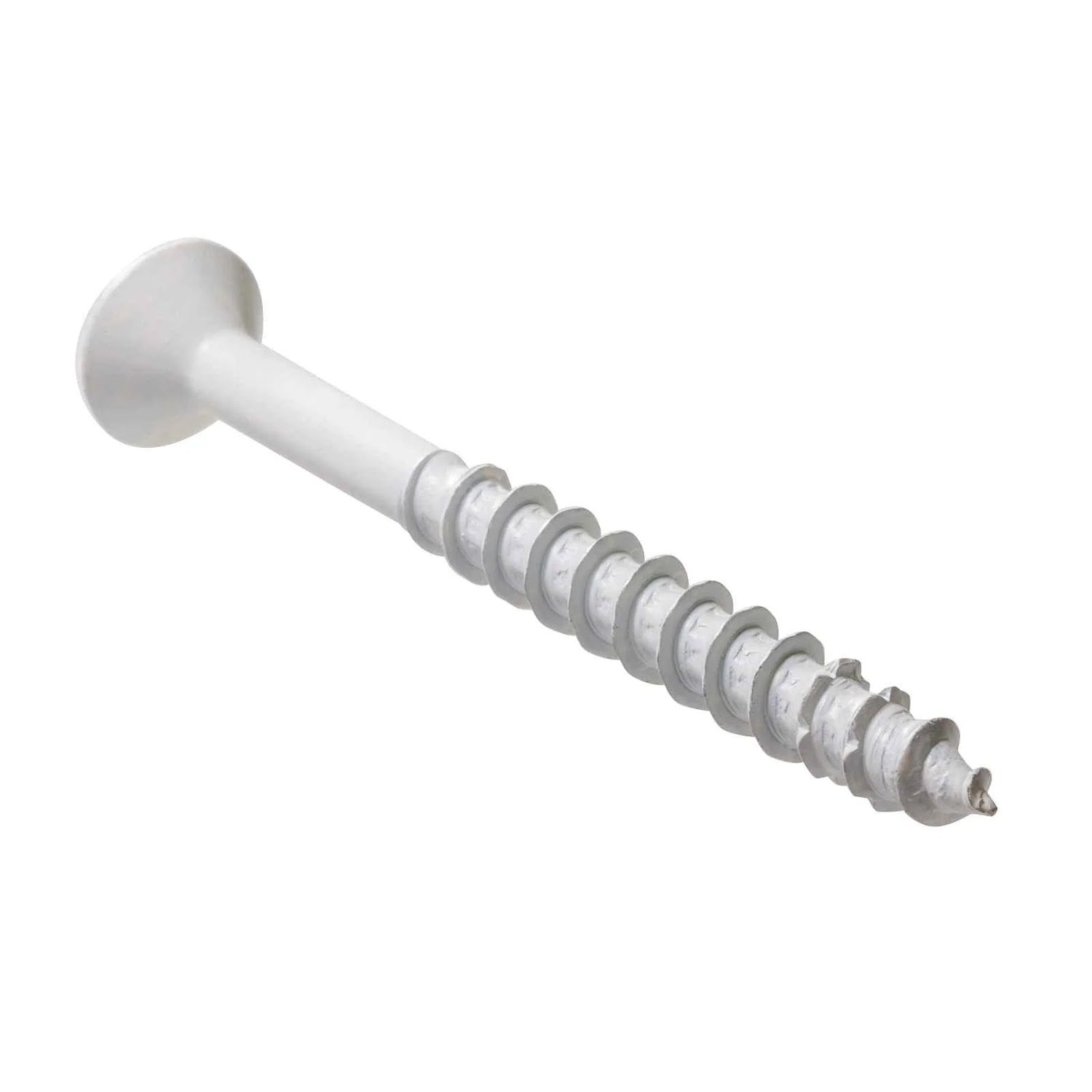

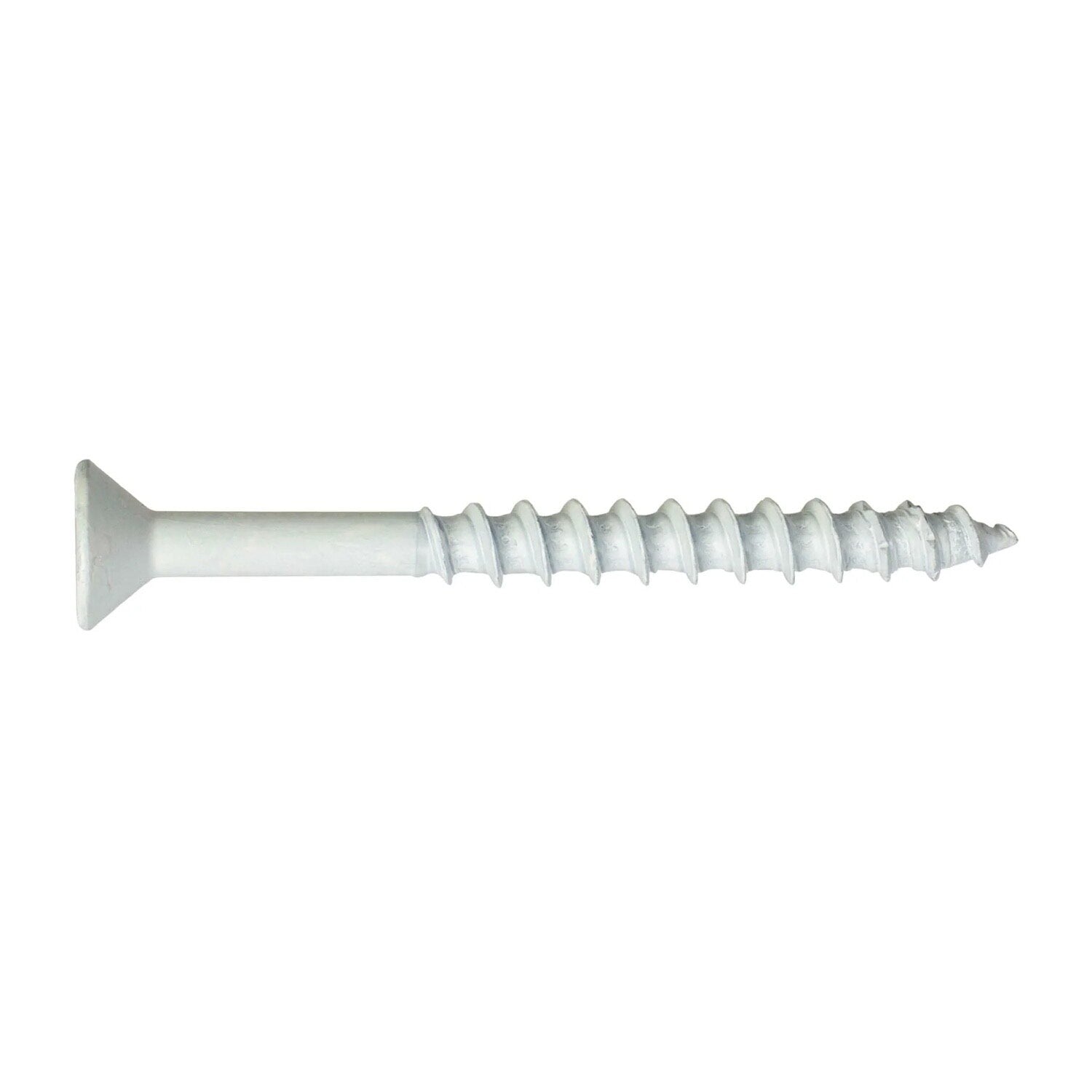

Simpson Strong-Tie TNTW25134TF Titen Turbo(1/4" x 1-3/4") T30 Flat-Head Concrete and Masonry Screw, White (100 Pack)
$14.88
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie TNTW25134TF Description
The Simpson Strong-Tie Titen Turbo screw anchor is a heavy-duty fastener designed for quick and easy installation in concrete and masonry applications. Featuring a patented torque reduction channel, it ensures smooth driving with less torque and superior holding power.
Simpson Strong-Tie TNTW25134TF Includes
- (100) 1/4in x 1-3/4in Titen Turbo Concrete and Masonry Screws
- (1) T30 driver bit
Simpson Strong-Tie TNTW25134TF Features
- Patented Torque Reduction Channel for reduced binding
- Available in multiple coated versions including White

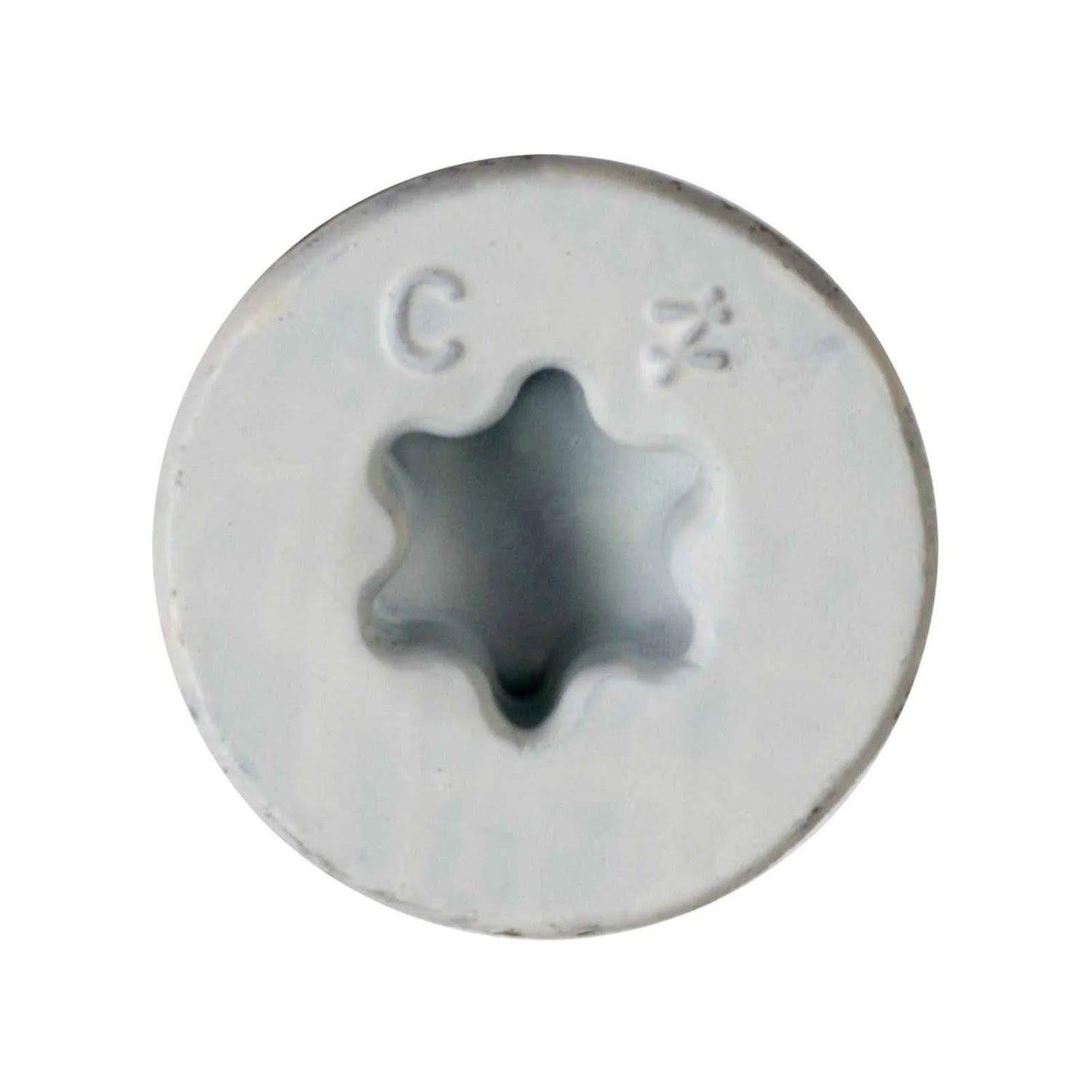

- 6-lobe drive for positive bit engagement
- Superior tension load performance
- Designed for use with impact drivers or cordless drills
Simpson Strong-Tie TNTW25134TF Applications
- Electrical boxes and conduit mounting
- Switch boxes and light fixtures installation
- Window and threshold anchoring
- Basement furring strips attachment
- Shelf mounting to concrete or CMU
- Handrails installation
Simpson Strong-Tie TNTW25134TF Installation Overview
- Drill a hole using the specified diameter carbide drill bit.
- Position the fixture and insert the screw.
- Tighten using a drill and the Titen Turbo installation tool.
Simpson Strong-Tie TNTW25134TF Specifications
| Material | Carbon Steel |
| Finish | Zinc plated with a baked-on ceramic coating |
| Head Type | Flat Head |
| Drive Type | T30 6-Lobe |
| Drill Bit Diameter | 3/16 in. |
| Size | 1/4 in. x 1-3/4 in. |
| Color | White |
| Packaging Quantity | 100 |
NOTE: Designed for installation with an impact driver or cordless drill. Installation using the Titen Turbo Installation Tool is recommended. Matched-tolerance bit not required; use a standard ANSI drill bit for installation. Intended for use in dry interior environments only.
